Water Softener Leaking? How to Find the Source and Fix It

Water Softener Leaking? Start Here

A water softener leaking onto the floor is almost always one of a few specific failures: a worn seal at the valve head, a loose fitting, a clogged or stuck brine-tank float, or, less often, a cracked tank. The first move is not to grab a wrench. It is to stop the water and figure out exactly where it is coming from. Do those two things and most softener leaks turn from an emergency into a thirty-minute fix.

Water pools at the lowest point it can reach, so the puddle on your floor is rarely directly under the actual leak. Picture a roof leak: the stain shows up several feet from the hole because the water runs along a beam before it drips. A softener leak behaves the same way. Trace it back to the source before you decide whether this is a do-it-yourself job or a call to a pro. Crystal Quest has designed and built water softeners and salt-free conditioners for over 30 years, and the leaks we see most often start at a seal or an O-ring, not a failed tank.

Before you investigate, put the system in bypass. Your softener has a bypass valve where the house plumbing meets the unit. Turning it to "bypass" routes water around the softener so the rest of your home keeps running while you work, and it takes pressure off the leak. If the leak is heavy or you cannot find the bypass, shut off your home's main water supply instead.

Key Takeaways

Where Is Your Water Softener Leaking From?

Start by drying the whole unit with a towel, then watch where water reappears first. The location tells you the likely cause and how urgent it is. A leak from the top usually means a seal at the valve. A leak from the bottom of the tank is more serious. Water around the brine tank often means an overflow, not a true leak at all.

Use this table to narrow it down, then read the matching section below.

Leaking From the Top

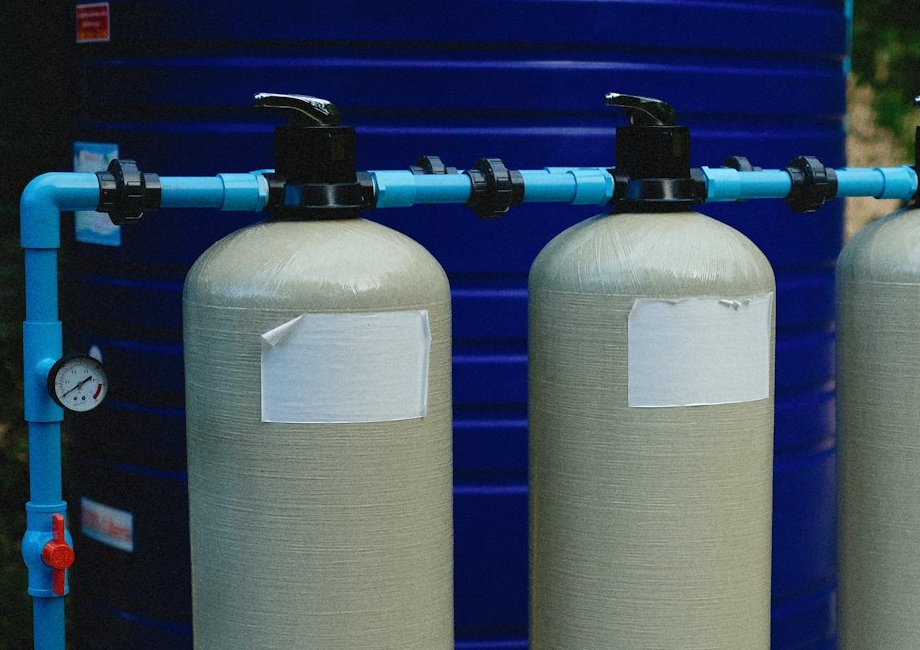

A water softener leaking from the top almost always points to the control valve, the plastic head on top of the resin tank that runs the softening and regeneration cycles. Inside it are seals and a moving rotor or piston that wear over time. When those seals harden or crack, water escapes around the top of the unit during a cycle.

Three parts cause most top-of-unit leaks:

• Valve seals and the rotor or spacer stack. These wear with years of cycling. A rebuild kit with fresh seals is a common, affordable repair.
• The riser tube O-ring. The riser is the central tube that carries water up from the bottom of the resin bed. Its O-ring can pinch or dry out, letting water weep where the valve meets the tank.
• The bypass valve O-rings. If the leak is right where the two house pipes connect to the softener, the bypass O-rings are the usual suspect.

If you are comfortable taking the valve cap off after bypassing and unplugging, you can often see the failed seal. If the valve body itself is cracked, that is a different problem, covered below.

Leaking From the Bottom or Base

A water softener leaking from the bottom is the one to take seriously, because it can mean the resin tank has cracked. The resin tank is the tall tank that holds the softening beads. It lives under constant pressure, and after many years it can develop a hairline split near the base, usually showing up as a steady seep that returns no matter how much you dry it.

Before assuming the worst, rule out the easy causes. Water from the valve at the top runs down the outside of the tank and collects at the base, which looks exactly like a bottom leak. Dry the whole tank, then watch closely. If the water reappears at the top and trickles down, your problem is up top, not the tank.

If the water genuinely seeps from the base of the tank itself, the tank is compromised. A cracked pressure tank cannot be patched reliably, and it usually makes more sense to replace the unit than to chase the crack. This is a good moment to talk to a specialist about a properly sized replacement rather than a temporary fix.

Salt water pooling specifically around the shorter, wider brine tank, the one you add salt to, is a different story and usually less serious. That points to an overflow, covered next.

Brine Tank Overflow and Standing Water

Water around the brine tank usually means it is overflowing, not leaking through a crack. The brine tank is where salt dissolves into the concentrated solution that recharges the resin. It is supposed to hold a few inches of water, but several things can let it fill too far and spill over the top edge.

The usual causes:

• A stuck safety float. The float assembly inside the brine well shuts off the water fill at a set level. If it sticks open from salt buildup or grime, the tank keeps filling. Cleaning or freeing the float usually fixes it.
• A clogged drain or brine line. If the line that draws brine out during regeneration is blocked, water cannot leave on schedule and backs up.
• A blocked injector or drain restriction. Sediment and salt mush can choke the small passages that move water in and out, throwing off the fill-and-draw balance.

Standing water in the brine tank after a regeneration cycle, with no salt dissolving, is the related symptom, and it points to the same family of clogs and float problems. For the full set of non-leak softener symptoms, our water softener troubleshooting guide walks through salt bridges, regeneration faults, and hard water that will not soften.

Leaking From the Drain Line or Hoses

A leak at the drain line is usually the least serious and the easiest to fix. The drain line is the flexible hose that carries rinse water away during regeneration, typically running to a floor drain, standpipe, or utility sink. Where it connects to the valve and where it ends are both spots that can drip.

Check these first:

• The hose clamp or fitting at the valve. A clamp loosens over time. Snugging it down or replacing a cracked barbed fitting often stops the drip.
• The air gap or standpipe end. If the line is not secured, regeneration flow can splash out. Make sure the end is fastened and positioned correctly above the drain.
• A frozen or kinked line. In an unheated garage or basement, a drain line can freeze, crack, or kink. Water backs up behind the blockage and finds the nearest seam.

Because drain-line water is rinse water, a small drip here is rarely an emergency. Still, fix it before mineral buildup or a freeze turns a drip into a steady leak.

What You Can Safely Fix Yourself

Many water softener leaks are squarely in do-it-yourself territory, as long as you have bypassed and unplugged the unit first. Work through these in order, from easiest to hardest.

1. Tighten the obvious connections.

   Hand-check the drain line clamp, the bypass fittings, and any threaded connection you can reach. A quarter turn on a loose fitting solves more leaks than people expect.

2. Free or clean the brine-tank float.

   Lift the cap off the brine well, rinse salt crust off the float, and make sure it moves freely. Reassemble and watch the next fill.

3. Replace worn O-rings and seals.

   Riser O-rings, bypass O-rings, and valve seal kits are inexpensive and made for exactly this. Match the part to your model, lubricate with food-grade silicone, and reseat.

4. Clear a clogged drain or brine line.

   Disconnect the line, flush it, and clear any salt mush or sediment before reconnecting.

If a repair calls for opening the control valve body, breaking into pressurized plumbing you are not comfortable with, or touching a cracked tank, stop there. That is the line.

When to Call a Professional

Call a professional when the leak comes from the tank or the valve body itself, or when you simply cannot find the source. These are the situations where guessing costs more than the service call:

• A cracked resin or pressure tank. Once the tank splits, it is done. A pro can confirm it and size a replacement correctly.
• A leak from the control valve body (not just its seals). A cracked valve casting is a replacement, not a reseal.
• Repeated leaks you cannot trace, or water that returns after you have tightened and resealed everything.
• Any leak near electrical connections, or one that has already reached an outlet or panel.

There is no prize for forcing a repair. After more than three decades of building and servicing these systems, the pattern Crystal Quest sees is simple: seal and float problems are homeowner-friendly, while tank and valve-body failures are jobs for a pro and often a signal it is time to replace the unit.

How to Prevent Water Softener Leaks

Most softener leaks are the slow result of wear, which means a little maintenance buys you years. A water softener works by passing hard water through resin beads that swap hardness minerals, mainly calcium and magnesium (USGS), for sodium, then rinsing the resin clean with brine. Every cycle moves water through the same seals and lines, so those parts are where age shows up first.

A simple routine keeps leaks away:

• Check seals and O-rings once a year. A dab of food-grade silicone on the bypass and riser O-rings keeps them supple.
• Keep the brine tank clean. Clear salt bridges and mush so the float and drain stay free. Choosing the right water softener salt reduces buildup in the first place.
• Watch your water pressure. Pressure well above the normal household range stresses every seal and fitting. If yours runs high, a pressure regulator protects the softener and the rest of your plumbing.
• Know your resin's age. Resin tanks do not last forever. If yours is well past its design life, plan for replacement before a crack forces the timing.

For the complete upkeep schedule, our water softener maintenance checklist covers everything from salt levels to resin life. And if it turns out the leak is from a different filter entirely, the water filter troubleshooting guide covers reverse osmosis, whole house, and more.

Frequently Asked Questions About Water Softener Leaks

Is it safe to use water while my softener is leaking?

Yes, if you put the softener in bypass first. The bypass valve routes water around the unit so your home keeps running while you stop the leak. Your water simply will not be softened until the softener is back in service. If you cannot reach the bypass, shut off the main supply instead.

Why is there water around my brine tank but no obvious leak?

Water pooling around the salt tank is usually an overflow, not a crack. A safety float stuck open or a clogged drain line lets the brine tank fill past its normal level and spill over the top edge. Cleaning the float and clearing the line typically solves it.

Can a leaking water softener cause water damage?

Yes, a slow softener leak can damage flooring, drywall, and subfloor, and it can grow mold if it sits. The EPA recommends drying any water-damaged area within 24 to 48 hours to prevent mold growth. Stop the leak, dry the area, and check for a floor drain near the unit so future drips have somewhere to go.

Should I repair or replace a leaking water softener?

Repair when the leak is a seal, an O-ring, a loose fitting, or a brine-tank float, since those parts are inexpensive and the rest of the system is sound. Lean toward replacement when the resin tank or the control valve body has cracked, especially on a unit near or past its design life, because the repair cost approaches the cost of a system built to last another decade or more.

Can a frozen drain line make a water softener leak?

Yes. In an unheated garage or basement, the drain line can freeze, which blocks rinse water from leaving during regeneration and forces it to back up and escape at the nearest seam. The line can also crack from the ice. Insulate or reroute exposed lines, and keep the space above freezing where you can.

How can I tell if it is condensation instead of a leak?

Wipe the tank completely dry, then watch how the water comes back. Condensation forms evenly across a cold tank surface as tiny beads from the humid air, while a real leak returns from one spot, a seam, a fitting, or the base. If beads form all over the tank on a humid day and there is no single source, you are likely looking at condensation.
