Industrial Desalination

Industrial Desalination

8,000 to 96,000 GPD

SHARK Seawater Reverse Osmosis Systems

are engineered for desalinization and other high total dissolved solids (TDS) applications requiring high pressure pumps. The Industrial Series SHARK Sea Water Reverse Osmosis Systems are rated to handle total dissolved solids as high as 38,000 ppm (with higher levels of TDS achievable by adjusting the recovery and/or flux rate) †.

The Industrial Series SHARK Sea Water Reverse Osmosis Systems models range in production capacity from 8,000 to 96,000 gallons per day and utilize a clean utilitarian modular design that allows for convenient installation, user-friendly operation, and future expandability. The larger models in the series are designed with the pump vertically-mounted on a separate side-by-side skid for ultimate flexibility, efficient use of space, and ease of maintenance.

Featuring robust components selected for enhanced performance, the Industrial Series SHARK Sea Water Reverse Osmosis Systems include a duplex steel plunger-type pump, high pressure hose, stainless steel valving, and FRP pressure vessels with duplex steel side ports. The larger models also include VFD motor control of the pump and a motorized feed valve.



Image may not exactly resemble end product. For Illustrative purposes only.

Standard features include permeate flush and permeate divert. Optional features are available to upgrade or complement the Industrial Series SHARK Seawater Reverse Osmosis Systems models including a PLC with touchscreen, energy-recovery device (ERD), pH and/or ORP sensors, chemical feed system, and clean-in-place system.




8,000 to 96,000 GPD

Image may not exactly resemble end product. For Illustrative purposes only.

Standard Features

  • S-150 Pre-programmed Computer Controller*
  • S-200 Pre-programmed Computer Controller w /VFD**
  • Permeate and Concentrate Rotometers*
  • Permeate and Concentrate Digital Paddle Wheels**
  • Pre- and Post-Filter Pressure Gauges
  • Pump Pressure and Concentrate Pressure Gauges
  • Permeate TDS

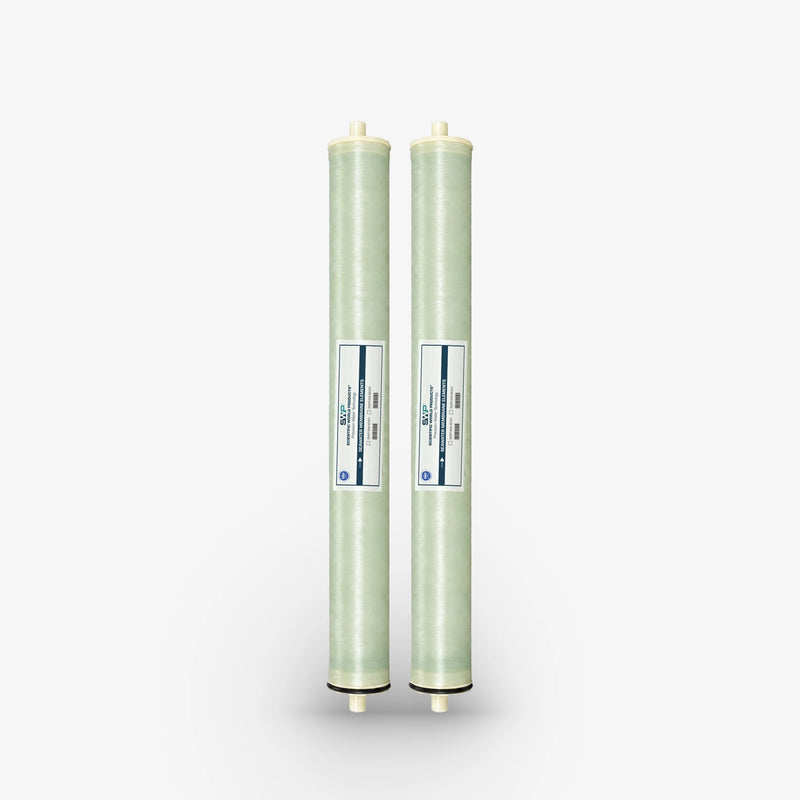

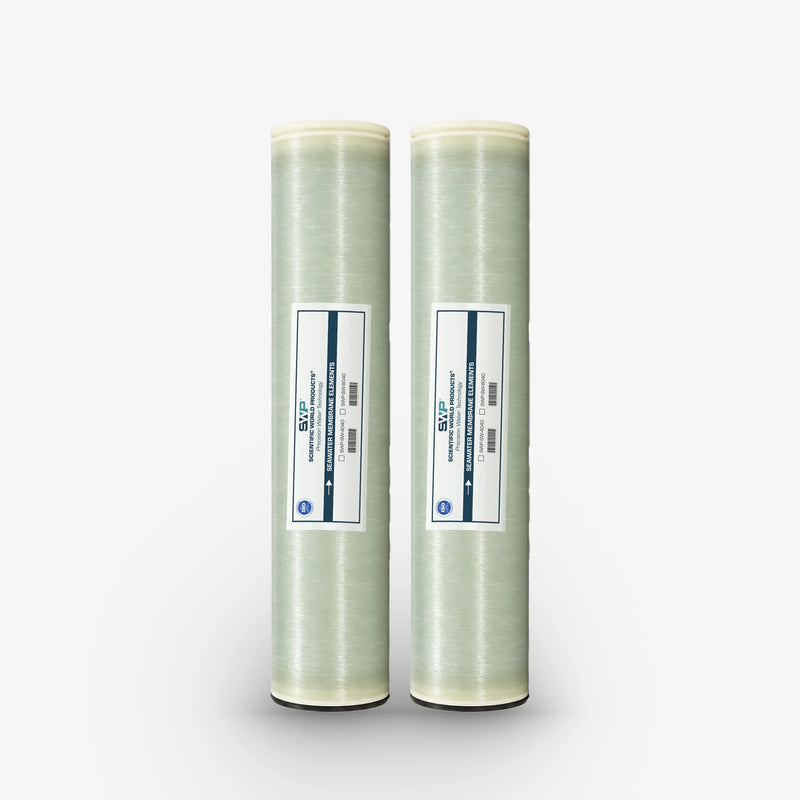

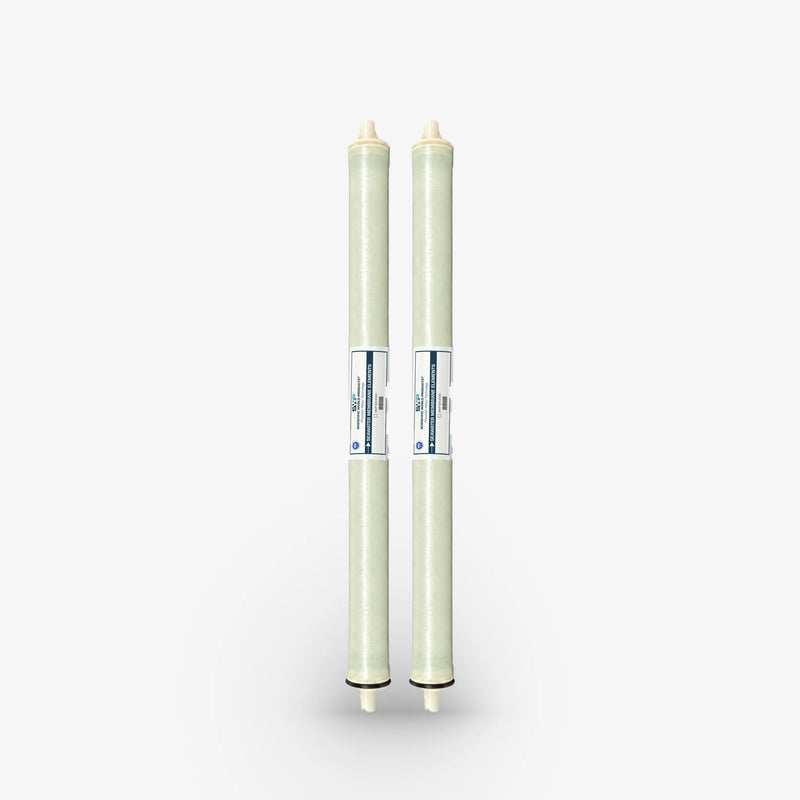

  • 8” Low Energy Seawater Elements
  • 1000 psig FRP vessels w/Duplex Steel Side Ports
  • Multi-Cartridge PVDF/Polypro Filter Housing
  • 5-Micron Sediment Cartridge Filters
  • Plunger-Type Duplex Steel Pump



  • Motorized Feed Valve
  • Stainless Steel Globe Throttling Valves
  • Low and High Pressure Shut-Off
  • Permeate Flush
  • Permeate Divert
  • Powder-Coated Carbon Steel Frame
  • Nitrile High Pressure Hose/Stainless Steel Pipe
  • Sch80 PVC Piping (Low Pressure Side)
  • Chemical Feed Port
  • Chemical Feed Power Outlet
  • Permeate Sample Ports
  • Voltage: 460VAC 3PH 60 HZ

Options & Upgrades

  • S-200 Computer Controller***
  • VFD***
  • Programmable Logic Controller (PLC) w/ Touch Screen
  • Permeate and Concentrate Digital Paddle Wheels***
  • 8” Low Energy Seawater 440 SF Elements
  • Clean-In-Place Skid-Mounted System
  • Clean-In-Place Ports
  • pH and/ or ORP Sensor
  • Chemical Feed System
  • Energy Recovery Device (ERD)

* Standard on Models CQE-SW-02979, 02980, 02981, 02982, 02983
**Standard on Models CQE-SW-02984, 02985, 02986, 02987

Design and specifications are subject to change without notice.

*** Option available for Models CQE-SW-02979, 02980, 02981, 02982, 02983. Standard on larger models.




Image may not exactly resemble end product. For Illustrative purposes only.

Systems Specifications

Design CQE-SW-02979 CQE-SW-02980 CQE-SW-02981 CQE-SW-02982 CQE-SW-02983 CQE-SW-02984 CQE-SW-02985 CQE-SW-02986 CQE-SW-02987
System Capacity
(gpd/m3d)
8000/30 16000/61 24000/91 32000/121 40000/151 48000/182 64000/242 80000/303 96000/363
Configuration Single Pass Single Pass Single Pass Single Pass Single Pass Single Pass Single Pass Single Pass Single Pass
Feed Water Source  TDS<40,000 TDS<40,000 TDS<40,000 TDS<40,000 TDS<40,000 TDS<40,000 TDS<40,000 TDS<40,000 TDS<40,000
Nominal System
Recovery
30% 45% 50% 50% 50% 50% 50% 50% 50%

Rejection & Flow Rates
Nominal Salt Rejection 99.5% 99.5% 99.5% 99.5% 99.5% 99.5% 99.5% 99.5% 99.5%
Permeate Flow (gpm/lpm) 5.6/21 11.1/42 16.7/63 22.2/84 27.8/105 33.3/126 44.4/168 55.5/210 66.6/252
Minimum Feed Flow (gpm/ lpm) 14/53 14/53 14/53 14/53 14/53 14/53 14/53 14/53 14/53

Connections
Feed (in) 2” FNPT 2” FNPT 2” FNPT 2” FNPT 2” FNPT 3” FNPT 3” FNPT 3” FNPT 3” FNPT
Permeate (in) 1-1/4” FNPT 1-1/4” FNPT 1-1/4” FNPT 1-1/2” FNPT 1-1/2” FNPT 2” FNPT 2” FNPT 2” FNPT 2” FNPT
Permeate (in) 1-1/4” FNPT 1-1/4” FNPT 1-1/4” FNPT 1-1/2” FNPT 1-1/2” FNPT 2” FNPT 2” FNPT 2” FNPT 2” FNPT
Concentrate (in) 1-1/4” FNPT 1-1/4” FNPT 1-1/4” FNPT 1-1/2” FNPT 1-1/2” FNPT 2” FNPT 2” FNPT 2” FNPT 2” FNPT
Clean-In-Place
Port (in)
1-1/2” FNPT 1-1/2” FNPT 1-1/2” FNPT 1-1/2” FNPT 1-1/2” FNPT 2” FNPT 2” FNPT 2” FNPT 2” FNPT
Chemical Feed
Port (in)
½” NPT ½” NPT ½” NPT ½” NPT ½” NPT ½” NPT ½” NPT ½” NPT ½” NPT

Membranes
Membrane Per Vessel 2 2 2 2 2 4 4 4 4
Membrane Quantity  2 4 6 8 10 12 16 20 24
Membrane Size 8040 8040 8040 8040 8040 8040 8040 8040 8040

Vessels
Vessel Array 1 1:1 1:1:1 2:1:1 2:1:1:1 2:1 2:1:1 3:1:1 3:2:1
Vessel Quantity 1 2 3 4 5 3 4 5 6

Pumps
Pump Type Plunger Plunger Plunger Plunger Plunger Plunger Plunger Plunger Plunger
Motor (HP/kw) 20/15 20/15 25/19 40/30 40/30 50/37 75/56 100/75 100/75

Electrical
Standard
Voltage
460V,60Hz
3Ph
460V,60Hz
3Ph
460V,60Hz
3Ph
460V,60Hz
3Ph
460V,60Hz
3Ph
460V,60Hz
3Ph
460V,60Hz
3Ph
460V,60Hz
3Ph
460V,60Hz
3Ph

System Dimensions
L x W x H
(in/cm)
132x41x90 / 335x104x229 132x41x90 / 335x104x229 132x41x90 / 335x104x229 132x41x90 / 335x104x229 132x41x90 / 335x104x229 267x41x90 / 667x104x229 267x41x90 / 667x104x229 267x41x90 / 667x104x229 267x41x90 / 667x104x229
Weight 2330/1060 2660/1210 3090/1400 3860/1750 4220/1920 5390/2450 5870/2660 7150/3250 7570/3440





To inquire about the right water filtration system for your organization, please email commercial@crystalquest.com or call 1-800-934-0051
