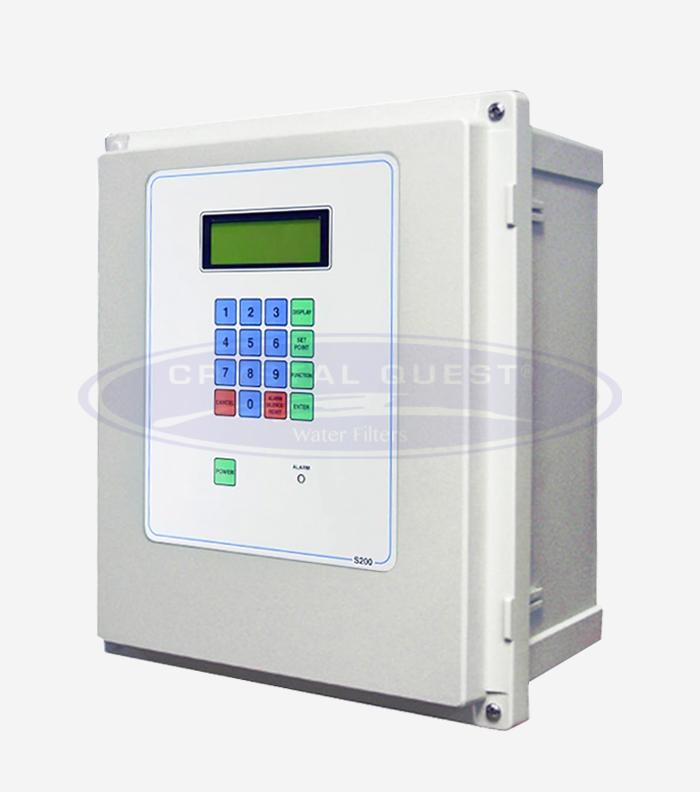

C-200 Commercial/Industrial Reverse Osmosis System Control Panel

SKU: CQE-CV-S200
Regular price $7,400.00
Features
Rendering loop-subscriptions

C-200 Commercial/Industrial RO Controller

The Crystal Quest C-200 Microprocessor Controller is a versatile controller for reverse osmosis systems that offer advanced features and options which make it an exceptional choice for large commercial and industrial reverse osmosis systems.

The Crystal Quest C-200 Controller has the flexibility to meet many specifications with six (6) switch inputs, five (5) analog inputs, six (6) relay outputs, and two (2) TDS/conductivity inputs. The 4 line by 20 character LCD display provides sensor readings, hours of operation, temperature, alarms, and operating status of the RO system.

Features:
  • Universal AC power 80-265 VAC 50/60Hz
  • 4-line x 40-character backlit LCD
  • 18-key keypad with integral alarm light
  • Programmable time delays and set points
  • Real-time clock with battery backup
  • Non-volatile set-point memory
  • Audible alarm with timed alarm silence
  • English or metric readings
  • Input/output indicator LEDs
  • Preprogrammed RO functions

Specifications:

  • Power: 80-265VAC, 50/60Hz
  • Enclosure: 14”x12”x8” NEMA 4X (larger enclosures are required to accept motor starters)
Functions:
  • Feedwater valve relay
  • RO and auxiliary pump control relays
  • Permeate and feed TDS/Conductivity
  • Membrane flush valve relay
  • Permeate divert valve relay
  • Temperature
  • Operating hours
  • Low feed pressure switch
  • High pump pressure switch
  • Pretreatment lockout
  • Flowmeter interface for permeate
  • RO storage tank switches (1 or 2)
  • RO storage tank low switch
  • Remote alarm output
Inputs:
  • Six (6) switch
  • Five (5) 4-20mA analog
  • Two (2) Conductivity/Resistivity
  • One (1) pH
  • One (1) ORP
  • Four (4) flow
Outputs:
  • Six (6) relay
  • One (1) 4-20mA analog
Communications:
  • RS-232
  • Modem
  • RS-485
  • Graphical display

Optional Accessories:

  • pH, ORP sensor with display and alarm set points
  • IEC motor starters and control transformers
  • Flow sensors to display flow in GPM or LPM, with % recovery displayed and alarm setpoints for high and low flow rates
  • Pressure sensors allowing display on LCD of pressures and differential pressures with programmable setpoints for high, low, and differential pressure alarms
