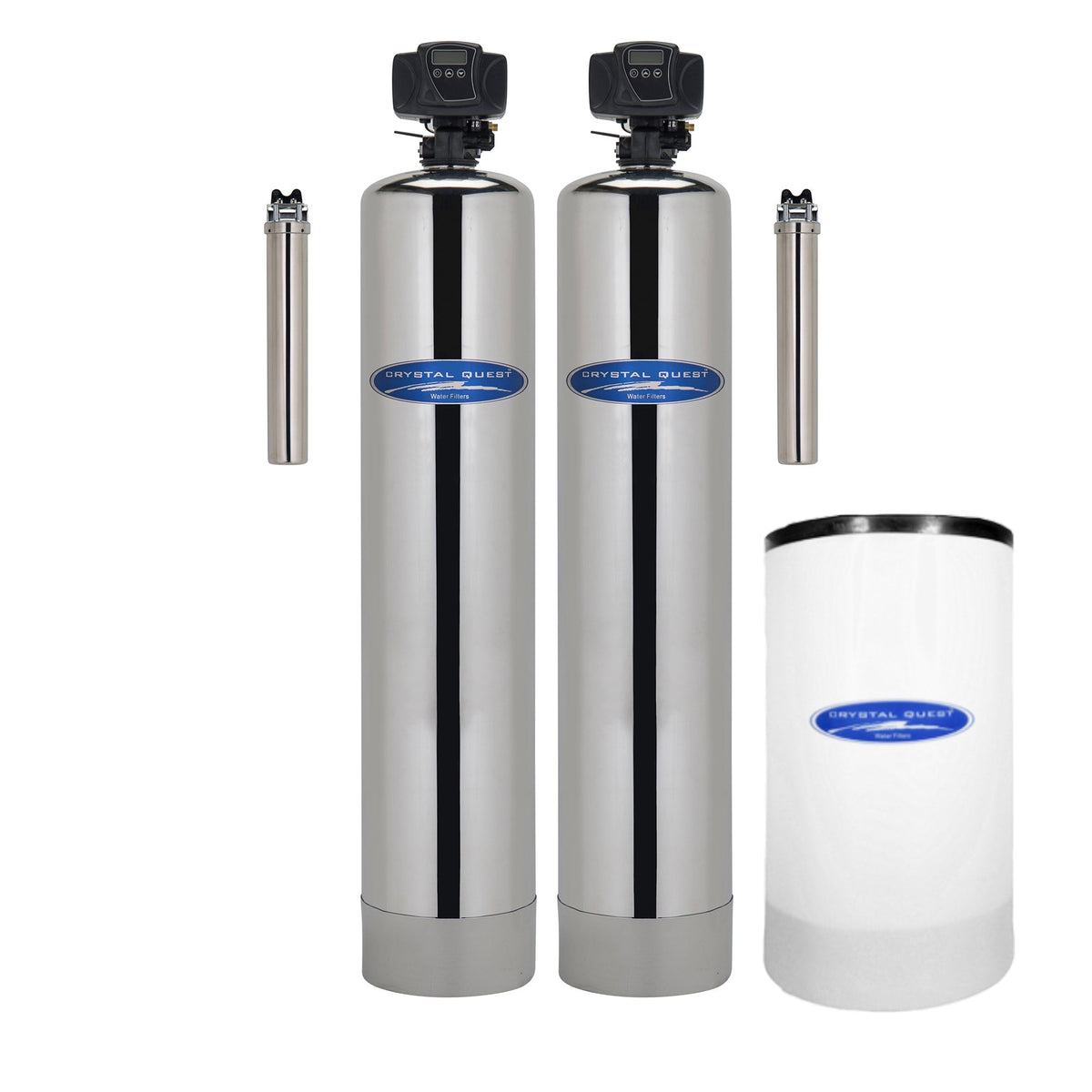

Acid Neutralizing Whole House Water Filter
Neutralize Acid in Your Drinking Water
Our Whole House Acid Neutralizing Water Filters contain naturally occurring, crushed and screened white marble, calcium carbonate media. It is used to neutralize acidic or low pH waters to a neutral, less corrosive effluent.The media slowly dissolves over time and will need to be refilled about every 2-3 years, depending on the amount of water you use, and the pH of your raw water entering the unit. When acid pH water (below 6.8) is passed through the filter, calcium carbonate neutralizer is slowly dissolved into the water, increasing the pH to a neutral level. An automatic backwashing cleans the bed and prevents compaction.
- This system is designed solely for neutralizing acidic water. If you would like clear, filtered water & a balanced pH in addition to your acid-neutralizing system, configure your system with a SMART filter.
- Media may increase hardness in the water after it is neutralized. If you would like softened and filtered, balanced pH water in addition to this system, configure your system with a Water Softener.
Water flows through a 20” sediment cartridge that removes sediment, silt, sand, and dirt.
Water flows through a 20" solid carbon cartridge for removing volatile organic carbon compounds (VOC's), & any remaining insecticides, pesticides and industrial solvents.

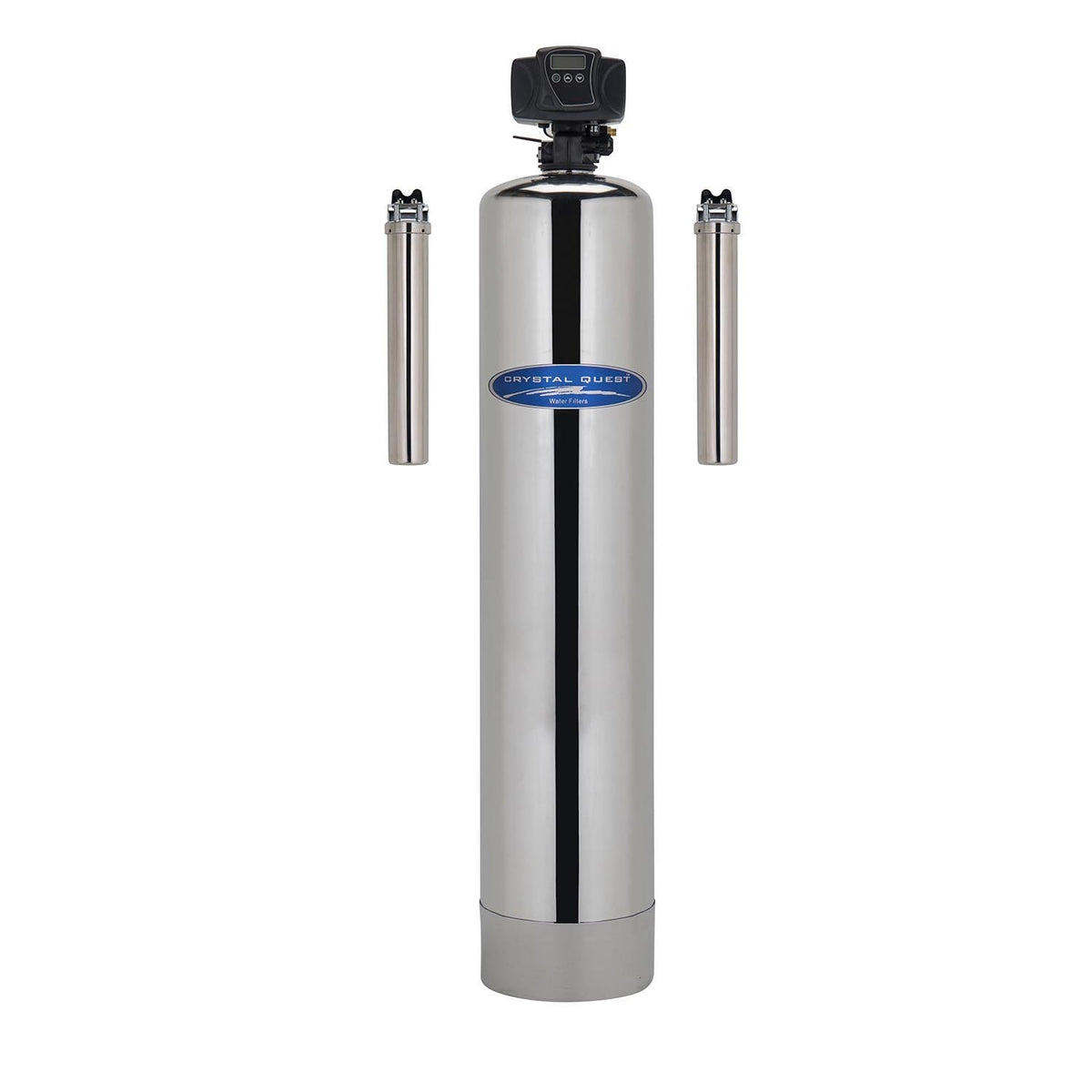

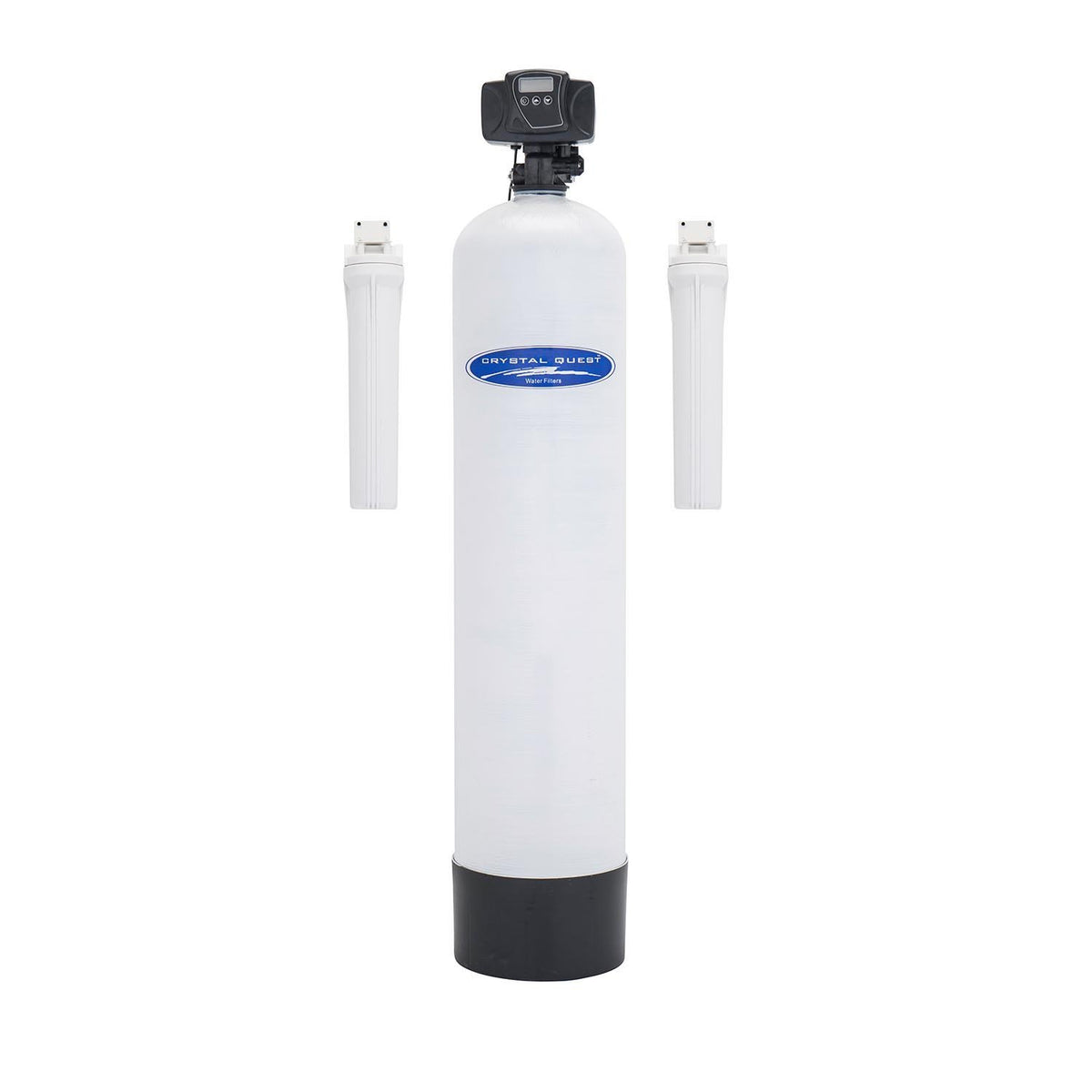

Acid Neutralizing Water Filter
Water flows through an Acid Neutralizing water filtration media/mineral tank with small amounts of our ERA® 6500 & 9500 added to help prevent bacteria growth.

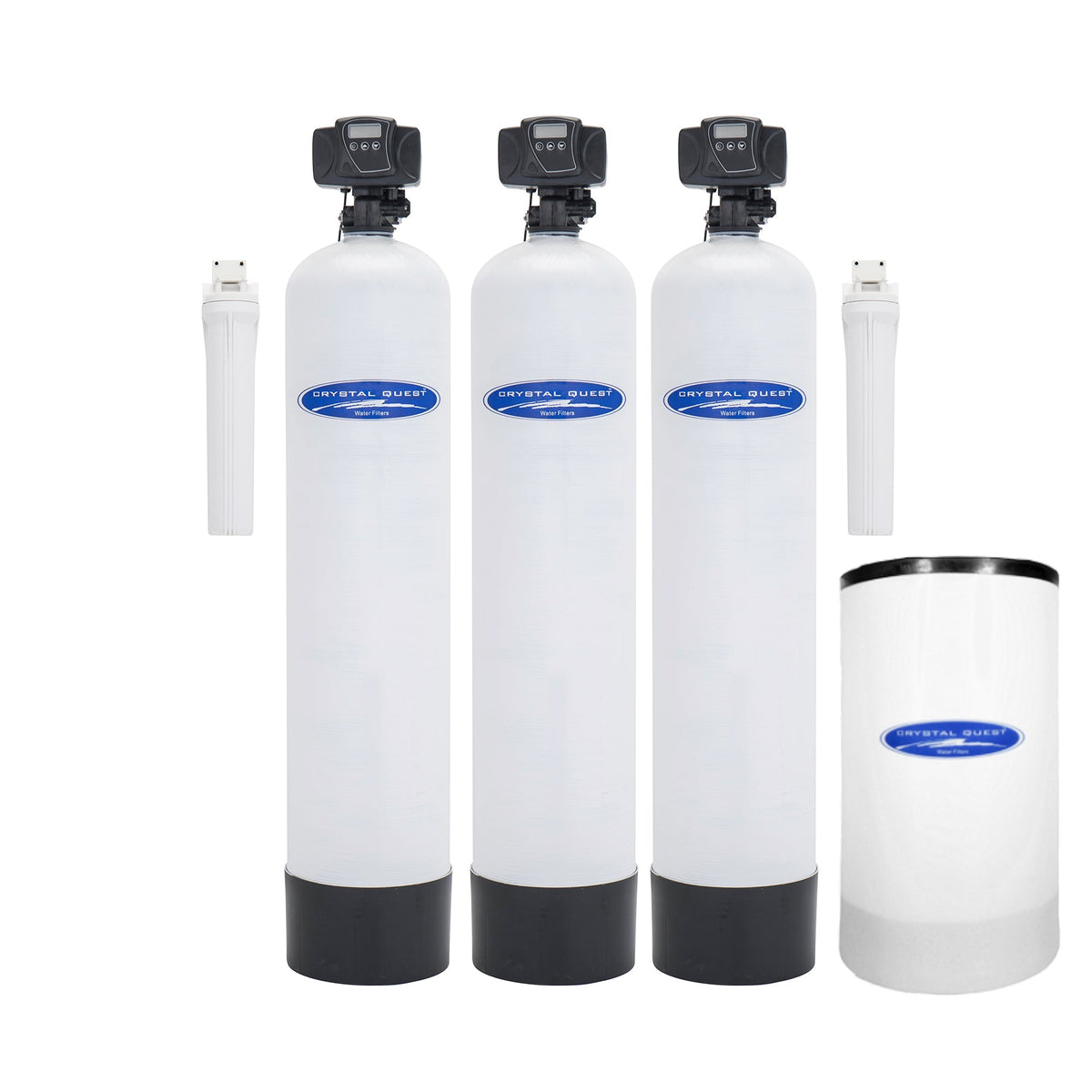

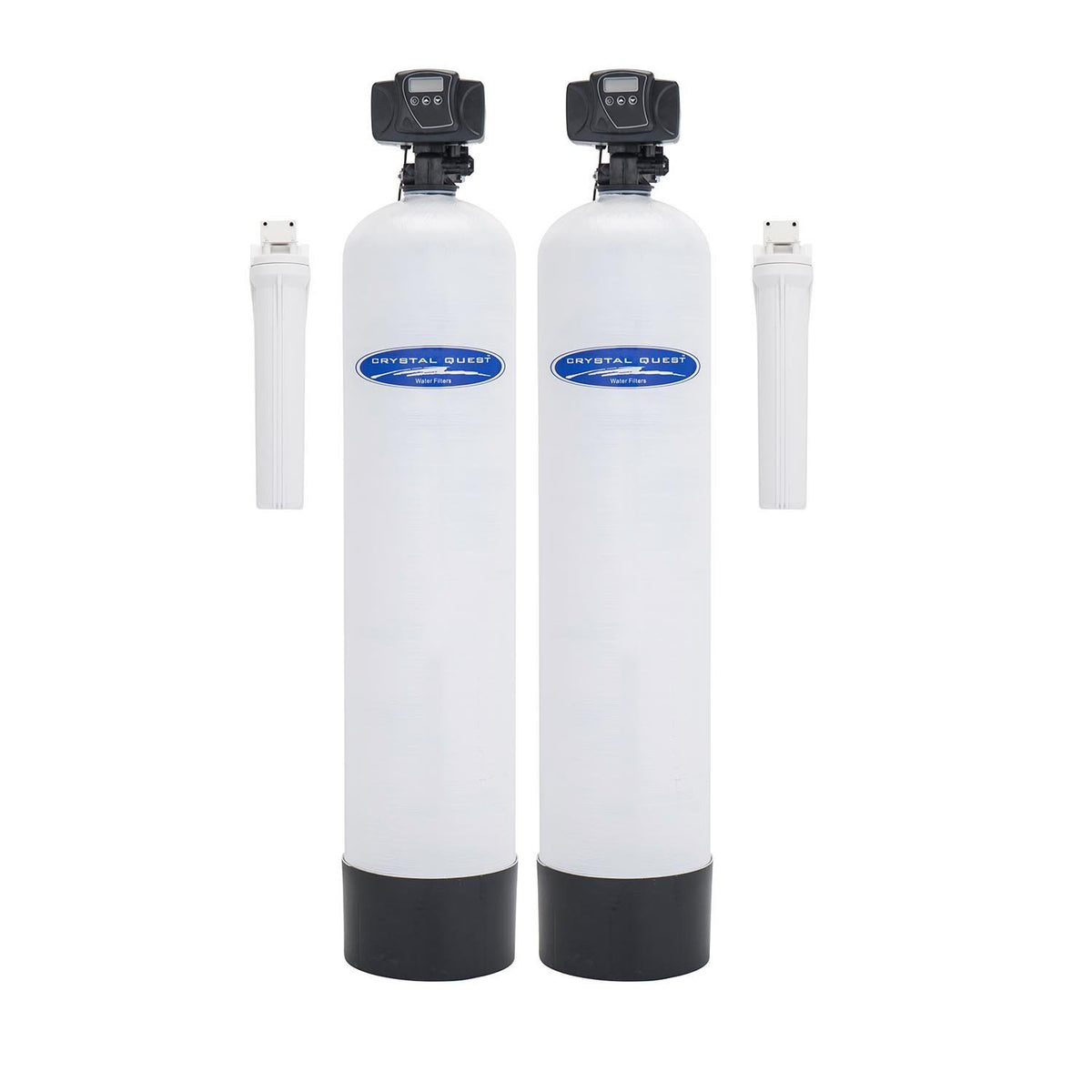

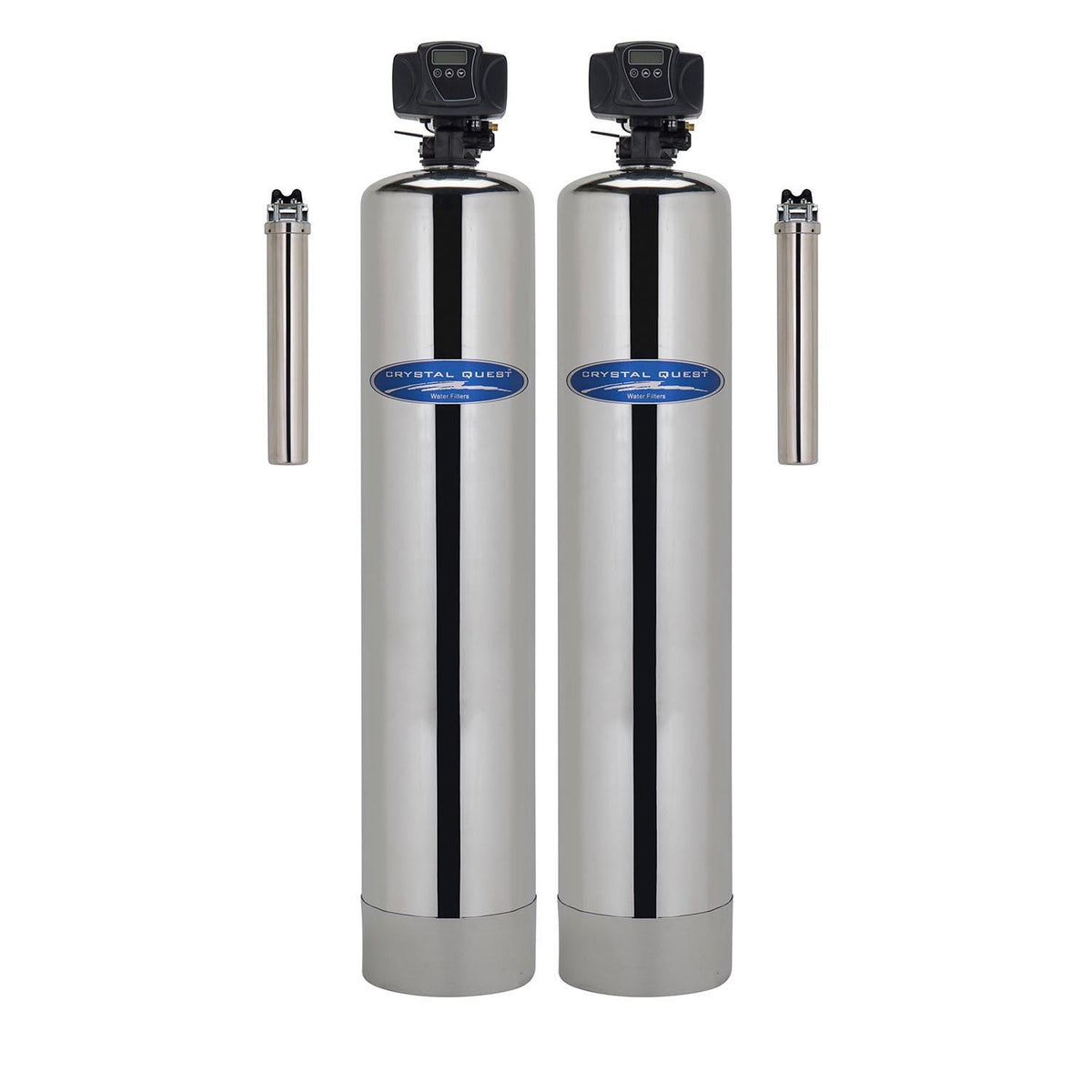

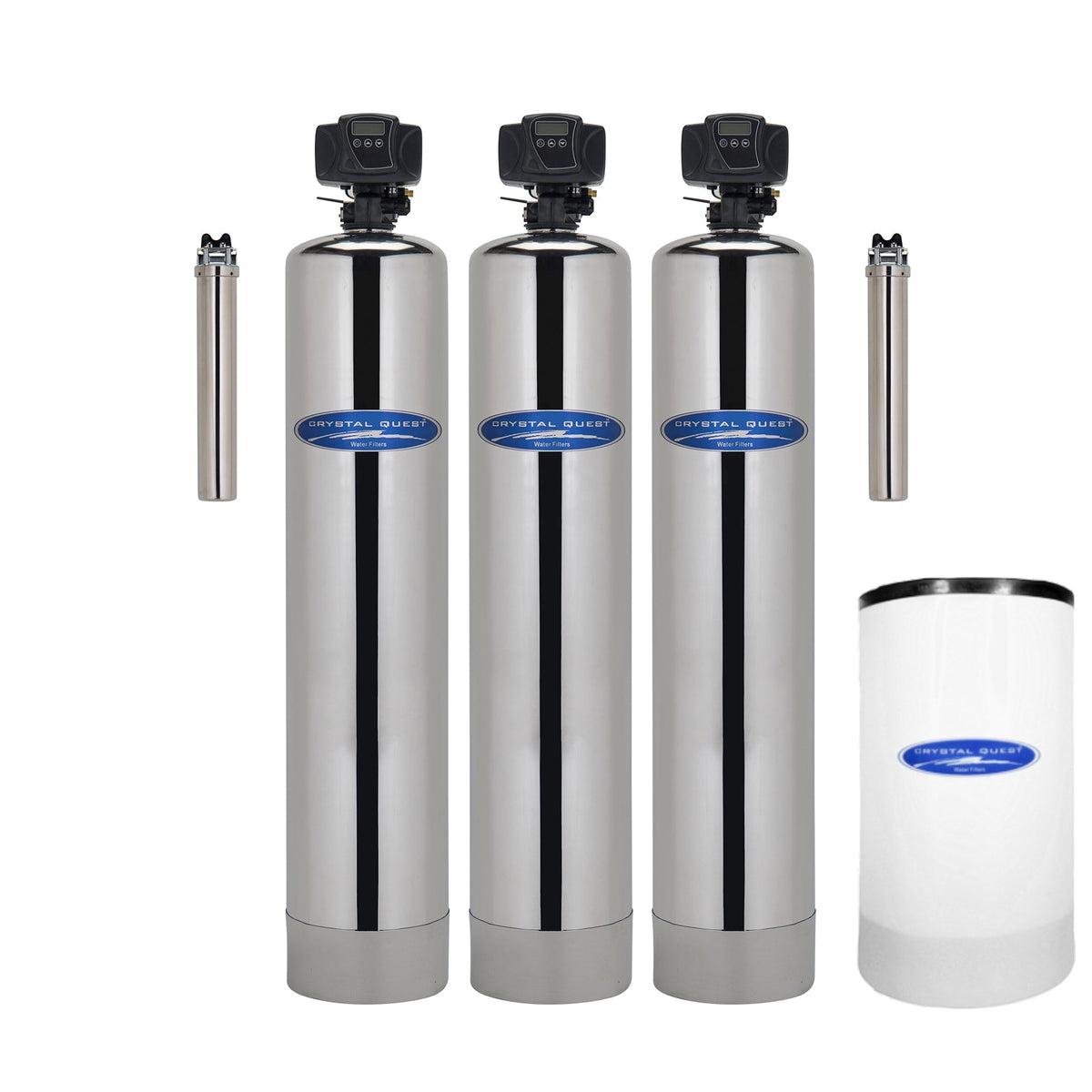

SMART Water Filter (optional)
Water flows through our SMART Multimedia, which includes 2 types of coconut shell Granulated Activated Carbons (Standard & Catalytic GAC) infused with our Eagle Redox Alloys® 6500 & 9500, and ion exchange resin to reduce contaminants such as heavy metals, i.e. lead & mercury, chlorine, chloramine, & inorganic products such as herbicides, pesticides, petroleum/pharmaceutical by-products and Ceramic and Tourmaline balls to enhance the water and maintain a more alkaline pH.

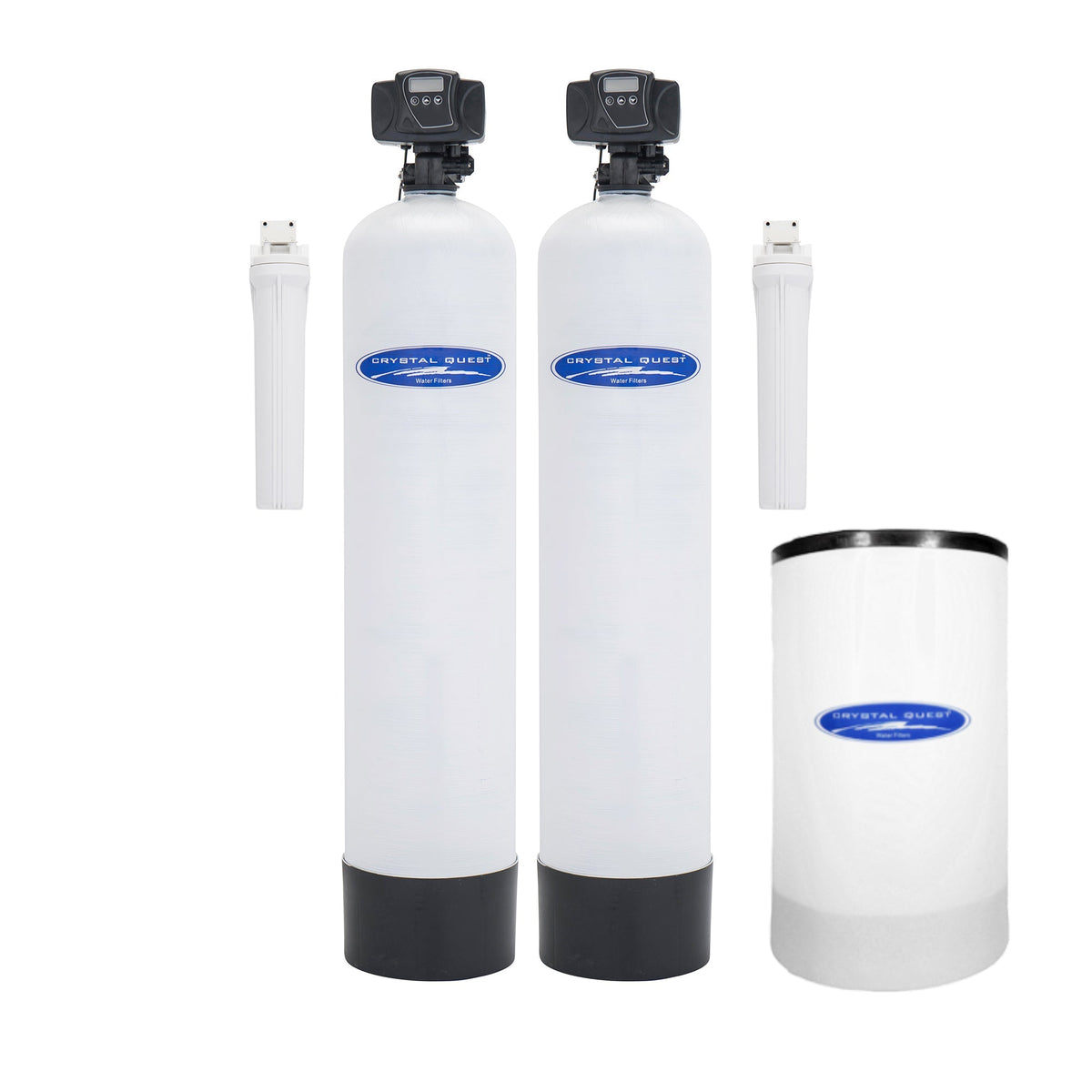

Water Softener (optional)
Water flows through an ion exchange resin and brine water conditioner.
Media may increase hardness in the water which is why a water softener is recommended. Water is hard when it contains minerals like calcium and magnesium. You may see staining on your sinks, tubs, showers, and clothing. You may also notice less lather from your shampoos and soaps and even a feeling of film on your skin. All these are symptoms of the need for softened water. Hard water also causes a higher risk of limescale deposits in household water systems. The negative effect of limescale buildup is that pipes are blocked and the efficiency of hot boilers and tanks is reduced. This increases the cost of domestic water heating by about fifteen to twenty percent. Another negative effect of limescale is that it has damaging effects on household machinery, such as laundry machines. Water softening means expanding the lifespan of household machines, and the lifespan of pipelines. It also contributes to the improved working and longer lifespan of solar heating systems, air conditioning units and many other water-based applications.
Additional Product Options
- Leak Detector Valve: Used to detect a water leak within a water filter system and shuts down the water supply to prevent flooding.
- 12 GPM UltraViolet Water Sterilizer: Specifically designed to meet the demanding microorganism control concern. These microorganisms can range from bacteria and viruses to algae and protozoa. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water.
|Filter Media Volume||1.5 cubic feet||2.0 cubic feet|
|Service Flow (GPM)||9-11||10-13|
|Tank Dimensions||10" x 54"||12" x 52"|
|Material||Stainless Steel or Fiberglass||Stainless Steel or Fiberglass|
|Brine Tank Dimensions*||18" x 33"||18" x 33"|
*When you have a softener selected
|Acid Neutralizing/pH Enhancing Mix||CQE-RM-05025|
|Eaglesorb Water Softeners||CQE-RM-05002|
|Sediment Cartridge (2-7/8"x20")||CQE-RC-04015|
|Carbon Block Filter Cartridge (2-7/8"x20")||CQE-RC-04014|
- water pressure
- Whole House Filter

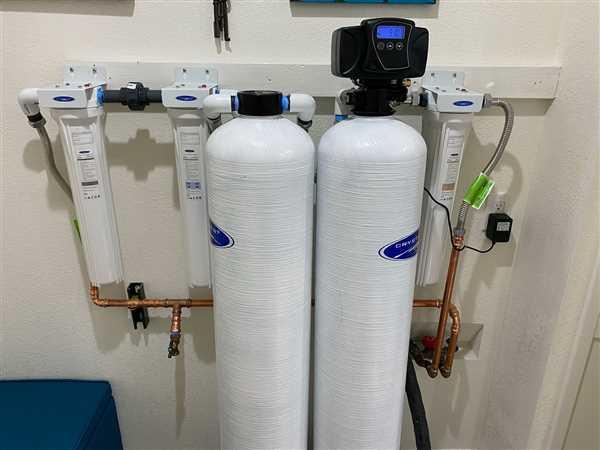

I have had the system in full operation for 4 days now and am really enjoying it. I originally ordered everything the 7th of February and was told to expect 10-14 days for arrival. It arrived in less that 5 days and my wife had to move the heavy boxes on her own :-(. When I got home from my trip, I opened everything and discovered that the up-flow valve for the tankless softener was missing from the shipment so I had to call and get it sent to me. That meant canceling the plumber install and postponing until the valve arrived. A week later, the plumber was able to come and provide an estimate. Fast forward another week and installation begins but discovered that my water pressure was at 120 psi. System remained in by-pass for another week until the plumber could order and install the pressure reducer and on 11 March, finally in full operation! The first day after install the water tasted a bit funny but now everything is great and we are enjoying the system very much. Thank you Cyrstal Quest for working through the process and getting me all the help and assistance needed.
We had above recommended drinking levels of arsenic in our water. After talking to a few name brand installers about a whole house system, I decided to do this myself for half the cost. The Crystal Quests system arrived on time and was well packaged, installation was easy and clear with solid instructions. And the best part, tested the water and arsenic levels were 'none detected'. Thank you!
I received the Whole House Filter system in a timely manner. I will have a professional plumber install it on Monday, 12/18/18. I’ll provide additional feedback after 30-days when this system is operating in my home.
So far I am very happy with my purchase. We have not had a chance to install the filter as it is going into a remodel that tested very high for nitrates. This is my second purchase from crystal quest. In a previous house we installed an iron filtration system, and we're very pleased with it.
Best product from the best company. If anyone cares about having a quality filter, this is it!
