Will Your Water Filter Fit the Space You Have?
Most under-sink filters slide into a standard cabinet, and most whole-house systems tuck into a corner of the garage or basement. The trouble starts when a system is bigger than the buyer pictured: a tall storage tank that will not stand up under the sink, a whole-house tank that clears the ceiling but leaves no room to change the media, or a freight system that cannot make the turn down the basement stairs.
Picking the right system for your water is one job. Making sure it physically fits your space is a different one, and it is the step people skip. If you are still choosing a system type or capacity, start with our reverse osmosis buyer's guide or the whole-house selection guide. Once you know what you want, use the measurements below to confirm it will fit before it ships.
Key Takeaways
Fit Is Not the Same as Sizing
RO Means Three Parts, Not One
Leave Service Clearance
Measure the Path, Not Just the Spot
Why Physical Fit Trips People Up
When you shop by capacity, the numbers you see are about output: gallons per day, grains of hardness, flow rate in gallons per minute. Those numbers tell you whether a system can keep up with your household. They tell you nothing about whether the equipment will physically stand up where you plan to put it.
That gap is where avoidable returns happen. After more than 30 years of building and shipping these systems, Crystal Quest sees the same few mistakes: a storage tank ordered for an under-sink cabinet that turns out to be too tall to clear it, a whole-house tank installed so close to a joist that the top cannot be opened, and a heavy system that arrives by freight and then cannot make it into the house.
Small countertop and faucet filters ship in a box you can carry, so a fit mistake is easy to fix. A whole-house tank or a large storage tank ships freight, and sending it back costs two-way shipping on a bulky, heavy item. The fix is simple and it is all on the front end. Measure the space, measure the clearance you need to use and service the system, and measure the path the equipment travels to get there. Do that, and the box that arrives is the box that fits.
Under-Sink Systems: Cabinet Space and Clearance

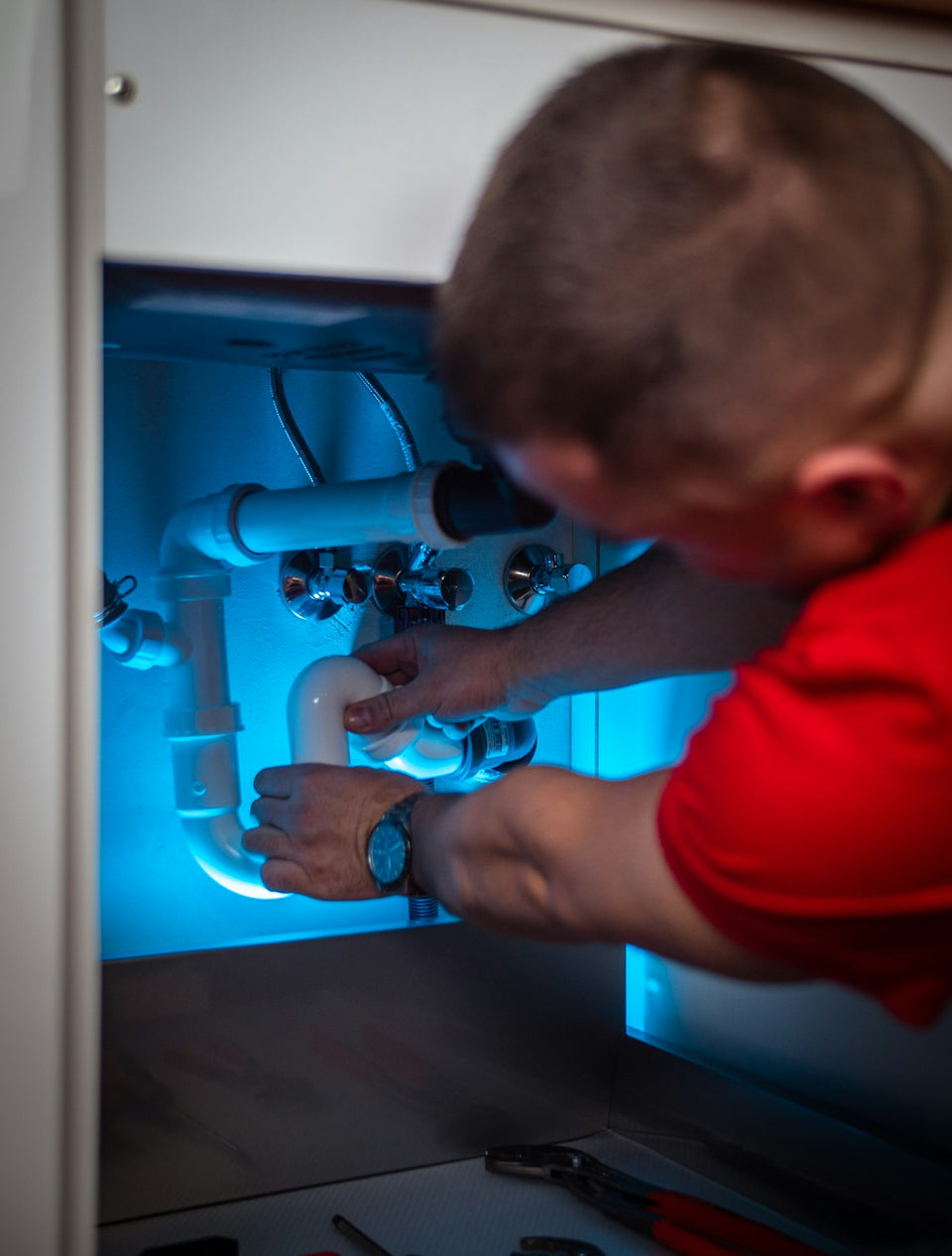

The cabinet under your kitchen sink is more crowded than it looks. A garbage disposal, the P-trap, the supply lines, a pull-out trash bin, and stored cleaning supplies all compete for the same space a filter needs. Before you buy an under-sink system, clear the cabinet and measure the actual open volume, not the cabinet's outside dimensions.
Under-Sink Carbon and Multi-Stage Filters
A single-stage or multi-stage cartridge filter is the most forgiving under-sink option. Most mount to the cabinet wall or sit on the cabinet floor. Two measurements matter: the height of the unit plus the room above it to drop a cartridge out during a filter change, and the depth from the cabinet opening to the back wall so the housings and tubing are not crushed against the plumbing.
As a planning rule, give a multi-stage under-sink filter roughly 15 inches of width, 15 inches of depth, and 15 inches of height, plus a few extra inches of overhead service room. Tight cabinets, depths under about 15 inches, or a large pull-out trash bin can rule out a multi-stage unit. Always confirm the exact height, width, and depth on the product page before you order, because the published spec is what you are measuring against.
Under-Sink Reverse Osmosis: Filters Plus a Storage Tank
Reverse osmosis is where most under-sink fit surprises happen, because an RO system is really three things, not one. There is the filter bank (the row of housings that hold the membrane and the pre- and post-filters), a separate pressurized storage tank that holds the finished water, and a dedicated faucet that mounts on the countertop or sink deck. You have to find room for all three.
| Under-Sink Component | Typical Footprint to Plan For | Clearance to Leave |
|---|---|---|
| Multi-stage cartridge filter | About 15 in wide, 15 in deep, 15 in tall | A few inches above to drop a cartridge |
| RO filter bank | Similar to a multi-stage filter | Room at the front to reach the fittings |
| RO storage tank | About 9 to 12 in across, 14 to 16 in tall | Its own footprint and cabinet depth beside the filter bank |
| Dedicated RO faucet | One spare hole or mount on the sink deck | Reach from the system to the faucet |
The storage tank is the part people forget. A standard residential RO tank stands upright and usually measures somewhere between roughly 14 and 16 inches tall and around 9 to 12 inches across, depending on its capacity. A common 4 gallon tank, for example, runs about 11 inches across and 15 inches tall, so the front-to-back depth it needs is just as important as the height. It can stand on the cabinet floor next to the filter bank. Crystal Quest's Thunder under-sink reverse osmosis systems ship with the tank, so plan for the unit and the tank together.
Before you order an under-sink RO system, set a cardboard box the size of the storage tank in your cabinet next to where the plumbing already sits. If the door still closes and you can reach the shutoff valve, you have room. If it does not, a countertop system may be the better fit.
Countertop and Faucet Options: When Cabinet Space Is Tight
Renters, smaller kitchens, and crowded cabinets are exactly what countertop and faucet-mount systems are made for. A countertop reverse osmosis system sits on the counter and connects to the faucet, so the only space you need is a clear stretch of countertop next to the sink and enough room for the unit's height under any upper cabinets. There is no cabinet measurement to worry about and usually no permanent installation.
Faucet-mount and smaller point-of-use filters are smaller still. The trade-off is capacity and the range of contaminants they target, so weigh those against the easy installation before you decide. For pure fit, though, countertop and faucet options are the easiest to place and the easiest to correct if you change your mind.
Whole-House Systems: Tank Footprint, Height, and Service Clearance
A whole-house system treats every tap in the house, so it installs on the main water line where it enters, usually in a garage, basement, utility closet, or crawl space. These systems are built around one or more upright tanks, and they are the largest equipment most homes will ever install for water. Three measurements decide whether one fits.
Tank Footprint and Standing Height
A residential whole-house tank is sized to your home's flow rate, and the media bed is commonly around 1.5 or 2.0 cubic feet. In physical terms, that is a tank usually somewhere in the range of 9 to 13 inches in diameter and roughly 4 to 5.5 feet tall once you include the control valve on top. Systems with more than one tank, or a separate brine tank for a softener, need that footprint more than once.
| What to Measure | Typical Residential Range to Plan For | Why It Matters |
|---|---|---|
| Tank diameter | About 9 to 13 inches | Floor footprint, sometimes more than one tank |
| Tank height with valve | About 4 to 5.5 feet | Must clear the ceiling |
| Overhead service clearance | About a foot or more above the valve | Needed to service and change media |
| Side clearance | Room for a hand and a wrench | Reaching the fittings and connections |
Measure the floor space and the ceiling height where the system will live, and confirm the actual tank dimensions on the product page, since diameter and height vary by model and media volume.
Clearance to Service and Change the Media
Standing height is not the whole story. The control valve sits on top of the tank, and you need room above it to service the system and eventually change the media. As a working rule, leave a foot or more of clearance above the valve and enough room on at least one side to get a hand and a wrench around the fittings. A tank that technically fits floor-to-ceiling but leaves no service room turns every maintenance visit into a problem. Crystal Quest's SMART whole-house systems and the premium Eagle series are designed for straightforward media service, but only if the space around them allows it.
Where Not to Install
Some spots fail no matter the measurements. Avoid unconditioned attics and any location that can drop below freezing, because a frozen tank can crack and the water inside will not flow. Keep the system out of direct sunlight, which degrades plastic over time, and off ground that floods. For well water with iron, manganese, or a rotten-egg sulfur smell, a Metal Removal system needs the same footprint and clearance planning as any whole-house tank, plus a drain nearby for backwashing.
A whole-house tank installed where it can freeze is the most expensive fit mistake there is. If your only space is an unheated garage or crawl space in a cold climate, plan for insulation or heat tape before the system arrives, not after.
The Access Path: Getting a Large System Into Place
The final measurement is the one nobody thinks of until delivery day: the route the equipment travels from the curb to its final spot. A whole-house tank can clear your basement ceiling and still never get there, because it could not make the turn at the bottom of the stairs.
Large and heavy systems ship by freight, not by parcel carrier, and freight delivery works differently. The carrier brings the shipment to the curb or driveway on a truck, often with a liftgate to lower it to the ground, and getting it the rest of the way into the house is on you. Before you order, walk the path the way the box will travel: the width of the doorways, the turn radius at the top and bottom of any stairs, the height of a basement bulkhead, and whether a heavy tank can be moved by one or two people or needs a dolly.
When the freight arrives, inspect it before you sign, and note any damage on the delivery receipt, because that record is what protects you if a tank arrives dented.
Your Check-Your-Space Checklist
Run through these measurements before you place the order. Have a tape measure and the product page open at the same time.
-
Clear the space and measure it empty
Pull everything out of the under-sink cabinet or off the installation wall, then measure the real open width, depth, and height.
-
Measure for every part
For RO, that means the filter bank, the storage tank, and the faucet location. For whole-house, that means each tank plus any brine tank.
-
Add service clearance
Leave overhead room to drop a cartridge or open a control valve, and side room to reach the fittings.
-
Check the access path
Measure doorways, stair turns, and bulkhead openings along the route a freight system will travel.
-
Confirm against the product page
Match your measurements to the published height, width, and depth for the exact model, and ask before you order if anything is close.
Know your space, then pick with confidence.
Crystal Quest builds residential and whole-house systems in the USA, with specs you can measure against before you buy.
Frequently Asked Questions About Water Filter Dimensions and Fit
How much space does an under-sink water filter need?
A multi-stage under-sink filter generally needs about 15 inches of width, 15 inches of depth, and 15 inches of height, plus a few inches of overhead room to change a cartridge. Cabinets shallower than about 15 inches, or those crowded by a garbage disposal or pull-out bin, may not have room. Always measure your cleared cabinet and compare it to the product's published dimensions.
Will a reverse osmosis system fit under my sink?
Usually, but you have to plan for three parts, not one: the filter bank, a separate pressurized storage tank, and a dedicated faucet. The storage tank is the piece people forget, and it needs its own footprint next to the filters. If the cabinet is too tight, a countertop reverse osmosis system gives you the same kind of filtration without using the cabinet.
How much clearance does a whole-house water filter need?
Beyond the tank's own height, leave roughly a foot or more of clearance above the control valve and enough side room to reach the fittings with a wrench. Service clearance is what makes future media changes possible. A tank that fits floor-to-ceiling but leaves no working room above it is a maintenance headache waiting to happen.
What size cabinet do I need for an under-sink water filter?
Plan for a usable interior of at least about 15 inches in each direction for a multi-stage filter, and more if you are adding a reverse osmosis storage tank. The key word is usable: measure around the plumbing and any trash bin that is already there, not the cabinet's outside size.
Do whole-house water filters have to be installed indoors?
They install wherever the main water line enters, which is often a garage, basement, or utility area. The hard rule is to avoid anywhere that can freeze, flood, or sit in direct sun. In cold climates, an unheated garage or crawl space needs insulation or heat tape to protect the tank.
How are large water filtration systems delivered?
Whole-house tanks and large storage tanks ship by freight rather than parcel, so the carrier delivers to the curb or driveway, usually with a liftgate. Moving the system into place and down any stairs is the buyer's responsibility, which is why the access path matters. Inspect the shipment and note any damage on the receipt before you sign.
