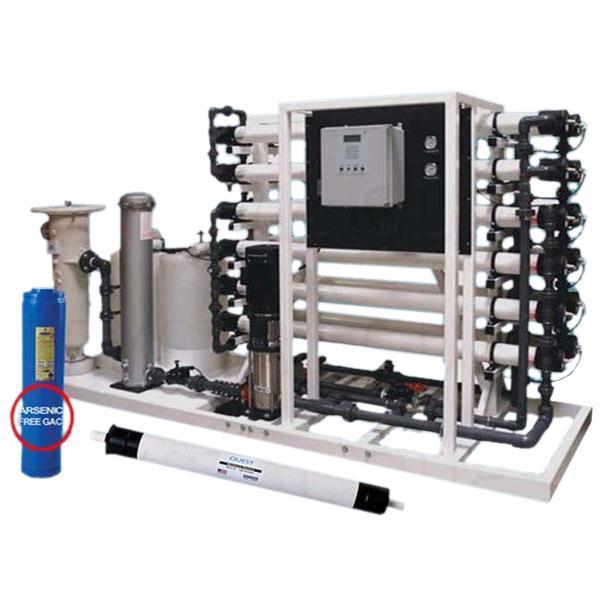

Industrial Reverse Osmosis Water Filter System - 30000 Gallons Per Day

Crystal Quest Water Filters

CQE-CO-02034



Reverse Osmosis | Industrial Water Filtration System
30000 GPD

  • Horizontal Design
  • 30,000 @ 77° F: Gallons Per Day
  • Dimensions (Approx.): 41" x 143" x 80"
  • Weight (Approx.): NA
  • Concentrate Re-Circulate: Optional
  • Auto Flush: Optional
  • Element Size (in.): 4040 TFC HF
  • Elements (Qty.): 20
  • Motor HP: 5
  • Voltage: 110 or 220 Volts AC
  • Hertz: 60 or 50 cycle
  • Feed Connection: 2"
  • Product Connection: 1.5"
Operating Specifications
  • Minimum Feed Pressure: 45 psi
  • Minimum NaCl - % Rejection: 96%
  • Minimum Feed (GPM): 30
  • Maximum Hardness: 15 Grains / Gallon
  • Maximum TDS: 2000 ppm
  • Operating Pressure at Unit Pump Head: 150 psi
  • Maximum NaCl - % Rejection: 98.5%
  • Maximum Feed (GPM): 50
  • pH Range: 3 - 11
  • Maximum Temperature: 105° F
  • Membrane: Twenty 4" x 40" TFC HF1 Membranes
  • Membrane Housing: 4" x 80" Membrane Housings
  • Pump & Motor: Grundfos 3 HP Motor and Stainless Steel Pump
  • Frame: Aluminum White Powder Coated Frame
  • Bag Filter: 32” Rosendale Bag Filter, 10 Micron Filter
  • Cartridge Filter: 2.5" x 40" Coconut Shell Granulated Activated Carbon and Eagle Redox Alloy Filter.
  • Chemical Injection: Pulsafeeder 30 Gallon Chemical Feed System
  • Pressure Gauges: 2.5" Gauge, 0-300 PSI, Panel Mount Glycerin Filled, and 1.5" Gauge, 0-160 PSI, Top Mount, Dry Gauge
  • Low Pressure Switch: Square D Low Pressure Switch
  • High Pressure Switch: One Square D High Pressure Switch, Automatically starts when the tank pressure falls below 40 psi, and stops when the pressure reaches 60 psi.
  • Solenoid Valve: Solenoid Valve with Manual Override
  • Computer Controller: Rotrol S-150 Computer Controller, 220 volts AC, single phase, with built-in TDS monitor - pre-treat lockouts, tank full contacts, magnetic motor starter, low pressure monitoring, and alarms.
  • Flow Meters: One Product (0-20 GPM) & One Waste (0-20 GPM) Flow Meters
  • Easy Maintenance & Operation: CRYSTAL QUEST® commercial reverse osmosis systems feature a compact design and have all of their components strategically located for easy access and inspection.
Optional Features
  • Stainless Steel Housings: Two 2.5” x 21” PuroTech Stainless Steel Membrane Housings 3/8” FNPT
  • Float Switch: One Mechanical Float Switch, For atmospheric storage tank applications.
  • Flow Meters: One Product (0-2 GPM) & One Waste (0-5 GPM) Flow Meters, Enables operator to accurately adjust product to waste ratio and monitor systems performance.
  • Concentrate Re-Circulate: This feature offers a higher recovery rate for the system by taking a % of the waste water and feeding it back into the system.
  • Additional cost will apply to listed price for custom modification based on water laboratory test report.
