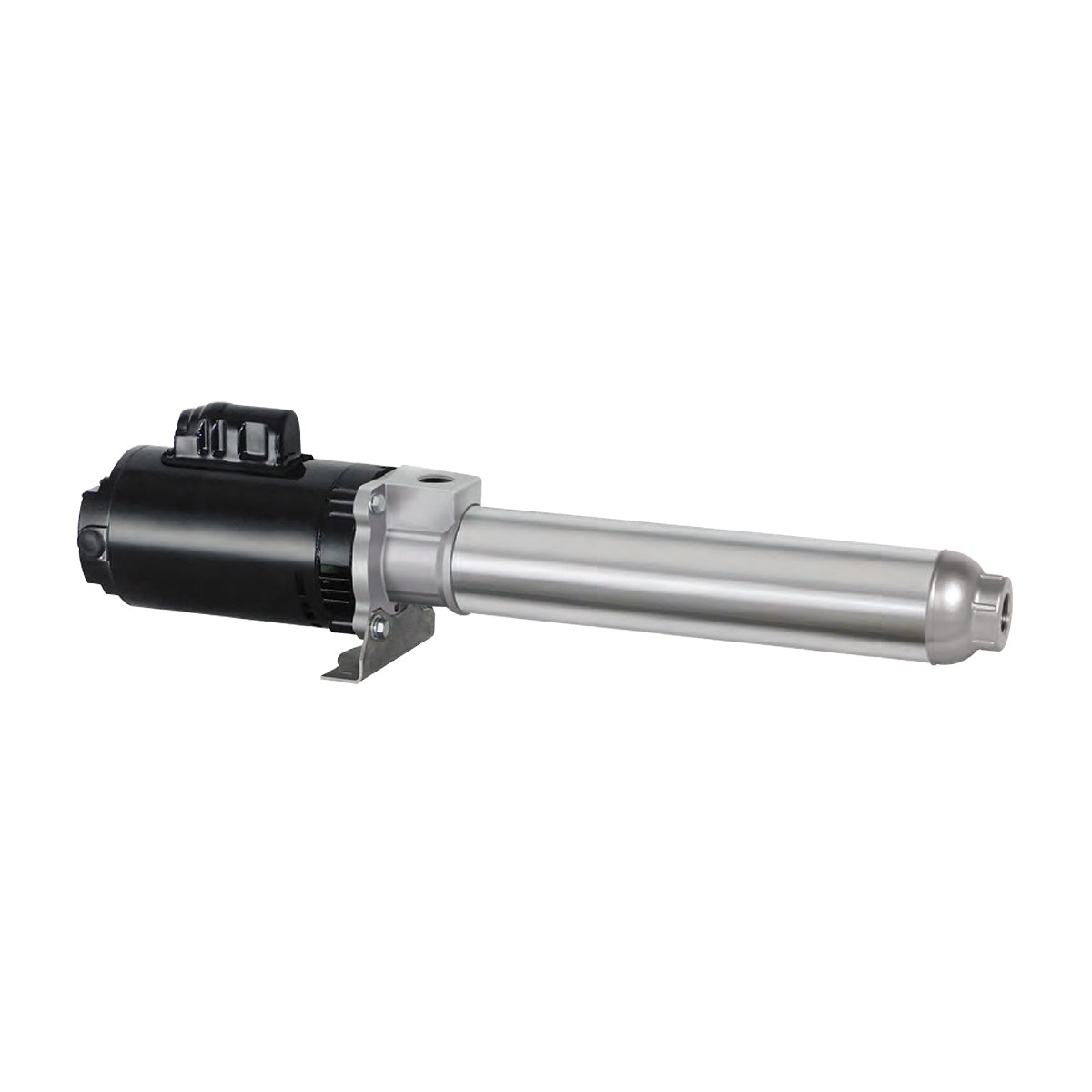

H35B5S16W Horizontal Booster Pump - Stainless
Regular price
$2,251.00
Couldn't load pickup availability
H35B5S16W Horizontal Booster Pump, Stainless Steel
The H35B5S16W Horizontal Booster Pump is a high-performance stainless steel pump designed for industrial, commercial, and agricultural applications. Built with durability and efficiency in mind, this pump is ideal for boosting water pressure in demanding environments.
Key Features:
- Durable Construction: Made with 316 stainless steel for superior corrosion resistance and long-term reliability.
- High Performance: Provides smooth and consistent water pressure with capacities up to 35 gallons per minute (GPM).
- Versatile Applications: Suitable for reverse osmosis, deionization, water boosting, and other demanding systems.
- Efficient Design: Includes precision-engineered impellers and wear-resistant components for enhanced performance.
Specifications
| Category | Details |
|---|---|
| Flow Rate | Up to 35 gallons per minute (GPM) |
| Head | Up to 500 PSI |
| Operating Temperature | Up to 180°F |
| Casing | 316 Stainless Steel |
| Impellers | Glass-filled Delrin® or Polycarbonate |
| Shaft | 316 Stainless Steel |
| Mechanical Seal | Carbon/Ceramic |
| Suction Port | 1 1/2" FNPT |
| Discharge Port | 1 1/2" FNPT |
| Motor Type | Totally Enclosed Fan-Cooled (TEFC) |
| Horsepower | 5 HP |
| Speed | 3450 RPM |
| Phase/Voltage | 3 Phase, 230/460V |
| Rotation | Clockwise when viewed from motor end |
Installation Instructions
-
Preparation:
- Inspect the pump for any damage and ensure all components are included.
- Verify the motor voltage matches your power supply specifications.
- Check the alignment of the pump and motor before proceeding with installation.
-
Foundation:
- Mount the pump on a flat, stable surface to reduce vibrations.
- Secure the pump with anchor bolts to ensure stability during operation.
-
Piping Connections:
- Connect suction and discharge pipes using proper gaskets and seals.
- Ensure pipes are adequately supported to avoid stress on the pump connections.
- Install a check valve and isolation valve on the discharge side for operational control.
-
Priming the Pump:
- Fill the pump casing with liquid to ensure it is properly primed before starting.
- Use a vent valve to remove any trapped air within the pump casing.
-
Electrical Wiring:
- Connect the motor to the power supply according to local electrical codes and standards.
- Ensure the motor is correctly grounded for safety.
- Confirm motor rotation matches the direction indicated on the pump casing.
-
Startup:
- Open both the suction and discharge valves fully.
- Start the motor and observe the pump's operation for any irregularities.
- Check for leaks, unusual noises, or excessive vibrations during operation.
-
Final Adjustments:
- Adjust flow and pressure using the discharge valve as needed.
- Do not throttle the suction side to maintain optimal pump efficiency.
-
Regular Maintenance:
- Periodically inspect the pump and motor for wear or damage.
- Lubricate bearings and other components as per the manufacturer’s guidelines.
