Activated Carbon for PFAS Removal: How the Media Works and Which Type to Choose

What Activated Carbon Actually Does to PFAS

Your water test comes back flagged for PFAS. Now what?

Roughly 45% of U.S. tap water samples contain at least one PFAS compound, according to a 2023 USGS study. Here's the tricky part: not every filter on the market actually removes them. Some barely touch PFAS. Others cut them to below detection. The difference usually comes down to the media inside the cartridge, not the price tag or the brand on the outside.

Activated carbon is one of the most reliable media for PFAS removal at home. The right carbon, sized and maintained correctly, can capture up to 90% of longer-chain PFAS like PFOA and PFOS. This guide digs into the media itself: how carbon grabs PFAS at the surface level, which type performs best, and how to match a system to your water. For a quick yes-or-no overview of carbon filter devices, the companion carbon filter PFAS guide covers that angle. This one goes deeper.

Key Takeaways

How Activated Carbon Captures PFAS at the Molecular Level

Activated carbon doesn't strain water like a coffee filter. It pulls contaminants out of solution through adsorption: PFAS molecules are attracted to the internal surfaces of the carbon, and they stay stuck there. The mechanics are worth understanding. They're what explain why some carbon types outperform others by a wide margin.

The Surface Area That Makes It Possible

A single gram of high quality activated carbon has an internal surface area of roughly 1,000 square meters. Picture a coral reef of microscopic caves: when water flows through the media, PFAS molecules wander into those caves and stick to the walls. That enormous surface is where the whole mechanism lives.

Carbon is "activated" by steam at 800 to 1000°C (thermal activation) or with chemical agents like phosphoric acid (chemical activation). Both processes burn out internal channels and open up three size classes of pores:

• Micropores (under 2 nanometers): The actual parking spots for PFAS molecules. Most of the capture happens here.
• Mesopores (2 to 50 nanometers): Transport corridors that move water deeper into the media.
• Macropores (over 50 nanometers): Highways that let water flow through the carbon bed without choking flow rate.

A carbon with lots of the right sized micropores, accessed through enough mesopores, is what separates a premium PFAS carbon from a generic one.

The Three Forces That Hold PFAS in Place

Once a PFAS molecule slips into a micropore, three weak but persistent forces keep it there:

1. Van der Waals forces

   A gentle pull between molecules that are very close to each other. Individually weak, but summed across a long PFAS tail pressed against a carbon wall, they add up.

2. Hydrogen bonding

   Hydrogen atoms on PFAS form temporary links with oxygen containing groups on the carbon surface. Think of it as a loose handshake that holds until something stronger bumps it off.

3. Electrostatic attraction

   PFAS molecules carry a partial negative charge from their fluorine atoms. Carbon surfaces carry balancing positive charge sites. Opposite charges pull them together and hold them in place.

None of these forces break the carbon fluorine bond. Carbon does not destroy PFAS. It concentrates them onto the media, where they stay until the cartridge is replaced and safely disposed of.

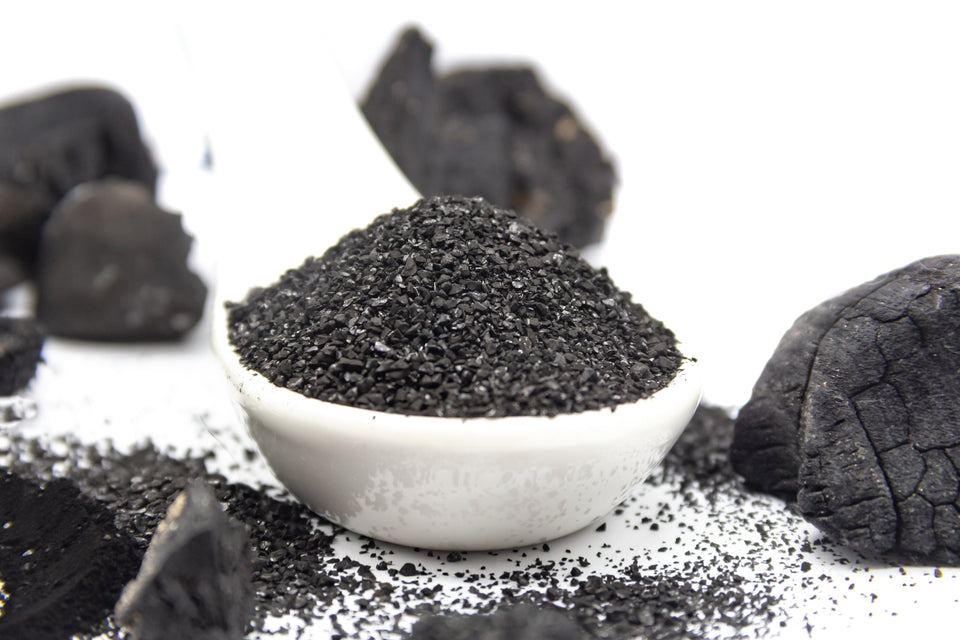

Types of Activated Carbon and Why Coconut Shell Wins for PFAS

"Activated carbon" isn't one thing. It's a whole category. The raw material, the activation process, and the physical format of the finished media all change how the carbon performs against PFAS. Two variables matter most: the base material and whether the carbon is catalytic.

Base Material: Coconut Shell vs. Coal vs. Wood

The source material determines the pore distribution, and pore distribution determines how well the carbon traps PFAS sized molecules.

For drinking water PFAS reduction, coconut shell GAC is the baseline. Its micropore density is the closest off the shelf match to PFAS molecule size, and the hardness of the media means it does not fracture and fine into the water during service.

Catalytic Carbon: The Upgrade for Short Chain PFAS

Catalytic carbon is regular activated carbon that has been surface treated to enhance its chemistry. The extra treatment creates more reactive sites, which helps with two things standard carbon struggles with:

• Short chain PFAS like PFBS and GenX, which are smaller and harder for micropores to hold.
• Chloramine, which municipal utilities increasingly use instead of chlorine and which resists standard GAC.

In a well designed PFAS system, catalytic coconut shell GAC is often paired with standard coconut shell GAC. The combination covers the long chain molecules with conventional adsorption and catches more of the short chain variants in the same pass.

Granular vs. Carbon Block Format

Once you have picked the base material, the carbon still has to be packaged. The two common formats behave differently in a home system.

• Granular activated carbon (GAC): Loose carbon granules inside a cartridge or tank. Higher flow rate, longer service life, and better for whole house applications where flow is the constraint.
• Carbon block: Compressed carbon bonded into a solid cylinder. Slower flow, but the tight path forces much longer contact time and a finer sub micron particulate rating. Ideal for point of use drinking water.

Most serious PFAS systems use both: GAC for the main treatment stage, then a carbon block post filter to polish the water and catch anything that slipped past the main bed.

What Activated Carbon Can and Cannot Do for PFAS

Carbon is effective, but no single media handles every PFAS compound equally. Honest framing here matters. The EPA's chemistry database lists over 14,000 PFAS compounds, and claiming any one technology removes them all is a stretch.

Strengths and Trade Offs at a Glance

Practically, a quality carbon system is the right tool for most residential PFAS situations, especially when the dominant compounds are PFOA and PFOS. For maximum removal across the entire PFAS family, carbon is often paired with reverse osmosis or ion exchange.

Why Saturation Hits Without Warning

Activated Carbon vs. Other PFAS Removal Technologies

The EPA recognizes four technologies as effective for PFAS treatment in drinking water. Carbon is one. Here's how the four stack up for home use.

Most homes do not pick one technology in isolation. A common stack for moderate to high PFAS concern is a whole house carbon system to treat every faucet and fixture, paired with a reverse osmosis unit at the kitchen sink for drinking and cooking water. The carbon protects the RO membrane from chlorine and extends its life while also catching the bulk of PFAS before the RO polishes what is left.

Choosing the Right Carbon System for Your Home

Two decisions drive everything: where you want treated water (whole house or just the kitchen), and how aggressive the PFAS contamination is. Start with a test before either decision.

Step 1: Test Your Water

Standard water tests do not include PFAS. You need a specific PFAS panel from a certified lab, either through a state program or a private kit. Certified testing typically covers EPA Method 533 or 537.1 and reports concentrations in parts per trillion. If your results show detectable PFOA or PFOS above the EPA's enforceable 4 ppt MCL, a carbon based system becomes a priority, not an option.

Step 2: Decide Whole House or Point of Use

• Whole house: Treats water at every tap, shower, and appliance. Recommended if PFAS levels are elevated, if dermal exposure is a concern, or if the household cooks, bathes, and drinks without wanting to think about which faucet is filtered.
• Point of use (under sink, countertop, pitcher, inline): Treats only the drinking and cooking tap. Lower up front investment, faster to install, but leaves other fixtures untreated.

Step 3: Match the System to the Load

With 30+ years of manufacturing water filtration in the USA, Crystal Quest builds multi stage carbon systems that combine premium coconut shell GAC, catalytic coconut shell GAC, and Eagle Redox Alloy (ERA) media (the Crystal Quest version of KDF) in a single bed. That blend is what separates a system engineered for PFAS reduction from generic carbon.

Most households land on one of two tiers, sometimes both in layered defense:

Every one of these systems is assembled in an ISO 9001 certified facility.

Keeping Your Carbon System Performing

Carbon is a consumable. Every gallon that moves through the bed fills more of the internal surface with PFAS and other contaminants. What decides whether you get five years of protection or two comes down to two things: sizing and maintenance.

Size for Flow and Contact Time

Carbon needs time in contact with the water to capture PFAS. A system undersized for household flow will push water past the media too quickly, and removal drops off. One that is wildly oversized can create channeling, where water carves preferential paths through the bed and skips most of the carbon. Match tank size to peak flow rate, not just daily gallons.

Replace on Schedule, Not by Symptom

Typical replacement intervals by format:

• Pitcher cartridges: 6 to 12 months (smaller media volume, shorter life)
• Under sink, countertop, and inline SMART cartridges: 12 to 24 months, averaging about 18 depending on feedwater conditions
• Pre and post sediment/carbon block cartridges: 12 to 24 months, also averaging around 18
• Whole house 1.5 cu ft carbon bed: 5 to 7 years
• Whole house 2 cu ft carbon bed: 7 to 10 years

Pair Testing With Replacement

The reliable way to confirm a system is still performing is to retest treated water on the same schedule as the media change. If the pre-filter water shows PFAS and the post-filter water does not, the bed is working. If both show PFAS, the bed is saturated and overdue. Seasonal retesting also catches changes in source water that might outrun the system's rated capacity.

Frequently Asked Questions About Activated Carbon and PFAS Removal

How effective is activated carbon for PFAS removal?

Activated carbon, particularly coconut shell GAC, can capture up to 90% of longer chain PFAS like PFOA and PFOS when the system is correctly sized and the media is replaced on schedule. Short chain compounds like PFBS are harder for standard carbon to hold, which is why catalytic carbon is often added to close that gap.

What type of activated carbon works best for PFAS?

Coconut shell granular activated carbon is the strongest single option for home drinking water PFAS work because its micropore density matches PFAS molecule size. For a broader PFAS profile, combining coconut shell GAC with catalytic coconut shell carbon covers more of the short chain family in the same pass.

Does activated carbon destroy PFAS or just trap them?

Activated carbon concentrates PFAS onto the media surface through adsorption. It does not break the carbon fluorine bond, so the molecules are not destroyed. The PFAS stay inside the spent cartridge or media, which is then replaced and disposed of per local guidance.

How do I know when my carbon filter is saturated with PFAS?

You cannot tell by sight, taste, or flow. Saturated carbon still passes water normally while PFAS come through untreated. The only reliable signals are the manufacturer's replacement schedule (based on gallons or time in service) and a post filter PFAS retest on the same cadence as your cartridge change.

Can activated carbon remove PFAS from well water?

Yes, with the right pre treatment. Well water often carries sediment, iron, or manganese that will foul a carbon bed and shorten its PFAS removal life. A properly staged system (sediment pre filter, possibly an iron removal stage, then the carbon bed) is typical. Start with a comprehensive well water test that includes a PFAS panel.

Is activated carbon enough, or do I also need reverse osmosis for PFAS?

For households with moderate PFAS levels and primarily longer chain compounds, a well designed coconut shell and catalytic carbon system handles PFAS reduction on its own. For higher levels, a wide mix of short and long chain PFAS, or whenever the goal is maximum removal, a whole house carbon stage plus an under sink reverse osmosis polish is the stronger pairing.

How often should I replace a carbon filter used for PFAS removal?

It depends on the format. Pitcher cartridges run 6 to 12 months because the media volume is smaller. Under sink, countertop, and inline SMART cartridges are on a much longer cycle, typically 12 to 24 months and averaging around 18 depending on your feedwater. Whole house carbon beds last 5 to 7 years for 1.5 cu ft tanks and 7 to 10 years for 2 cu ft tanks under normal loading. Pre and post filters sit in the same 12 to 24 month window as the SMART cartridges.
