What a Water Filter Micron Rating Actually Means
A water filter micron rating is the size of the particles a filter is built to catch, measured in microns. The smaller the number, the smaller the particles it stops. A 5 micron filter catches finer debris than a 20 micron filter, and a 1 micron filter is finer still.
You installed a sediment filter, and a week later the shower feels weaker. So you do what almost everyone does: you blame the micron rating. "Maybe 5 micron was too fine for my water." It's a reasonable guess. It's also usually wrong, and chasing it leads people to buy the wrong filter. The rating matters, but not for the reason most homeowners think.
A micron (short for micrometer) is one-millionth of a meter. For scale, a human hair runs about 50 to 70 microns wide, and your eye generally can't pick out anything smaller than about 40 microns. So when a filter is rated at 5 microns, it's catching particles seven times smaller than the thinnest thing you can see. That's the whole job of a sediment filter: pull out the sand, silt, rust flakes, and clay that cloud your water and wear down the equipment downstream.
This guide covers what the rating means, what each level actually catches, why finer is not automatically better, and the question that trips up the most people: whether a sediment filter is really what dropped your water pressure.
Key Takeaways
Smaller Number, Finer Filter
Finer Is Not Always Better
A Clean Filter Barely Touches Pressure
Match the Rating to the Water
Nominal vs. Absolute Micron Ratings
The rating on the box comes in two flavors, and the difference decides how much you can trust the number. A nominal rating means the filter captures most particles at that size, often somewhere around 85 to 90 percent. An absolute rating means it captures essentially all of them, closer to 99.9 percent, at the stated size.
That gap matters more than it sounds. A "5 micron nominal" cartridge lets some 5 micron particles slip through, which is fine for general grit but not if you're protecting a sensitive downstream system. A "1 micron absolute" cartridge is the kind of barrier you want ahead of a reverse osmosis membrane, where a few stray particles can scratch or foul expensive parts.
The water treatment industry classifies this particulate, or mechanical, filtration under the NSF/ANSI 42 standard, which sorts filters into classes by the particle size they reduce, from the finest sub-micron class down to coarse classes well above 50 microns. You'll see manufacturers reference that standard as a benchmark. Treat it as the shared yardstick for what a filter can mechanically strain out, not as proof of anything else a filter does.
One thing to get straight before the chart: a sediment filter is a strainer. It does not remove chlorine, hardness minerals, dissolved iron, or anything that's actually dissolved in the water rather than floating in it. Those jobs belong to carbon, softening, or oxidation stages. If your water tastes or smells off, the micron rating won't fix it.
What Each Micron Rating Catches
Each micron rating maps to a job. Coarse ratings handle the visible grit that would clog everything else; fine ratings polish the water and protect delicate equipment. Here's how the common ratings line up.
| Micron rating | What it stops | Typical use |
|---|---|---|
| 50 to 500 micron | Sand, large grit, scale flakes, pipe debris | Reusable spin-down screen as a first stage on well or dirty supply |
| 20 to 50 micron | Coarse sand and silt | First-stage pre-filter on sediment-heavy water |
| 5 micron | Fine silt, most visible cloudiness, rust particles | The standard all-purpose sediment cartridge for city and many well systems |
| 1 micron | Fine silt, fine rust, and many cysts such as Giardia and Cryptosporidium | Polishing stage, and pre-filtration ahead of an RO membrane |
| 0.5 micron and below | Very fine and sub-micron particulate | Carbon block territory; final polish, not a bulk sediment job |
A useful way to picture it: think of these as a set of graduated sieves. A coarse screen catches the gravel and lets the sand through; a fine screen catches the sand but clogs the moment the gravel hits it. That's why heavy-sediment homes rarely run one filter. They stage a coarse catcher first, then a finer polish.
For most municipal water, a single 5 micron cartridge does the job. Well water, water after a main break, or supply running through old galvanized pipe is where you start thinking in stages. Not sure which you're dealing with? A quick at-home water test tells you what's actually in the water before you buy anything.
Why a Finer Filter Is Not Always Better
A finer filter is not a free upgrade. It catches more, but it also fills up faster, and on the wrong water it can clog in days instead of months. This is the mistake behind most "is 5 micron too fine?" questions.
Picture a home on rust-heavy or clay-heavy well water. Drop in a 1 micron cartridge and it grabs everything beautifully for about a week, then packs solid with fine particulate and starts choking flow. The owner blames the rating's fineness and decides filtration "kills" their pressure. The real lesson is simpler: that water needed a coarser first stage to take the bulk load off the fine filter.
The practical move on dirty water is to step up, not down, in micron number. Start with a coarse catcher (a reusable spin-down screen or a 20 to 50 micron cartridge) to pull the heavy grit, then follow it with a 5 or 1 micron cartridge to polish. The coarse stage protects the fine stage, the fine stage lasts far longer, and your flow stays steady.
After more than 30 years building multi-stage systems in the USA, Crystal Quest's engineers design sediment stages around this idea: the finest filter in the train should see the cleanest water, so it spends its life polishing instead of fighting a flood of grit. Size the early stages for the dirty work, and the fine filter you actually care about lasts.
Does a Sediment Filter Reduce Water Pressure?
A clean sediment filter at a sensible micron rating barely changes your household water pressure. When pressure noticeably drops after a filter goes in, the filter is almost never the underlying problem. It's a symptom of one of three fixable things.
Think of a dryer's lint screen. A clean screen lets air move freely and the dryer runs fine. Let lint pack the screen and airflow strangles, clothes come out damp, and you might curse the machine. The dryer isn't broken. The screen is full. A sediment cartridge behaves the same way: clean, it flows; loaded with debris, it chokes the line.
When the Pressure Drop Is Really a Clogged Filter
A loaded cartridge is the most common cause of pressure loss, by a wide margin. As the filter traps particles, the path for water narrows and flow falls. This is normal, expected, and it's the filter telling you it's doing its job and needs a change.
A few signs point straight at a clogged cartridge: pressure that fell gradually over weeks or months, water that runs strong again right after a filter change, or a pressure gauge before and after the housing showing a widening gap. The fix is a fresh cartridge, not a different micron rating. If it clogs again fast, then the rating is too fine for your water, and you step up or add a coarse pre-stage. Our water filter troubleshooting guide walks through the rest of the flow-and-pressure checks.
When Low Pressure Is Not Your Filter at All
Sometimes the filter takes the blame for a plumbing problem it never caused. If your pressure was low before you ever installed a filter, or the drop hits only one fixture, the filter is a bystander.
A single weak faucet usually means a clogged aerator or a problem with that one fixture's supply line, not whole-house filtration. House-wide low pressure that predates the filter often traces to old galvanized pipe corroding shut from the inside, a partly closed main valve, a failing pressure regulator, or scale buildup from hard water narrowing the pipes. None of those are solved by changing a sediment filter, and a filter swap won't touch them.
Before you blame the filter, answer these: Is the drop house-wide or just one fixture? Did it start when you installed the filter, or before? Does a fresh cartridge bring the flow back? One fixture, pressure low beforehand, or no change after a swap all point away from the filter and toward your plumbing.
How to Choose the Right Micron Rating
Choosing a micron rating is a four-step decision, and it starts with knowing what's in your water, not with picking a number off a chart. Work through these in order.
-
Identify what's actually in your water
Sand and silt, clay and colloidal haze, and rust all behave differently. A quick look tells you a lot (visible grit versus a fine cloud versus orange staining), and a water test confirms it. This first step saves you from buying the wrong filter twice.
-
Match the rating and stages to the load
Light haze on city water? A single 5 micron cartridge is usually plenty. Heavy or visible sediment, well water, or rust? Stage a coarse catcher first, then a finer polish. Going finer than you need just shortens filter life with no real benefit.
-
Size the housing for your flow

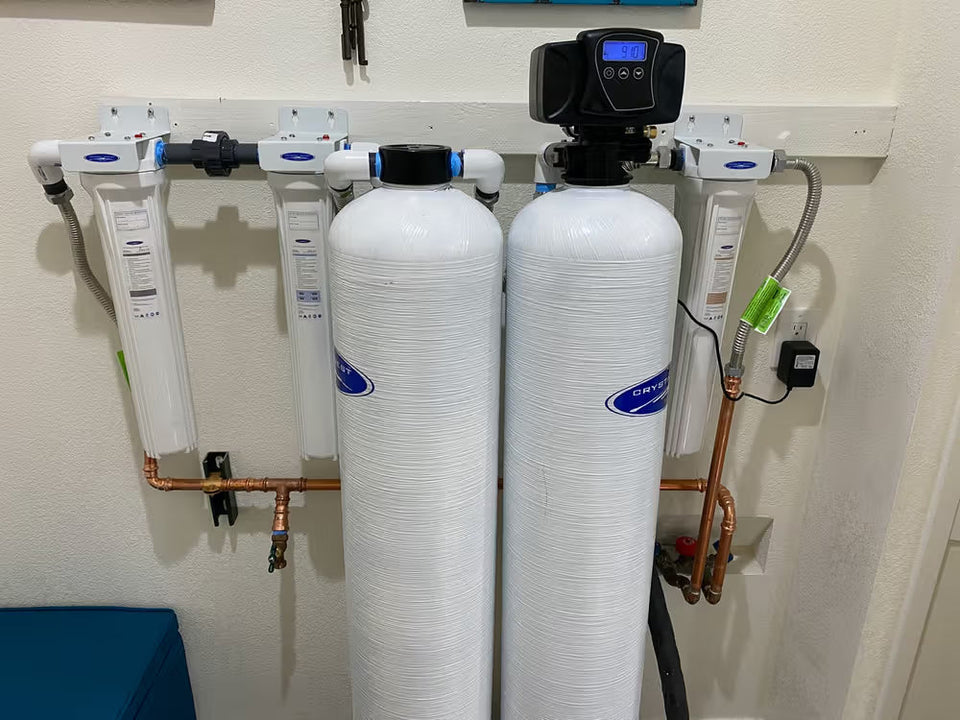

A filter that's physically too small for your home's demand creates pressure drop no matter how clean it is. Larger housings (the big "Blue" style or a whole-house tank) hold more media, flow more freely, and last longer between changes.
-
Set a realistic change interval
Plan to swap cartridges on a schedule, or watch a pressure gauge and change when the drop reaches a few psi. Treating the change as routine maintenance, the same way you would for your other filtration stages, is what keeps pressure steady.
A right-sized sediment stage is the cheapest insurance in your whole system. It's the part that keeps grit out of your reverse osmosis membrane, your water softener, and your water heater, all of which cost far more to repair than a cartridge costs to replace.
For homes fighting persistent cloudiness or heavy turbidity, a dedicated sediment and turbidity system carries the load better than a single cartridge ever will. Crystal Quest's sediment and turbidity filtration systems are built around staged, whole-house removal, and the broader whole-house filtration line pairs sediment pre-filtration with the rest of your treatment.
Not sure which sediment filter fits your water?
Start with what's in your water, then match the system. Crystal Quest's filtration is engineered and built in the USA, and our specialists can size a sediment stage for your home.
Frequently Asked Questions About Water Filter Micron Ratings
What micron rating is best for a whole house sediment filter?
For most homes, a 5 micron whole-house sediment filter is the right all-purpose choice. It catches the fine silt and rust that cloud water without clogging too quickly on typical supply. If your water carries heavy or visible grit, stage a coarser pre-filter (20 to 50 micron, or a reusable spin-down screen) ahead of the 5 micron cartridge so the fine filter lasts.
Is a 5 micron filter better than a 1 micron filter?
Neither is universally better; they do different jobs. A 1 micron filter catches finer particles and many cysts, which makes it a good polishing or pre-RO stage, but it clogs faster on dirty water. A 5 micron filter handles general sediment with longer life. On well or rust-heavy water, a 5 micron (or coarser) stage ahead of a 1 micron polish outperforms a lone 1 micron cartridge.
Is 5 or 20 micron better for well water?
It depends on how much sediment your well produces, which is why staging usually wins. Well water often carries sand and grit that would clog a 5 micron cartridge quickly, so a 20 micron (or coarser spin-down) first stage handles the bulk load, then a 5 micron stage polishes. A water test showing your sediment type and load tells you exactly where to start.
Does a smaller micron rating lower water pressure?
A smaller micron rating does not lower pressure on its own when the filter is clean and correctly sized. Pressure drops when a cartridge clogs, when the rating is too fine for your water (so it clogs fast), or when the housing is undersized for your flow. A clean, right-sized filter at almost any common rating has little effect on household pressure.
How often should I change a sediment filter?
Most sediment cartridges last 3 to 6 months, but the real answer is when flow starts to drop. Heavy sediment, well water, or a finer rating shortens that interval; clean city water can stretch it. A simple pressure gauge before and after the housing removes the guesswork: when the gap widens by a few psi, it's time.
Will a sediment filter remove iron, hardness, or chlorine?
No. A sediment filter is a mechanical strainer that removes suspended particles, not anything dissolved in the water. Dissolved iron, hardness minerals, and chlorine pass right through and need their own treatment (oxidation or specialized media for iron, softening or conditioning for hardness, carbon for chlorine). A sediment filter often works as the protective first stage in front of those.
Can I clean a sediment filter instead of replacing it?
Some can be cleaned, most can't. Reusable spin-down screens and certain pleated cartridges are designed to be rinsed and reused, which makes them economical as a coarse first stage. Standard spun or melt-blown cartridges are meant to be replaced once they load up; rinsing them rarely restores real flow and can dislodge trapped debris back into your water.
Suspended particles like sediment are measured as turbidity, the cloudiness of water, reported in nephelometric turbidity units (USGS, Turbidity and Water). The U.S. Environmental Protection Agency regulates turbidity in public water systems partly because particles can shelter disease-causing microorganisms (EPA, National Primary Drinking Water Regulations), which is one more reason to keep sediment out of your home's water.
