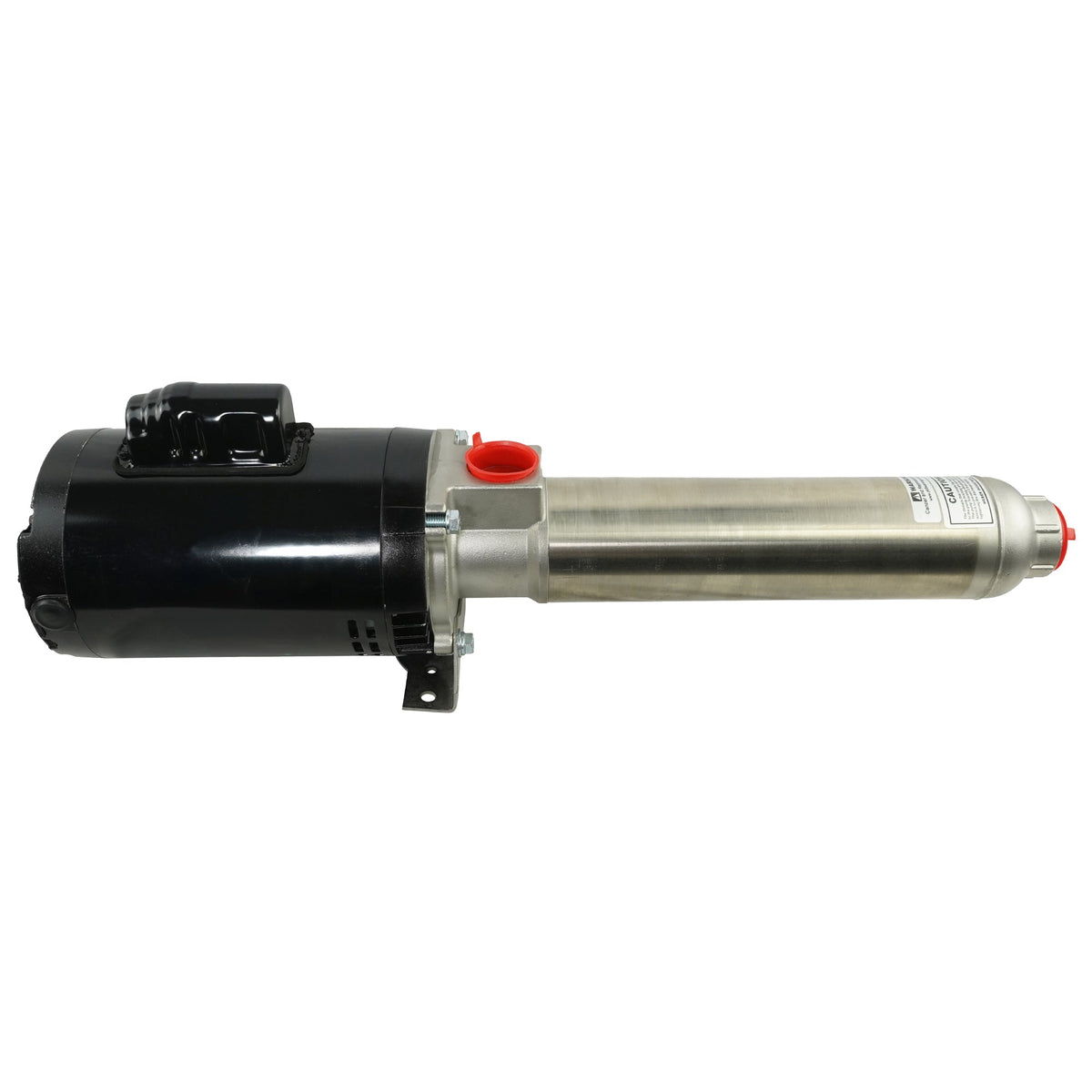

H20B9S16M Horizontal Pump, 1.5HP, Stainless Steel
The H20B9S16M Horizontal Pump is part of the EZ Series Booster Pump line, offering high-performance solutions for industrial, commercial, and agricultural applications. With 1.5HP motor power and stainless steel construction, this pump is designed to deliver reliable and efficient operation.
Key Features:
- Durable Construction: Made with 316 stainless steel for maximum corrosion resistance and longevity.
- High Performance: Delivers smooth and pulse-free pressure boosting with capacities to 40 GPM and pressures up to 500 PSI.
- Efficient Design: Incorporates glass-filled Delrin® or polycarbonate impellers and stainless steel wear rings for durability and efficiency.
- Wide Application: Suitable for reverse osmosis, deionization, water boosting, car wash systems, and more.
Specifications
| Category | Details |
|---|---|
| Flow Rate | Up to 40 gallons per minute (GPM) |
| Head | Up to 500 PSI |
| Operating Temperature | Up to 180°F |
| Casing | 316 Stainless Steel |
| Impellers | Glass-filled Delrin® or Polycarbonate |
| Shaft | 316 Stainless Steel |
| Mechanical Seal | Carbon/Ceramic |
| Suction Port | 1" FNPT |
| Discharge Port | 1" FNPT |
| Motor Type | Totally Enclosed Fan-Cooled (TEFC) |
| Horsepower | 1.5 HP |
| Speed | 3450 RPM |
| Phase/Voltage | 3 Phase, 230/460V |
| Rotation | Clockwise when viewed from motor end |
Installation Instructions
-
Preparation:
- Inspect the pump for damage and ensure all parts are present.
- Verify the motor voltage matches the power supply.
- Check pump and motor alignment before installation.
-
Foundation:
- Mount the pump on a stable, flat surface to minimize vibration.
- Secure the pump with anchor bolts if required.
-
Piping Connections:
- Connect suction and discharge pipes with appropriate gaskets and seals.
- Support pipes to avoid strain on the pump connections.
- Install a check valve and isolation valve on the discharge side.
-
Priming the Pump:
- Fill the pump casing with liquid to ensure proper priming.
- Use a vent valve to eliminate air from the pump casing.
-
Electrical Wiring:
- Wire the motor following local electrical codes and standards.
- Ensure the motor is properly grounded.
- Check motor rotation to confirm it matches the direction indicated on the pump casing.
-
Startup:
- Open both the suction and discharge valves.
- Start the motor and monitor the pump operation.
- Check for leaks, vibrations, or unusual noises.
-
Final Adjustments:
- Adjust the flow and pressure using the discharge valve.
- Do not throttle the suction side to maintain efficiency.
-
Regular Maintenance:
- Periodically inspect the pump and motor for wear or damage.
- Lubricate bearings as per the manufacturer's recommendations.
