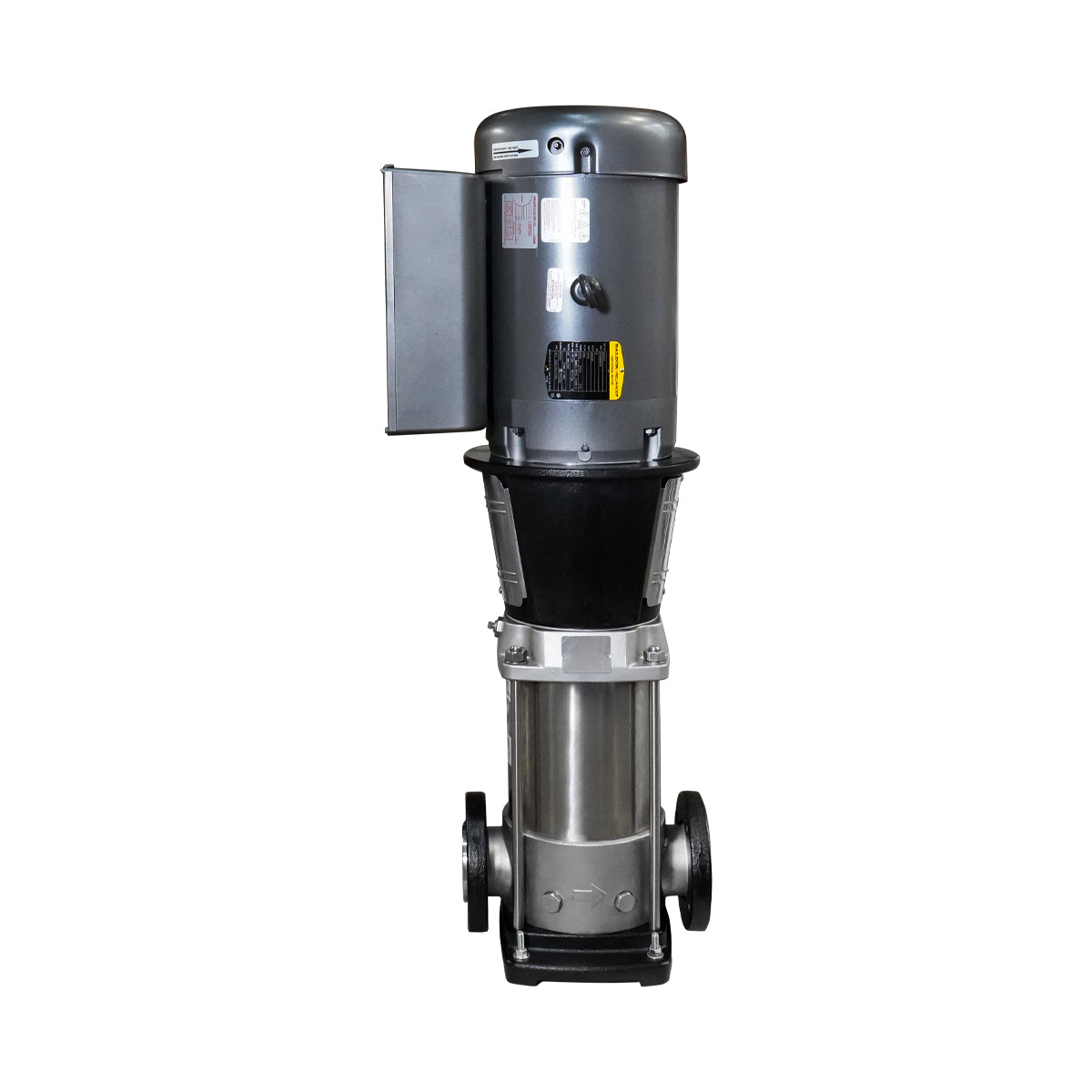

NV120B3-2FE1T Vertical Pump 10 HP
Couldn't load pickup availability
Product Description
The NV120B3-2FE1T Vertical Pump is a high-performance, multi-stage booster pump designed for a wide range of demanding industrial, commercial, and agricultural applications. With its compact, in-line design, this pump offers exceptional efficiency and ease of installation while delivering powerful and reliable performance.
Featuring a 10 HP motor and a flow capacity of up to 120 GPM, the NV120B3-2FE1T is engineered to handle pressures up to 232 PSI. Constructed from durable 304 stainless steel, it is corrosion-resistant and suitable for use in harsh environments. Maintenance-free cartridge mechanical seals and ANSI standard flanged connections ensure long-lasting performance and simple maintenance.
Certified to meet NSF/ANSI 61 and 372 standards, this pump is ideal for applications such as reverse osmosis, water boosting, filtration systems, hot and cold water circulation, and heat exchangers.
Specifications for NV120B3-2FE1T Vertical Pump
| Specification | Details |
|---|---|
| Model | NV120B3-2FE1T |
| Motor Power | 10 HP |
| Flow Rate | Up to 120 GPM |
| Maximum Pressure | 232 PSI |
| Materials |
|
| Connections | 3" ANSI 150# Flanged |
| Operating Temperature | Up to 248°F |
| Certifications | NSF/ANSI 61 and 372 |
| Applications |
|
| Dimensions |
|
Installation Instructions for NV120B3-2FE1T Vertical Pump
-
Preparation:
- Inspect the pump and motor for damage during shipping. Report any visible damage to the carrier or dealer.
- Ensure the installation site is level, stable, and provides sufficient space and ventilation for motor cooling and servicing.
- Verify that the pump model matches the system requirements.
-
Mounting the Pump:
- Secure the pump base to a solid, flat surface to prevent vibrations during operation.
- Align and support the suction and discharge piping to avoid strain on the pump.
- Install isolation valves on both the suction and discharge sides for easier maintenance.
-
Piping Connections:
- Ensure piping matches the pump’s 3" ANSI 150# flanged connections.
- Install gaskets to prevent leaks, ensuring they do not obstruct flow.
- Remove protective covers or caps from the flanges before installation.
- For hot water applications, install a bleed valve in the discharge line to relieve pressure during maintenance.
-
Electrical Connection:
- Have a certified electrician verify that the electrical supply matches the motor’s specifications (10 HP, three-phase).
- Ensure proper motor wiring and confirm counterclockwise rotation when viewed from the motor’s rear.
- If the rotation is incorrect, reverse any two leads on a three-phase motor to correct it.
-
Priming the Pump:
- Remove the fill plug and use a funnel to fill the pump casing with water.
- Open the vent plug to allow air to escape as the pump fills with water.
- Re-seal the vent plug and fill plug once a steady stream of water flows from the vent.
-
Initial Testing:
- Open the suction valve fully and partially open the discharge valve.
- Apply power to the motor and monitor for smooth operation without noise or vibration.
- Gradually open the discharge valve to achieve desired operating conditions.
-
Safety Precautions:
- Never operate the pump without water, as it can cause damage to internal components.
- Replace coupling guards after installation to prevent injuries.
- Ensure the pump is properly grounded and connections are secure before starting.
