Anion vs Cation Exchange: What's the Difference?
You test your well water and the report flags nitrate. A neighbor on city water is scrubbing limescale off every faucet. Both problems get solved by ion exchange resin, but not the same resin. One pulls out positive ions. The other pulls out negative ones.
That single difference, positive versus negative, is the whole story behind anion vs cation exchange. Cation exchange resin removes positively charged ions like calcium and magnesium, which is why it sits at the heart of a water softener. Anion exchange resin removes negatively charged ions like nitrate, sulfate, and PFAS. Same basic trick (swap a harmful ion for a harmless one), opposite targets. Crystal Quest builds systems around both, and which one you actually need comes down to what your water test shows.
Key Takeaways
It Comes Down to Charge
Cation Means Softening
Anion Means Contaminant Removal
They Often Team Up
What Is an Anion? (And What's a Cation?)
An anion is a particle in water that carries a negative charge. A cation is one that carries a positive charge. Every dissolved mineral or contaminant in your water falls into one camp or the other, and that charge is what decides which resin can grab it.
Common anions (negative) include chloride, nitrate, sulfate, bicarbonate (which shows up as alkalinity), and silicate. Common cations (positive) include calcium, magnesium, sodium, and iron. The calcium and magnesium are the ones that leave spots on your glasses and crust on your shower head.
An anion is "A Negative ION." A cation carries the positive charge. Resins are named for the ion they target, so anion resin chases the negatives and cation resin chases the positives.
How Anion and Cation Exchange Differ
Both technologies are forms of ion exchange, the same underlying science. They differ in which ions they pull from the water, what they're loaded with to start, and the job they usually do. Here's the comparison side by side.
| Feature | Cation Exchange | Anion Exchange |
|---|---|---|
| Charge it targets | Positive ions (+) | Negative ions (-) |
| Example ions removed | Calcium, magnesium, some iron | Nitrate, sulfate, arsenate, PFAS |
| Resin starts loaded with | Sodium (or potassium) | Chloride |
| Most common job | Water softening | Contaminant removal (nitrate, PFAS) |
| How it's renewed | Regenerated with salt brine | Salt brine, or single-use for PFAS |
How the Ion Swap Works

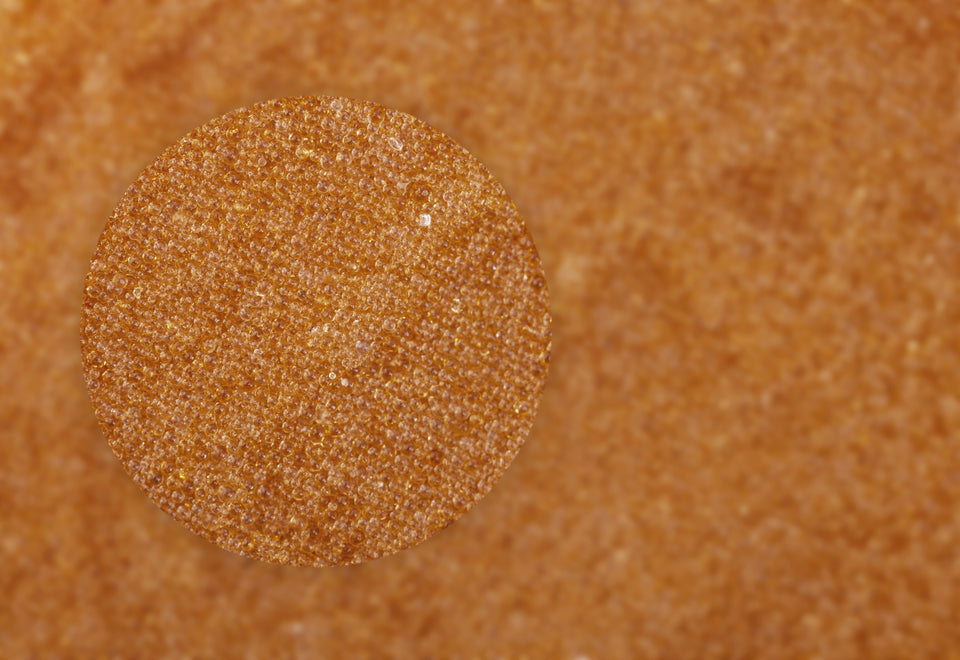

Ion exchange works by trading one ion for another. Water flows through a bed of tiny resin beads, and each bead is covered in charged sites that already hold a harmless ion. When a target ion drifts past, the resin grabs it and lets the harmless one go in its place.
Picture a coat check. You hand over your jacket and get a numbered tag in return. The resin bead does the same swap thousands of times across its surface: it takes the ion you don't want and hands back one you don't mind. Cation resin trades away sodium to capture calcium and magnesium. Anion resin trades away chloride to capture nitrate, sulfate, or PFAS.
Eventually the bead fills up. At that point it's either regenerated with a salt brine that strips the captured ions back off, or, for some uses, simply replaced. Which path makes sense depends on the contaminant, something we'll come back to with PFAS.
What Does Anion Exchange Remove?
Anion exchange removes negatively charged contaminants, and several of them are ones the EPA regulates closely. This is where anion resin earns its keep, especially on well water and on supplies touched by industrial pollution.
| Anion | Where it comes from | EPA drinking water limit |
|---|---|---|
| Nitrate | Fertilizer and septic runoff, common in well water | 10 mg/L (as nitrogen) |
| Arsenic (arsenate) | Natural rock and soil, mining activity | 10 ppb |
| PFAS (PFOA and PFOS) | Industrial waste, firefighting foam, nonstick coatings | 4 ppt |
| Sulfate | Dissolved minerals in groundwater | 250 mg/L (secondary, taste) |
The EPA sets hard limits on most of these. Nitrate is capped at 10 mg/L measured as nitrogen, and arsenic at 10 parts per billion, per the EPA's National Primary Drinking Water Regulations. For PFAS, the limit is far stricter: just 4 parts per trillion for PFOA and PFOS under the EPA's PFAS drinking water rule. That tells you how seriously regulators treat these compounds.
PFAS is the headline story for anion exchange. The molecules carry a negative charge, so they're drawn straight to anion resin, and selective resins can be tuned to target them specifically. Anion exchange is one of the main technologies for removing PFAS from drinking water. Chromium-6 and perchlorate round out the list of specialty anions that selective resins handle.
Anion Exchange Resin Examples
If you're looking for anion exchange resins examples and the jobs they actually do, these are the everyday ones:
- Nitrate reduction on well water, the most common residential use.
- PFAS removal with selective, often single-use resins.
- Alkalinity control, lowering bicarbonate to stabilize pH.
- Deionization, paired with cation resin to strip out nearly all dissolved ions.
Anion resins also come in different formulations. Strong base anion (SBA) resins, which include Type 1 and Type 2, handle the broadest range of contaminants. Weak base anion (WBA) resins are built for strong acids and organic scavenging rather than fine ion polishing. The right pick depends on the full water chemistry, not just the one contaminant you're chasing, which is why Crystal Quest selects resin on a per-application basis.
This is the beginner's overview. For resin types, selectivity, and how to match a resin to your water, see the full guide to anion exchange resin.
Where Cation Exchange Shows Up: Water Softening
Cation exchange is the technology behind almost every water softener. Hard water is loaded with positively charged calcium and magnesium, and a softener's cation resin swaps those minerals for sodium as the water passes through. The scale stops forming, soap lathers again, and your fixtures stay clean.
When the resin fills up with hardness minerals, it regenerates with a salt brine and starts over. That salt cycle is the trade-off: cation softening genuinely removes the hardness, but it adds a little sodium to the water and needs salt to keep running. If you want the full mechanism, here's how water softeners work step by step.
When You Need Both
Plenty of water problems don't sort neatly into "positive" or "negative." Well water can carry both hardness and nitrate. High-purity applications need almost everything gone. That's when cation and anion exchange work together.
In a multi-stage system, cation resin usually goes first. It pulls out the hardness that would otherwise foul the anion resin and cut its life short, so the anion stage can focus on its target contaminant. Run far enough, this pairing becomes deionization: a mixed bed of cation and anion resin that strips out nearly all dissolved ions for labs, electronics, and other precision uses.
Not sure which type of exchange your water needs?
It starts with knowing what's actually in your water. Crystal Quest specialists can read your test results and point you to the right approach.
Frequently Asked Questions About Anion vs Cation Exchange
Does anion exchange remove positive or negative ions?
Anion resin removes negatively charged ions (anions) such as nitrate, sulfate, arsenate, PFAS, and chloride. If you need to remove positive ions like calcium or magnesium, that's a job for cation resin instead.
Is a water softener cation or anion exchange?
A standard water softener uses cation exchange. It swaps the calcium and magnesium that cause hardness for sodium held on the resin. Anion exchange handles a different set of problems, like nitrate and PFAS.
Which type of exchange removes PFAS?
Anion exchange removes PFAS. PFAS molecules carry a negative charge, so they're attracted to anion resin, not cation resin. Selective single-use resins are common for PFAS so the captured chemicals aren't released back during regeneration.
Do I need cation exchange before anion exchange?
Often, yes. Hardness minerals can foul anion resin and shorten its life, so multi-stage systems run cation exchange (or other pre-treatment) first to protect the anion stage. Your water chemistry decides whether it's necessary.
Can one system remove both positive and negative ions?
Yes. Mixed-bed deionization combines cation and anion resin in a single tank to strip out nearly all dissolved ions, and two-stage systems do the same job in sequence. Both are common in labs and high-purity applications.
How do I know whether I need anion or cation exchange?
Test your water first. A water test shows which ions are actually present and at what levels, so you match the resin to the real problem instead of guessing. Hardness points to cation exchange; nitrate, arsenic, or PFAS point to anion exchange.
