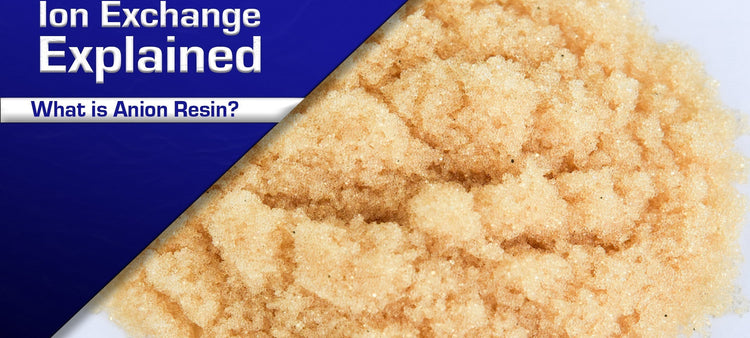

What Is Anion Exchange Resin?
Definition: Anion exchange resin is an ion‑exchange media that removes negatively charged ions (anions) using positively charged functional sites; in DI it operates in the OH⁻ form to produce very low‑conductivity, high‑resistivity water.
Simple rule: Anion resin removes negative ions; cation resin removes positive ions.
Anion exchange resin is a porous polymer media that swaps its attached ions with negatively charged ions (anions) in water. In deionization (DI), a strong base anion (SBA) resin in the OH⁻ form replaces anions such as chloride, nitrate, sulfate, bicarbonate, and silica (as silicate) with OH⁻, which combines with H⁺ from the cation stage to form pure H₂O. Specialized anion resins are also used for nitrate, arsenate, and dealkalization processes.
Key Takeaways at a Glance
SBA (OH⁻) enables DI polishing
Anion resin exchanges OH⁻ for anions (Cl⁻, NO₃⁻, SO₄²⁻, HCO₃⁻, silicate); with H⁺ from cation resin, it forms H₂O.
Type I vs Type II matters
Type I minimizes silica/CO₂ leakage for high‑purity; Type II offers higher capacity with slightly higher leakage.
EBCT and CO₂ drive results
Longer contact time and lower CO₂ (degas upstream) improve silica performance and resistivity stability.
Pretreatment prevents fouling
Use carbon/RO to remove oxidants and organics; consider macroporous resin when organic fouling risk is high.
How Anion Resin Works
Anion resin beads carry positively charged quaternary amine sites that hold exchangeable anions. When water passes through, target anions swap with the ion on the resin. In deionization (DI), this exchange runs in the OH⁻ cycle:
- Deionization (OH⁻ cycle): R-N⁺(CH₃)₃OH⁻ + Cl⁻ ⇌ R-N⁺(CH₃)₃Cl⁻ + OH⁻
- Net effect for deionization: H⁺ (from the cation stage) + OH⁻ (from the anion stage) → H₂O → very low‑conductivity water
- Capacity & selectivity: Different anions exchange at different rates/affinities; silica and CO₂ species are among the most challenging and require the right resin type and contact time.
Quaternary Amine (Strong Base)
Quaternary amine (QA, -N⁺R₃X⁻) is a permanently charged functional group on the resin. Because it is always positively charged, it acts as a strong base anion (SBA) site across a wide pH range and readily exchanges anions in DI service. Simple: an “always‑on” anion grabber.
Tertiary Amine (Weak Base)
Tertiary amine (-NR₃) is a weak base functional group that becomes positively charged only when protonated (in acidic conditions). As a resin, it forms weak base anion (WBA) sites that are excellent for removing strong acids after neutralization, but they do not capture silica/CO₂ in high‑purity DI. Simple: “turns on” in acid; not for silica.
Types of Anion Resin
Strong Base Anion (SBA)
Built on quaternary amine functional groups, SBA resins exchange anions effectively across a wide pH range. They are used in deionization (DI), dealkalization trains, condensate polishing, and selective contaminant removal (e.g., nitrate) depending on grade.
Type I Strong Base Anion (SBA)
Preferred when silica and CO₂ species must be minimized, in DI service (high‑purity) and condensate polishing. Use conservative EBCT and consider upstream degassing when CO₂ is elevated. See anion resin media.
Type II Strong Base Anion (SBA)
Provides higher operating capacity and easier regeneration, with slightly higher silica leakage than Type I, appropriate where ultimate silica performance is not the primary constraint (general demineralization and some dealkalization roles, not high‑purity DI polish).
Weak Base Anion (WBA)
Built on tertiary amine functional groups. WBA resins remove strong acids after neutralization and can serve as organic scavengers, but they are not effective for silica/CO₂ control in high‑purity service.
Matrix: Gel vs. Macroporous
Gel resins typically provide higher capacity under clean conditions. Macroporous resins resist organic fouling and osmotic shock and can improve longevity on challenging waters.
Comparison: Type I vs Type II Strong Base Anion vs Weak Base Anion
Which Ions Does Anion Resin Remove?
Applications & Uses of Anion Exchange Media
Deionization / Demineralization
Paired with cation resin (two‑bed or mixed‑bed) to produce low‑conductivity water for DI/EDI trains. Typical uses: laboratory/analytical water, electronics and optics rinsing, RO/DI aquariums, spot‑free rinse, and ultrapure make‑up. Explore DI systems and mixed‑bed DI cartridges.
Dealkalization
Lower alkalinity (HCO₃⁻/CO₃²⁻) in boiler and process waters to control pH and reduce scaling/corrosion. Often implemented with WBA stages and downstream polishing as needed.
Condensate Polishing
Capture trace chloride, sulfate, silica, and other anions in power/industrial loops to protect boilers and turbines. Type I SBA grades and adequate EBCT minimize silica leakage. See industrial DI solutions.
Selective Removal
Use specialty anion resins to target contaminants such as nitrate, arsenate, and perchlorate under defined water chemistry and operating windows. For nitrate, see nitrate selective resin. Validate with bench or pilot testing.
Organic Scavenging
Employ macroporous WBA to reduce dissolved organics that foul downstream ion‑exchange stages and membranes. Common as a guard bed ahead of DI or RO; pair with a carbon prefilter and consider reverse osmosis upstream.
Anion Exchange Considerations
Monitoring
Track conductivity/resistivity (25 °C) and, where relevant, silica. Watch pressure drop (fouling/channeling) and effluent pH trends to diagnose stage imbalance.
Regeneration
SBA resins regenerate with caustic (NaOH); efficiency depends on resin type (Type I vs Type II), caustic strength, temperature, and contact time. WBA regenerates with weaker caustic after neutralization service. Rinse thoroughly to lower leakage.
Replacement
Plan changeout when product quality drifts (rising conductivity, silica breakthrough) or when capacity/run length no longer meets demand, even after proper regeneration. For cartridges, use resistivity/TDS meters rather than relying only on color change. See mixed‑bed DI cartridges and DI resin media.
Care & Fouling
Protect from oxidants (free chlorine), organics (use a carbon prefilter or macroporous grades), and iron/particulates (use filtration). Avoid osmotic shock with gradual startup/shutdown procedures.
Compatibility & Materials
Use compatible wetted materials downstream of high‑purity trains (e.g., 304/316 stainless, PVDF/PFA, high‑grade PP). Avoid copper/brass where DI/low‑conductivity water may be aggressive.
Selecting an Anion Resin
- Resin type: DI polishing → SBA Type I (low silica leakage). Capacity‑driven DI with modest silica → consider Type II. Strong acid removal/pretreatment → WBA.
- Matrix: Gel for capacity; macroporous for organic fouling resistance and durability.
- Bed depth & EBCT: Adequate bed depth and conservative flow improve silica/CO₂ performance.
- Pretreatment: Use carbon/RO upstream; degas if CO₂ is elevated.
Frequently Asked Questions about Anion Resin
What is anion exchange resin and how does it work in deionization (DI)?
Anion exchange resin is a polymer bead with positively charged sites that swap negative ions (Cl⁻, NO₃⁻, SO₄²⁻, HCO₃⁻, silicate) for OH⁻. In DI, the OH⁻ it releases combines with H⁺ from the cation stage to make H₂O, producing low‑conductivity, high‑resistivity water.
What is the difference between Type I and Type II Strong Base Anion (SBA) resin?
Type I SBA minimizes silica and CO₂ species (best for high‑purity and condensate polishing). Type II SBA delivers higher operating capacity and easier regeneration but with slightly higher silica leakage, use where ultimate silica performance is not required.
When should I use Weak Base Anion (WBA) resin instead of SBA?
Use WBA to remove strong acids after neutralization (e.g., dealkalization) and as an organic scavenger. WBA is not suitable for silica/CO₂ control in high‑purity DI polishers.
How do I reduce silica leakage in DI water?
Select Type I SBA, increase bed depth/EBCT, and reduce dissolved CO₂ (degassing or upstream pH adjustment). A mixed‑bed polisher after two‑bed DI is commonly used to reach the lowest silica and highest resistivity.
How long does anion exchange resin last and what shortens its life?
With good pretreatment (carbon + RO), proper flow, and correct regeneration, service life is often measured in years. Life shortens with oxidants (free chlorine), organic fouling, iron/particulates, high temperature, poor regeneration, and CO₂‑driven loading in DI.
Can anion exchange resin remove nitrate or arsenate in drinking water?
Yes, selective anion resins can target nitrate and arsenate under the right water chemistry and operating conditions. Designs must address competing ions (e.g., sulfate for nitrate) and follow applicable standards for potable use; validation testing is recommended.
How do you regenerate anion exchange resin (SBA and WBA)?
SBA resins are regenerated with sodium hydroxide (NaOH); higher caustic strength, adequate temperature, and contact time improve efficiency (vendor‑specific ranges typically span ~2-10% NaOH). WBA resins regenerate with weaker caustic after neutralization service. Always rinse thoroughly to minimize leakage.
What’s the difference between strong base anion (SBA) and weak base anion (WBA) resin?
SBA uses quaternary amine functional groups and works across a wide pH range; it’s the choice for high‑purity DI and silica/CO₂ control (Type I best for low silica). WBA uses tertiary amine groups that are active only when protonated (acidic conditions) and is used for strong acids after neutralization or as an organic scavenger, not for final silica/CO₂ polish.
Does anion exchange remove positive or negative ions?
Negative ions (anions). Typical targets include chloride, nitrate, sulfate, bicarbonate, and silicate (silica). In DI, these are replaced by OH⁻, which then combines with H⁺ from the cation stage to form H₂O.
About the Author
Written by a Crystal Quest water treatment specialist. We design, build, and support DI and RO/DI systems for homes, labs, and industry, bringing hands‑on field experience to every recommendation in this guide.
