Anion Exchange

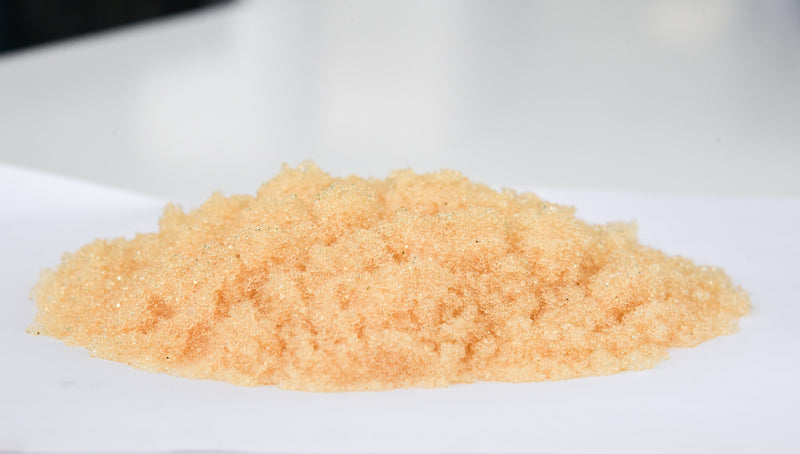

Anion exchange resins are synthetic polymer beads that carry positively charged functional groups. These sites attract and exchange negatively charged ions (anions) in water, including nitrate (NO₃⁻), sulfate (SO₄²⁻), arsenate (AsO₄³⁻), fluoride (F⁻), silica (SiO₂), and organic acids/tannins. Two main types are used: Strong Base Anion (SBA) resins with quaternary ammonium groups effective across pH 0-14, and Weak Base Anion (WBA) resins with tertiary amine groups that are most effective under acidic conditions (pH < 7) for strong acid removal and organic scavenging.

Gel-type anion exchange resins have a uniform polymer matrix with very small pores (typically 10-50 Å), delivering higher exchange capacity (about 1.2-1.4 eq/L) at lower cost; they're ideal for clean water with low organics. Macroporous anion exchange resins contain larger, discrete pores (roughly 200-1000+ Å) that increase surface area and resistance to organic fouling and improve mechanical strength, making them a better choice for high-TDS, organic-laden waters and selective ion removal, with a modest capacity trade-off (about 0.8-1.1 eq/L).

Empty Bed Contact Time (EBCT) is the theoretical time water spends in the resin bed: EBCT = bed volume ÷ flow rate. Typical design ranges: 2-5 minutes generally; 3-4 minutes for nitrate, 4-6 minutes for silica, and 5-8 minutes for arsenate/fluoride. Too little EBCT leads to early breakthrough and higher leakage; excessively high EBCT increases capital cost with diminishing returns. Correct EBCT enables complete exchange kinetics and optimal resin utilization.

In the chloride form (Cl⁻), chloride occupies the resin's functional groups and is exchanged for target anions like nitrate, sulfate, or arsenate during service. This is the standard shipping form for most SBA resins. Other forms include hydroxide (OH⁻) for deionization, sulfate (SO₄²⁻) to enhance nitrate selectivity, and free base for WBA resins. The ionic form influences selectivity, capacity, and regeneration chemistry.

SBA (Strong Base Anion) resins use quaternary ammonium groups, operate over pH 0-14, and remove virtually all anions, including weak acids like silica, carbonic acid, and borates; they're standard for demineralization and ultrapure water and are typically regenerated with 4-8% NaOH. WBA (Weak Base Anion) resins use tertiary amines, are most effective under acidic conditions (pH < 7), remove strong mineral acids but not weak acids, offer efficient regeneration and better organic fouling resistance, and are commonly regenerated with 2-4% NaOH or Na₂CO₃.

Functional groups are the active chemical sites that bind and release ions. SBA resins use quaternary ammonium (R₄N⁺) groups—commonly Type I (trimethylammonium) for deep silica removal and Type II (DMEA) for higher capacity. WBA resins use tertiary amines (R₃N) which must be protonated to function. Specialized groups (e.g., tributylamine) can enhance nitrate selectivity. The functional group dictates selectivity sequence, pH suitability, and regeneration chemistry.

Bead size (0.3-1.2 mm; 16-50 mesh) impacts pressure drop, kinetics, and capacity use. Smaller beads (0.4-0.6 mm) increase surface area, speed up exchange, and create sharper breakthrough curves—great for high-purity polishing—but raise headloss. Larger beads (0.6-0.8 mm) reduce headloss and improve backwash hydraulics for high-flow systems. A uniformity coefficient (UC) < 1.2 promotes even flow and minimizes channeling. Fine-mesh (<0.4 mm) resins need careful hydraulics to avoid excessive headloss and resin carryover.

Nitrate-selective SBA resins (often macroporous with specialized amine functionality) provide enhanced nitrate affinity, maintaining performance even when sulfate competes at higher concentrations. These resins typically achieve 10,000-20,000 gallons per cubic foot between regenerations in typical well water. Actual operating capacity depends on water chemistry and design; consult the comparison table and outcome guide for typical ranges and sizing guidance.

Type I and Type II SBA resins effectively remove sulfate; Type II quaternary ammonium chemistries are often selected where sulfate affinity is prioritized (e.g., to mitigate CaSO₄/BaSO₄ scaling). These resins typically achieve 1.0-1.4 eq/L capacity for sulfate removal. Selection should consider co-ions, TDS, and EBCT; see the comparison table for guidance.

Yes. Anion exchange can reduce bitter taste from sulfate, salty taste from excess chloride, and remove tannins/organic acids that cause color and earthy/musty notes. For comprehensive aesthetics, pair with activated carbon to address chlorine/chloramine and VOCs. Most users report significant taste improvement within 24-48 hours of installation.

Yes—when using NSF/ANSI 61-certified materials produced to FDA CFR 21 requirements and operated correctly. Maintain proper regeneration, rinse, and sanitization procedures, and monitor performance (especially for nitrate and arsenate) to ensure compliance with drinking-water standards. All Crystal Quest resins meet or exceed these safety standards.

Typical lifespan is about 5-10 years with good operation; exposure to oxidants (e.g., chlorine) can reduce this to 3-5 years. SBA resins are commonly regenerated with 4-8% NaOH (approximately 4-8 lb/ft³) at around 120°F (50°C) followed by adequate slow/fast rinses. WBA resins often use 2-4% NaOH or Na₂CO₃. Some nitrate-selective resins use NaCl or NaCl + NaOH blends. Watch for capacity decline, rising pressure drop, or color throw as end-of-life indicators.

SBA resins remove arsenate (As⁵⁺) effectively when designed with sufficient EBCT (5-8 min) and operated near pH 6.5-8.5; pre-oxidize arsenite (As³⁺) to arsenate for best results. Fluoride removal via standard SBA is limited and not recommended as a primary treatment—use activated alumina or fluoride-selective resins. Always confirm performance with pilot/jar testing, especially in the presence of sulfate.

Type I SBA resins (trimethylammonium) provide the deepest silica removal, often reaching <20 ppb reactive silica in demineralized water with adequate EBCT (4-6 min) and regeneration (4% NaOH at 120°F). CO₂ degassing upstream can improve performance by reducing bicarbonate loading. Type II SBA offers moderate silica control (<100 ppb), and WBA resins do not remove silica. For ultra-pure specs, finish with mixed-bed polishing.

Base selection on: 1) Targets—nitrate (nitrate-selective SBA), silica (Type I SBA), organics/strong acids (WBA); 2) Water chemistry—pH, TDS, oxidants, and competing ions (e.g., SO₄²⁻ vs. NO₃⁻); 3) Structure—gel for clean streams vs. macroporous for fouling resistance/selectivity; 4) Design—EBCT (3-5 min), bed depth (≥30"), service flow (2-4 gpm/ft³); 5) Regeneration—chemical availability and waste handling. See the comparison table or request technical support.
