Water Softener Control Valves: The Component That Decides Whether Your System Lasts 5 Years or 25
You are about to make a serious investment in a water softener, yet the single component that decides whether that system runs efficiently for 15 years or starts failing in 5 rarely gets the attention it deserves. That component is the control valve.
Most buying guides skip right past it. They focus on grain capacity, tank size, and salt type, all of which matter, but none of it counts if the valve running your regeneration cycles is not the right match for your water usage, flow rate, and application. This guide covers the three major water softener control valve brands, Clack, Fleck (Pentair), and Autotrol, and gives you an honest, side-by-side comparison. Crystal Quest® has paired these valve platforms with softener tanks for over 30 years across thousands of residential, commercial, and industrial installations.
Key Takeaways
What Is a Water Softener Control Valve? (And Why It Is the Most Important Component)
A water softener control valve is the automated mechanism that manages your system's regeneration cycle, the process that flushes hardness minerals from the resin bed and restores its softening capacity.
Think of it as the brain of your water softener. The resin beads inside the tank do the actual softening work, trading sodium ions for the calcium and magnesium that cause hard water. But the control valve decides when that resin gets recharged, how much water and salt to use, and how long each regeneration stage lasts.
Get the valve wrong, and you will see the consequences:
- Premature regeneration, wasting salt and water on cycles you do not need
- Delayed regeneration, letting hard water break through to your faucets, showerheads, and appliances
- Flow rate bottlenecks, reducing water pressure throughout your home or facility
- Shortened system life, because a valve that cannot handle your demand wears out years ahead of schedule
The right valve eliminates these problems. It matches regeneration to your actual water usage, delivers the flow rate your application demands, and runs reliably for 15 to 25 years with basic maintenance.
How Water Softener Control Valves Work
Every water softener control valve manages the same fundamental process: keeping your resin bed charged and ready to remove hardness minerals. The differences between brands and models come down to how they initiate and execute that process.
The Regeneration Cycle Explained
Regeneration is a multi-step sequence that usually runs in the middle of the night, when water usage is lowest. Your control valve manages every stage, timing each step, opening and closing internal ports, and monitoring water flow through the system:
-
Backwash
Water flows upward through the resin bed, flushing out sediment, iron particles, and broken resin beads. This stage usually lasts 10 to 15 minutes.
-
Brine Draw
Concentrated salt solution is pulled from the brine tank into the resin bed. Sodium ions in the brine swap places with the calcium and magnesium ions trapped in the resin. This is the ion exchange process that actually restores softening capacity.
-
Slow Rinse
Fresh water slowly pushes the remaining brine through the resin, completing the ion exchange. This stage is critical for thorough regeneration.
-
Fast Rinse
A rapid flush removes residual brine and repositions the resin bed for service. It takes about 5 to 10 minutes.
-
Return to Service
The valve switches back to normal operation, routing incoming water through the freshly recharged resin bed.
The entire cycle uses 30 to 80 gallons of water and takes 60 to 120 minutes, depending on system size and valve programming.
Metered vs Timed vs Demand-Initiated Regeneration
How your valve decides when to regenerate is the single biggest factor in salt and water efficiency. There are three primary methods:
| Regeneration Mode | How It Works | Best For | Salt Efficiency |
|---|---|---|---|
| Metered (demand) | Tracks gallons used and regenerates when resin capacity is depleted | Variable water usage, most homes and businesses | High, regenerates only when needed |
| Timed (clock) | Regenerates on a fixed schedule regardless of water usage | Consistent, predictable usage patterns | Lower, may regenerate too often or not enough |
| Demand-initiated (pressure differential) | Monitors water quality or pressure changes to trigger regeneration | Large commercial or industrial systems with sensors | Highest, responds to real-time conditions |
Most modern valves from all three major brands support metered operation. If you are comparing models, prioritize metered capability. The salt savings alone will pay back the cost difference over time.
Upflow vs Downflow Regeneration
Traditional softener valves use downflow regeneration, where brine enters from the top and flows down through the resin bed. This is simple and reliable, but it does not always contact all the resin evenly.
Upflow regeneration pushes brine up from the bottom, contacting the freshest resin first. This tends to use 20% to 30% less salt per regeneration cycle and produces cleaner soft water during the final rinse stage. Not all valves support upflow regeneration, so if salt efficiency is a priority, confirm that the model you are considering offers it as an option.
Types of Water Softener Control Valve Systems
Water softener control valves come in three main system configurations: single-tank, twin alternating, and multi-tank. The right configuration depends on your flow rate needs and whether you can tolerate any downtime during regeneration.
Single-Tank Systems
The most common setup for residential use: one resin tank, one control valve, one brine tank. During regeneration, the system either bypasses untreated water or stops flow entirely, usually at night when nobody is using water.
Best for: homes with predictable usage patterns and 1 to 4 bathrooms. If regeneration happens while the household sleeps, a single-tank system handles most residential needs.
Twin Alternating Systems
Two resin tanks share a single control valve assembly. When one tank regenerates, the other stays in service, delivering soft water 24 hours a day, 7 days a week, with zero downtime.
Best for: homes with unpredictable schedules (shift workers, large families), businesses that cannot afford any hard water interruption (restaurants, hotels, laundries), and any application where continuous soft water is critical. If you are still seeing signs of hard water even with a softener installed, an alternating system may solve the problem.

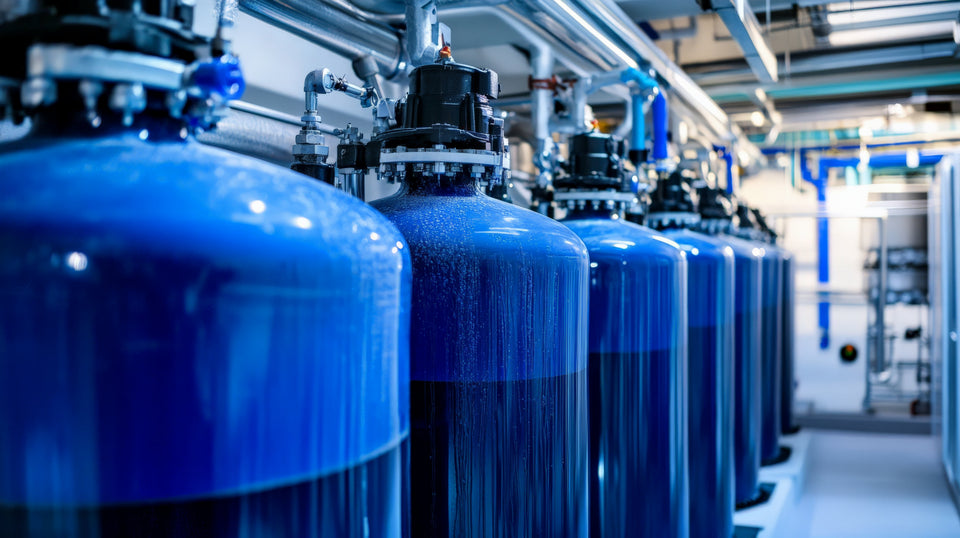

Multi-Tank Configurations (Triplex, Quadraplex, Progressive Flow)
For commercial and industrial applications with high flow rates, multi-tank systems connect three, four, or more resin tanks through a coordinated valve network. These configurations handle flow rates from 25 GPM to over 1,000 GPM.
Progressive flow systems are especially efficient. They automatically bring tanks online and offline based on real-time demand. During low-usage periods, only one or two tanks are active; when demand spikes, additional tanks engage automatically. Crystal Quest designs commercial water softener systems from 45,000 grains to 1,800,000 grains, with multi-tank configurations engineered for hospitals, hotels, manufacturing plants, and agricultural operations.
Clack Water Softener Valves: What You Need to Know
Clack Corporation is a well-established American control valve manufacturer with a strong reputation for durable, programmable valves used across residential, commercial, and industrial water treatment. Clack's lineup spans from 1-inch residential models to 3-inch industrial units, with a consistent focus on solid-state microprocessor controls and modular serviceability.
Clack WS1 Series (1 inch, Residential to Light Commercial)
The WS1 is Clack's most widely installed valve. With a 1-inch port, it handles service flow rates up to 28 GPM and backwash rates up to 15 GPM, more than enough for most homes and light commercial applications.
- Solid-state microprocessor with front-panel programming
- Three regeneration modes: meter immediate, meter delayed, and time clock delayed
- Upflow and downflow regeneration support
- Compatible with tanks up to 21 inches in diameter
- Lithium battery backup with 8-hour carryover
- Works with sodium chloride, potassium chloride, and potassium permanganate
The WS1 also comes in a twin alternating configuration for applications that need 24/7 soft water, adding a fourth regeneration mode (pressure differential) and extending battery backup to 24 hours.
Clack WS1.25 and WS1.5 (Mid-Size Commercial)
The WS1.25 (1.25 inch) and WS1.5 (1.5 inch) valves bridge the gap between residential and heavy commercial use. The WS1.5 is especially noteworthy:
- Service flow rate up to roughly 50 GPM, with a higher backwash rate for larger tanks
- Epoxy-coated, lead-free brass valve body
- Four regeneration modes including pressure differential
- Front-panel display showing flow rate, volume remaining, and days until next regeneration
- Solar power option for remote installations
Clack WS2 and WS3 (Large Commercial and Industrial)
The WS2 (2 inch) handles service flows up to 115 GPM and backwash up to 80 GPM. The WS3 (3 inch) pushes to 250 GPM service flow and 220 GPM backwash, suitable for large industrial systems. The WS3 adds networking that matters at scale: connect up to 16 valves via Cat5 cable, Modbus RS485 for building automation integration, remote software updates, and relay expansion boards for custom control sequences.
Clack Strengths and Limitations
Strengths: excellent programmability with multiple regeneration modes. Strong parts availability, since Clack components are widely stocked by distributors. Modular design makes field service straightforward. Broad size range from residential to industrial (WS1 through WS3). A good reputation for mechanical reliability.
Limitations: some models use composite plastic bodies (brass is optional on larger units). The programming interface, while functional, is not as intuitive as some alternatives. Less name recognition among residential buyers compared to Fleck.
Fleck (Pentair) Water Softener Valves: What You Need to Know
Fleck, now part of Pentair, is arguably the most recognized name in residential water softener control valves. The Fleck 5600 series has been the go-to choice for residential softeners for decades, and Pentair's larger commercial valves are workhorses across the industry.
Fleck 5600 Series (Residential Workhorse)
The Fleck 5600SXT is one of the most popular residential control valves ever manufactured. Its 1-inch port handles peak service flows up to 27 GPM (around 20 GPM continuous) and fits softener tanks up to about 13 inches in diameter, which suits most single-family homes. The Clack WS1 fits larger tanks and backwashes harder, so it has more headroom if you are sizing up.
- Fully adjustable regeneration cycles with LCD display
- Metered and timed regeneration modes
- 48-hour internal power backup
- Optical sensor for precise cycle positioning
- Extensive parts availability and a nationwide dealer network
The 5600 series has been on the market long enough that nearly every water treatment professional knows how to install, program, and service it. That familiarity is a genuine advantage: it means faster service calls and easier troubleshooting.
Pentair 2510, 2850, 2900, 3900 (Commercial and Industrial)
Pentair's commercial valve lineup covers mid-size to large applications:
| Model | Port Size | Service Flow | Backwash Flow | Best For |
|---|---|---|---|---|
| 2510 | 1" | 27 GPM | 15 GPM | Residential, light commercial |
| 2850 | 1.5" | 50 GPM | 35 GPM | Mid-size commercial |
| 2900 | 2" | 85 GPM | 60 GPM | Large commercial |
| 3900 | 3" | Up to 250 GPM | Up to 100 GPM | Heavy commercial, industrial |
Crystal Quest uses Pentair valve platforms across many of our water softener systems, from residential units to large-scale commercial installations. Our engineers select specific valve models based on the application's flow rate, hardness level, and uptime requirements. You can explore our control valve options to see the platforms we work with.
Fleck and Pentair Strengths and Limitations
Strengths: a massive install base means proven long-term reliability. Best-in-class parts availability and dealer support. The 5600 series is the industry's most familiar residential valve. Pentair's commercial valves offer strong flow rates relative to port size. Optical sensor technology provides precise cycle positioning.
Limitations: the 5600 series is residential-focused, with limited scalability for growing commercial needs. Fewer regeneration mode options than Clack on some models. Commercial valve heads (2850, 2900, 3900) sit at the higher end of the market.
Autotrol Water Softener Valves: What You Need to Know
Autotrol, now part of Pentair, has a long history in residential and light commercial water treatment. While less prominent than Clack or Fleck in today's market, Autotrol valves remain a solid option, particularly for residential softener installations where simplicity and reliability are the priorities.
Key Autotrol Models
The Autotrol 255 and 268 series are the most commonly encountered models:
- Autotrol 255: a 1-inch valve designed for residential softeners, with timer-based regeneration and straightforward programming.
- Autotrol 268: an updated residential valve with metered regeneration capability, with service flows comparable to the Fleck 5600 and Clack WS1.
Both models use a motor-driven camshaft and disc design for valve positioning. It is mechanically simple, and the disc design tends to tolerate silt and particulate well.
Autotrol Strengths and Limitations
Strengths: a simple, proven mechanical design with a long service history. Easy to install and program for residential applications. The disc-valve design tolerates silt and particulate well and is straightforward to service. A solid choice for standard residential softening needs.
Limitations: fewer models than Clack or Fleck, which limits scalability. A smaller dealer and parts network. No large commercial or industrial valve options (2 inch and up). Fewer regeneration modes, and some models are timer-only. Less active product development in recent years.
Not sure which control valve or system fits your home or facility?
Crystal Quest has been engineering water softener systems since 1994, pairing the right control valve with the right tank for your water chemistry, flow rate, and budget.
Clack vs Fleck vs Autotrol: Head-to-Head Comparison
For most residential applications, Clack and Fleck are closely matched. The best choice depends on your specific needs: flow rate, regeneration preferences, local parts availability, and whether you plan to upgrade later.
Comparison Table
| Feature | Clack (WS1) | Fleck (5600SXT) | Autotrol (268) |
|---|---|---|---|
| Port Size | 1" | 1" | 1" |
| Service Flow | Up to 28 GPM | 20 GPM (27 peak) | Up to 25 GPM |
| Backwash Flow | Up to 15 GPM | Up to 7 GPM | Up to 14 GPM |
| Regeneration Modes | Meter immediate, meter delayed, time clock | Metered, timed | Metered, timed |
| Upflow Regeneration | Yes | Select models | No |
| Display | Front panel LCD | LCD with backlight | Basic LCD |
| Power Backup | 8-hour lithium battery | 48-hour internal | 24-hour |
| Max Tank Diameter | 21" | 13" | 13" |
| Twin Alternating Available | Yes | Yes | Limited |
| Commercial Models | WS1.25, WS1.5, WS2, WS3 | 2510, 2850, 2900, 3900 | Limited |
| Parts Availability | Excellent | Excellent | Good |
| Ease of Programming | Moderate, more options and a steeper curve | Easy, intuitive interface | Easy, simple menus |
| Relative Cost (valve only) | Mid-range | Mid-range | Budget |
Which Valve Wins for Residential Use?
The Fleck 5600SXT has the edge for most homeowners. Its intuitive interface, 48-hour power backup, and huge dealer network make it the most accessible choice. If your plumber or water treatment professional already knows the 5600, that familiarity translates to faster installation and easier service.
The Clack WS1 is the better pick if you want more control over regeneration programming or plan to pair the valve with a twin alternating setup. Its extra regeneration modes give more flexibility for households with variable water usage.
The Autotrol 268 is a solid budget option for straightforward residential softening where advanced features are not needed.
Which Valve Wins for Commercial Use?
Both Clack and Pentair offer strong commercial valve lineups. The choice usually comes down to the specific flow rate and configuration you need.
- Clack WS1.5 and WS2: excellent mid-range commercial options with strong programmability.
- Pentair 2850, 2900, and 3900: higher flow rates per port size, popular in high-demand commercial settings.
- Autotrol: does not compete in the commercial space; its lineup stops at residential.
Crystal Quest engineers select between these platforms based on your specific application. Our commercial water softener systems range from 45,000 to 1,800,000 grain capacity, with valve selections matched to flow rate, uptime requirements, and facility size. For a side-by-side look at complete systems, see our water softener comparison guide.
Which Valve Wins for Industrial Use?
For industrial applications that need 100+ GPM flow rates and building automation integration, the Clack WS3 and Pentair 3900 are the primary contenders.
- Clack WS3: Cat5 valve networking (up to 16 units), Modbus RS485 for BMS integration, and remote firmware updates, all designed for large, multi-valve installations.
- Pentair 3900: a 3-inch valve with high service flow (up to about 250 GPM), a true peer of the Clack WS3 for large systems, with proven reliability in demanding industrial environments.
At this scale, proper system engineering matters more than valve brand preference. The valve needs to be sized, programmed, and configured specifically for your facility's water chemistry, flow patterns, and uptime requirements.
How to Choose the Right Control Valve for Your Application
The right water softener control valve depends on four factors: flow rate, grain capacity, regeneration mode, and application type. Here is a step-by-step framework to narrow your options.
-
Calculate Your Flow Rate Needs
Your valve must handle peak demand without dropping water pressure. Residential baselines: 1 to 2 bathrooms need about 8 to 12 GPM; 3 to 4 bathrooms need about 12 to 20 GPM; 5 or more bathrooms or large homes need 20 to 30+ GPM. A 1-inch valve like the Clack WS1 or Fleck 5600 handles peak flows in the high-20s GPM, enough for most homes. If your peak demand exceeds that, you need a larger valve or a twin alternating configuration.
-
Determine Your Grain Capacity
Daily grain requirement = water hardness (GPG) × daily water usage (gallons). A family of four using 300 gallons per day at 15 GPG needs 4,500 grains per day, so a 45,000-grain system regenerates comfortably every 10 days. Not sure about your hardness? Test your water hardness at home first. According to the U.S. Geological Survey, hardness varies from under 1 GPG in parts of the Pacific Northwest to over 25 GPG across much of the Midwest and Southwest.
-
Match the Valve to the Application
Single-family homes (1 to 4 bath): a 1-inch valve (Clack WS1 or Fleck 5600). Large homes or small businesses: a 1-inch twin alternating or 1.25-inch valve. Restaurants, hotels, and laundromats: a 1.5-inch to 2-inch valve. Hospitals, manufacturing, and agriculture: a 2-inch to 3-inch valve. Use Crystal Quest's free water softener sizing calculator to match your usage to the right system capacity.
-
Choose Your Regeneration Mode
For most applications, metered (demand-based) regeneration is the clear winner. It tracks actual water usage and regenerates only when the resin is approaching exhaustion, saving 30% to 40% more salt than timed alternatives. Choose timed only if your water usage is extremely consistent, your budget is tight, or the installation does not support flow metering. Crystal Quest's free regeneration calculator can help estimate frequency based on your water chemistry and usage.
Residential vs Commercial Water Softener Control Valves: Key Differences
Residential and commercial control valves differ in flow capacity, build materials, and programming complexity. Here is what separates them:
| Factor | Residential | Commercial |
|---|---|---|
| Flow rate range | 8 to 28 GPM | 30 to 250+ GPM |
| Valve body material | Composite plastic | Epoxy-coated brass or stainless steel |
| Port size | 1" | 1.25" to 3" |
| Regeneration programming | Basic metered or timed | Multi-mode with BMS integration |
| Configuration | Single or twin | Twin, triplex, quadraplex, progressive |
| Service life expectation | 15 to 20 years | 15 to 25+ years with regular service |
Water hardness is not a federally regulated contaminant, but it raises total dissolved solids, which the EPA lists among its secondary standards for aesthetic and nuisance effects. Even unregulated, hardness is significant enough to cause scale, spotting, and equipment wear. For residential systems, the NSF/ANSI 44 standard sets performance testing requirements for cation exchange water softeners, including valve components, so it is a useful benchmark to ask about when you evaluate residential options. Commercial systems demand deeper engineering, where the valve is sized and configured to the facility's flow patterns and uptime requirements.
Water Softener Valve Maintenance and Troubleshooting
A well-maintained control valve lasts 15 to 25 years. A neglected one may fail in 5 to 7. The good news: basic valve maintenance is straightforward and takes little time.
Preventive Maintenance Schedule
Annual Maintenance Checklist
- Inspect the valve motor and drive mechanism for smooth operation
- Check all seals and O-rings for wear or leakage
- Clean the brine valve and injector assembly, since salt buildup restricts flow
- Verify regeneration cycle timing and completeness
- Confirm the meter, if equipped, is reading accurately
Every 3 to 5 years, replace seals, spacers, and the piston assembly if they show wear; test and replace the backup battery if carryover time has declined; and inspect the circuit board for corrosion or moisture damage. For a detailed walkthrough, see our water softener maintenance guide.
Common Valve Problems and Fixes
| Problem | Likely Cause | Fix |
|---|---|---|
| Valve stuck in regeneration | Motor failure, jammed piston, or debris in the valve body | Check motor operation, clear debris, and replace the drive if the motor is burned out |
| Hard water coming through | Valve not regenerating, meter not reading, or bypass valve open | Verify regeneration is occurring, check the meter sensor, and ensure the bypass is closed |
| Low water pressure | Valve partially closed, injector clogged, or iron fouling | Clean the injector and drain line, and check for internal blockage |
| Excessive salt usage | Too-frequent regeneration, incorrect capacity setting, or brine valve leak | Verify programming, adjust capacity to actual hardness, and inspect the brine valve |
| Water in salt tank overflow | Brine valve not shutting off, or drain line restriction | Clean the brine valve and check the drain line for kinks or clogs |
When to Replace Your Control Valve
Consider replacement when repair costs exceed half the price of a new valve, the valve is 15+ years old and showing multiple issues, parts are no longer readily available, or your water demand has outgrown the valve's capacity.
In most cases, you can replace just the valve head without replacing the entire softener system. Check that your existing tank's top port thread matches the new valve's fitting before you order. Crystal Quest's control head collection includes Fleck and Pentair-platform valve heads that pair with compatible tanks.
Ready to find the right water softener for your home or facility?
Start with our best water softener systems guide and the free sizing calculator, then explore the full collection. Every system is hand-assembled in our ISO 9001 certified facility in Kennesaw, Georgia, backed by over 30 years of manufacturing expertise.
Frequently Asked Questions
Which is better, Clack or Fleck water softener valves?
Neither is universally better; each has strengths for different situations. The Fleck 5600SXT is the most popular residential valve, with an intuitive interface and extensive dealer support. The Clack WS1 offers more regeneration programming options and is often preferred for twin alternating setups. For commercial use, both brands offer strong options at different flow rates. Choose based on your flow rate needs, the features you want, and which brand your installer knows best.
What does a water softener control valve do?
The control valve manages your water softener's regeneration cycle, the automated process that recharges the resin bed with sodium ions so it can keep removing hardness minerals (calcium and magnesium) from your water. It controls when regeneration starts, how long each stage lasts, and how much salt and water are used. Without a properly functioning control valve, your softener cannot maintain soft water.
How long do water softener control valves last?
Most quality control valves last 15 to 25 years with proper maintenance. Lifespan depends on water quality (high iron or sediment speeds up wear), usage volume, and maintenance consistency. Annual inspections and seal replacements every 3 to 5 years significantly extend valve life. Budget-grade valves may last only 7 to 10 years.
What is the difference between metered and timed water softener valves?
Metered valves track actual water usage and regenerate when needed. Timed valves regenerate on a fixed schedule regardless of usage. Metered valves save roughly 30% to 40% more salt because they only regenerate when the resin is actually approaching exhaustion. Timed valves are simpler and less expensive but waste salt during light-usage periods and risk hard water breakthrough during heavy-usage periods. For most homes, metered is the better investment.
How do I choose the right size water softener valve?
Match the valve's port size and maximum flow rate to your peak water demand. For homes with 1 to 4 bathrooms, a 1-inch valve (Clack WS1, Fleck 5600) usually provides adequate flow. Larger homes or commercial facilities need 1.25-inch to 3-inch valves. Use Crystal Quest's free sizing calculator to determine your exact requirements based on household size, hardness level, and water usage.
Can I replace just the control valve on my water softener?
Yes. In most cases, you can replace the valve head without replacing the entire system. The key is matching the new valve's bottom connection to your existing tank's top port thread. Standard residential tanks usually use a 2.5-inch top port. Before ordering, measure your tank port and check compatibility with the new valve. This can save significantly compared to a full system replacement.
Are Clack valves better for commercial use?
Clack offers strong commercial options, but Pentair valves are equally capable at that scale. Clack's WS2 and WS3 provide strong flow rates and networking features (up to 16 valves via Cat5). Pentair's 2850, 2900, and 3900 also deliver high flow rates and proven commercial reliability. The best choice depends on your specific flow requirements, integration needs, and which platform your service provider supports.
How often should a water softener valve be serviced?
Annual inspections are recommended, with component replacements every 3 to 5 years. Each year, check the motor operation, seals, injector, and brine valve. Every 3 to 5 years, replace the piston seals, spacer stack, and backup battery. Systems in hard-water areas or with high iron content may need more frequent service. See our water softener maintenance guide for a complete checklist.
