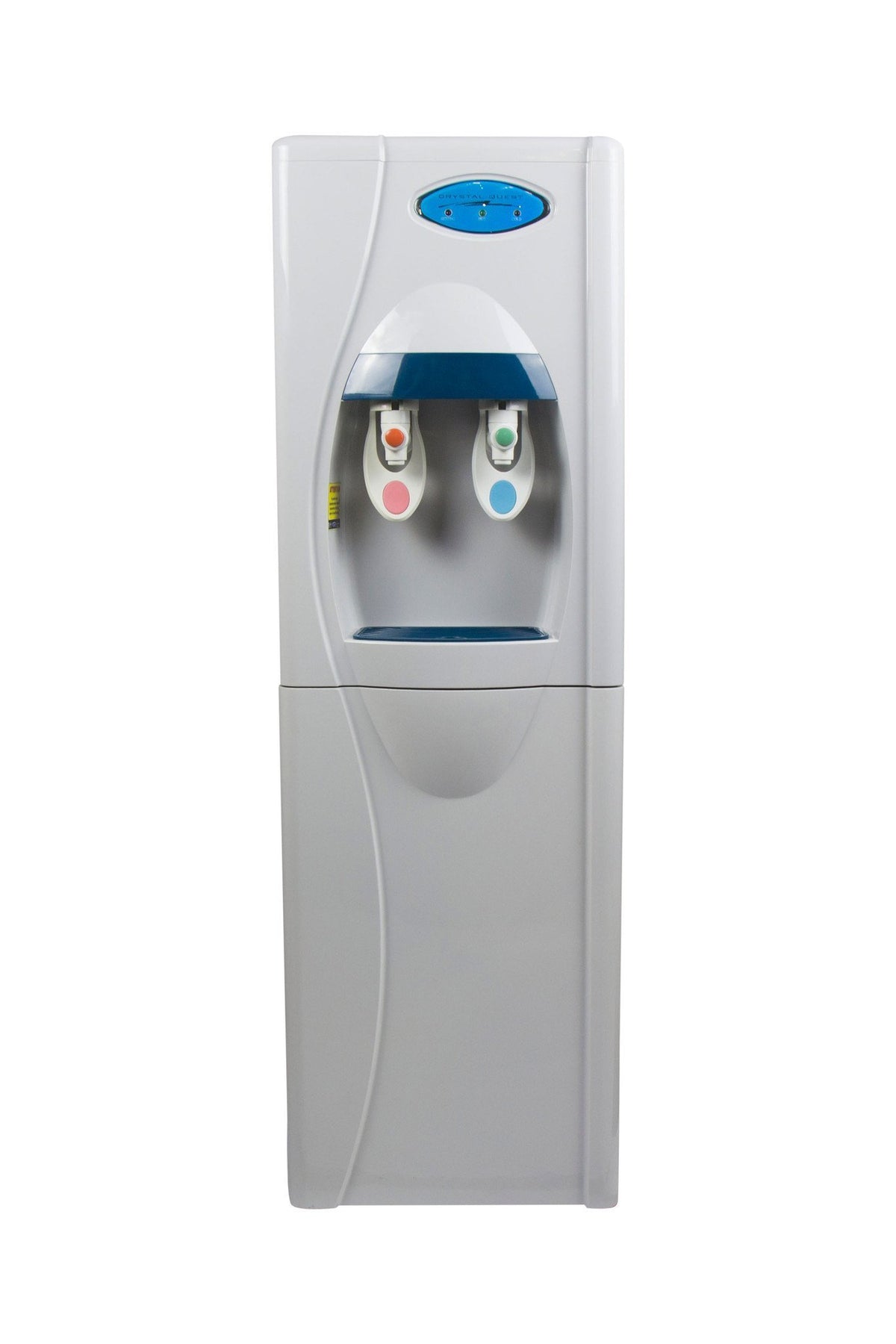

Hybrid Ultrafiltration + Reverse Osmosis Bottleless Water Cooler

Write a Review

Price: $545.00

UltraFiltration (UF)

What is UF? In the UF process, a fine membrane (.02 micron) partially addresses micro-organisms with out waste water to lower the Total Total Suspended Solids.

If you don’t have the additional RO membrane system, some TSS will be left behind. To eliminate a majority of TSS, a Reverse Osmosis membrane is suggested.

Reverse Osmosis (RO)

Reverse Osmosis Bottle-less Water CoolerUltraFiltration acts as the pre-treatment for the next stage of the even finer RO Treatment. RO is a water purification technology that uses a semipermeable membrane to remove larger particles & an array of contaminants. Similar to UF, although RO uses a different membrane. When water goes through the RO Membrane, leftover water hardness & contaminants that are too big to go through the UF & RO membrane will wash out through your drain line. (In the back of the water cooler, the system will connect to your kitchen drain for the wastewater.) The initial UF membrane is to help reduce the amount of Total Suspended Solids before the RO Treatment so less strain is put on the RO membrane. Read more about the membrane HERE.

No Plastic Jugs
Cold Water
Hot Water
Child Safety for Hot Water
UltraFiltration (UF)
Reverse Osmosis (RO)
Waste Water
Stainless Steel Holding Tank
Polypropylene Holding Tank
  • Built-in filtration system
  • Separate hot/cold power switch
  • Automatic heating shut-off when hot temperature is reached
  • Automatic float valve
  • High efficiency sealed compressor cooling system
  • Adjustable cold water
  • Type 304 stainless steel hot and cold water tanks
  • Easy access front panel for service of Filter system
  • Easy to use and easy to clean


  • Weight: 60 lbs. .
  • Dimensions: (D) 14.5” x (W) 14 3/4” x (H) 39.25”
  • Total reservoir capacity: 3.2 gallons
  • Heating power: 500W 6.2 Amps
  • Cooling power: 112W 2.4 Amps - TOTAL NEEDED 612W 8.6 Amps
  • Hold water tank volume: 1.45 gal
  • Hot water tank volume: 0.5 gal
  • Cold water tank volume: 1.2 gal
  • Cooling capacity: 1.95 gal per hour 35-50°
  • Heating capacity: 1.5 gal per hour 185°F
  • Voltage: 110V-120V 50/60Hz
  • Pressure range: 30-60 psi (2.1-4.1bar)
  • Optimum service flow: 0.50 GPM at 60 psi (1.1 lpm at 4.1 bar)


Product Manual


    *A Leak Detector Smart Valve should be purchased/installed to prevent unknow water line conditions such as high water pressure, lack of pressure regulator, water spiking or hammering, or negligent installation.
