NV45B4FE3T Vertical Pump
Couldn't load pickup availability
Product Description

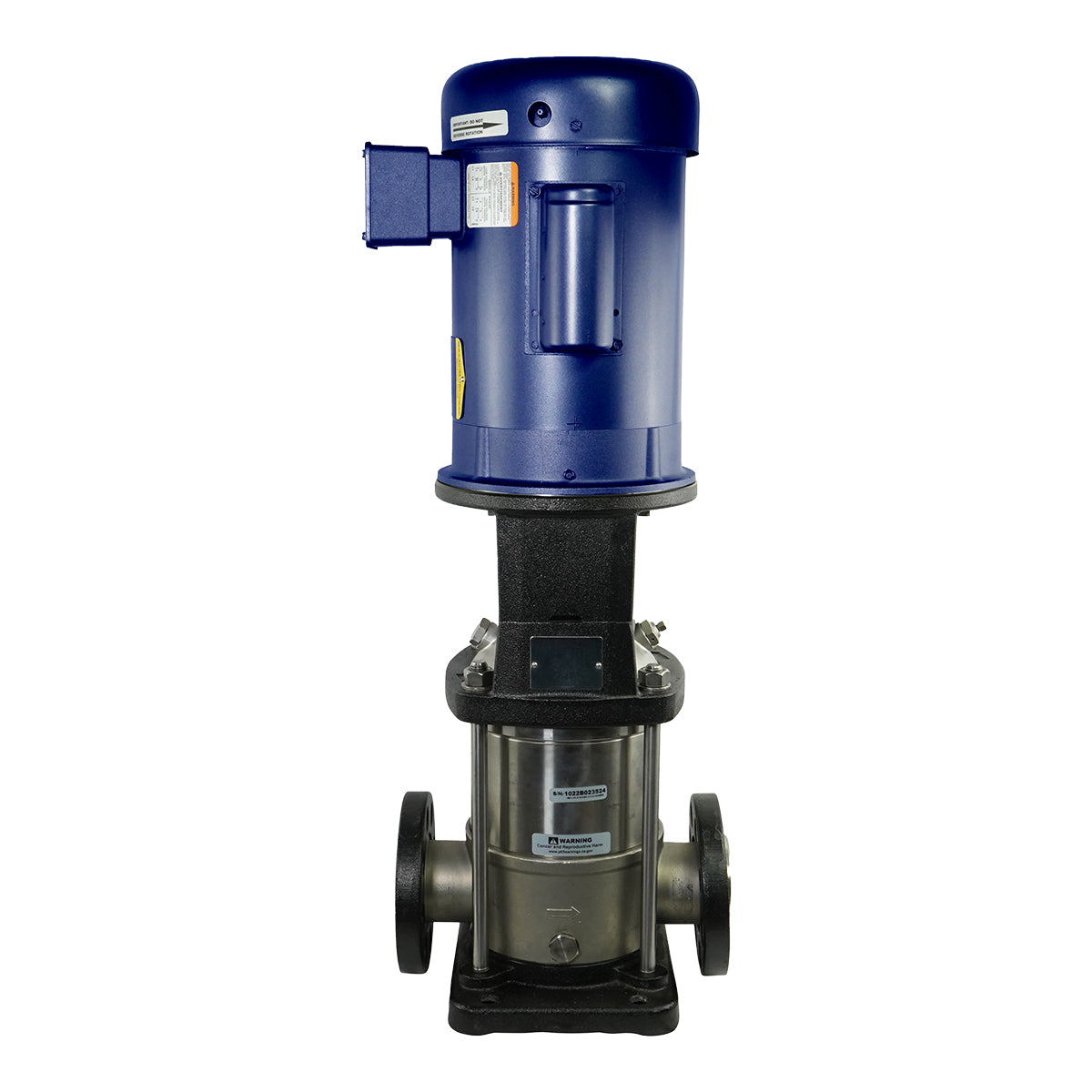

The NV45B4FE3T Vertical Pump is a reliable and high-performing booster pump designed for demanding industrial, commercial, and agricultural applications. Its vertical, in-line design saves space while providing robust performance and easy integration into existing systems.
Equipped with a 3 HP, three-phase motor, this pump delivers a flow rate of up to 45 GPM and a maximum pressure of 232 PSI. Constructed from durable 304 stainless steel, the NV45B4FE3T resists corrosion and ensures a long service life even in challenging environments. It also features maintenance-free cartridge mechanical seals and ANSI standard flanged connections for easy installation and maintenance.
Certified to meet NSF/ANSI 61 and 372 standards, the NV45B4FE3T is perfect for reverse osmosis, water boosting, filtration systems, hot and cold water circulation, and sprinkler systems.
Installation Instructions for NV45B4FE3T Vertical Pump
-
Preparation:
- Inspect the pump and motor for any visible damage during shipping. Report any damage to the carrier or dealer.
- Ensure the installation site is level, stable, and provides adequate space and ventilation for service and cooling.
- Verify that the pump model matches the system specifications and is suitable for the intended application.
-
Mounting the Pump:
- Secure the pump base to a flat, solid surface to prevent vibration during operation.
- Align and support suction and discharge piping to avoid excessive strain on the pump.
- Install isolation valves on both the suction and discharge sides for easier maintenance.
-
Piping Connections:
- Ensure piping matches the pump’s flanged connections (2" ANSI 150#).
- Install appropriate gaskets to prevent leaks, ensuring they do not restrict flow.
- Remove any protective covers or caps from the flanges before installation.
- For hot water systems, include a bleed valve in the discharge line to relieve pressure during maintenance.
-
Electrical Connection:
- Have a certified electrician verify that the power supply matches the motor’s specifications (3 HP, three-phase).
- Ensure proper motor wiring and check for counterclockwise rotation when viewed from the motor’s rear.
- If rotation is incorrect on a three-phase motor, reverse any two leads to correct it.
-
Priming the Pump:
- Remove the fill plug and use a funnel to fill the pump casing with water.
- Open the vent plug to allow air to escape as the pump fills with water.
- Re-seal the vent plug and fill plug once a steady stream of water flows from the vent.
-
Testing the Pump:
- Open the suction valve fully and partially open the discharge valve.
- Apply power to the motor and check for smooth operation without unusual noise or vibration.
- Gradually open the discharge valve to reach desired operating conditions.
-
Safety Precautions:
- Never operate the pump without water to prevent damage to internal components.
- Always replace coupling guards after installation to prevent injuries.
- Ensure the pump is properly grounded and all connections are secure before starting.
Product Description
The NV45B4FE3T Vertical Pump is a reliable and high-performing booster pump designed for demanding industrial, commercial, and agricultural applications. Its vertical, in-line design saves space while providing robust performance and easy integration into existing systems.
Equipped with a 3 HP, three-phase motor, this pump delivers a flow rate of up to 45 GPM and a maximum pressure of 232 PSI. Constructed from durable 304 stainless steel, the NV45B4FE3T resists corrosion and ensures a long service life even in challenging environments. It also features maintenance-free cartridge mechanical seals and ANSI standard flanged connections for easy installation and maintenance.
Certified to meet NSF/ANSI 61 and 372 standards, the NV45B4FE3T is perfect for reverse osmosis, water boosting, filtration systems, hot and cold water circulation, and sprinkler systems.
Installation Instructions for NV45B4FE3T Vertical Pump
-
Preparation:
- Inspect the pump and motor for any visible damage during shipping. Report any damage to the carrier or dealer.
- Ensure the installation site is level, stable, and provides adequate space and ventilation for service and cooling.
- Verify that the pump model matches the system specifications and is suitable for the intended application.
-
Mounting the Pump:
- Secure the pump base to a flat, solid surface to prevent vibration during operation.
- Align and support suction and discharge piping to avoid excessive strain on the pump.
- Install isolation valves on both the suction and discharge sides for easier maintenance.
-
Piping Connections:
- Ensure piping matches the pump’s flanged connections (2" ANSI 150#).
- Install appropriate gaskets to prevent leaks, ensuring they do not restrict flow.
- Remove any protective covers or caps from the flanges before installation.
- For hot water systems, include a bleed valve in the discharge line to relieve pressure during maintenance.
-
Electrical Connection:
- Have a certified electrician verify that the power supply matches the motor’s specifications (3 HP, three-phase).
- Ensure proper motor wiring and check for counterclockwise rotation when viewed from the motor’s rear.
- If rotation is incorrect on a three-phase motor, reverse any two leads to correct it.
-
Priming the Pump:
- Remove the fill plug and use a funnel to fill the pump casing with water.
- Open the vent plug to allow air to escape as the pump fills with water.
- Re-seal the vent plug and fill plug once a steady stream of water flows from the vent.
-
Testing the Pump:
- Open the suction valve fully and partially open the discharge valve.
- Apply power to the motor and check for smooth operation without unusual noise or vibration.
- Gradually open the discharge valve to reach desired operating conditions.
-
Safety Precautions:
- Never operate the pump without water to prevent damage to internal components.
- Always replace coupling guards after installation to prevent injuries.
- Ensure the pump is properly grounded and all connections are secure before starting.
