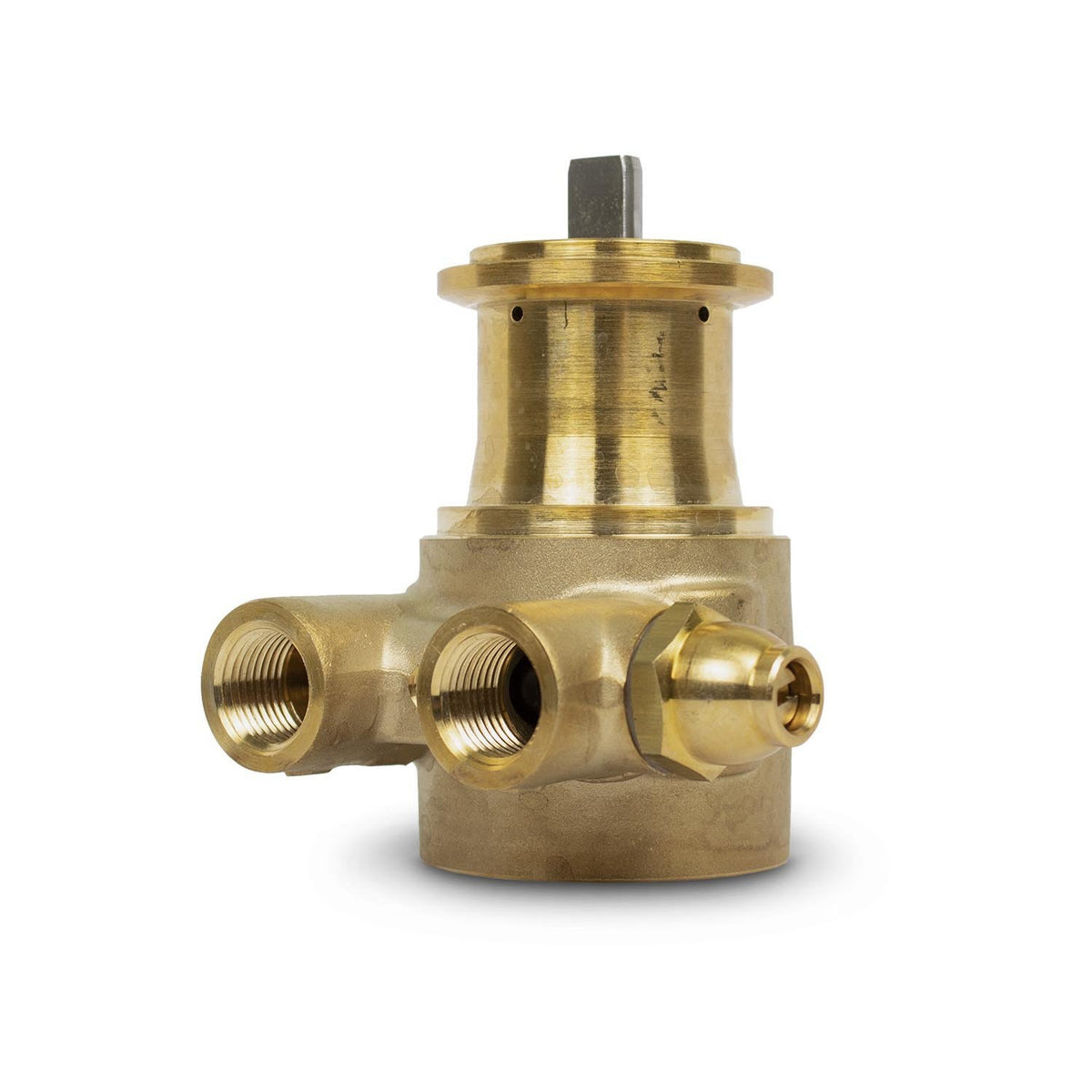

Fluid-O-Tech 2 GPM Brass Rotary Vane Pump
The Fluid-o-Tech rotary vane pumps official flow rates range between 70 and 400 l/h at 1450 rpm. This vane pumps operate at 1725 rpm and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 230 psi (16 bar).
The rotary vane pump is brass made with a stainless steel AISI 303 rotor, while the pumping chamber and the vanes are in carbon graphite. The inlet and outlet ports are 3/8” GAS or NPT threaded. The pumps are designed to be directly mounted to the motor with a stainless steel clamp.
- Quiet operation
- Pulsation-free flow
- Long service life
