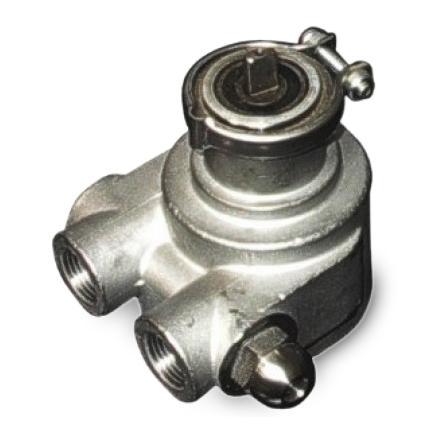

3 GPM Stainless Steel Rotary Vane Pump
Couldn't load pickup availability
The Fluid-o-Tech rotary vane pumps official flow rates range between 70 and 400 l/h at 1450 rpm. This vane pumps operate at 1725 rpm and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 230 psi (16 bar).
The pump housing and the rotor are in stainless steel AISI 303, while the pumping chamber and the vanes are in carbon graphite. Inlet and outlet ports are 3/8” GAS or NPT threaded.
Features
- Self-priming
- Quiet operation
- Pulsation-free flow
- Long service life
