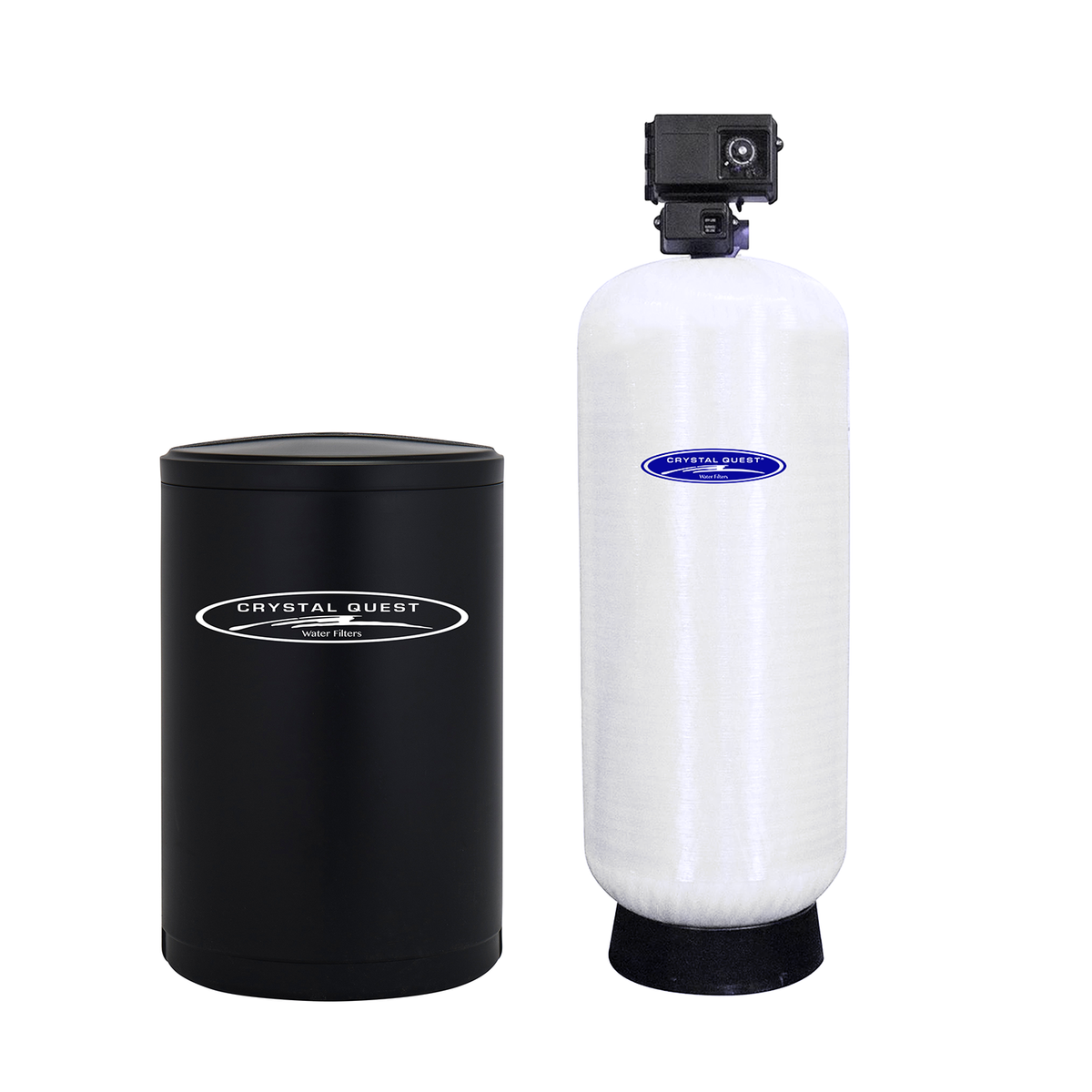

Commercial Water Softener System

SKU: CQE-CO-02043
(0)
$2,990.00
Flow Rate
Control Valve
Rendering loop-subscriptions

Features

  • Timer Control Valves
  • Heavy duty composite fiberglass tanks
  • High Flow Distributor
  • All brass, motor driven control valve with fully adjustable backwash cycles
  • Self-adjusting backwash controller
  • Flow controller to limit backwash flow

Benefits

  • Reduced water consumption
  • Engineered for commercial & industrial use
  • Maintence-free operation with the self-adjusting backwash controller
  • Certification Test

Add-Ons*

  • Metered Control Valve
  • Backwash bypass
  • 3200NT Controller
  • NXT Upgrade Controller
  • Duplex parallel, twin alternating, triplex (progressive)
  • Optional skid mounting for tanks

*If you are interested in our available add-ons, please call to have them added to your system.

Specification CQE-CO-02043 CQE-CO-02044 CQE-CO-02045 CQE-CO-02046 CQE-CO-02047 CQE-CO-02048 CQE-CO-02049 CQE-CO-02050 CQE-CO-02250
GPM 15 20 35 60 75 185 200 205 305-320
Valve 2510 2815 2815 2900 2900 3900 3900 3900 4900
Type Single Single Single Single Single Single Single Single Single
Pipe Size 1" 1.5" 1.5" 2" 2" 2" 3" 3" 4"
PSI Range 35-60 35-60 35-60 35-60 35-60 35-60 35-60 35-60 35-60
Cu. Ft. Media 3 4 7 10 15 20 30 40 50
Mineral Tank Size (in.) 14x65 16x65 21x62 24x72 30x72 36x72 42x72 48x72 63x83
Brine Tank Size (in.) 24x41 24x41 24x50 30x50 39x48 39x60 42x60 50x60 68x83
Service Flow (GPM) 15 20 35 60 75 185 200 205 305-320
Peak Flow (GPM) 22 41 60 95 140 250 270 280 600
Backwash Flow (GPM) 5 7 12 15 25 35 50 65 80
Space Required (in.) (WxDxH) 48x26x73 50x26x84 56x26x84 64x32x95 79x41x95 85x41x95 94x44x95 114x50x96 63x83x100
Pressure Loss Through Vessel Approx. 1-5 psi Approx. 1-5 psi Approx. 1-5 psi Approx. 1-5 psi Approx. 1-5 psi Approx. 1-5 psi Approx. 1-5 psi Approx. 1-5 psi Approx. 1-5 psi

Specification CQE-CO-02043 CQE-CO-02044 CQE-CO-02045 CQE-CO-02046 CQE-CO-02047 CQE-CO-02048 CQE-CO-02049 CQE-CO-02050 CQE-CO-02250
GPM 15 20 35 60 75 185 200 205 305-320
Cu. Ft. Media 3 4 7 10 15 20 30 40 50
Quartz (lbs.) 30 80 100 200 400 500 700 900 1200
Mineral Tank Size (in.) 14x65 16x65 21x62 24x72 30x72 36x72 42x72 48x72 63x83
Brine Tank Size (in.) 24x41 24x41 24x50 30x50 39x48 39x60 42x60 50x60 68x83
Eaglesorb Water Softeners



Certification Test

Water Softener Product Data Sheet

Water Softener Safety Data Sheet

2510 Control Head Manual

2850 Control Head Manual

2900 Control Head Manual

3900 Control Head Manual

5600 Control Head Manual

General Commercial Tank Manual

15cu Softener Schematic

20cu Softener Schematic

7cu Softener Schematic
