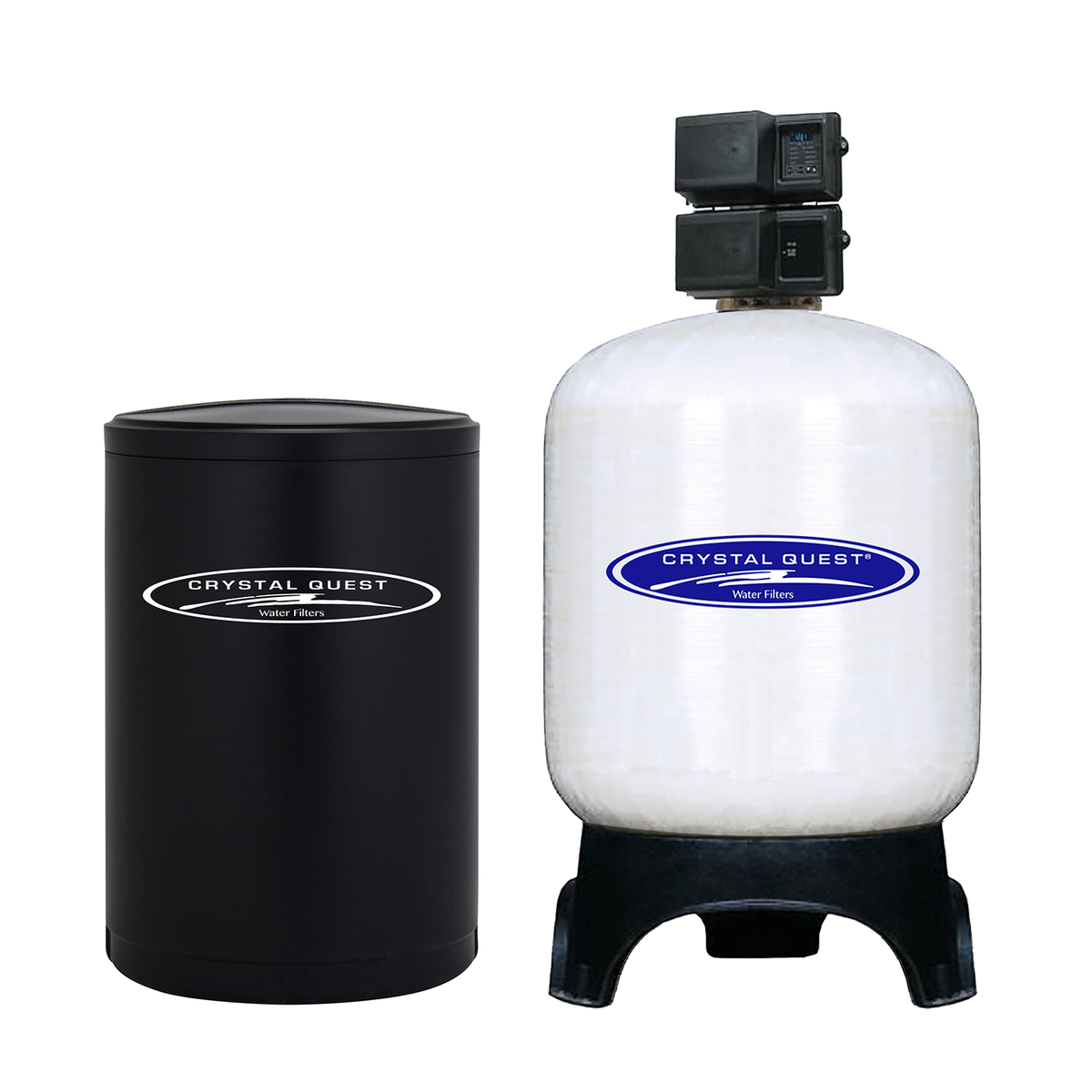

Commercial Water Softener System (900,000 Grains) - Single 30 cu.ft.

Commercial | Reverse Osmosis | Water Filtration System
300 Gallons Per Day

• Wall Mount Design
• 300 @ 77 F Gallons Per Day
• Dimensions (Approx.) 7" x 28" x 33"
• Weight (Approx.) 70 lbs.
• Concentrate Re-Circula
• Element Size (in.): 2521 TFC HF1
• Elements (Qty.): 1
• Motor HP: N/A
• Voltage: 110 or 220
• Hertz: 50 or 60
• Feed Connection: 3/8"
• Product Connection: 3/8"
• Waste Connection: 1/4"
• Minimum Feed Pressure: 45 psi
• Minimum NaCl - % Rejection: 96%
• Minimum Feed (GPM): 1
• Maximum Hardness: 15 Grains / Gallon
• Maximum TDS: 1000 ppm
• Operating Pressure: 150 psi
• Maximum NaCl - % Rejection: 98.5%
• Maximum Feed (GPM): 3
• pH Range:
• Membrane: One 2.5" x 21" TFC HF1 Membrane, For maximum rejection of impurities and high flow.
• Membrane Housing: One 2.5" x 21" Champ Membrane Housing, Features a patented design and requires no tools for servicing.
• Pump:  Booster Pump, 24volt DC, 60 hertz, Designed for continuous use and built in protection for loss of feed water pressure.
• Frame: Aluminum, White Powder Coated, Triple Bracket, corrosion resistant, and light weight.
• Sediment Filter: One 2.5" x 20" Slim Line 5 Micron Polypropylene Filter, Removes sediments and protects the system.
• Carbon Block: One 2.5" x 20" Slim Line 5 Micron Carbon Block, Removes chlorine, odor, and taste from incoming feed water.
• GAC/ERA Filter: One 2.5" x 20" Slim Line Coconut Shell GAC/Eagle Redox Alloy Filter.
• Filter Housing: Three 2.5" x 20" Slim Line Double O-Ring Filter Housings, Offers durability and improved sealing capabil
• Tank Switch: Tank Pressure Switch, w/ 3/8” JG Ports ,20-40 PSI, For automatic operation with a pressure tank.
• Electronic Shut-Off Valve: 24 Volt Solenoid Valve, 3/8” inlet, Automatically shuts off the feed water to the syst
• Transformer: One Transformer,  input - 110 Volts AC, 60 Hertz.
• Easy Maintenance & Operation: Compact design and have all of their components strategically located for easy access and inspection.
• Options:
• TDS Meter: One Inline Dual TDS Meter, w/ 1/4” Quick Connect, For monitoring of feed water and product water quality.
• Stainless Steel Housing: One 2.5” x 21”  Stainless Steel Membrane Housing, 3/8” FNPT.
• Additional cost will apply to listed price for custom modification based on water laboratory test report.

Reverse Osmosis | Commercial Water Filtration System
500 Gallons Per Day

• Vertical Design
• Gallons Per Day: 1000 @ 70 F
• Dimensions (Approx.): 14" x 20" x 27"
• Weight (Approx.): 140 lbs.
• Concentrate Re-Circulate: Optional
• Auto Flush: N/A
• Element Size (in.): 2521 TFC HF1
• Elements (Qty.): 3
• Motor HP: 1/3
• Voltage: 110 or 220 Volts AC
• Hertz: 60 or 50 cycles
• Feed Connection: 3/4"
• Product Connection: 3/8"
• Waste Connection: 3/8"
• Minimum Feed Pressure: 45 psi
• Minimum NaCl - % Rejection: 96%
• Minimum Feed (GPM): 1.5
• Maximum Hardness: 15 Grains / Gallon
• Maximum TDS: 2000 ppm
• Operating Pressure: 150 psi
• Maximum NaCl - % Rejection: 98.5%
• Maximum Feed (GPM): 3
• pH Range: 3 - 11
• Maximum Temperature: 1050 F
• Membrane: Three 2.5" x 21" TFC HF1 Membranes, For maximum rejection of impurities and high flow.
• Membrane Housing: Three 2.5" x 21" Champ Membrane, Housings features a patented design, and requires no tools for servicing.
• Pump: One 401, 3.2 GPM, Brass rotary vane pump, Directly couples to the motor and is designed for continuous high pressures.
• Motor: One 1/2 HP GE Motor 110 or 220 Volts AC, 60 or 50 Hertz.
• Frame: Aluminum, White powder coated, Corrosion resistant, and light weight.
• Sediment Filter: One 4.5" x 10" Big White 5 Micron Sediment Filter, Removes sediments and protects the system.
• Carbon Filter: One 4.5" x 10" Coconut Shell Carbon Block Filter.
• Filter Housing: Two 4.5" x 10" Big Grey Double O-Ring Filter Housings, Offers durability and improved sealing capabilities.
• Pressure Gauges: One 2.5" Gauge, 0-300 PSI, Panel Mount Glycerin Filled, and Two 1.5" 0-160 Top mount dry gauges, For monitoring the system's operating pressure, the filter and carbon operating pressures.
• Low Pressure Switch: One McCann's Low Pressure Switch, Safety device to protect the pump from running dry when there is insufficient feed water pressure.
• High Pressure Switch: One Square D High Pressure Switch, Automatically starts when the tank pressure falls below 40 psi and stops when the pressure reaches 60 psi.
• Solenoid Valve: One Solenoid Valve, with Manual Override, 110 or 220 Volts 60 or 50 Hertz, Assists with the on/off functionality of the system.
• Manual Flush Valve: One 1/4" Brass Needle Valve, Regulates the product to waste ratio (systems recovery)
• Switch: One Manual On and Off Switch
• Easy Maintenance & Operation: CRYSTAL QUEST® commercial reverse osmosis systems feature a compact design and have all of their components strategically located for easy access and inspection.

Optional Features:

• Stainless Steel Housings: Two 2.5” x 21” PuroTech Stainless Steel Membrane Housings 3/8” FNPT
• TDS Meter: One Panel Mount TDS Meter, Provides you with accurate readings of the feed and product water quality.
• Float Switch: One Mechanical Float Switch, For atmospheric storage tank applications.
• Flow Meters: One Product (0-2 GPM) & One Waste (0-5 GPM) Flow Meters, Enables operator to accurately adjust product to waste ratio and monitor systems performance.
• Concentrate Re-Circulate: This feature offers a higher recovery rate for the system by taking a % of the waste water and feeding it back into the system.
• Additional cost will apply to listed price for custom modification based on water laboratory test report.

Reverse Osmosis | Commercial Water Filtration System
1000 Gallons Per Day

• Vertical Design
• Gallons Per Day: 1000 @ 70 F
• Dimensions (Approx.): 14" x 20" x 27"
• Weight (Approx.): 140 lbs.
• Concentrate Re-Circulate: Optional
• Auto Flush: N/A
• Element Size (in.): 2521 TFC HF1
• Elements (Qty.): 3
• Motor HP: 1/2
• Voltage: 110 or 220 Volts AC
• Hertz: 60 or 50 cycles
• Feed Connection: 1"
• Product Connection: 3/8"
• Waste Connection: 3/8"
• Minimum Feed Pressure: 45 psi
• Minimum NaCl - % Rejection: 96%
• Minimum Feed (GPM): 1.5
• Maximum Hardness: 15 Grains / Gallon
• Maximum TDS: 2000 ppm
• Operating Pressure: 150 psi
• Maximum NaCl - % Rejection: 98.5%
• Maximum Feed (GPM): 3
• pH Range: 3 - 11
• Membrane: Three 2.5" x 21" TFC HF1 Membranes, For maximum rejection of impurities and high flow.
• Membrane Housing: Three 2.5" x 21" Champ Membrane, Housings features a patented design, and requires no tools for servicing.
• Pump: One 401 , 3.2 GPM, Brass rotary vane pump, Directly couples to the motor and is designed for continuous high pressures.
• Motor: One 1/2 HP GE Motor 110 or 220 Volts AC, 60 or 50 Hertz.
• Frame: Aluminum, White powder coated, Corrosion resistant, and light weight.
• Sediment Filter: One 4.5" x 10" Big White 5 Micron Sediment Filter, Removes sediments and protects the system.
• Carbon Filter: One 4.5" x 10" Coconut Shell Carbon Block Filter.
• Filter Housing: Two 4.5" x 10" Big blue Double O-Ring Filter Housings, Offers durability and improved sealing capabilities.
• Pressure Gauges: One 2.5" Gauge, 0-300 PSI, Panel Mount Glycerin Filled, and Two 1.5" 0-160 Top mount dry gauges, For monitoring the system's operating pressure, the filter and carbon operating pressures.
• Low Pressure Switch: One Low Pressure Switch, Safety device to protect the pump from running dry when there is insufficient feed water pressure.
• High Pressure Switch: One High Pressure Switch, Automatically starts when the tank pressure falls below 40 psi and stops when the pressure reaches 60 psi.
• Solenoid Valve: One Solenoid Valve, with Manual Override, 110 or 220 Volts 60 or 50 Hertz, Assists with the on/off functionality of the system.
• Concentrate Valve: One 1/4" Brass Needle Valve, Regulates the product to waste ratio (systems recovery)
• Switch: One Manual On and Off Switch
• Easy Maintenance & Operation: CRYSTAL QUEST® commercial reverse osmosis systems feature a compact design and have all of their components strategically located for easy access and inspection.

Optional Features:

• Stainless Steel Housings: Two 2.5” x 21”  Stainless Steel Membrane Housings 3/8” FNPT
• TDS Meter: One Panel Mount TDS Meter, Provides you with accurate readings of the feed and product water quality.
• Float Switch: One Mechanical Float Switch, For atmospheric storage tank applications.
• Flow Meters: One Product (0-2 GPM) & One Waste (0-5 GPM) Flow Meters, Enables operator to accurately adjust product to waste ratio and monitor systems performance.
• Concentrate Re-Circulate: This feature offers a higher recovery rate for the system by taking a % of the waste water and feeding it back into the system.
• Additional cost will apply to listed price for custom modification based on water laboratory test report.
