Fluoride Removal | SMART Single Cartridge Countertop Water Filter System

SKU: CQE-CT-00144
Regular price $99.00
Color
Rendering loop-subscriptions

Description

Water travels through 7 stages of filtration:

  • In stages 1 and 7, water flows through pre and post one - micron filter pad (1 micron equals 1/25,000th of an inch), which removes or reduces suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other un-dissolved matter.
  • In stage 2, water flows through a FLUORIDE REMOVAL media containing Fluoride Charcoal Granulated Activated Carbon (GAC) , unless  Aluminum Oxide  is requested. This media is specifically designed to have a high affinity for Fluoride, Lead and Arsenic. It removes and reduces metals through a mixture of adsorption and chemical reaction with the media; therefore, the elimination is not reliant on ion exchange. It has uniform particle size, is physically stable and can be used over a wide pH range. Capacity: 2700 ppm Fluoride (Avg. 1000 to 1500 Gallons).* As high as 11000 ppm F+ with effluent levels below 0.2 ppm from 10 ppm F+ feed.*
  • In stage 4, water flows through ion exchange resins, reducing heavy metals such as lead, copper, aluminum, and water hardness.
  • In stages 3 and 5, water flows through a bed of media made of a special high-purity alloy blend of two dissimilar metals - copper and zinc (ERA-6500, ERA-9500). ERA-6500 and ERA-9500 are major advancements in water treatment technology that works on the electro-chemical and spontaneous-oxidation-reduction (Eagle Redox Alloy®) principles. Chlorine is instantaneously and almost inexhaustibly oxidized.
  • In stages 6, water flows through granulated activated carbon (GAC). GAC is universally recognized and widely used as an effective adsorbent for a wide variety of organic contaminants, such as chlorine, chemicals linked to cancer (THM's, benzene) pesticides, herbicides, insecticides, volatile organic compounds (VOC's), PCB's, MTBE's and hundreds of other chemical contaminants that may be present in water causing bad taste and odors in your drinking water. All Crystal Quest® GAC is a mixed blend of coconut shell and catalytic GAC to address both chlorine, chloramines and these byproducts.
Our special house blend of 2 types of coconut-shell GAC (including Catalytic) with 2 types of Eagle Redox Alloys® (9500 & 6500) & anion exchange resin. This blend effectively reduces & removes heavy metals, chlorine & chloramine, pesticides & herbicides, pharmaceutical by-products & other inorganic substances such as petroleum byproducts. Ceramic and Tourmaline balls to enhance the water and maintain a more alkaline pH. To read about how GAC's work, click here. To read about the ERA® Oxidation/Reduction Process, click here.
  • Sits on the counter and easily connects to any kitchen faucet
  • A diverter valve switches between filtered and unfiltered water
  • Option for countertop models only: Washable Pre-filtration Filter
  • Use for any countertop/faucet and helps remove the sediment thus enabling your filter to work more efficiently
  • Sits on the counter and easily connects to any kitchen faucet

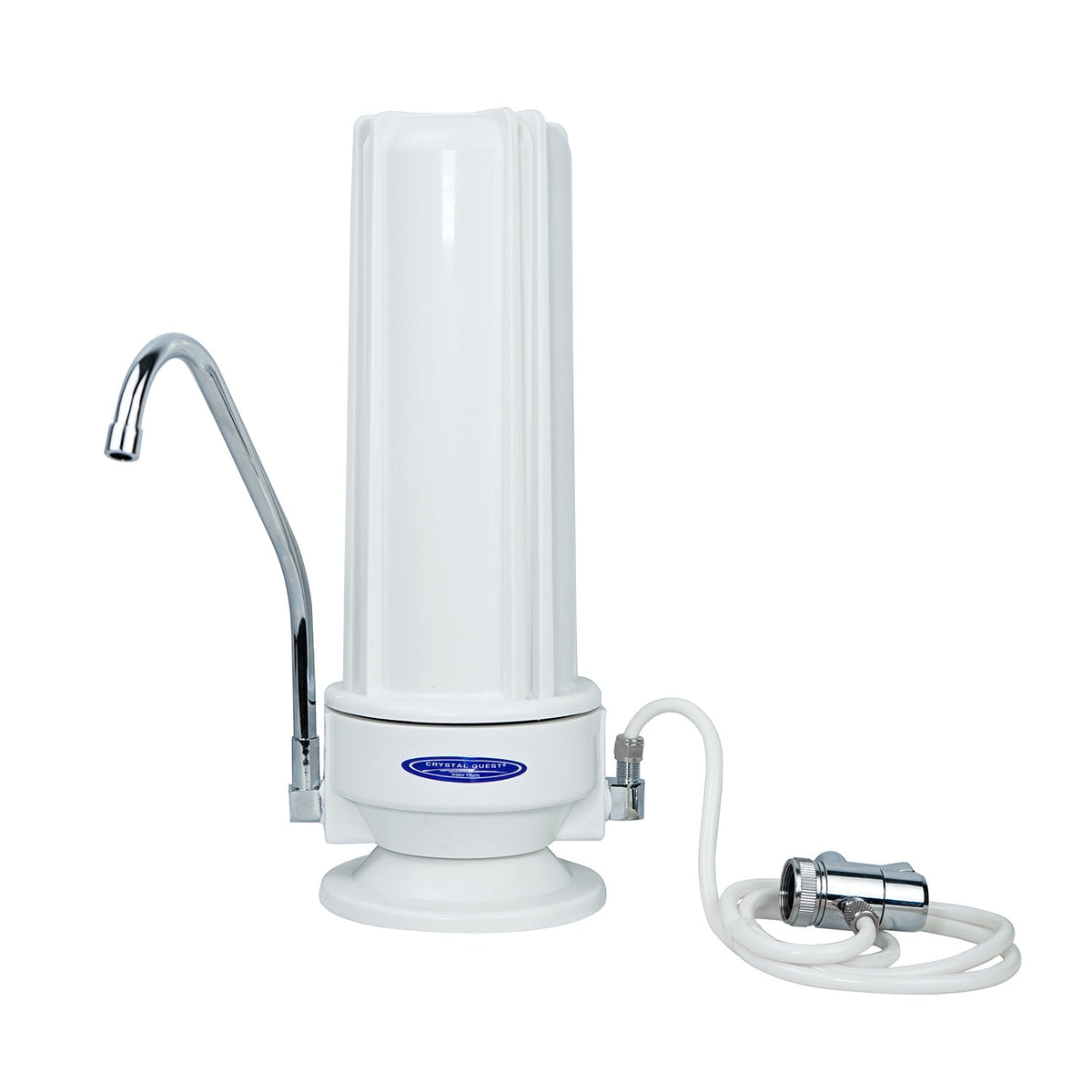

White (Polypropylene) Dimensions: 5"L x 13"H x 5"W

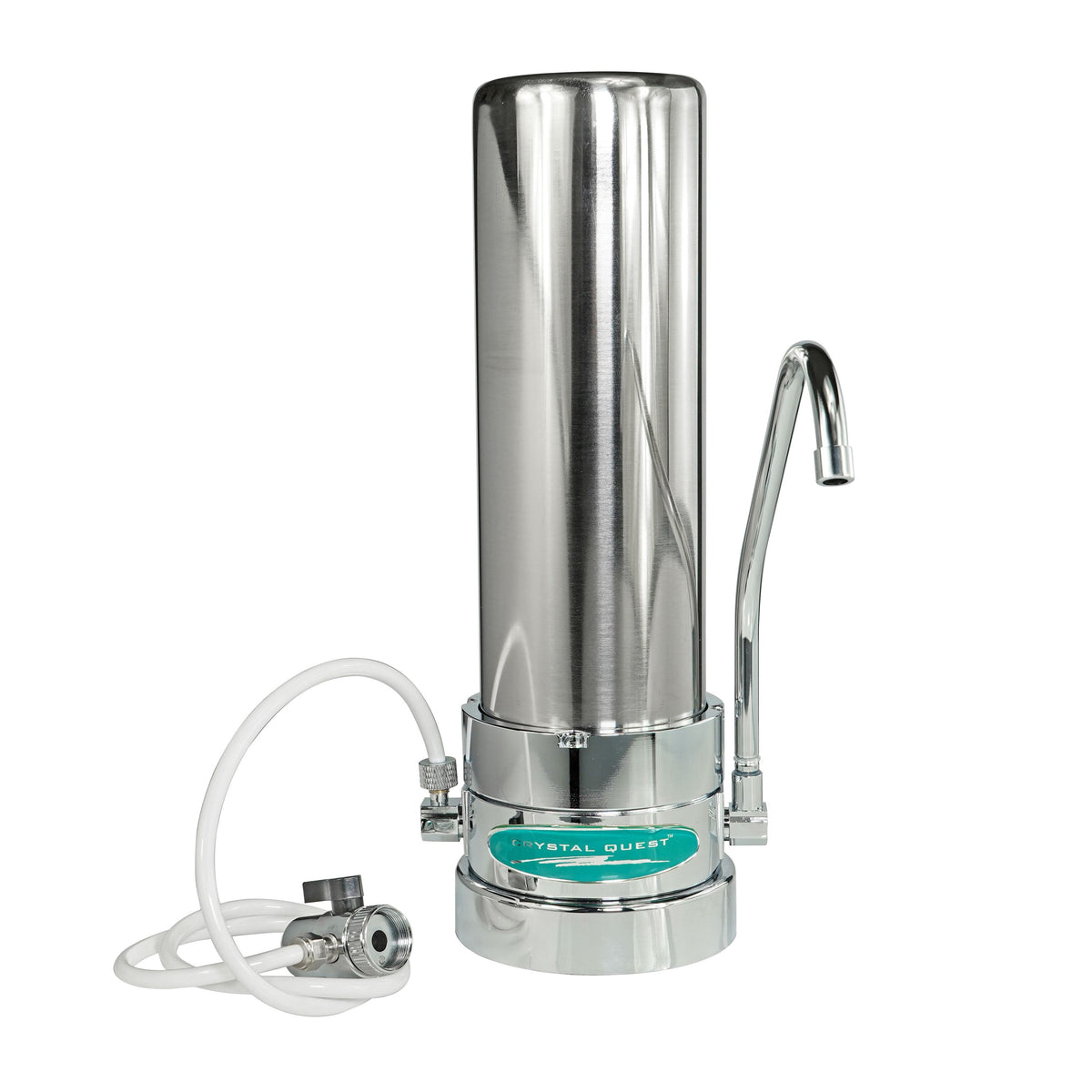

Stainless Steel Model Dimensions: 5.5"L x 13.5"H x 5"W

Specifications

Dimensions (polypropylene) 5"L x 13"H x 5"W
Dimensions (stainless steel) 5.5"L x 13.5"H x 5"W
Min Operating Pressure 20 psi (pounds per sq. in.)
Max Operating Pressure 60 psi (pounds per sq. in.)
Min Operating Temperature 40 degrees F
Max Operating Temperature 90 degrees F
Max Flow Rate 0.3-0.5 gpm (gallons per minute)

* This Fluoride System and Media will accommodate for fluoride removal from municipal water that consists of inorganic fluoride. If fluoride is organic or from natural water sources such as a well please speak with a Crystal Quest® Associate for system recommendation.

Replacement Cartridges

Product Name SKU
Fluoride Removal +SMART Filter Cartridge (2-7/8“x9-3/4”) CQE-RC-04049

Product Manual

Countertop-Manual.pdf

Description

Water travels through 7 stages of filtration:

  • In stages 1 and 7, water flows through pre and post one - micron filter pad (1 micron equals 1/25,000th of an inch), which removes or reduces suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other un-dissolved matter.
  • In stage 2, water flows through a FLUORIDE REMOVAL media containing Fluoride Charcoal Granulated Activated Carbon (GAC) , unless  Aluminum Oxide  is requested. This media is specifically designed to have a high affinity for Fluoride, Lead and Arsenic. It removes and reduces metals through a mixture of adsorption and chemical reaction with the media; therefore, the elimination is not reliant on ion exchange. It has uniform particle size, is physically stable and can be used over a wide pH range. Capacity: 2700 ppm Fluoride (Avg. 1000 to 1500 Gallons).* As high as 11000 ppm F+ with effluent levels below 0.2 ppm from 10 ppm F+ feed.*
  • In stage 4, water flows through ion exchange resins, reducing heavy metals such as lead, copper, aluminum, and water hardness.
  • In stages 3 and 5, water flows through a bed of media made of a special high-purity alloy blend of two dissimilar metals - copper and zinc (ERA-6500, ERA-9500). ERA-6500 and ERA-9500 are major advancements in water treatment technology that works on the electro-chemical and spontaneous-oxidation-reduction (Eagle Redox Alloy®) principles. Chlorine is instantaneously and almost inexhaustibly oxidized.
  • In stages 6, water flows through granulated activated carbon (GAC). GAC is universally recognized and widely used as an effective adsorbent for a wide variety of organic contaminants, such as chlorine, chemicals linked to cancer (THM's, benzene) pesticides, herbicides, insecticides, volatile organic compounds (VOC's), PCB's, MTBE's and hundreds of other chemical contaminants that may be present in water causing bad taste and odors in your drinking water. All Crystal Quest® GAC is a mixed blend of coconut shell and catalytic GAC to address both chlorine, chloramines and these byproducts.
Our special house blend of 2 types of coconut-shell GAC (including Catalytic) with 2 types of Eagle Redox Alloys® (9500 & 6500) & anion exchange resin. This blend effectively reduces & removes heavy metals, chlorine & chloramine, pesticides & herbicides, pharmaceutical by-products & other inorganic substances such as petroleum byproducts. Ceramic and Tourmaline balls to enhance the water and maintain a more alkaline pH. To read about how GAC's work, click here. To read about the ERA® Oxidation/Reduction Process, click here.
  • Sits on the counter and easily connects to any kitchen faucet
  • A diverter valve switches between filtered and unfiltered water
  • Option for countertop models only: Washable Pre-filtration Filter
  • Use for any countertop/faucet and helps remove the sediment thus enabling your filter to work more efficiently
  • Sits on the counter and easily connects to any kitchen faucet

White (Polypropylene) Dimensions: 5"L x 13"H x 5"W
Stainless Steel Model Dimensions: 5.5"L x 13.5"H x 5"W

Specifications

Dimensions (polypropylene) 5"L x 13"H x 5"W
Dimensions (stainless steel) 5.5"L x 13.5"H x 5"W
Min Operating Pressure 20 psi (pounds per sq. in.)
Max Operating Pressure 60 psi (pounds per sq. in.)
Min Operating Temperature 40 degrees F
Max Operating Temperature 90 degrees F
Max Flow Rate 0.3-0.5 gpm (gallons per minute)

* This Fluoride System and Media will accommodate for fluoride removal from municipal water that consists of inorganic fluoride. If fluoride is organic or from natural water sources such as a well please speak with a Crystal Quest® Associate for system recommendation.

Replacement Cartridges

Product Name SKU
Fluoride Removal +SMART Filter Cartridge (2-7/8“x9-3/4”) CQE-RC-04049

Product Manual

Countertop-Manual.pdf
