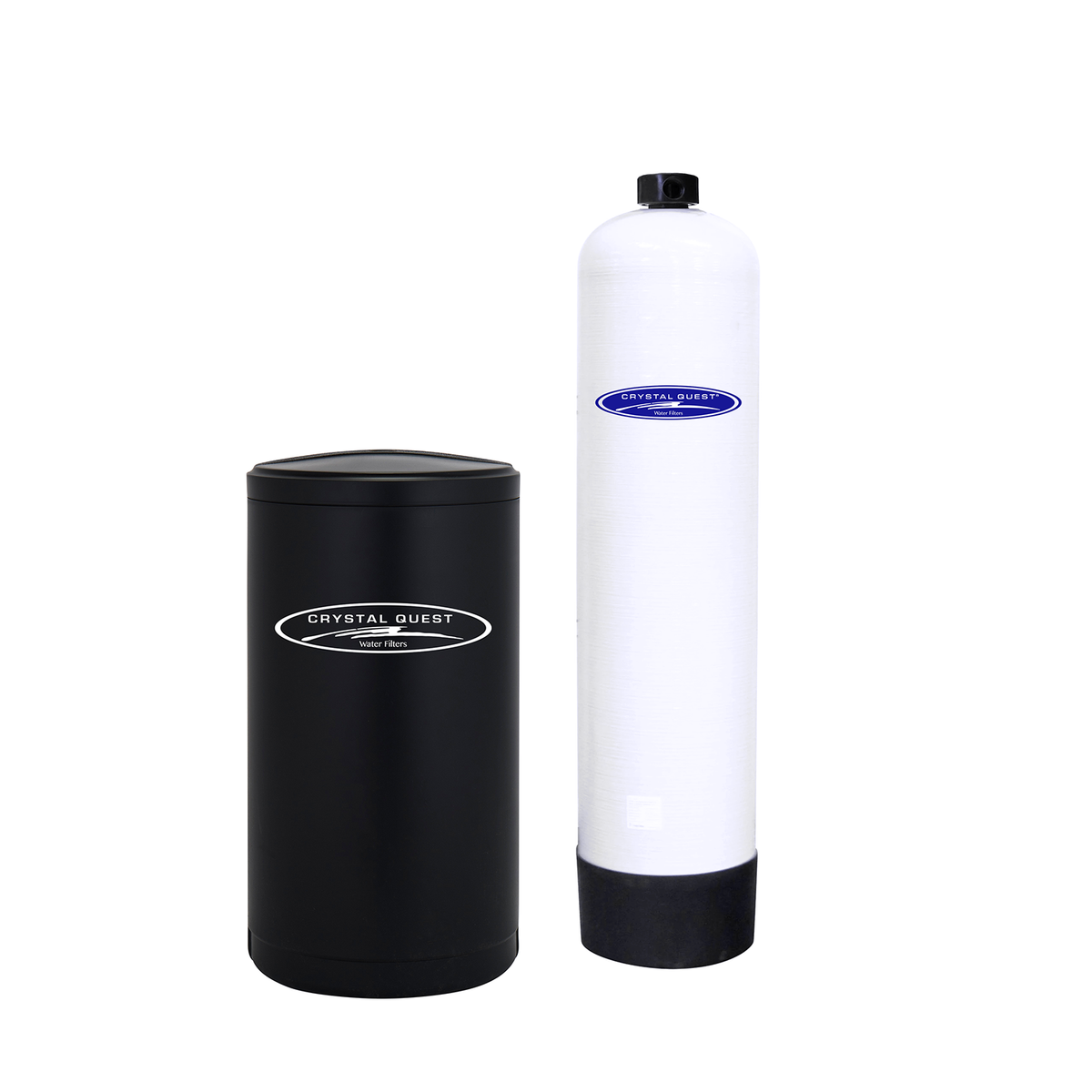

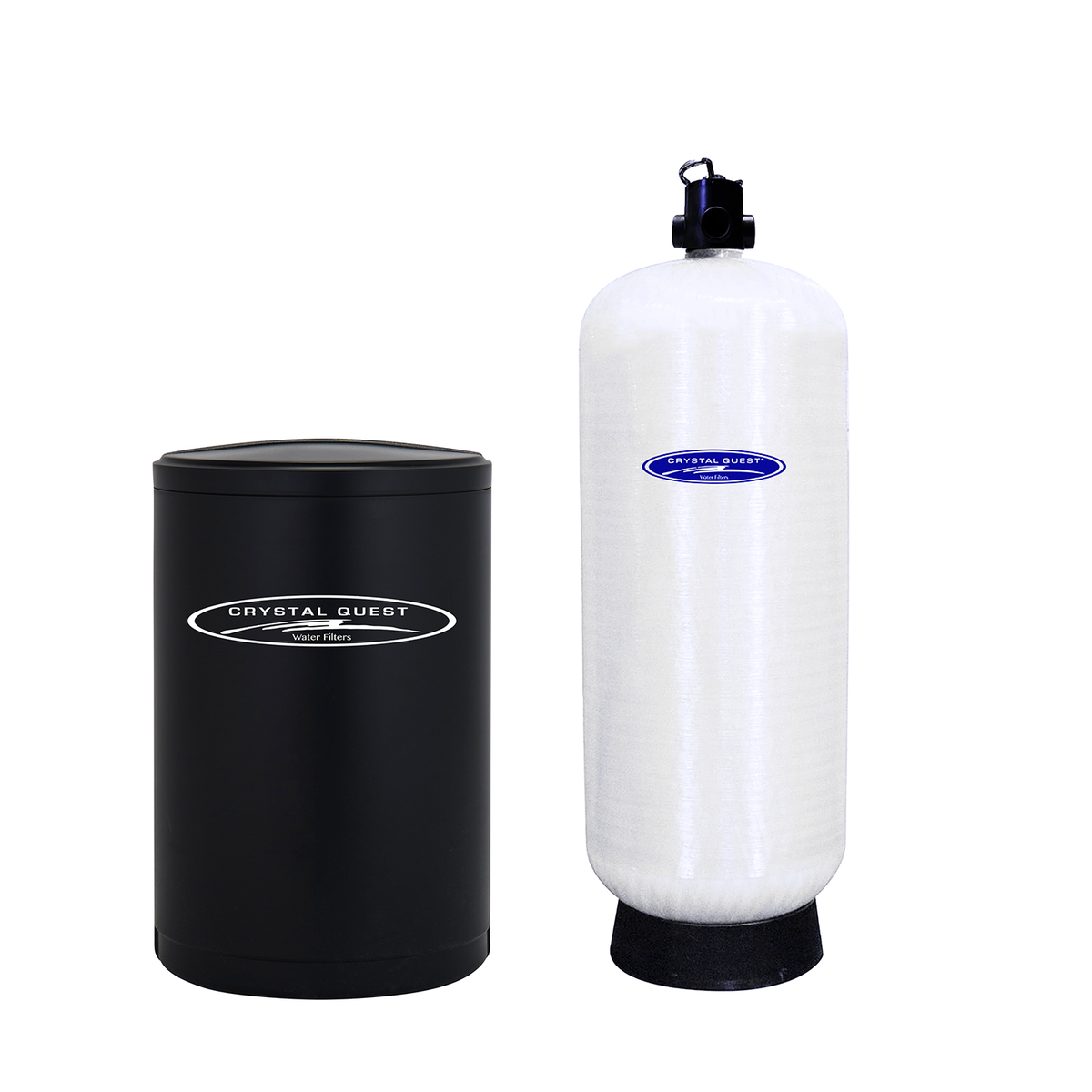

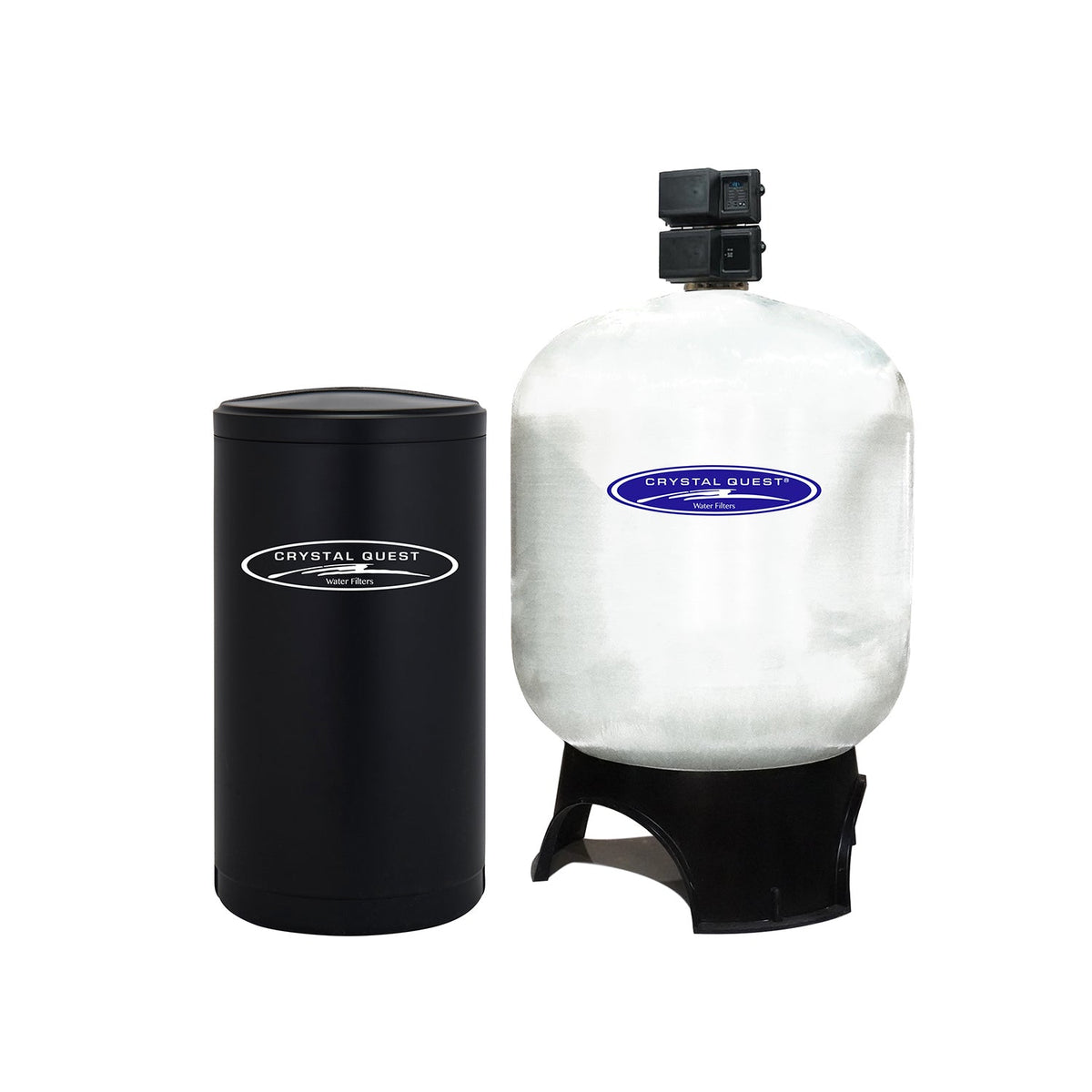

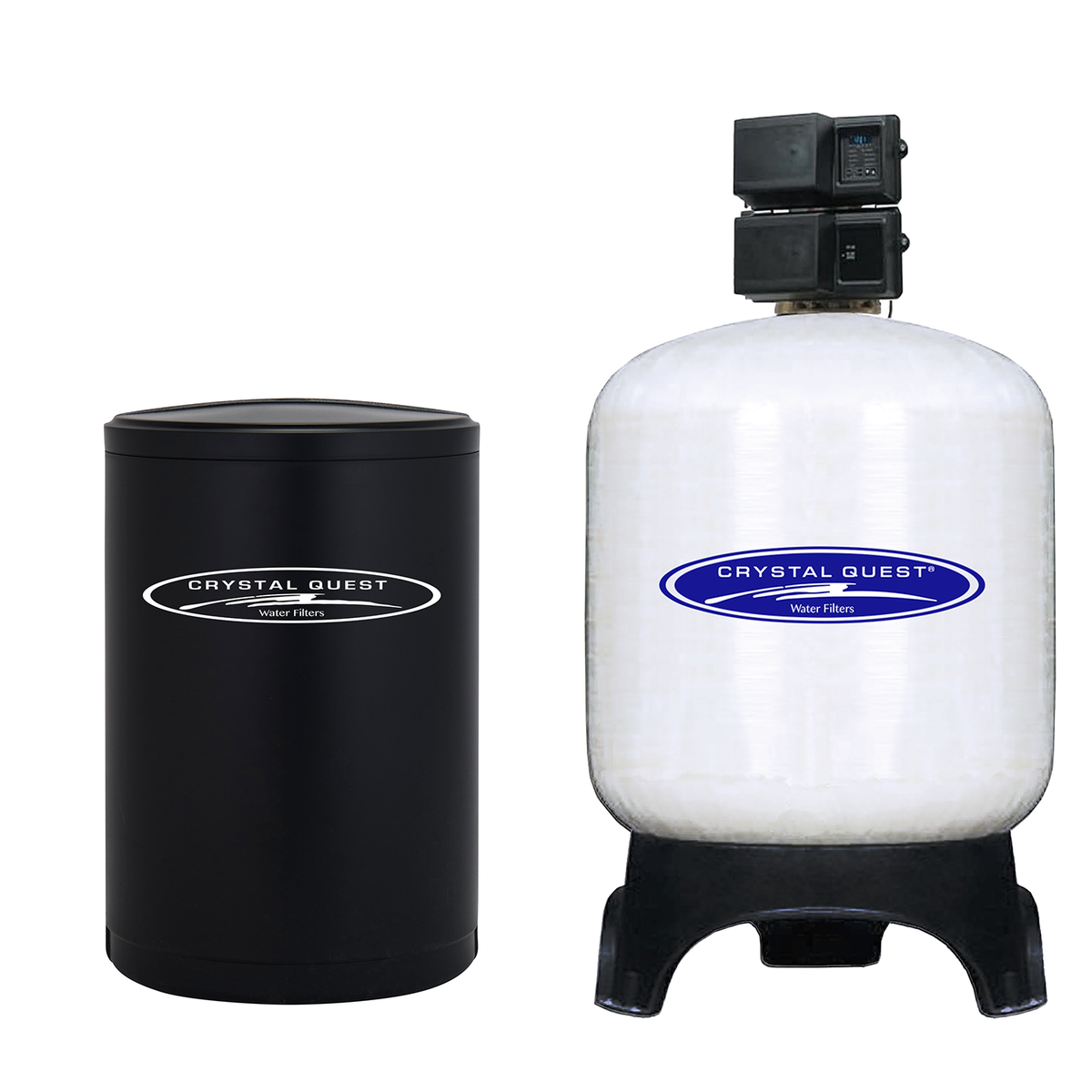

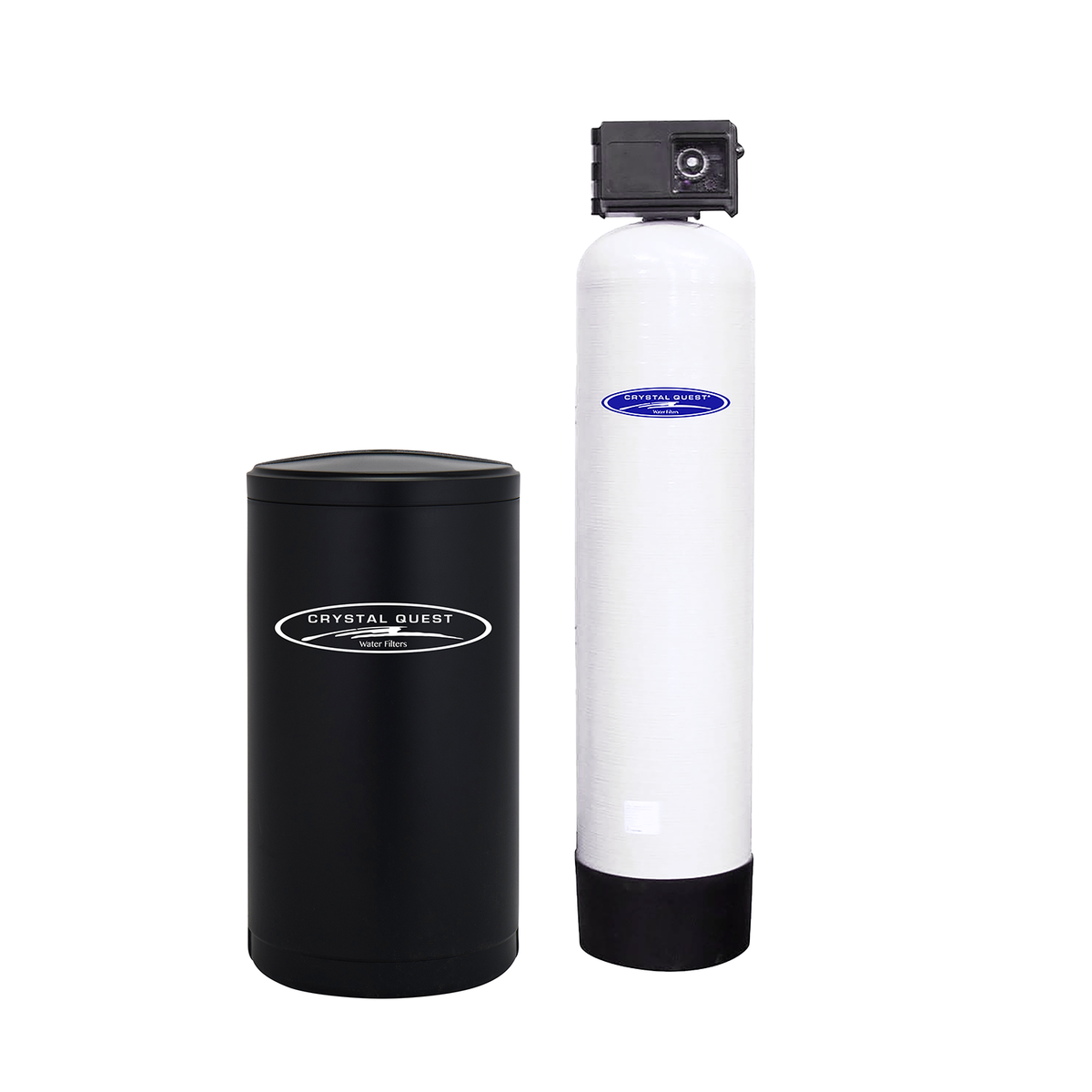

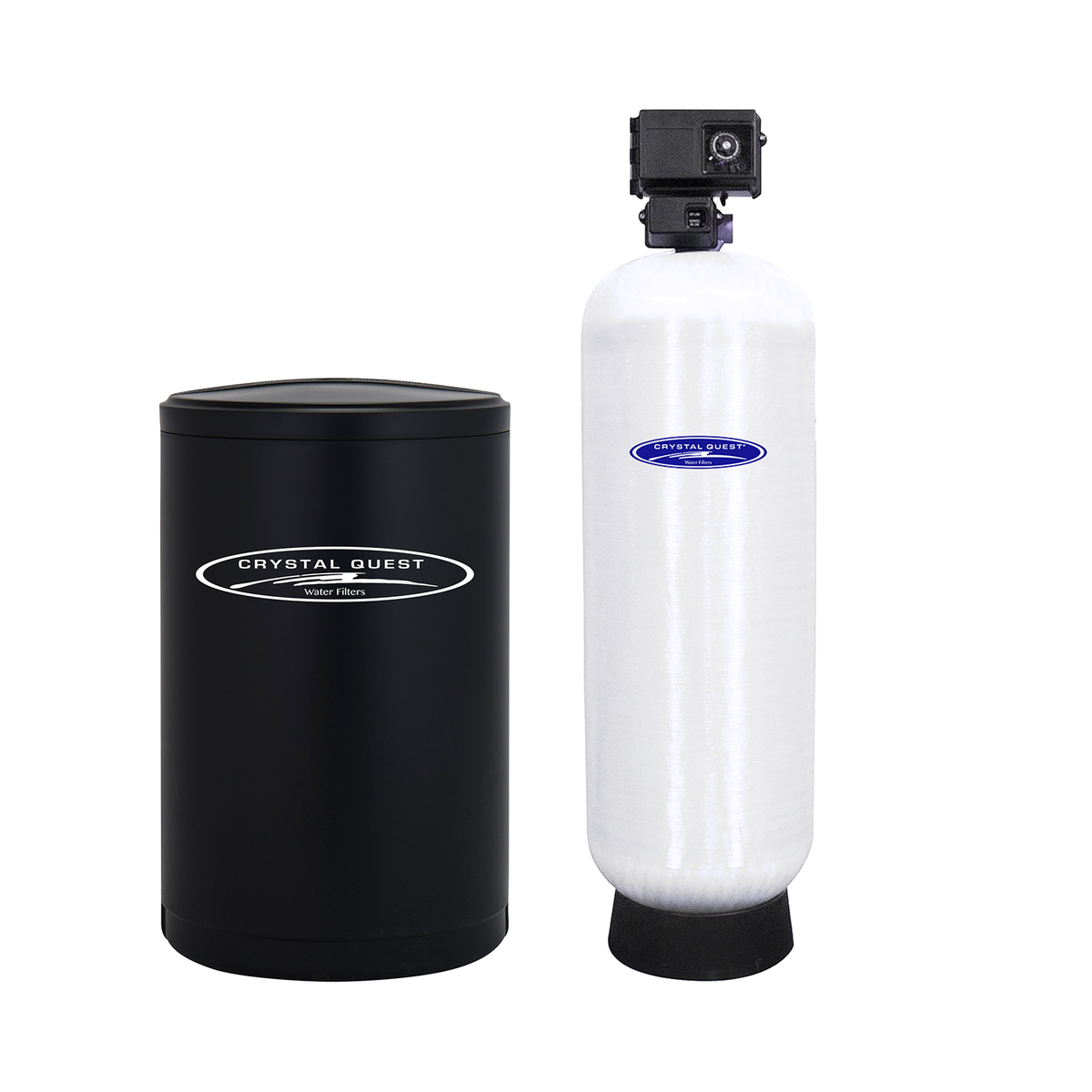

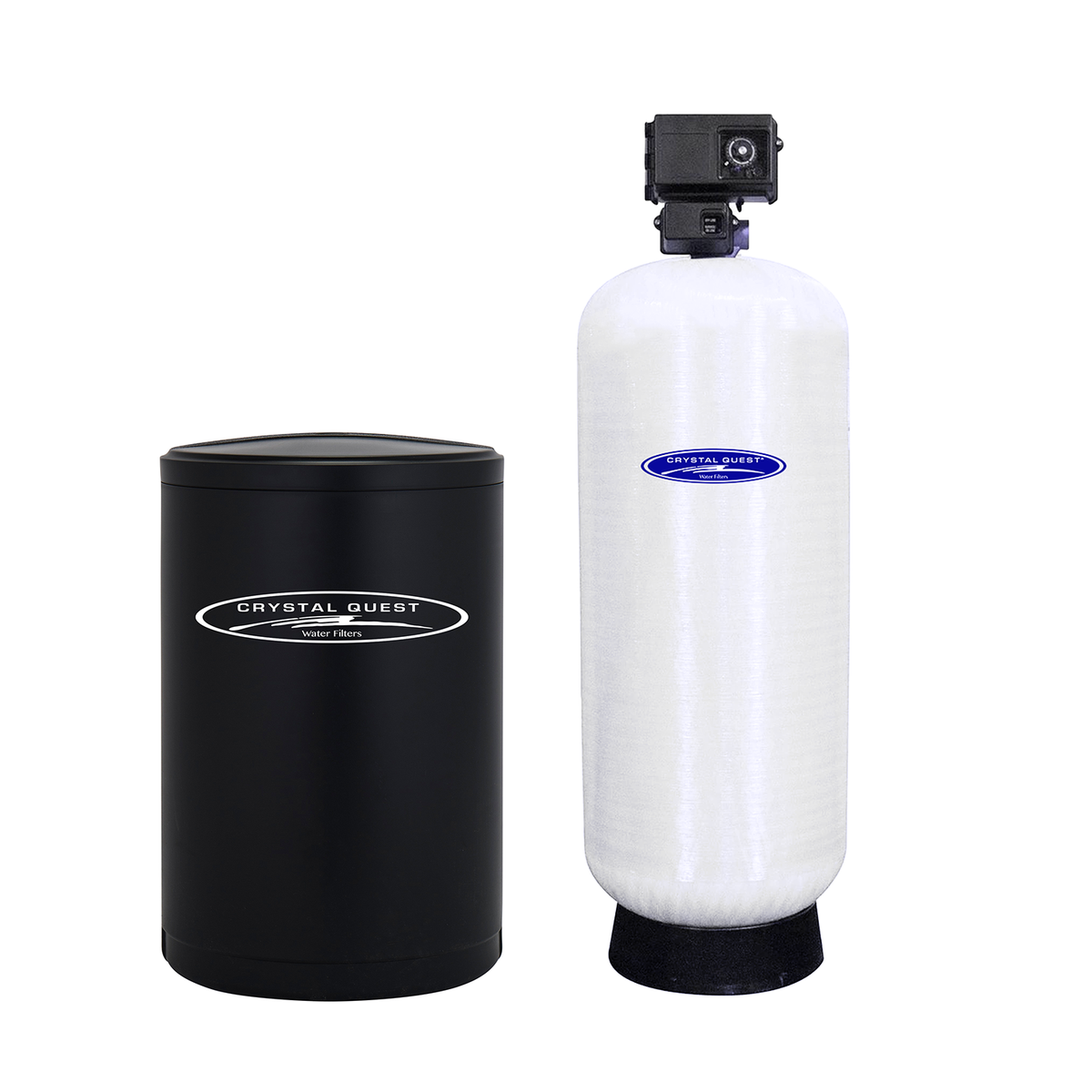

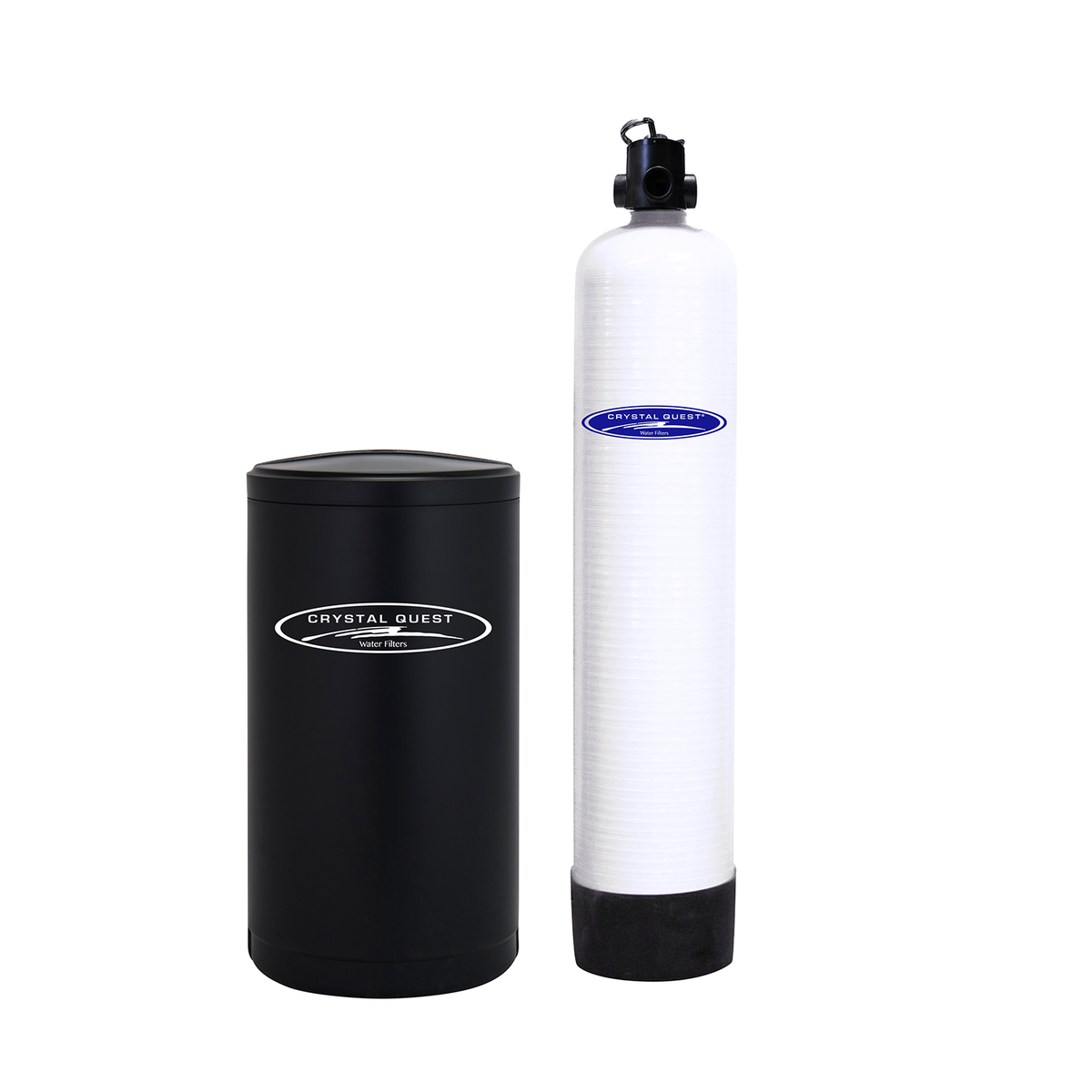

Nitrate Removal Water Filtration System
Regular price
$3,552.00
Couldn't load pickup availability
Features
- Timer Control Valves
- Heavy duty composite fiberglass tanks
- Heavy duty Brian Tank
- High Flow Distributor
- All brass, motor driven control valve with fully adjustable regeneration cycles
- Self-adjusting backwash controller
- Flow controller to limit backwash flow
- Engineered for commercial & industrial use
Benefits
- Reduced water consumption
- Reduced salt usage
- Engineered for commercial & industrial use
- Certification Test
Add-Ons*
- Metered Control Valve
- Backwash or regeneration bypass
- 3200NT Controller
- No Hard Water Bypass
- NXT Upgrade Controller
- Duplex parallel, twin alternating, triplex (progressive)
- Optional skid mounting for tanks
- The regeneration process should be done every 20 to 30 days depending on level of nitrate.
*If you are interested in our available Options, please call to have them added to your system.
| Specification | CQE-CO-02083 | CQE-CO-02084 | CQE-CO-02085 | CQE-CO-02086 | CQE-CO-02087 | CQE-CO-02088 | CQE-CO-02089 | CQE-CO-02090 | CQE-CO-02710 |
|---|---|---|---|---|---|---|---|---|---|
| GPM | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 205 | 305-320 |
| Electronic Control Valve | 2510 | 2850 | 2850 | 2900 | 2900 | 3900 | 3900 | 3900 | 4900 |
| Pipe Size | 1" | 1.5" | 1.5" | 2" | 2" | 2" | 3" | 3" | 4" |
| PSI Range | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 |
| Nitrate Removal Media | 3 ft³ | 4 ft³ | 7 ft³ | 10 ft³ | 15 ft³ | 20 ft³ | 30 ft³ | 40 ft³ | 50 ft³ |
| Quartz (lbs.) | 30 | 80 | 100 | 200 | 400 | 500 | 700 | 900 | 1200 |
| Mineral Tank Size (in.) | 14x65 | 16x65 | 21x62 | 24x72 | 30x72 | 36x72 | 42x72 | 48x72 | 63x83 |
| Brine Tank Size (in.) | 24x41 | 24x41 | 24x50 | 30x50 | 39x48 | 39x60 | 42x60 | 50x60 | 68x83 |
| Service Flow (GPM) | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 205 | 305-320 |
| Peak Flow (GPM) | 22 | 41 | 60 | 95 | 140 | 250 | 270 | 280 | 600 |
| Backwash Flow (GPM) | 5 | 7 | 12 | 15 | 25 | 35 | 50 | 65 | 80 |
| Space Required (in.) (WxDxH) | 48x26x73 | 50x26x84 | 56x26x84 | 64x32x95 | 79x41x95 | 85x41x95 | 94x44x95 | 114x50x96 | 63x83x100 |
| Specification | CQE-CO-02083 | CQE-CO-02084 | CQE-CO-02085 | CQE-CO-02086 | CQE-CO-02087 | CQE-CO-02088 | CQE-CO-02089 | CQE-CO-02090 | CQE-CO-02710 |
|---|---|---|---|---|---|---|---|---|---|
| GPM | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 205 | 305-320 |
| Eaglesorb Nitrate Resin | 3 ft³ | 4 ft³ | 7 ft³ | 10 ft³ | 15 ft³ | 20 ft³ | 30 ft³ | 40 ft³ | 50 ft³ |
| Quartz (lbs.) | 30 | 80 | 100 | 200 | 400 | 500 | 700 | 900 | 1200 |
| Filtration Media Information |
||
|---|---|---|
| Product Data Sheet |
Safety Data Sheet |
|
| Nitrate I | Nitrate I Product Data Sheet | Nitrate I Safety Data Sheet |
| Nitrate II | Nitrate II Product Data Sheet | Nitrate II Safety Data Sheet |
| Nitrate I | Nitrate III Product Data Sheet | Nitrate III Safety Data Sheet |
| ERA 6500 & 9500 | ERA 6500 & 9500 Product Data Sheet |
ERA 6500 & 9500 Safety Data Sheet |
| Ion Exchange | Ion Exchange Resin Product Data Sheet |
Ion Exchange Resin Safety Data Sheet |
| Installation Instructions |
||||||||
|---|---|---|---|---|---|---|---|---|
| SYS. INSTALLATION & OPERATION GUIDE |
||||||||
| GPM | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 205 |
| Model No. | CQE-CO-02083 | CQE-CO-02084 | CQE-CO-02085 | CQE-CO-02086 | CQE-CO-02087 | CQE-CO-02088 | CQE-CO-02089 | CQE-CO-02090 |
| Electronic Valve |
2510 Control Head Manual |
2850 Control Head Manual |
2850 Control Head Manual |
2900 Control Head Manual |
2900 Control Head Manual |
3900 Control Head Manual |
3900 Control Head Manual |
3900 Control Head Manual |
| Mechanical Upflow Valve | 1" |
1.5" |
1.5" |
1.5" |
2" |
N/A |
N/A |
N/A |
|
Mechanical Down Flow/ Backwashable Valve |
1" | 1.5" | 1.5" | 1.5" | 2" | N/A | N/A | N/A |
| Schematics | Review | Review | Review | Review | Review | Review | Review | Review |
| Schematic Samples | ||
|---|---|---|
|
Single Standard Configuration |
Double Standard Configuration |
Triple Standard Configuration |
Nitrate III Product Data Sheet
