3 GPM Brass Rotary Vane Pump
Couldn't load pickup availability
The Fluid-o-Tech rotary vane pumps deliver flow rates ranging from 70 to 400 l/h at 1450 rpm. When operating at 1725 rpm, these pumps can achieve approximately 20% higher output, reaching up to 530 l/h. They support a maximum discharge pressure of 230 psi (16 bar).

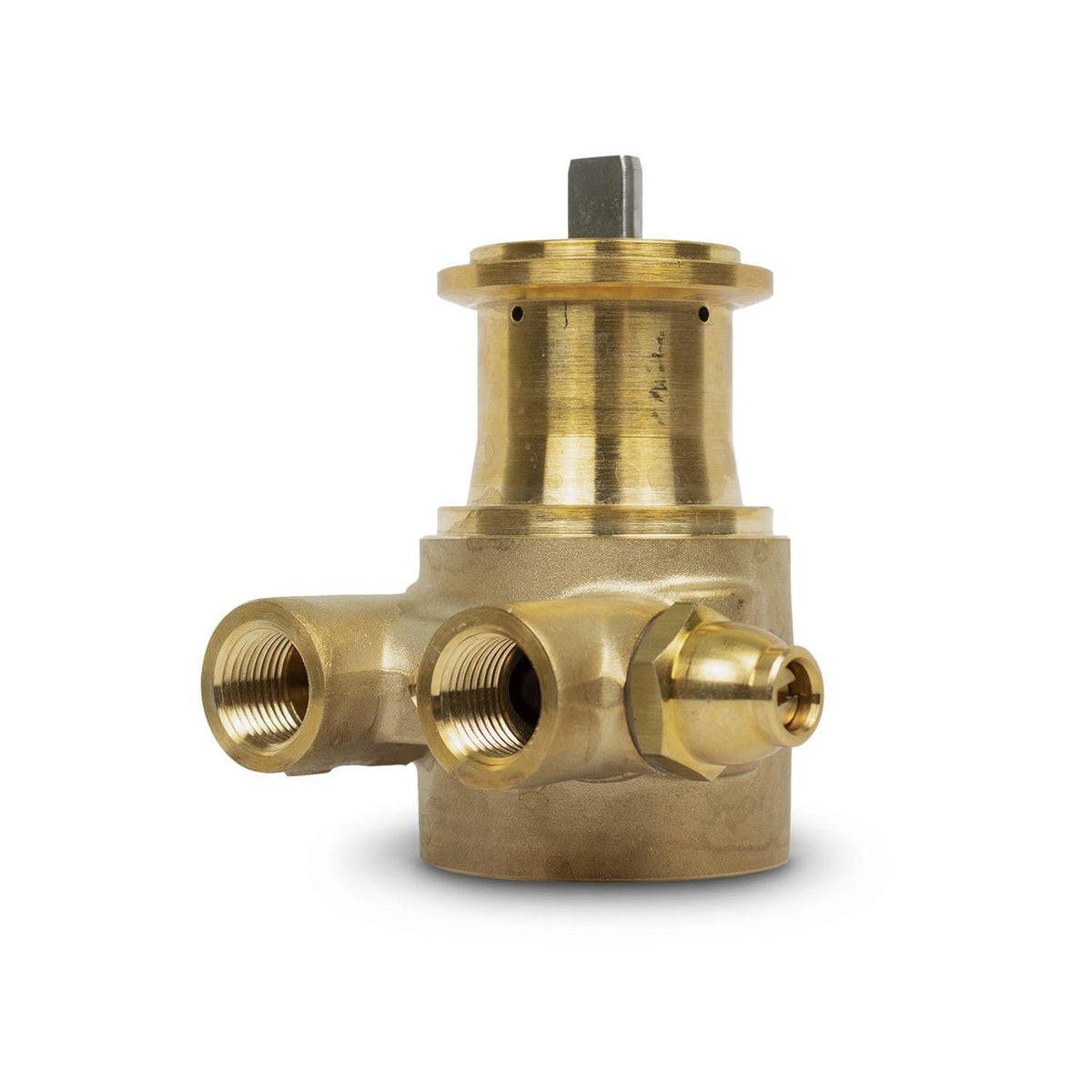

Constructed with a brass body, the rotary vane pump features a stainless steel AISI 303 rotor. Its pumping chamber and vanes are made of carbon graphite. Both the inlet and outlet ports are threaded for 3/8” GAS or NPT connections. The pump is designed for direct motor mounting using a stainless steel clamp.
Features
- Self-priming capability
- Low-noise operation
- Consistent, pulsation-free flow
- Durable and long-lasting performance
The Fluid-o-Tech rotary vane pumps deliver flow rates ranging from 70 to 400 l/h at 1450 rpm. When operating at 1725 rpm, these pumps can achieve approximately 20% higher output, reaching up to 530 l/h. They support a maximum discharge pressure of 230 psi (16 bar).
Constructed with a brass body, the rotary vane pump features a stainless steel AISI 303 rotor. Its pumping chamber and vanes are made of carbon graphite. Both the inlet and outlet ports are threaded for 3/8” GAS or NPT connections. The pump is designed for direct motor mounting using a stainless steel clamp.
Features
- Self-priming capability
- Low-noise operation
- Consistent, pulsation-free flow
- Durable and long-lasting performance
