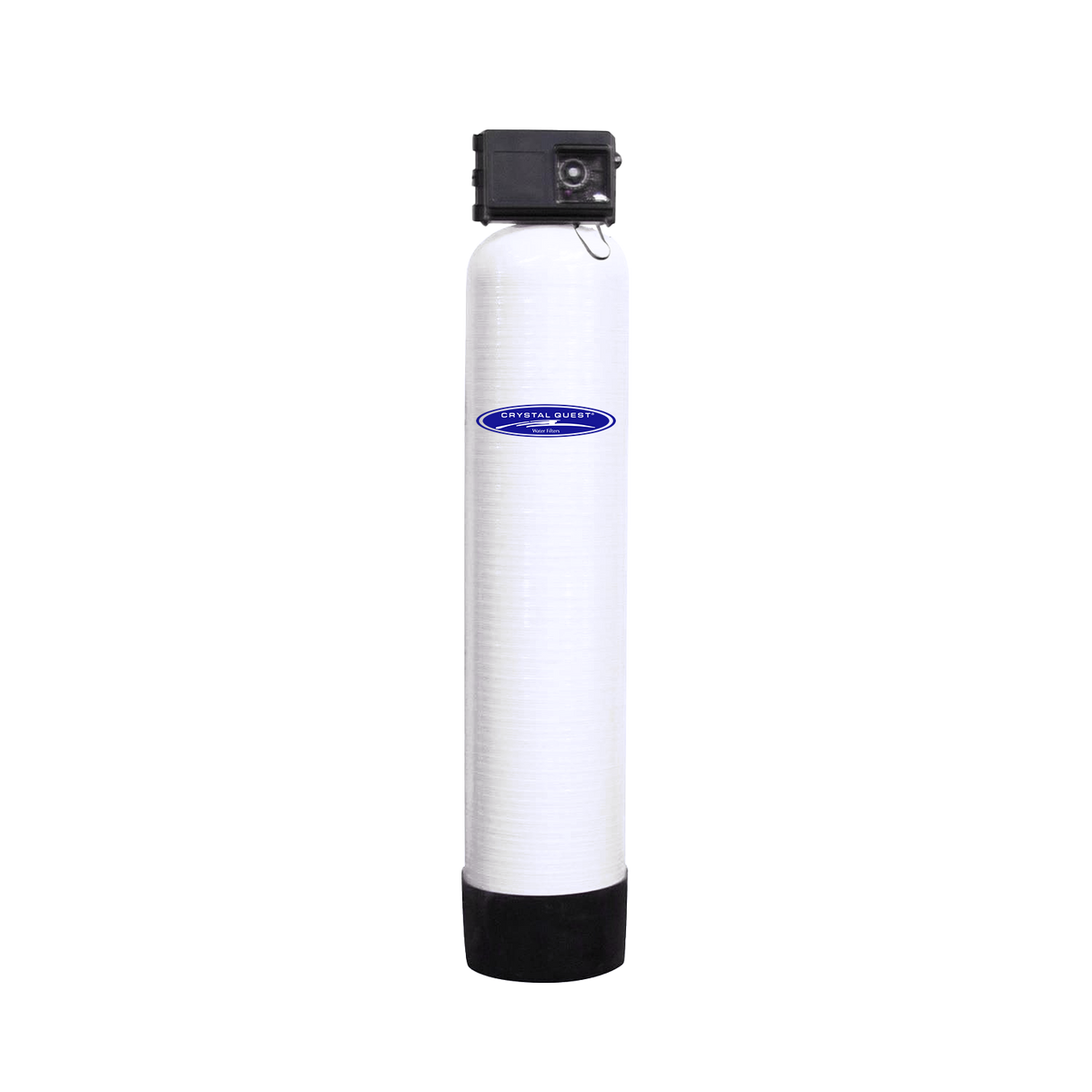

15 GPM / Automatic Metal Removal Water Filtration System - Commercial - Crystal Quest

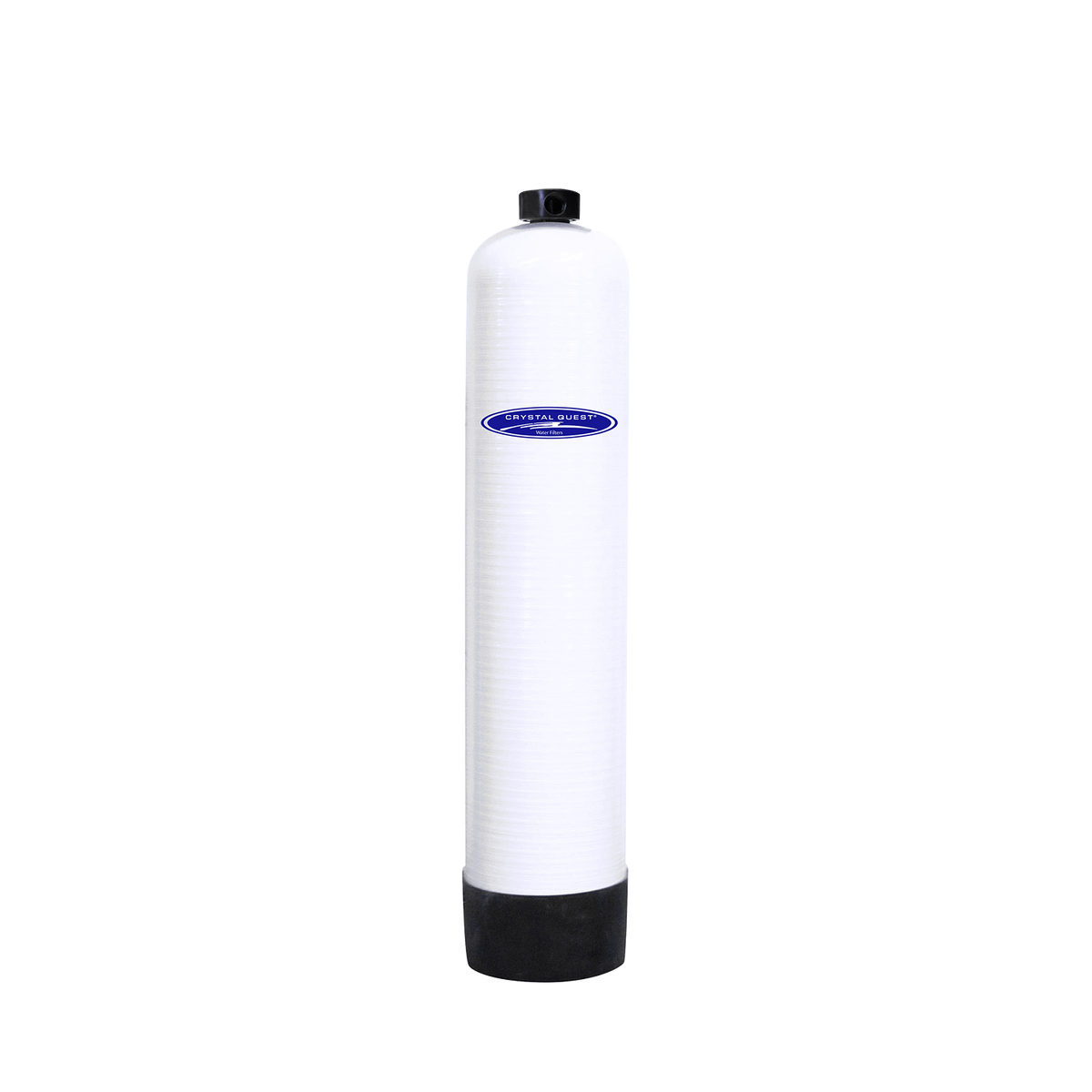

15 GPM / Manual (Upflow) Metal Removal Water Filtration System - Commercial - Crystal Quest

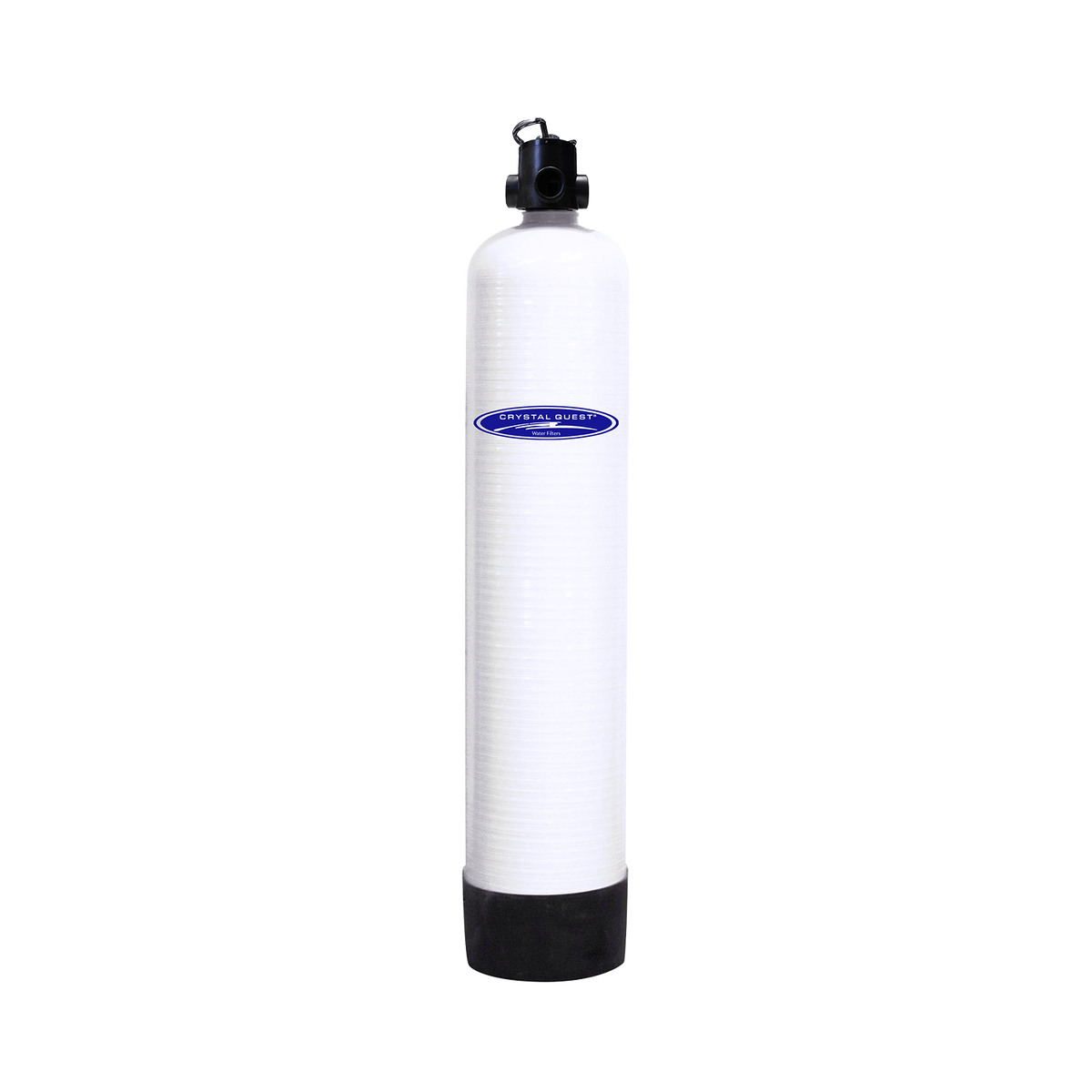

15 GPM / Manual (Downflow w/ Backwash) Metal Removal Water Filtration System - Commercial - Crystal Quest

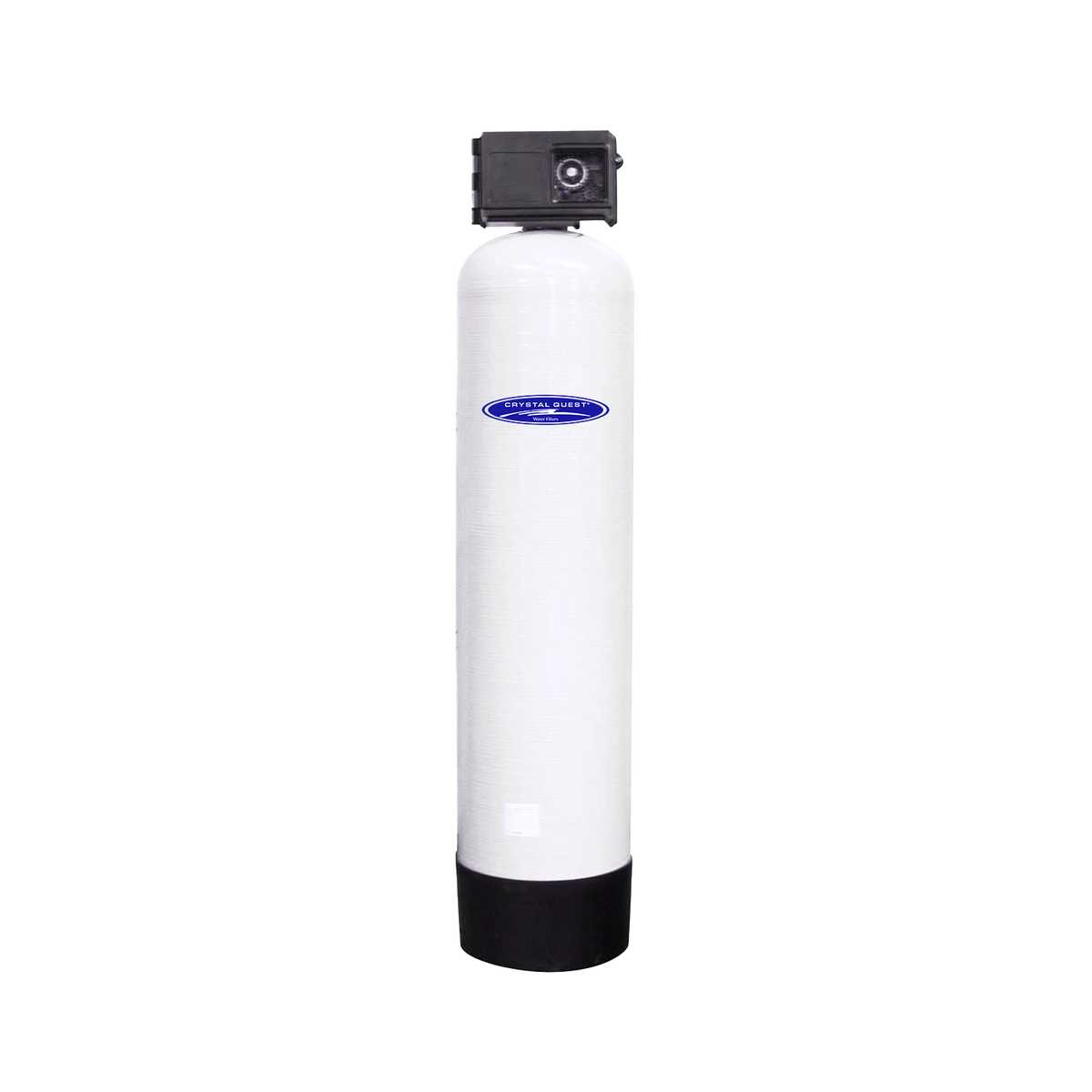

20 GPM / Automatic Metal Removal Water Filtration System - Commercial - Crystal Quest

20 GPM / Manual (Upflow) Metal Removal Water Filtration System - Commercial - Crystal Quest

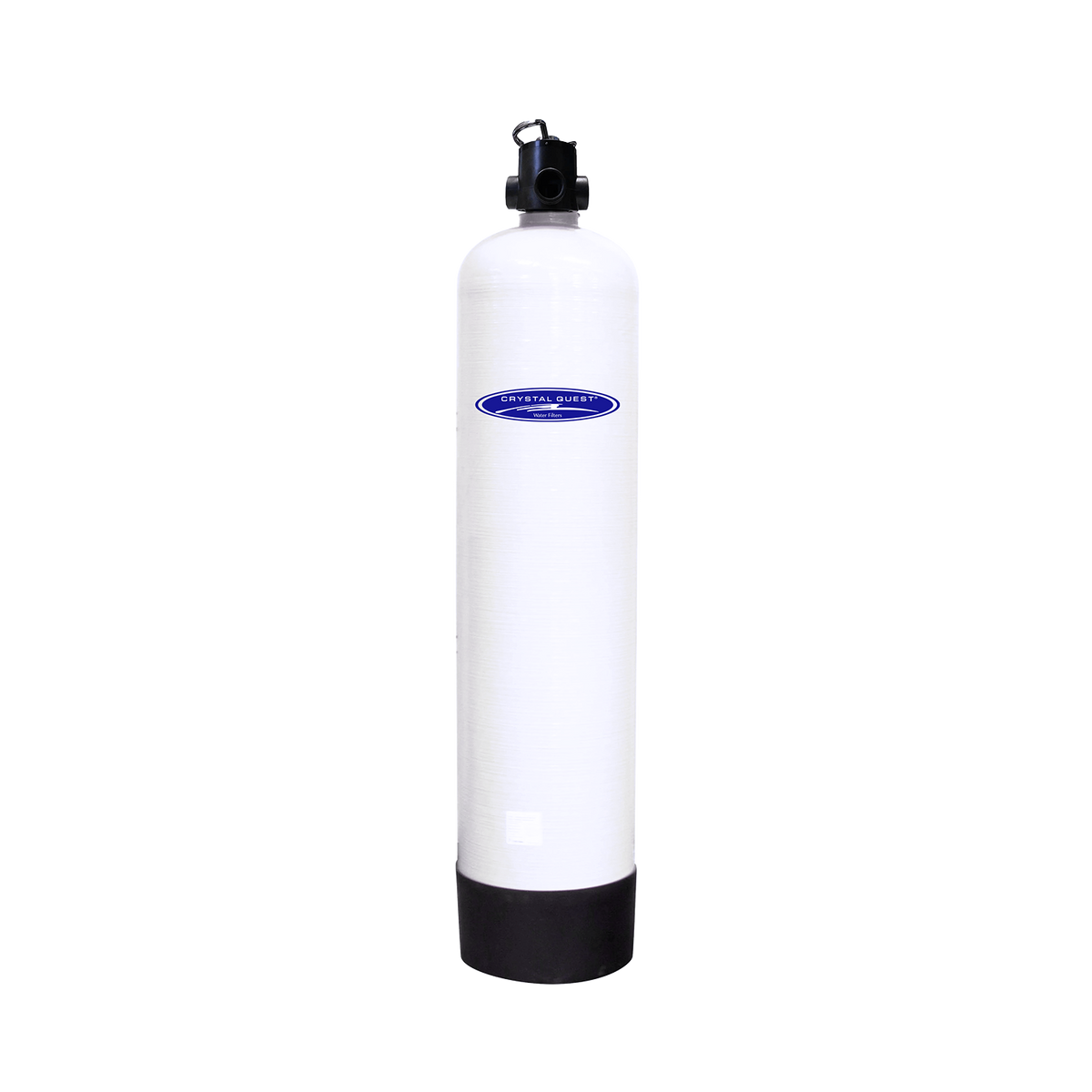

20 GPM / Manual (Downflow w/ Backwash) Metal Removal Water Filtration System - Commercial - Crystal Quest

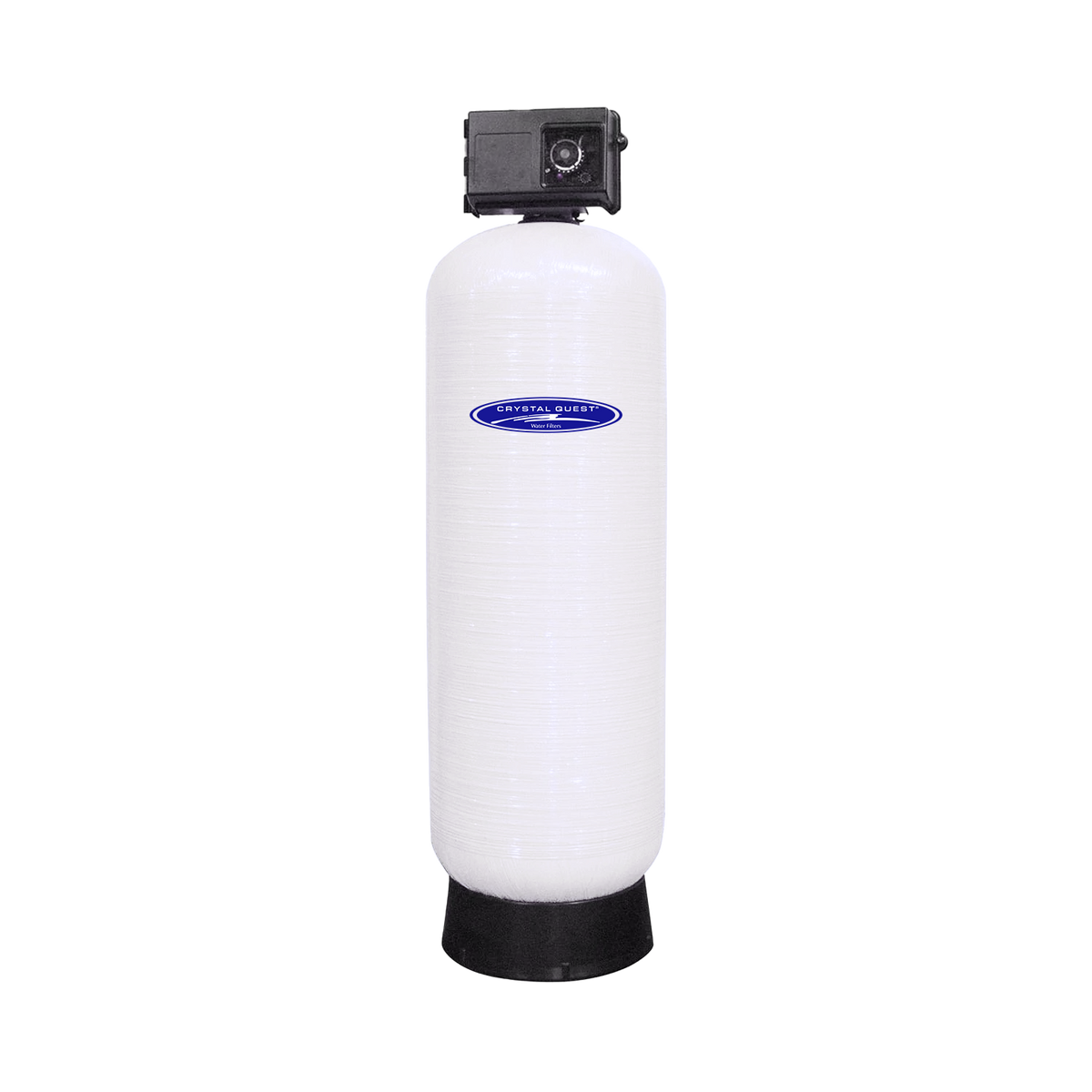

35 GPM / Automatic Metal Removal Water Filtration System - Commercial - Crystal Quest

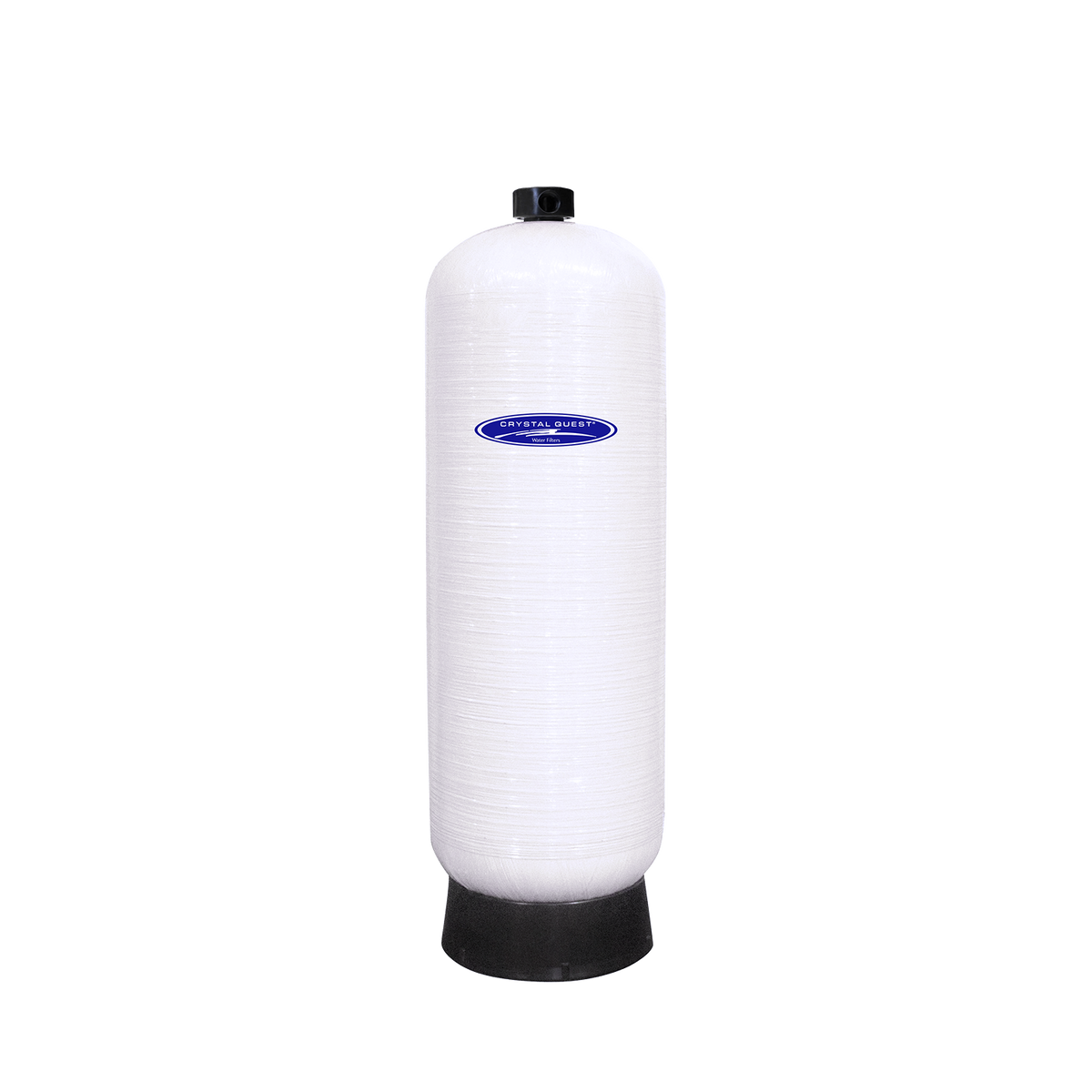

35 GPM / Manual (Upflow) Metal Removal Water Filtration System - Commercial - Crystal Quest

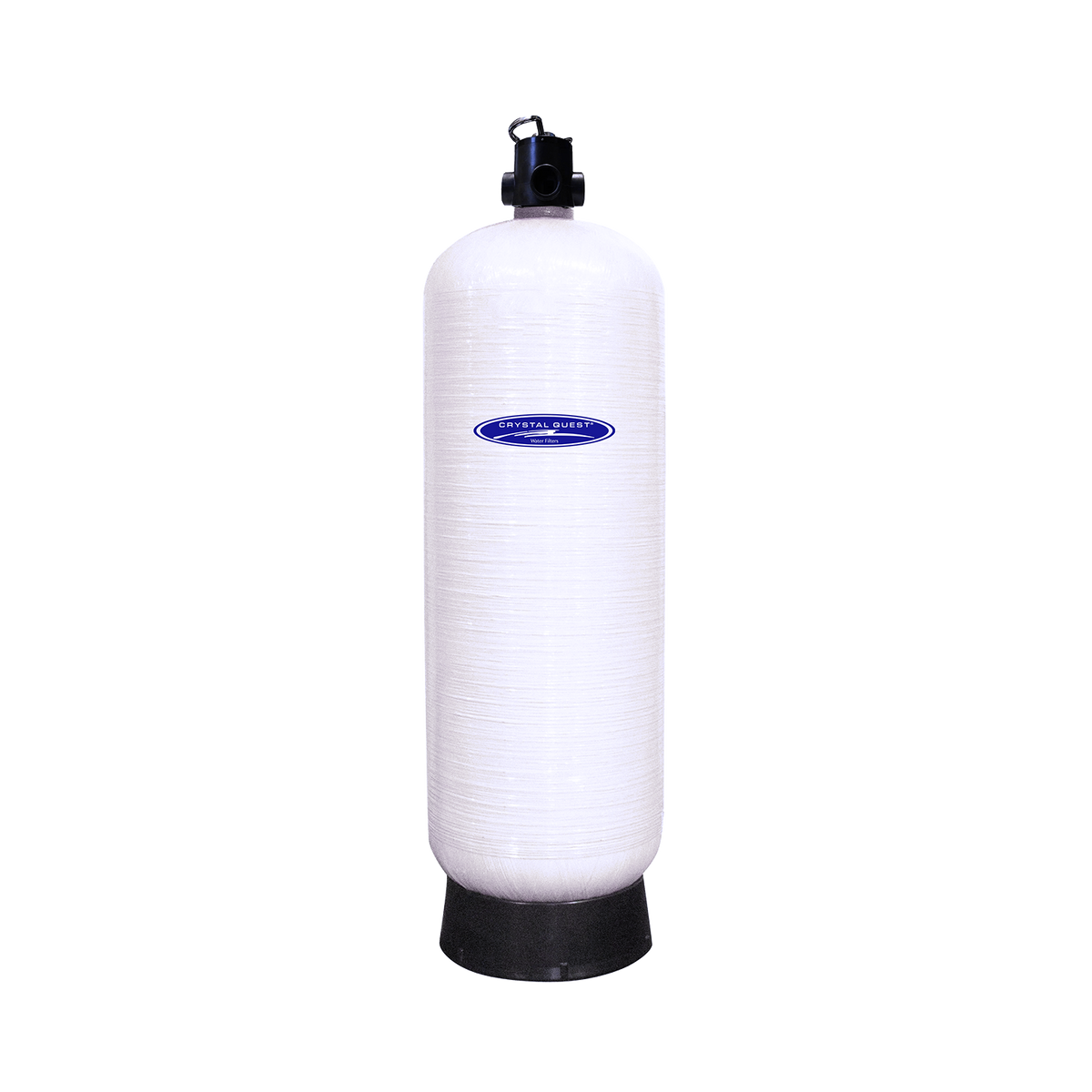

35 GPM / Manual (Downflow w/ Backwash) Metal Removal Water Filtration System - Commercial - Crystal Quest

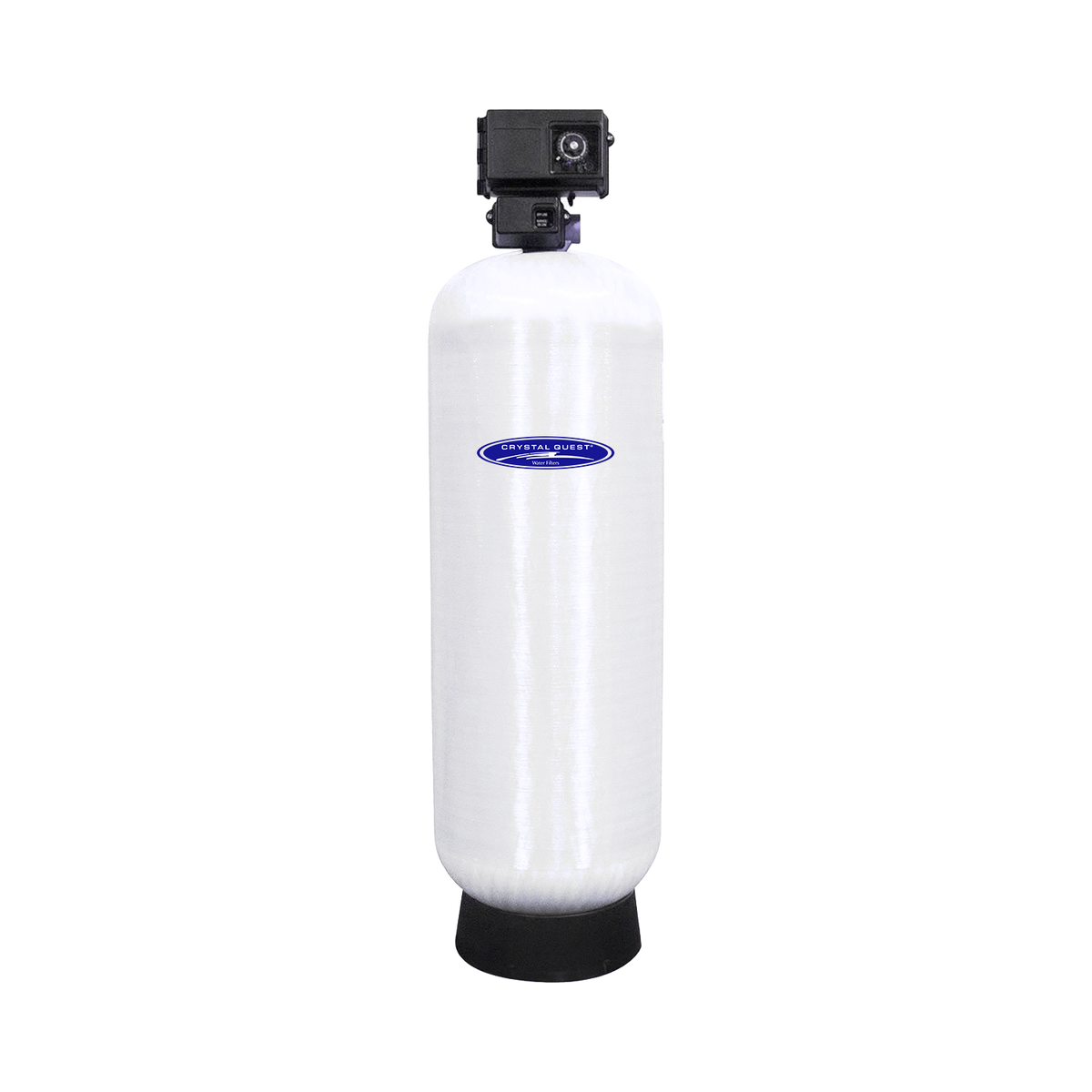

60 GPM / Automatic Metal Removal Water Filtration System - Commercial - Crystal Quest

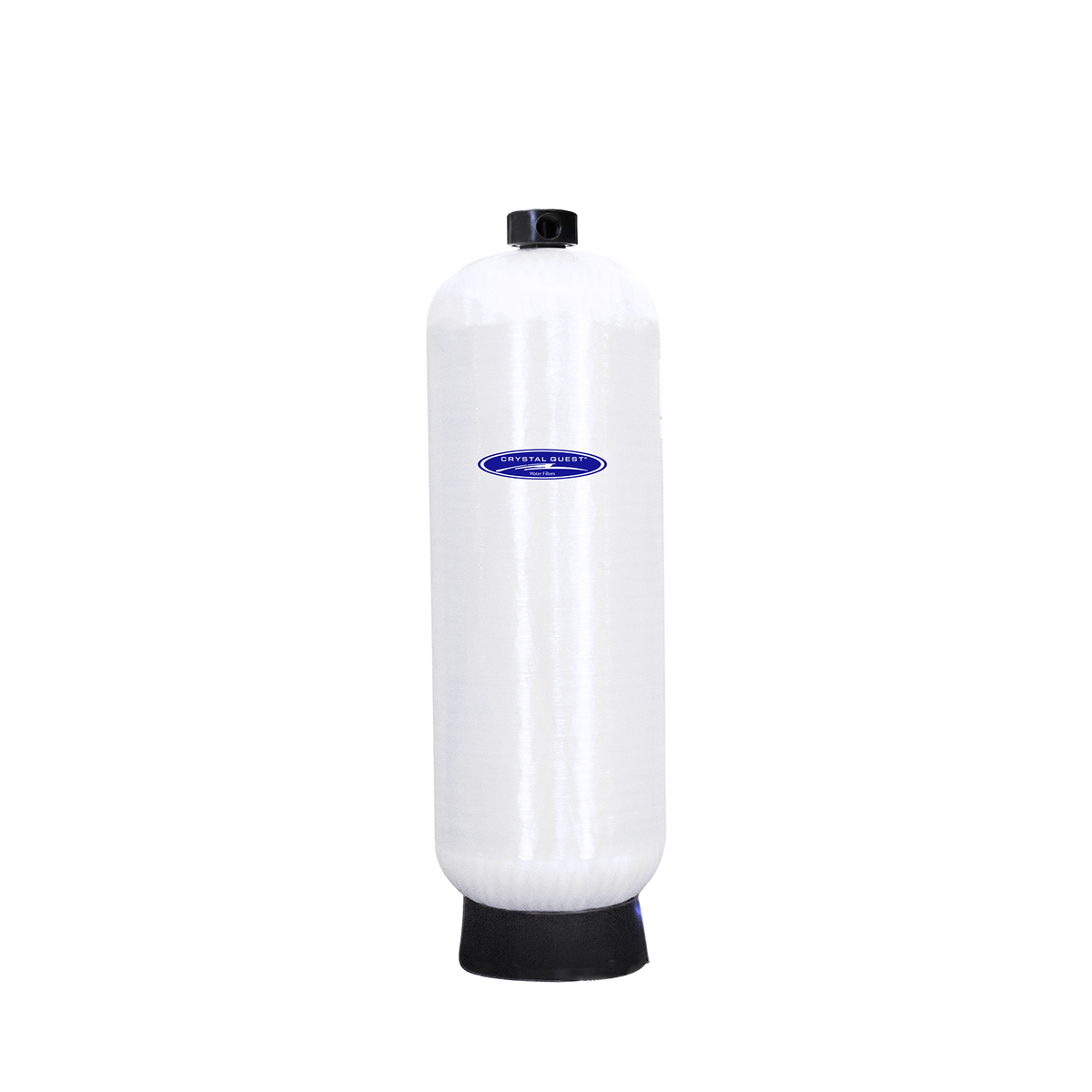

60 GPM / Manual (Upflow) Metal Removal Water Filtration System - Commercial - Crystal Quest

60 GPM / Manual (Downflow w/ Backwash) Metal Removal Water Filtration System - Commercial - Crystal Quest

75 GPM / Automatic Metal Removal Water Filtration System - Commercial - Crystal Quest

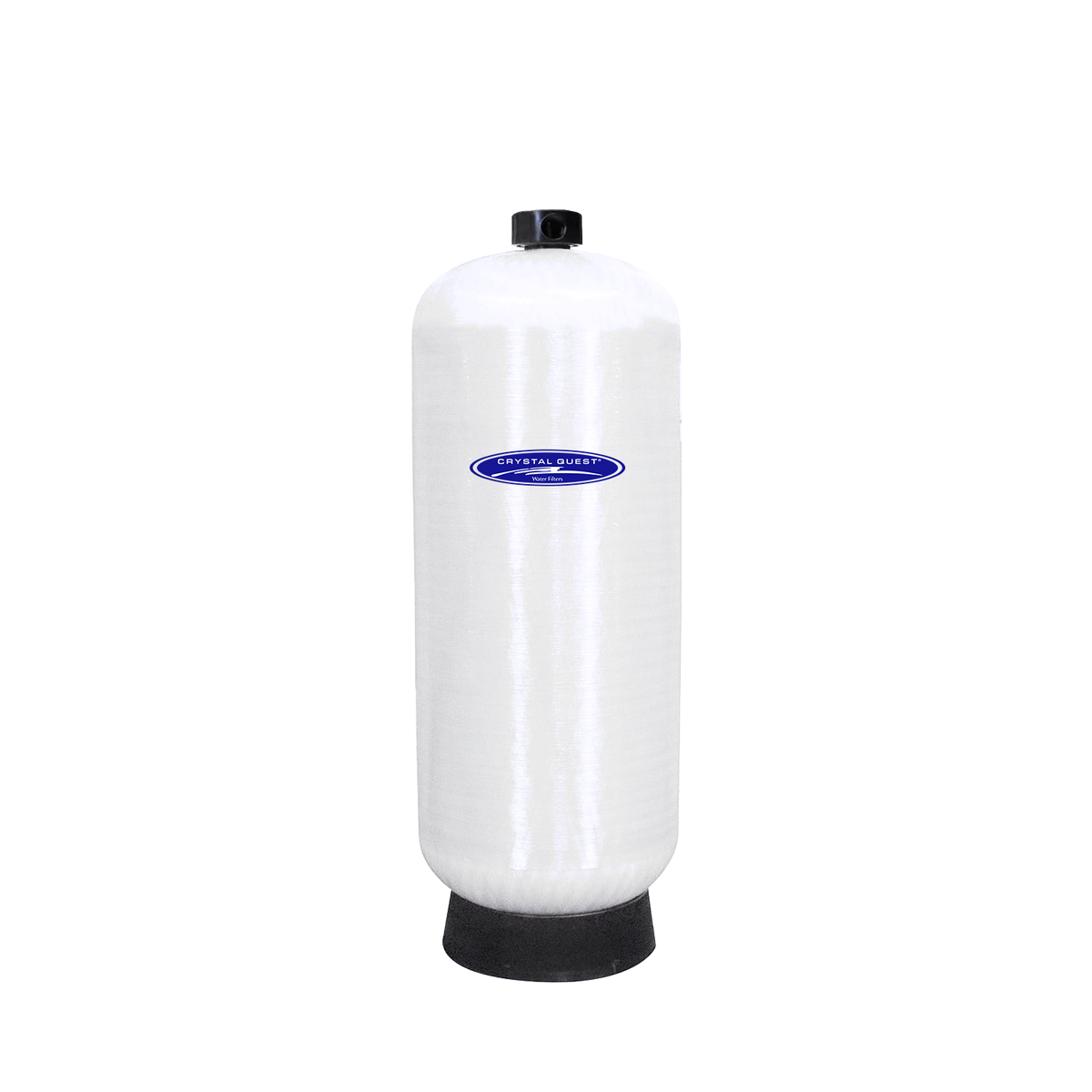

75 GPM / Manual (Upflow) Metal Removal Water Filtration System - Commercial - Crystal Quest

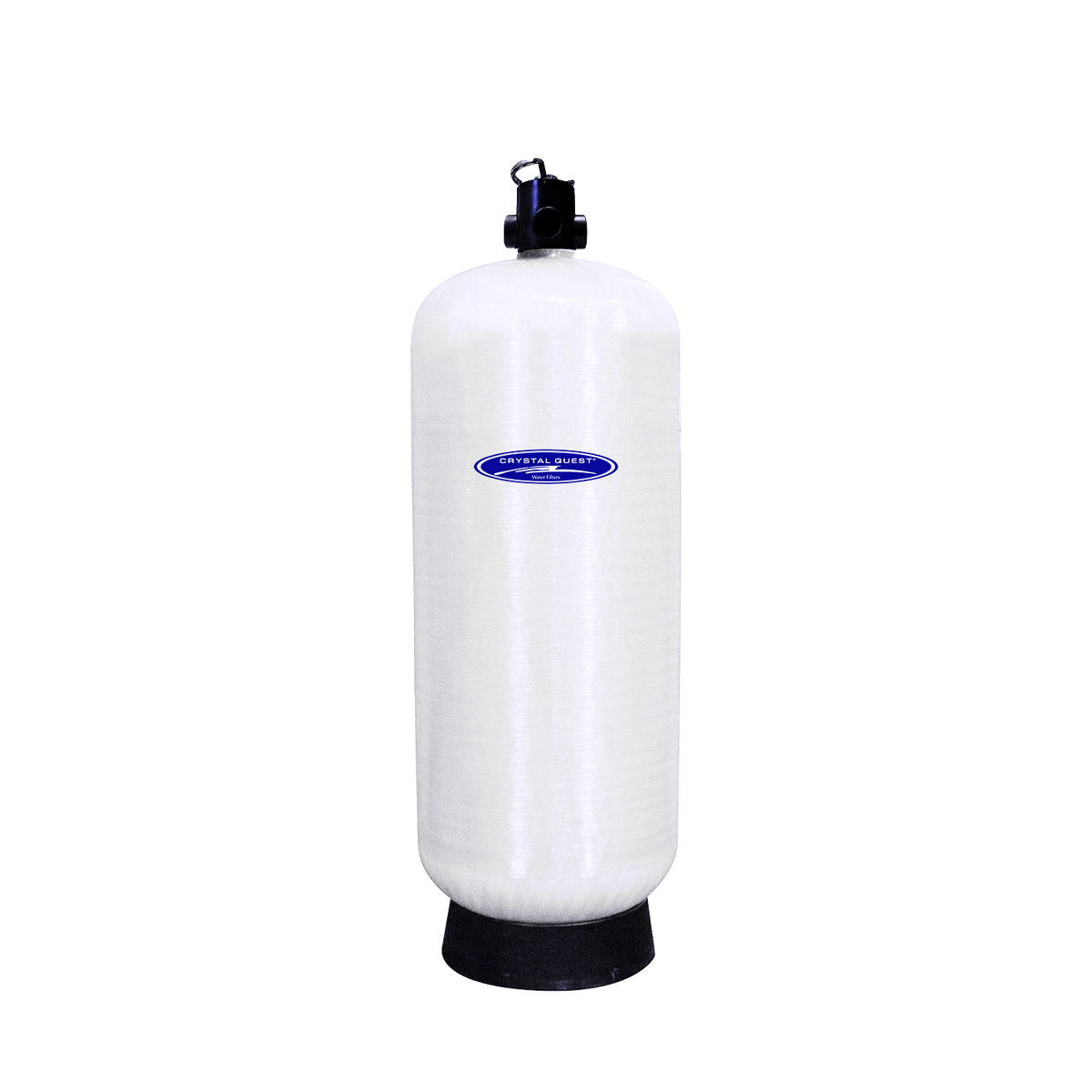

75 GPM / Manual (Downflow w/ Backwash) Metal Removal Water Filtration System - Commercial - Crystal Quest

185 GPM / Automatic Metal Removal Water Filtration System - Commercial - Crystal Quest

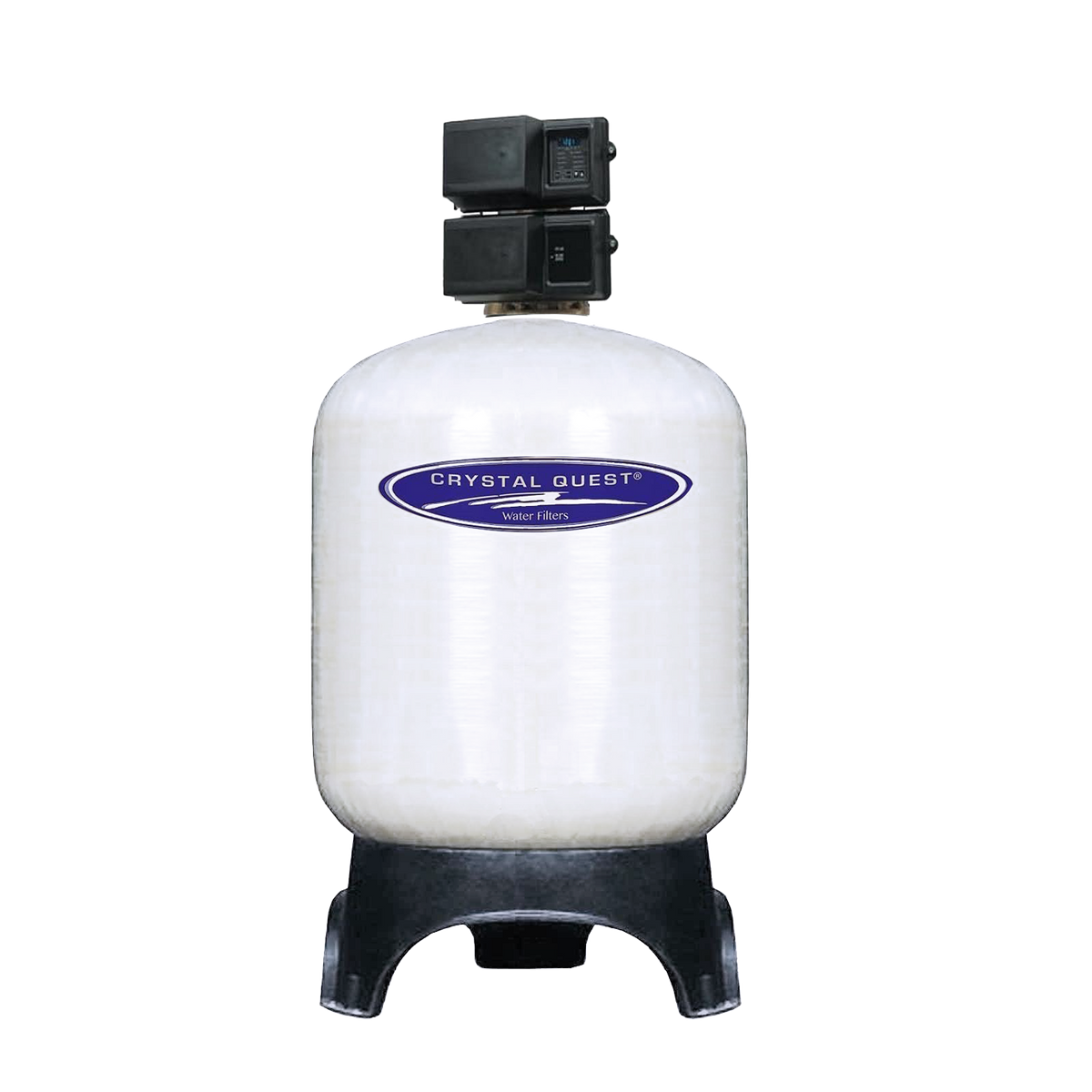

200 GPM / Automatic Metal Removal Water Filtration System - Commercial - Crystal Quest

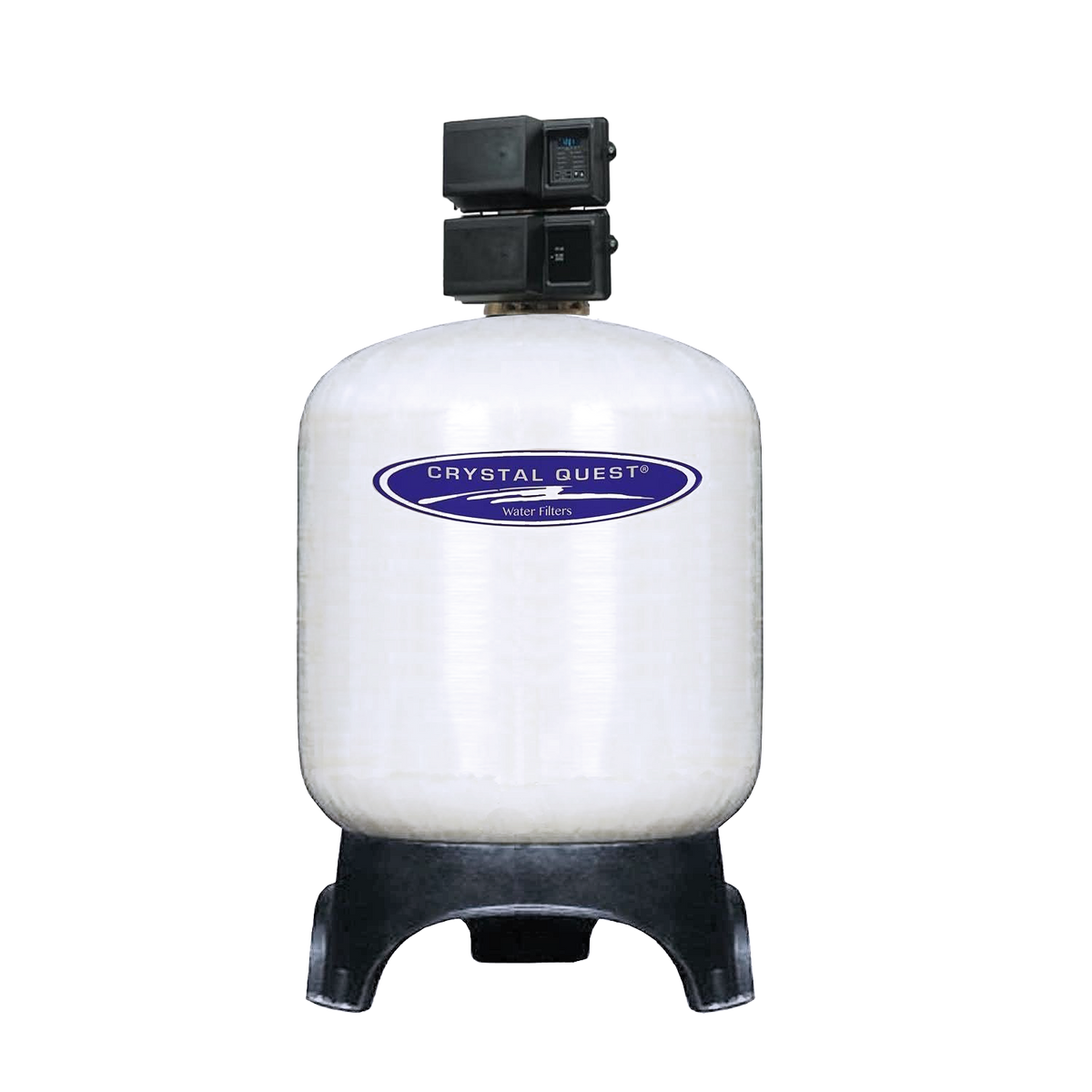

205 GPM / Automatic Metal Removal Water Filtration System - Commercial - Crystal Quest

×

Metal Removal Water Filtration System

SKU: CQE-CO-02091

(0)

$2,025.75

	Service Flow Rate ( GPM)
GPM	15	20	35	60	75	185	200	205
Model No.	CQE-CO-02091	CQE-CO-02092	CQE-CO-02093	CQE-CO-02094	CQE-CO-02095	CQE-CO-02096	CQE-CO-02097	CQE-CO-02098
Electronic Control Valve	2510	2810	2810	2900	2900	3150	3900	3900
Pipe Size	1"	1.5"	1.5"	2"	2"	2"	3"	3"
PSI Range	35-60	35-60	35-60	35-60	35-60	35-60	35-60	35-60
Metal Removal Multimedia	3 ft³	4 ft³	7 ft³	10 ft³	15 ft³	20 ft³	30 ft³	40 ft³
Quartz (lbs.)	30	80	100	200	400	500	700	900
Mineral Tank Size (in.)	14x65	16x65	21x62	24x72	30x72	36x72	42x72	48x72
Service flow (gpm)	15	20	35	60	75	185	200	205
Peak flow (gpm)	22	41	60	95	140	250	270	280
Backwash flow (gpm)	5	7	12	15	25	35	50	65
Space Required (in.) (WxDxH)	15x16x75	17x18x75	23x24x84	24x24x95	32x32x95	40x48x95	46x54x95	52x60x95

	Consumable
GPM	15	20	35	60	75	185	200	205
Model No.	CQE-CO-02091	CQE-CO-02092	CQE-CO-02093	CQE-CO-02094	CQE-CO-02095	CQE-CO-02096	CQE-CO-02097	CQE-CO-02098
Metal Removal Multimedia	3 ft³	4 ft³	7 ft³	10 ft³	15 ft³	20 ft³	30 ft³	40 ft³
Quartz (lbs.)	30	80	100	200	400	500	700	900

Filtration Media Information
Iron Multimedia	Product Data Sheet	Safety Data Sheet
Iron Oxide I	Iron Oxide I Product Data Sheet	Iron Oxide I Safety Data Sheet
Iron Oxide II	Iron Oxide II Product Data Sheet	Iron Oxide II Safety Data Sheet
ERA 6500 & 9500	ERA 6500 & 9500 Product Data Sheet	ERA 6500 & 9500 Safety Data Sheet
Ion Exchange	Ion Exchange Resin Product Data Sheet	Ion Exchange Resin Safety Data Sheet

Quartz Support Bed

2510 Control Head Manua l

2850 Control Head Manual

2900 Control Head Manual

3900 Control Head Manual

5600 Control Head Manual

General Commercial Tank Manual

20cu 185 GPM Iron Schematic

40cu 205 GPM Iron Schematic

15cu Iron Schematic

7cu Iron Schematic

	Installation Instructions
				SYS. INSTALLATION & OPERATION GUIDE
GPM	15	20	35	60	75	185	200	205
Model No.	CQE-CO-02091	CQE-CO-02092	CQE-CO-02093	CQE-CO-02094	CQE-CO-02095	CQE-CO-02096	CQE-CO-02097	CQE-CO-02098
Electronic Valve	2510 Control Head Manual	2815 Control Head Manual	2815 Control Head Manual	2900 Control Head Manual	2900 Control Head Manual	3900 Control Head Manual	3900 Control Head Manual	3900 Control Head Manual
Mechanical Upflow Valve	1"	1.5"	1.5"	1.5"	2"	N/A	N/A	N/A
Mechanical Down Flow/ Backwashable Valve	1"	1.5"	1.5"	1.5"	2"	N/A	N/A	N/A
Schematics	Review	Review	Review	Review	Review	Review	Review	Review

Schematic Samples
Single Standard Configuration	Double Standard Configuration	Triple Standard Configuration

ERA 6500 & 9500 Product Data Sheet

ERA 6500 & 9500 Safety Data Sheet

Iron Oxide I Product Data Sheet

Iron Oxide I Safety Data Sheet

Iron Oxide II Product Data Sheet

Iron Oxide II Safety Data Sheet

2510 Control Head Manua l

2850 Control Head Manual

2900 Control Head Manual

3900 Control Head Manual

5600 Control Head Manual

General Commercial Tank Manual

20cu 185 GPM Iron Schematic

40cu 205 GPM Iron Schematic

15cu Iron Schematic

7cu Iron Schematic

Features

Timer Control Valves
Heavy duty composite fiberglass tanks
High Flow Distributor
All brass, motor driven control valve with fully adjustable backwash cycles
Self-adjusting backwash controller
Flow controller to limit backwash flow
Engineered for commercial & industrial use

Benefits

Reduced water consumption
Engineered for commercial & industrial use

Add-Ons*

Metered Control Valve
Backwash bypass
3200NT Controller
NXT Upgrade Controller
Duplex parallel, twin alternating, triplex (progressive)
Optional skid mounting for tanks

*If you are interested in our available add-ons, please call to have them added to your system.
