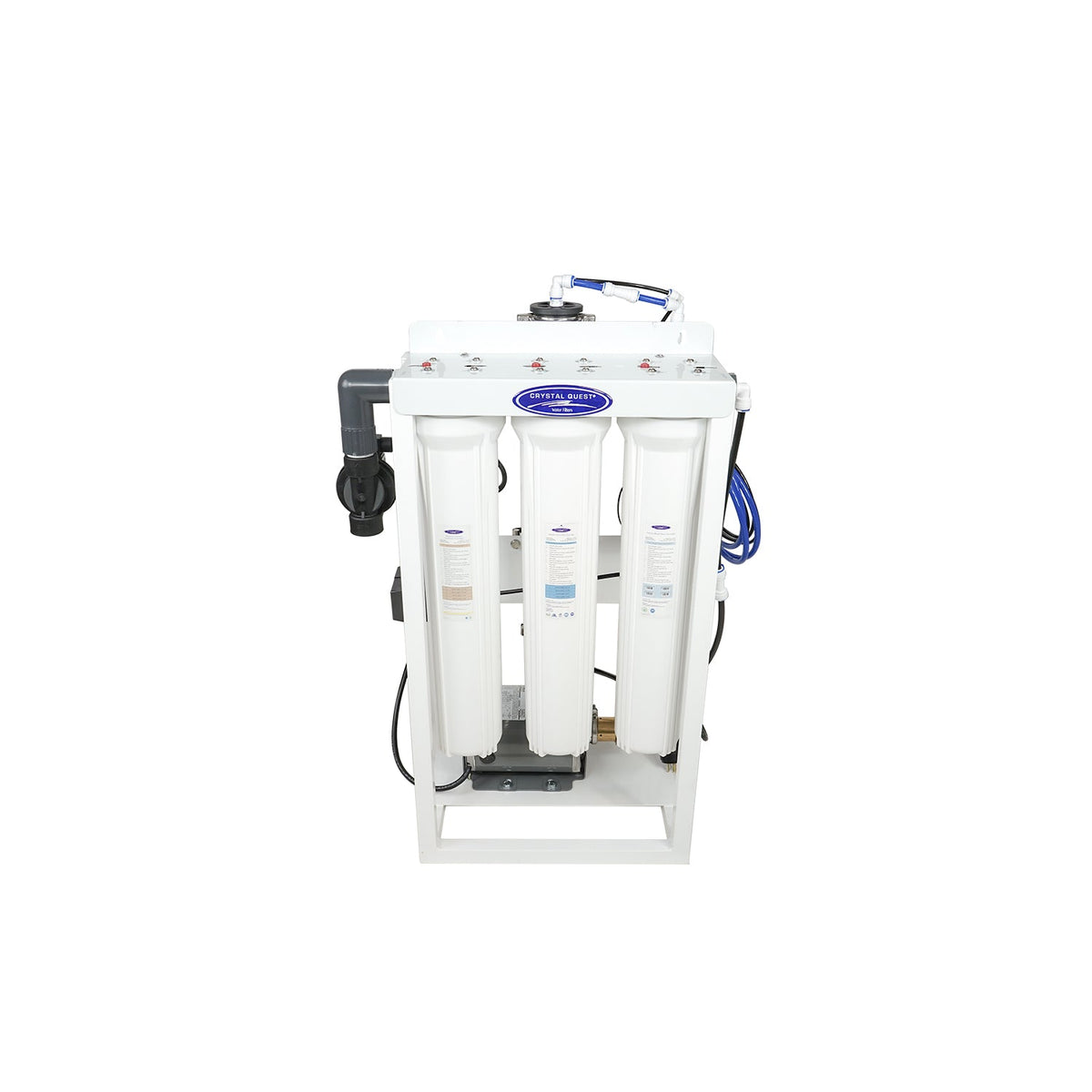

300 GPD Low-Flow Reverse Osmosis System - Commercial - Crystal Quest

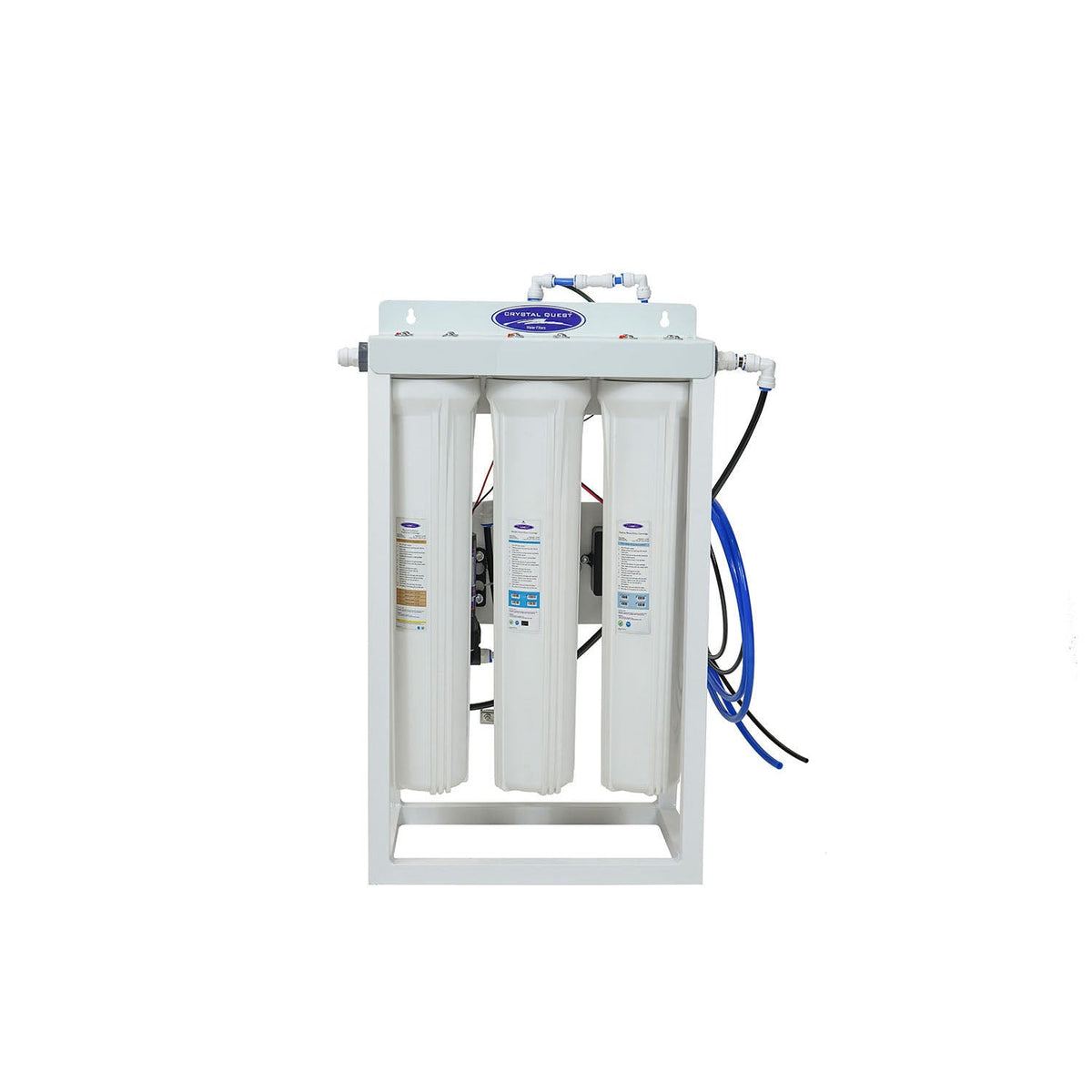

Low-Flow Reverse Osmosis System - Commercial - Crystal Quest
300 GPD Low-Flow Reverse Osmosis System - Commercial - Crystal Quest
Faucets Styles Image ×

Low-Flow Reverse Osmosis System

SKU: CQE-CO-02022R
$1,599.65
Flow Rate
Rendering loop-subscriptions

Gallons Per Day (GPD) @ 77° F

200 300
Model CQE-CO-02022 CQE-CO-02023
Dimensions 7" x 22" x 31" 7" x 28" x 33"
Weight (lbs) 50 70
Concentrate Re-Circulate Optional Optional
Auto Flush Optional Optional
Membrane Size 2514 TFC HF1 2521 TFC HF1
# of Membranes 1 1
Motor HP N/A N/A
Voltage (volts AC) 110/220 110/220
Hertz (cycles) 50/60 50/60
Feed Connection 3/8” 3/8”
Product Connection 3/8” 3/8”
Waste Connection 1/4" 1/4"
Minimum Feed Pressure 45 psi 45 psi
Minimum NaCl - % Rejection 96% 96%
Minimum Feed (GPM) 1 1
Maximum Hardness (GPG) 15 15
Maximum TDS 1000 ppm 1000 ppm
Operating Pressure 50 psi 150 psi
Maximum NaCl - % Rejection 98.5% 98.5%
Maximum Feed (GPM) 3 3
pH Range 3-11 3-11

Dimensions (L x W x H) - Commercial RO’s

GPD Dimensions (L x W x H)
200 GPD 17” x 23” x 35”
300 GPD 17” x 23” x 35”
500 GPD 24” x 25” x 55”
750 GPD 24” x 25” x 55”
1,000 GPD 24” x 25” x 55”
1,500 GPD 24” x 25” x 55”
1,800 GPD 24” x 25” x 55”
2,500 GPD 24” x 25” x 55”
4,000 GPD 31” x 38” x 56”
5,000 GPD 31” x 38” x 56”
7,000 GPD 31” x 38” x 56”
10,000 GPD 31” x 58” x 64”

SYSTEM

CARTRIDGE

SKU

200 GPD

2-7/8” x 20”  Pleated Cellulose Sediment Cartridge

CQE-RC-04015



2-7/8” x 20”  SMART Filter Cartridge

CQE-RC-04016



2-7/8” x 20”  Coconut Based 5-Micron Carbon Block Filter Cartridge

CQE-RC-04014



2.5” x 14”  Freshwater Reverse Osmosis Membrane

CQE-RC-04111







300 GPD

2-7/8” x 20”  Pleated Cellulose Sediment Cartridge

CQE-RC-04015



2-7/8 x 20”  SMART Filter Cartridge

CQE-RC-04016



2-7/8 x 20”  Coconut Based 5-Micron Carbon Block Filter Cartridge

CQE-RC-04014



2.5” x 21”  Freshwater Reverse Osmosis Membrane

CQE-RC-04084

200-300 GPD Reverse Osmosis Manual

200 GPD Reverse Osmosis Schematic
