Solenoid Valves
Solenoid Valves
$99.00
Regular price
Brass Stainless Steel PVC ### Position: Normally Closed Port Size: 1" Female NPT Voltage: 110V AC, 220V AC Body Material: Stainless Steel, Brass, and PVC Components: Stainless Steel Seal Material: Viton® Diaphragm Orifice Size: 25 mm Temperature Range: 15 to 250°F / -10 to 120°C Pressure Range: Water: 0-145 PSI Air: 7-145 PSI Flow Rate: Cv 12 (Approx. 92 GPM...
- Free shipping Qualifies for free shipping! Free shipping over $150 Residential orders within the lower 48 US states
- 30-day returns New, unused items in the original packaging
- Lifetime support from our team Call, email or chat with your water filtration experts
Made in USA
Couldn't load pickup availability
Description

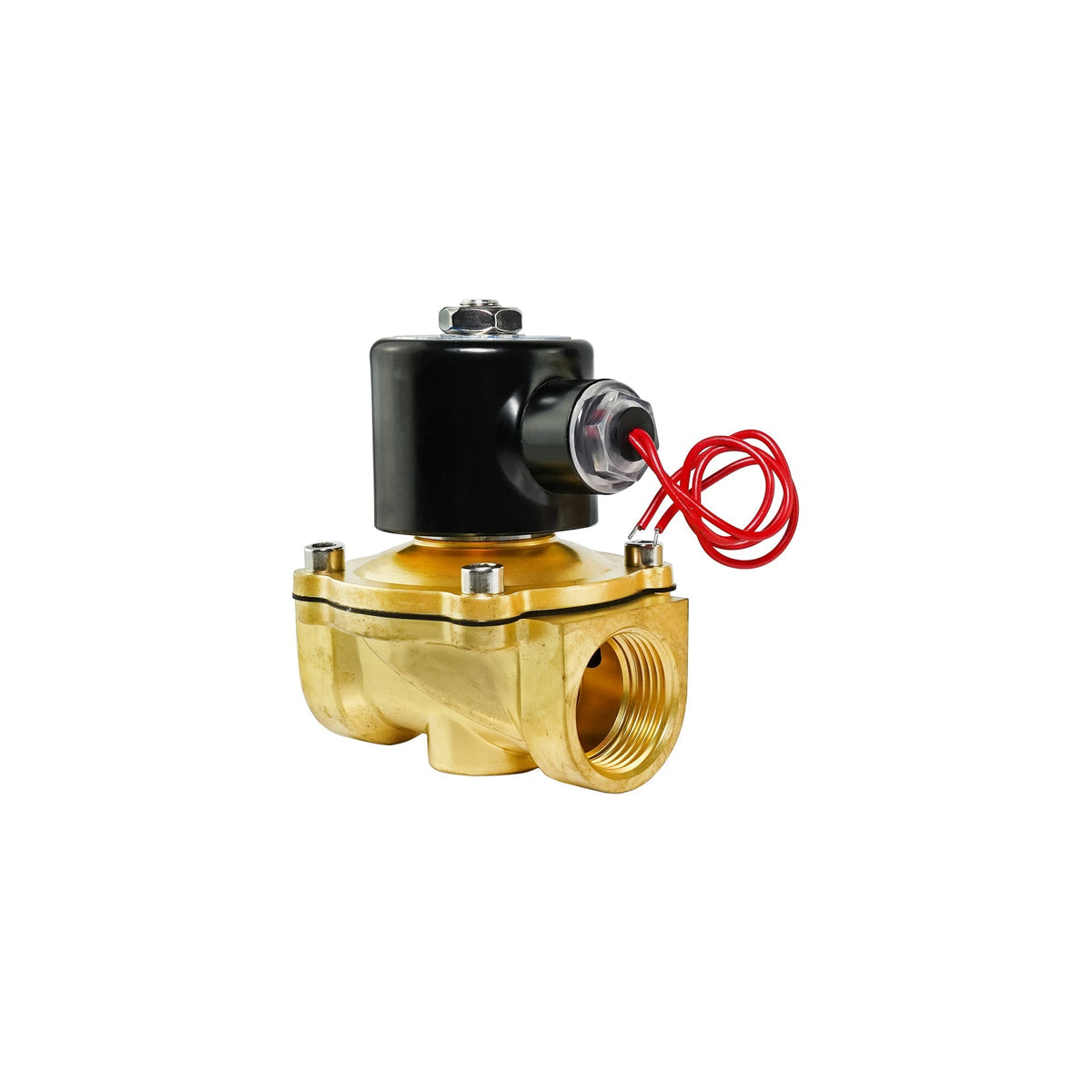

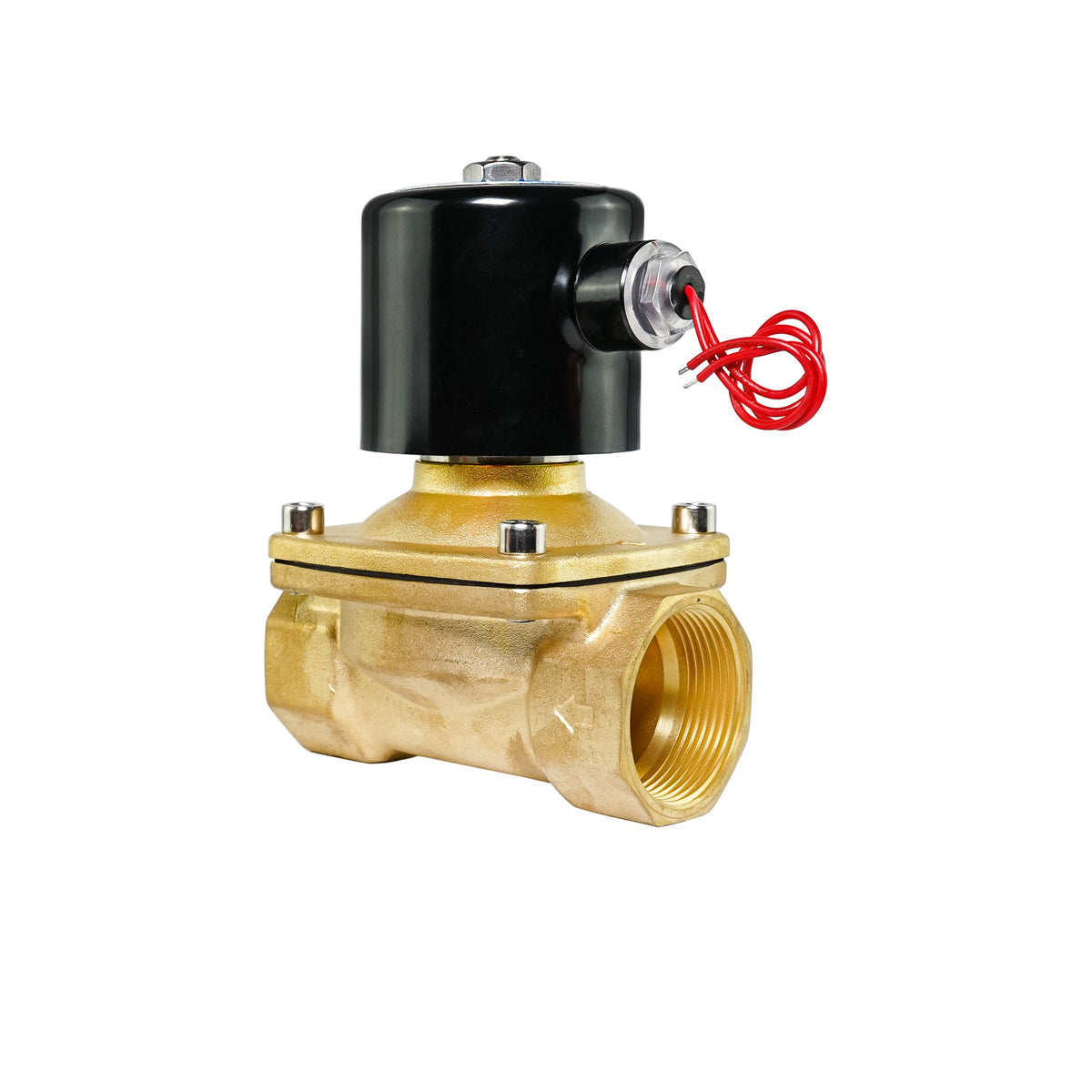

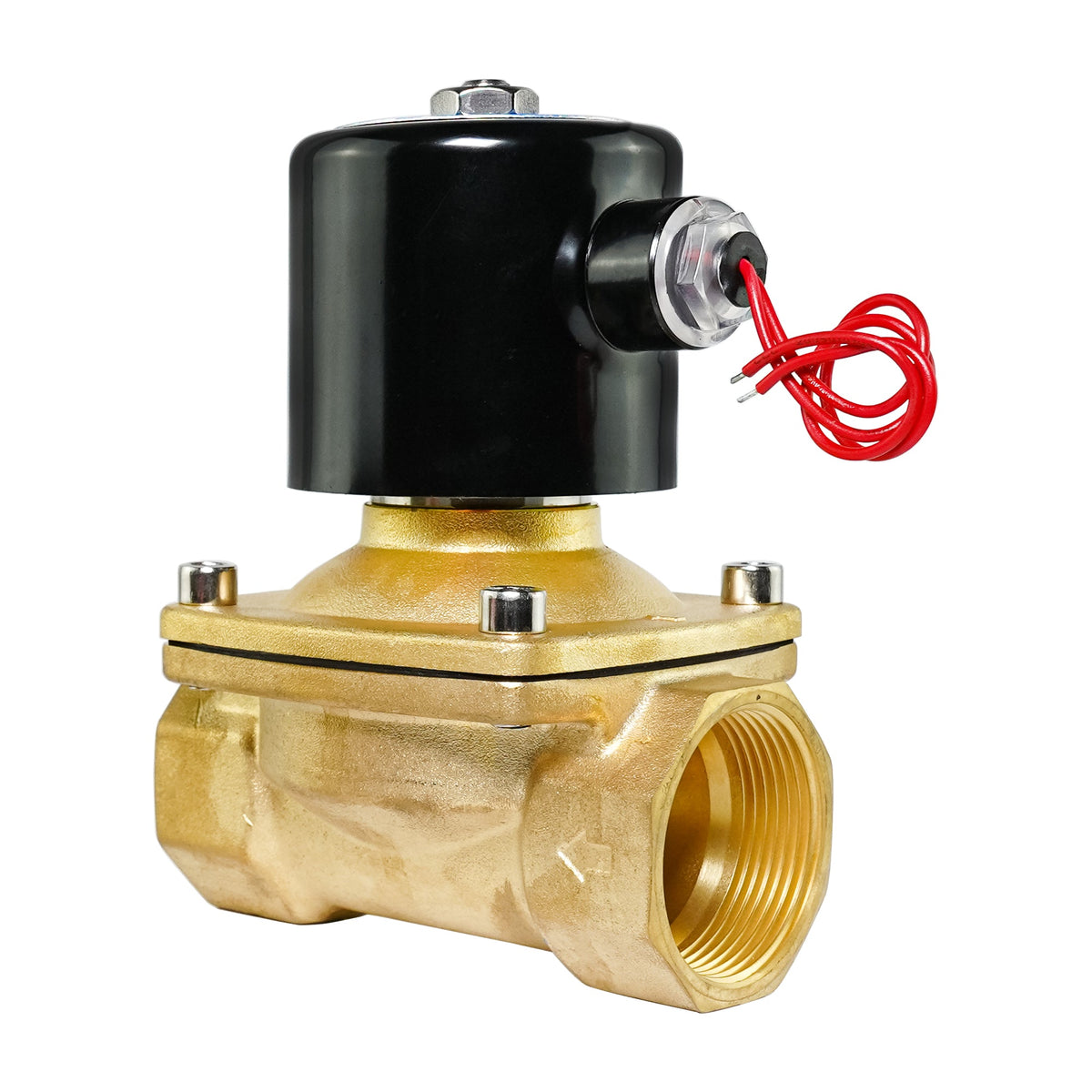

- Brass

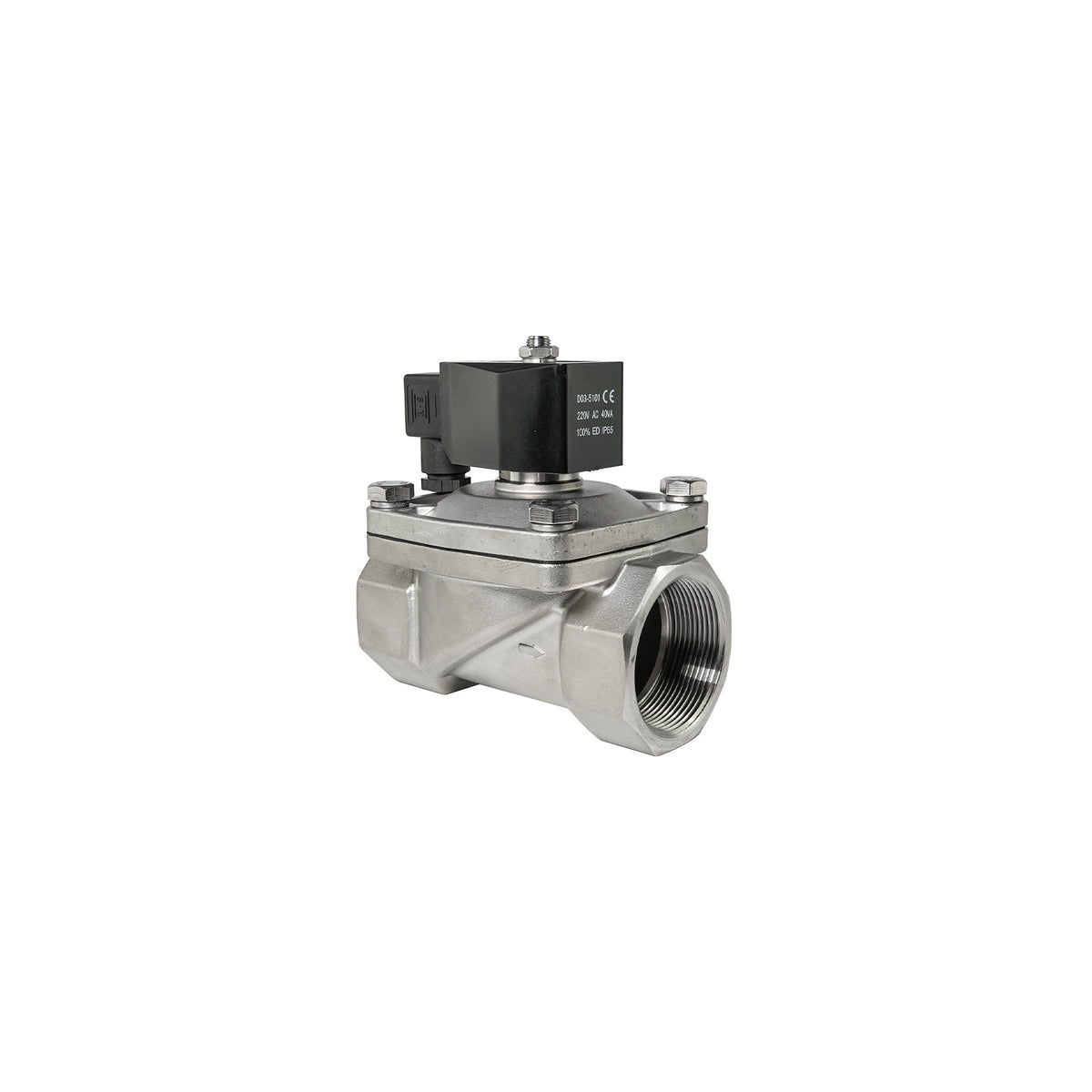

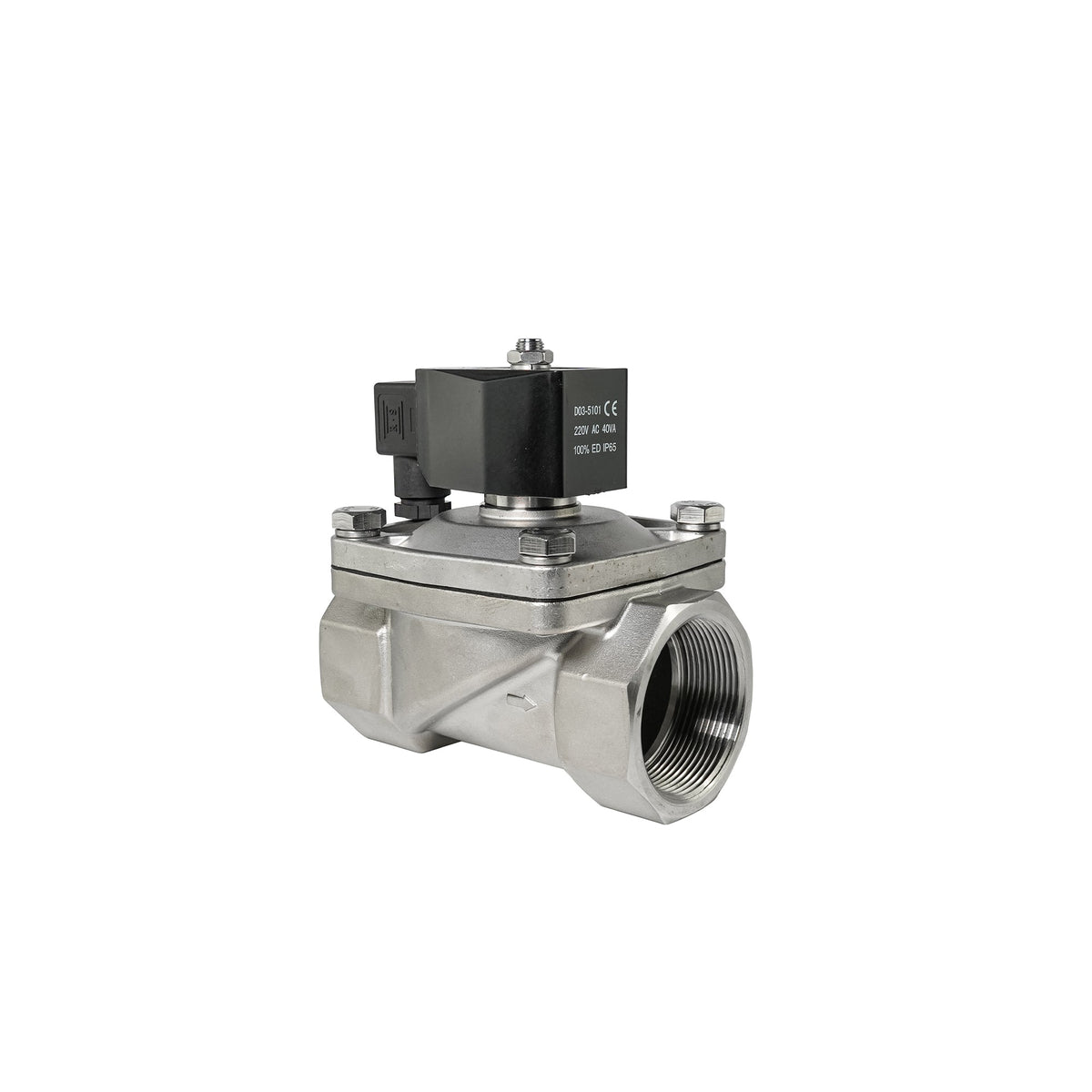

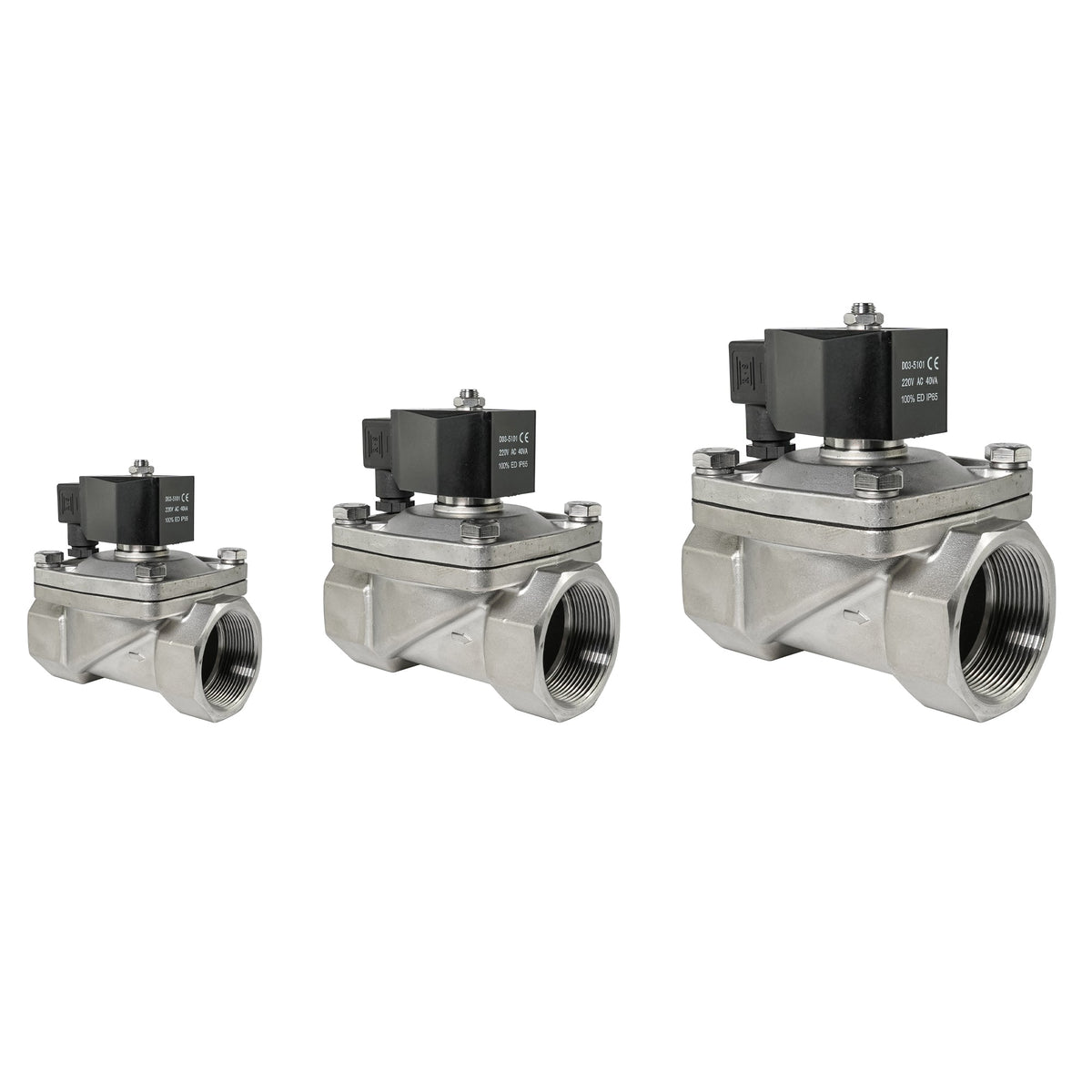

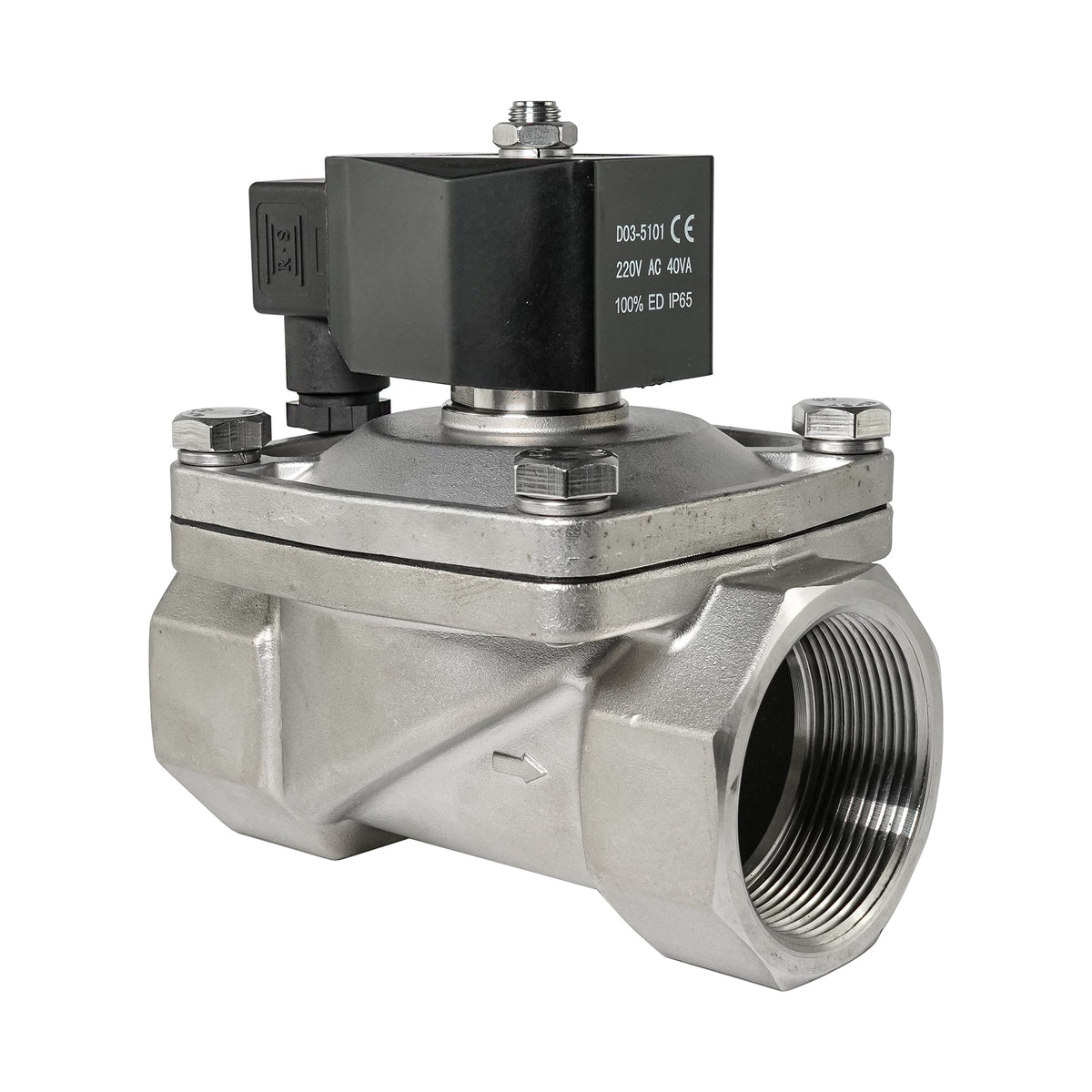

- Stainless Steel

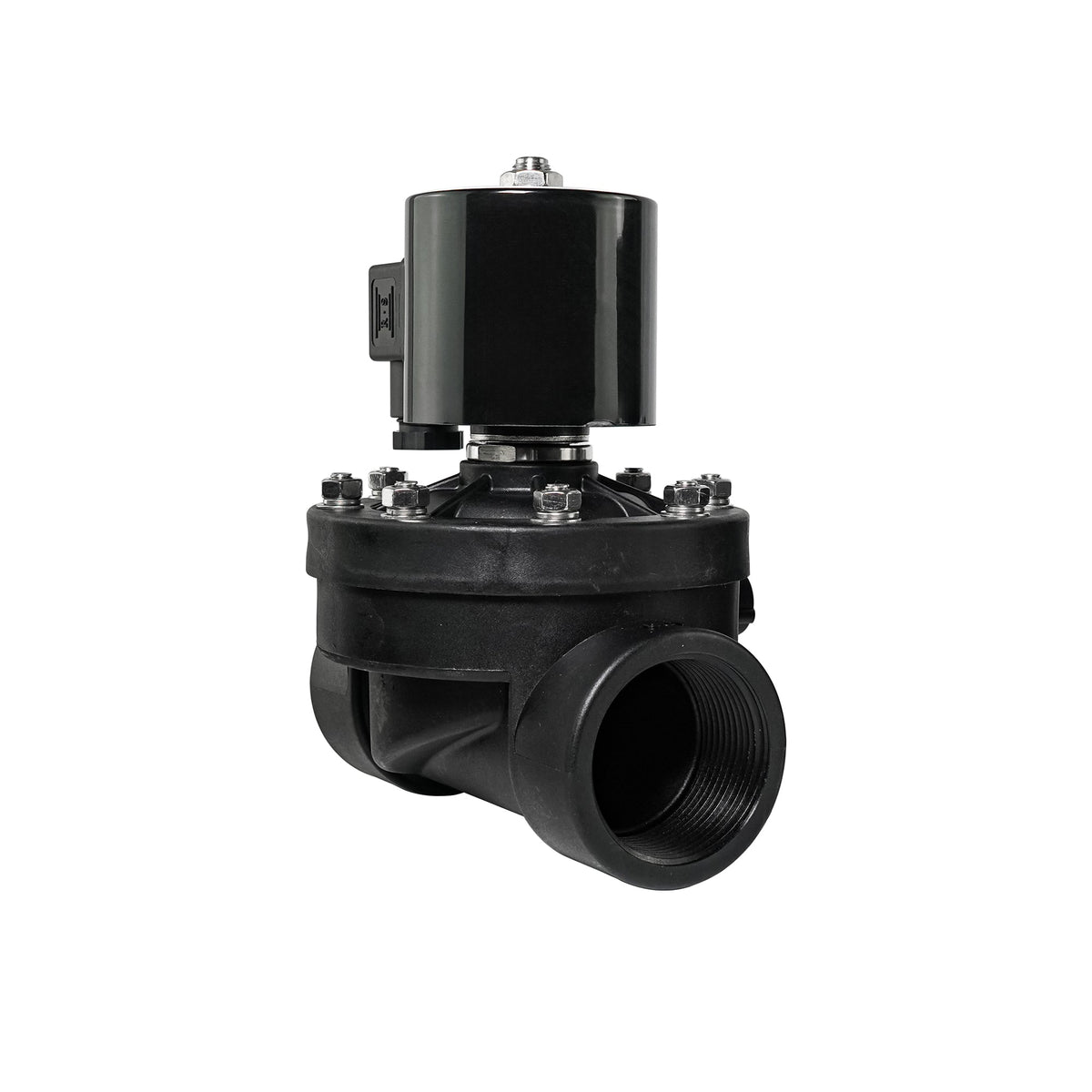

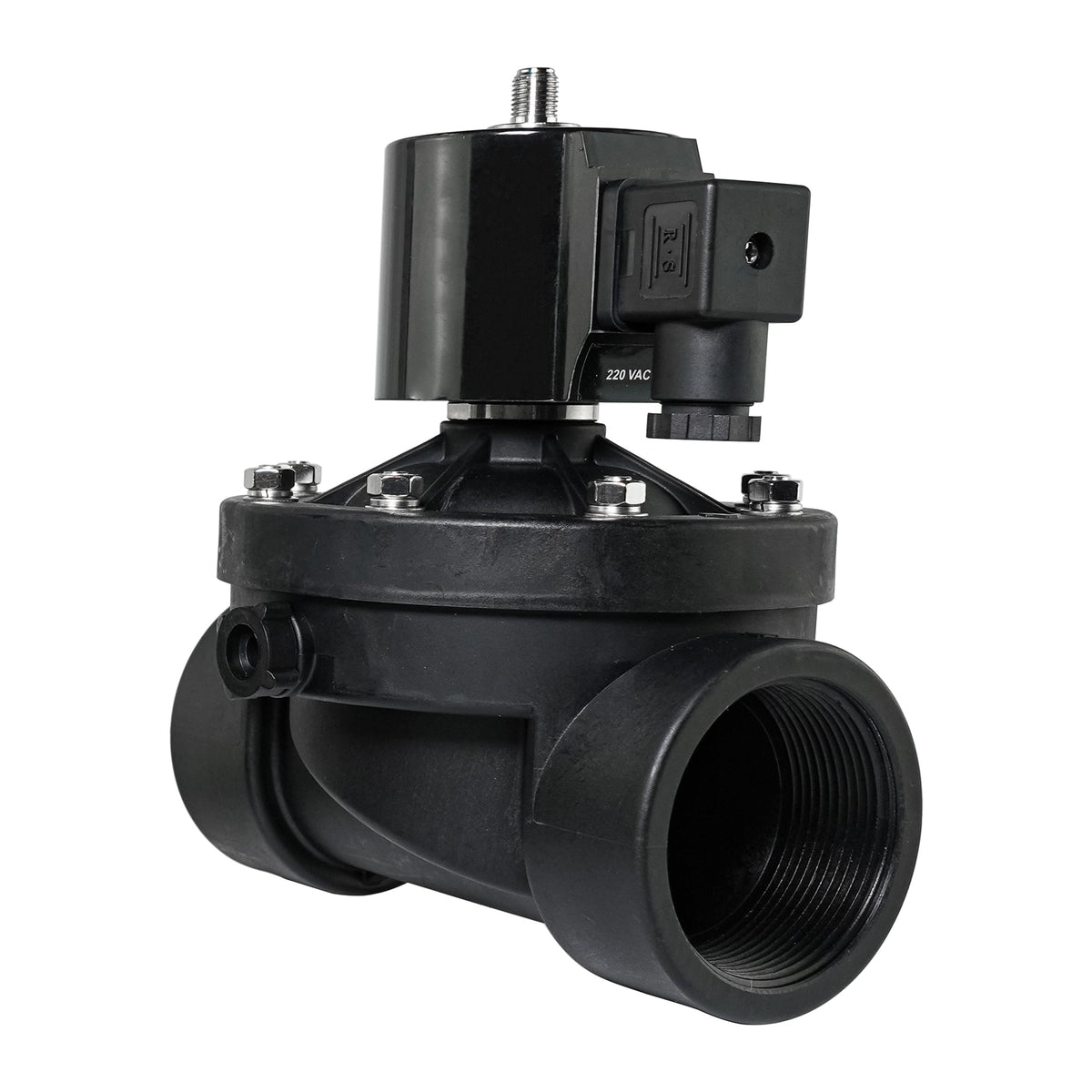

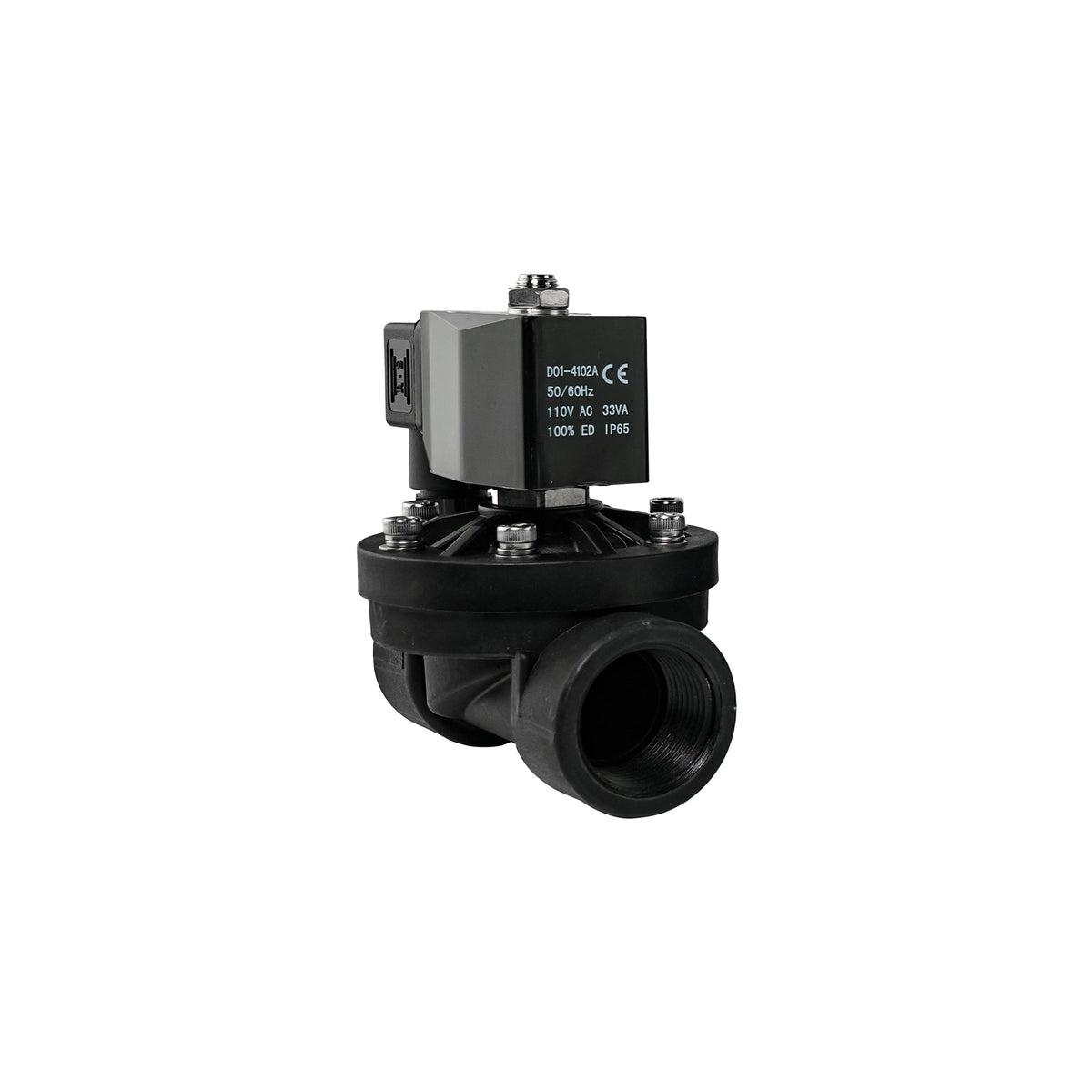

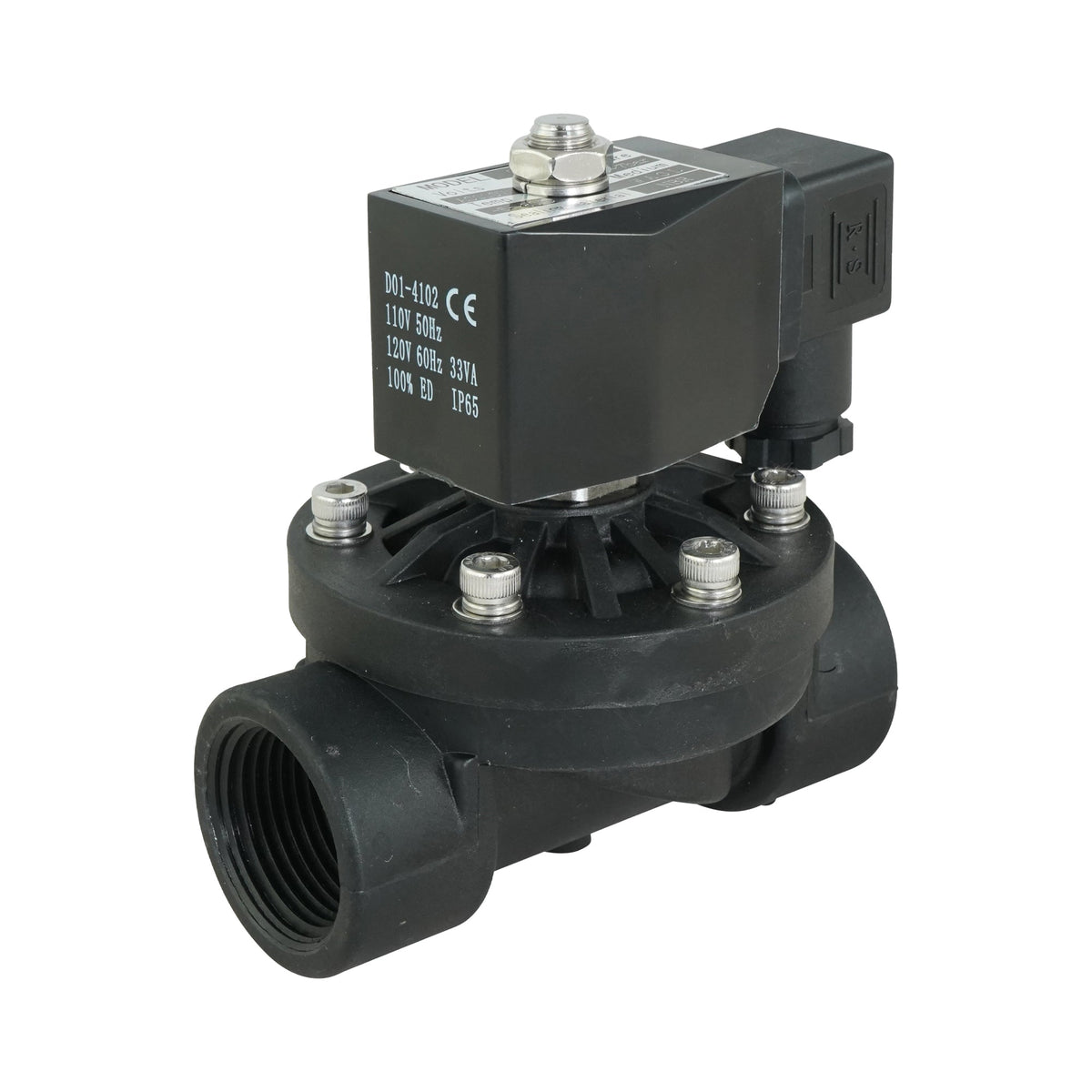

- PVC
Specifications
Position: Normally Closed
Port Size: 1" Female NPT
Voltage: 110V AC, 220V AC
Body Material: Stainless Steel, Brass, and PVC
Components: Stainless Steel
Seal Material: Viton® Diaphragm
Orifice Size: 25 mm
Temperature Range: 15 to 250°F / -10 to 120°C
Pressure Range:
- Water: 0-145 PSI
- Air: 7-145 PSI
Flow Rate: Cv 12 (Approx. 92 GPM @ 60 PSI)
Power: 28 Watts / 0.50 Amps
Coil Connection: Lead Wires
Response Time: Fast Acting (Less than one second)
