Spot-Free Car Wash Filter - Portable Deionizing Water Filter

Use a TDS meter to monitor your output water. Fresh DI resin produces 0 PPM water. When your output TDS rises above 10 PPM, it's time to replace or refill the cartridge. Visual indicators include the resin changing from its original color to a uniform dark amber or brown.

Yes. If you prefer to refill rather than replace, our 1 cubic foot bulk mixed-bed DI resin (CQE-RM-05021) lets you repack your existing cartridge shells. This is the most cost-effective option for high-volume users who go through resin quickly.

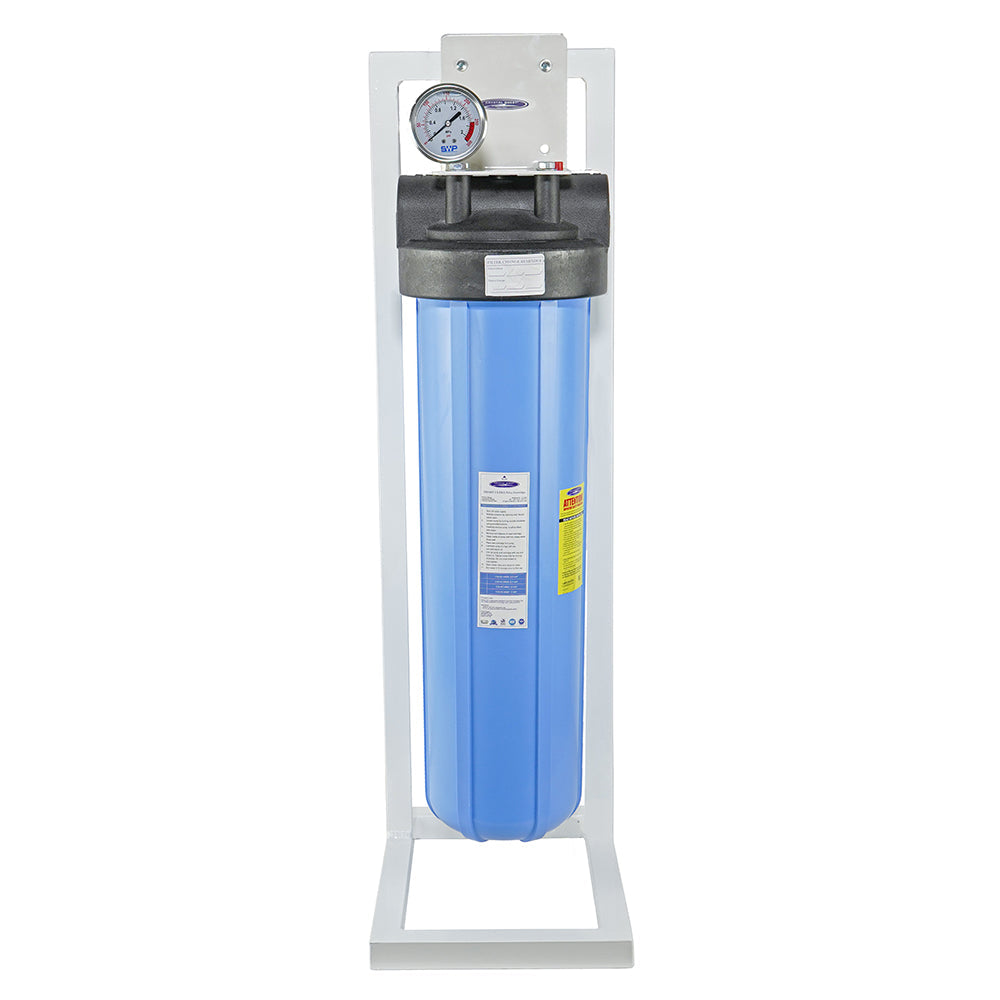

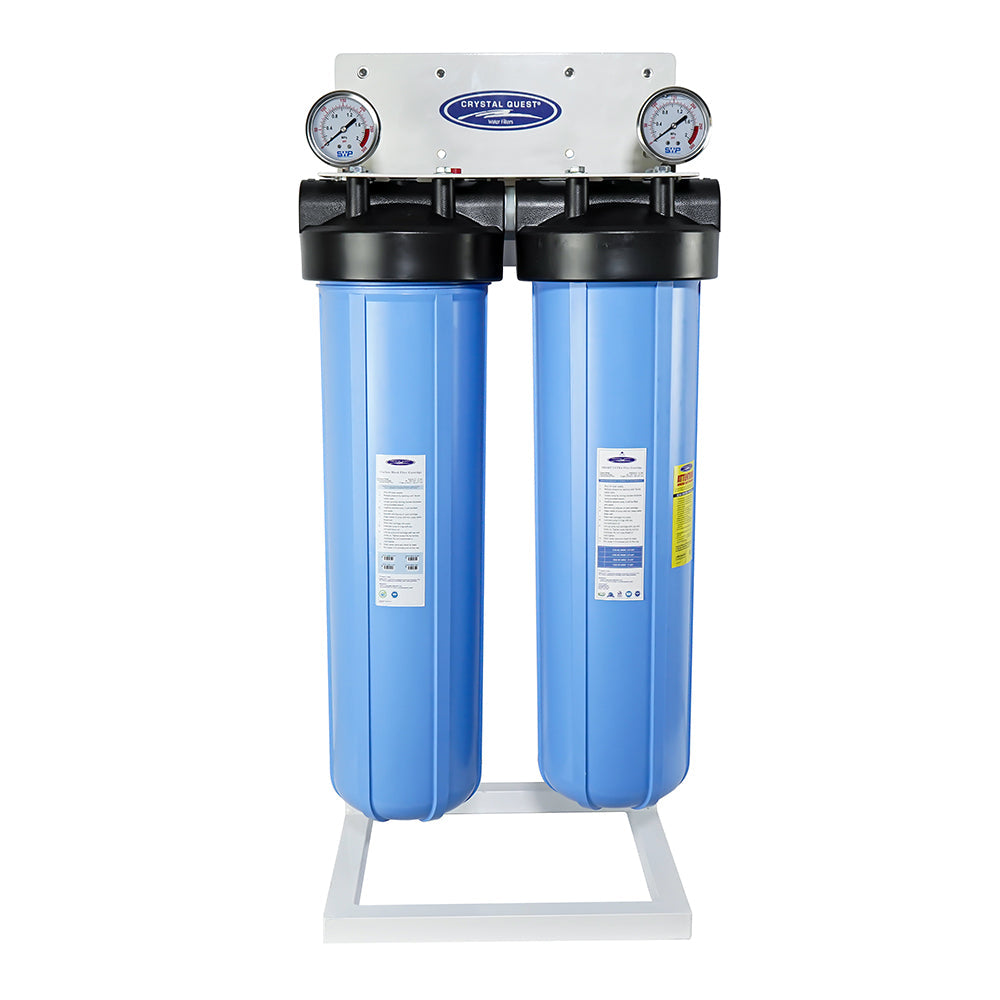

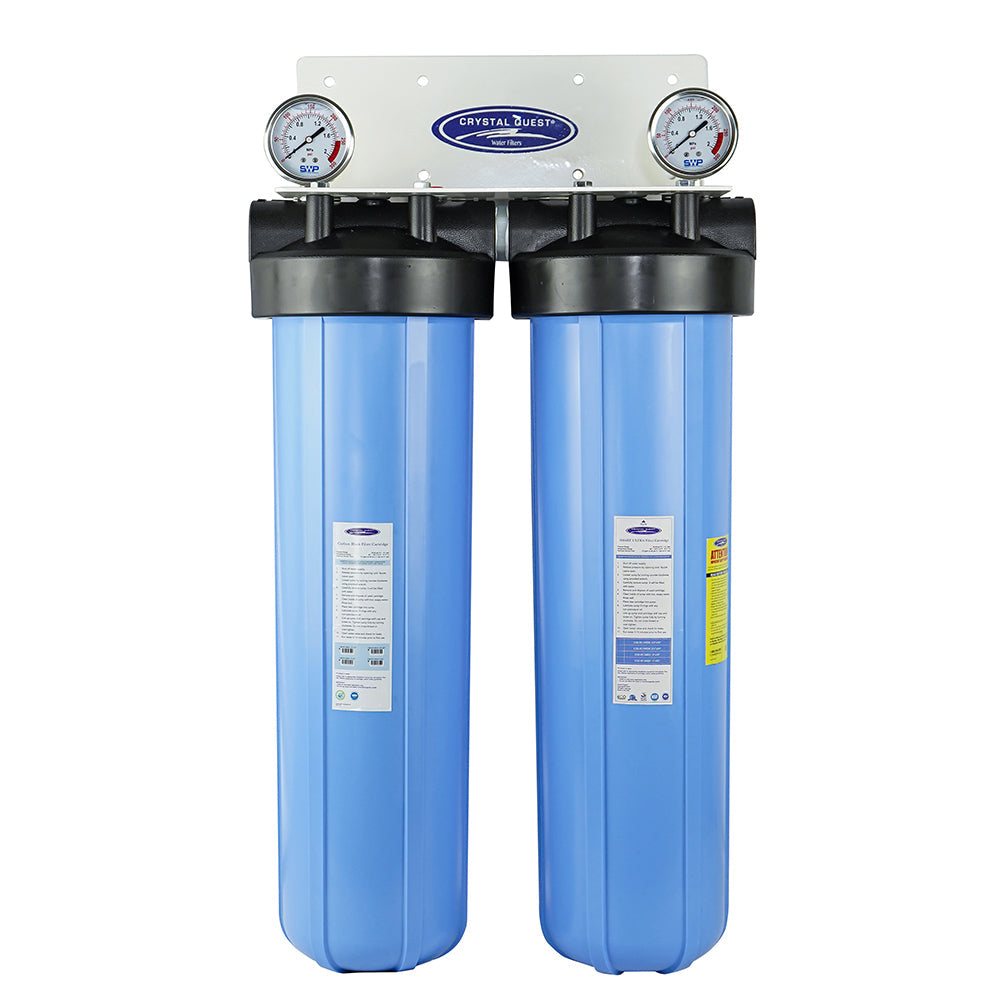

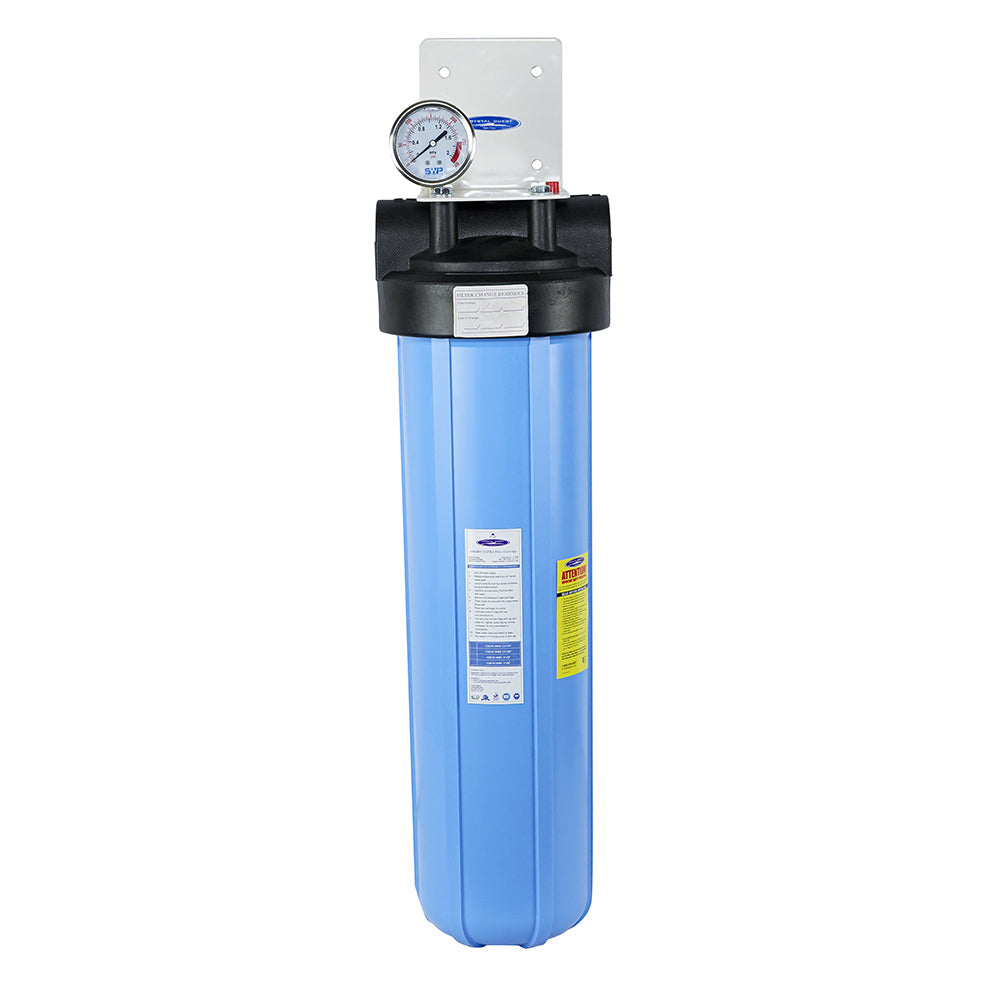

No. The Personal system uses the smaller 2 7/8" × 20" cartridge (CQE-RC-0501). The Professional and Professional MAX both use the larger 4 5/8" × 20" Big Blue cartridge (CQE-RC-0503). The MAX simply uses two of the Big Blue cartridges.

Cartridge life is directly tied to your water's TDS level. At 200 PPM — roughly average for U.S. municipal water — the Personal cartridge handles about 180 gallons (36 vehicle rinses), the Professional handles about 360 gallons (72 rinses), and the Professional MAX handles about 720 gallons (144 rinses). Lower TDS water dramatically extends cartridge life.

No. All systems ship with the cartridge pre-installed and include all adapters, fittings, and Teflon tape. If you can connect a garden hose, you can set up this system. The optional pre-assembled stands mean you don't even need to mount anything — just set it down and connect your hoses.

All systems include adapters for standard garden hose connections. The native port size is 1" NPT (Professional and MAX) or 1" (Personal), but the included adapters make them compatible with standard 3/4" garden hose fittings found on any outdoor spigot.

The system can be used outdoors, but it should be protected from direct sunlight when not in use (UV degrades plastics over time) and must be brought inside or drained if temperatures drop below freezing. Frozen water inside the housing can crack the vessel.

Turn off the water supply and release pressure using the pressure relief button on the housing cap. Use the included housing wrench to unscrew the sump (bottom half). Remove the old cartridge, drop in the new one, and screw the sump back on. Flush 2–5 minutes before use. The whole process takes about 10 minutes.

TDS stands for Total Dissolved Solids — the combined measurement of all minerals, salts, and metals dissolved in your water, measured in parts per million (PPM). Higher TDS means more minerals that cause water spots, and more work for your DI resin to remove. Knowing your water's TDS helps you predict cartridge life and choose the right system size.

Mixed-bed DI resin effectively removes all common dissolved ions including calcium, magnesium, sodium, potassium, iron, copper, manganese, chlorides, sulfates, nitrates, bicarbonates, phosphates, and ammonia. It also reduces silica, though silica removal efficiency can vary depending on concentration and water chemistry.

DI filtration is a passive ion exchange process — the resin beads swap dissolved minerals for hydrogen and hydroxide ions as water passes through under normal water pressure. There are no pumps, no UV lamps, and no electronic controls. Just connect to any pressurized water source (garden hose, spigot, pressure washer bypass) and the system works.

The system will still function, but the resin will be exhausted very quickly, making it impractical and expensive. For water above 1,000 PPM, we recommend a reverse osmosis pre-treatment stage to bring TDS down before the DI polish. Contact our team at 1-800-934-0051 for a custom solution.
