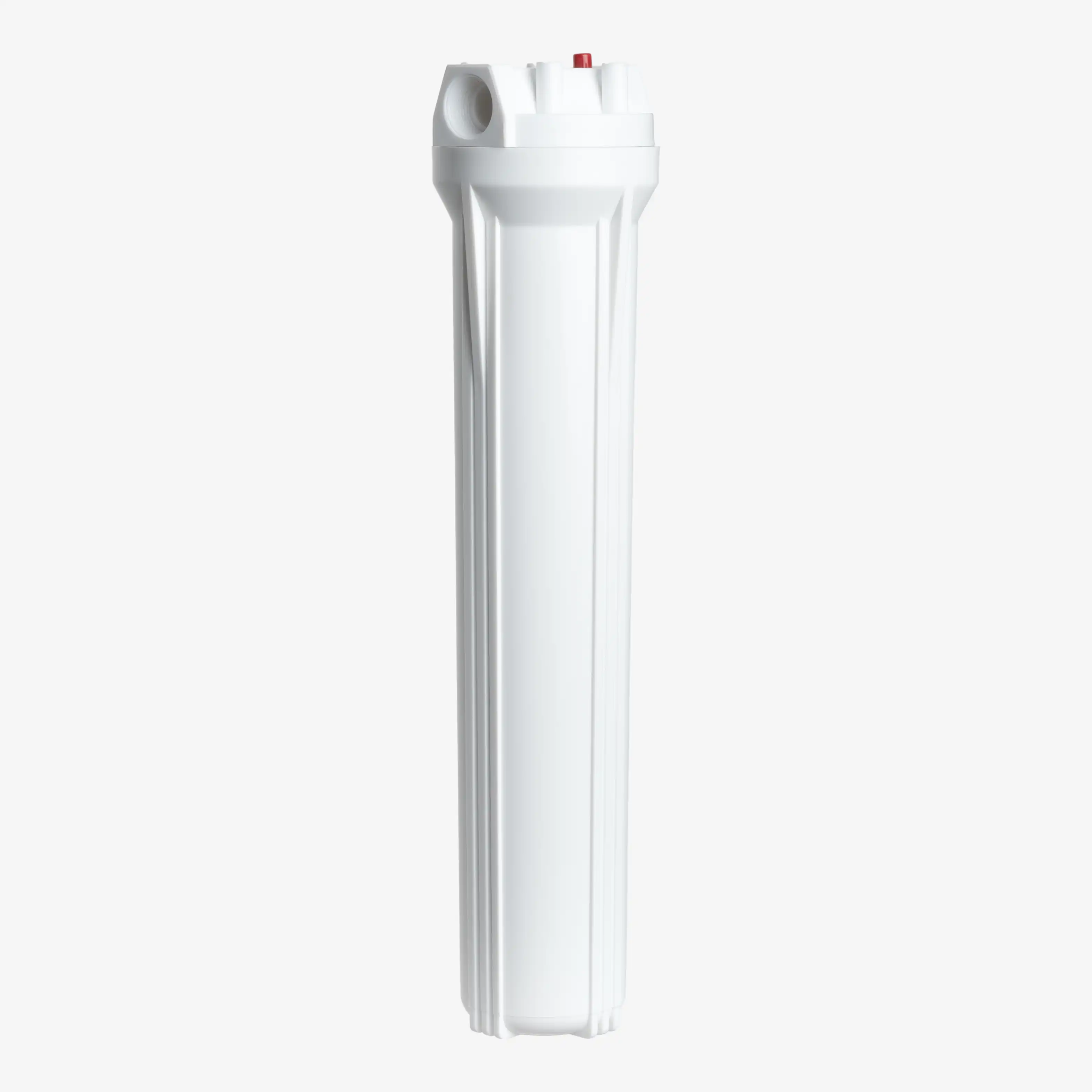

Sediment Prefilter (Cartridge)
Captures sand, rust, and debris before treatment to protect valves, media, and downstream filters.
Softener Salt-Free Conditioner

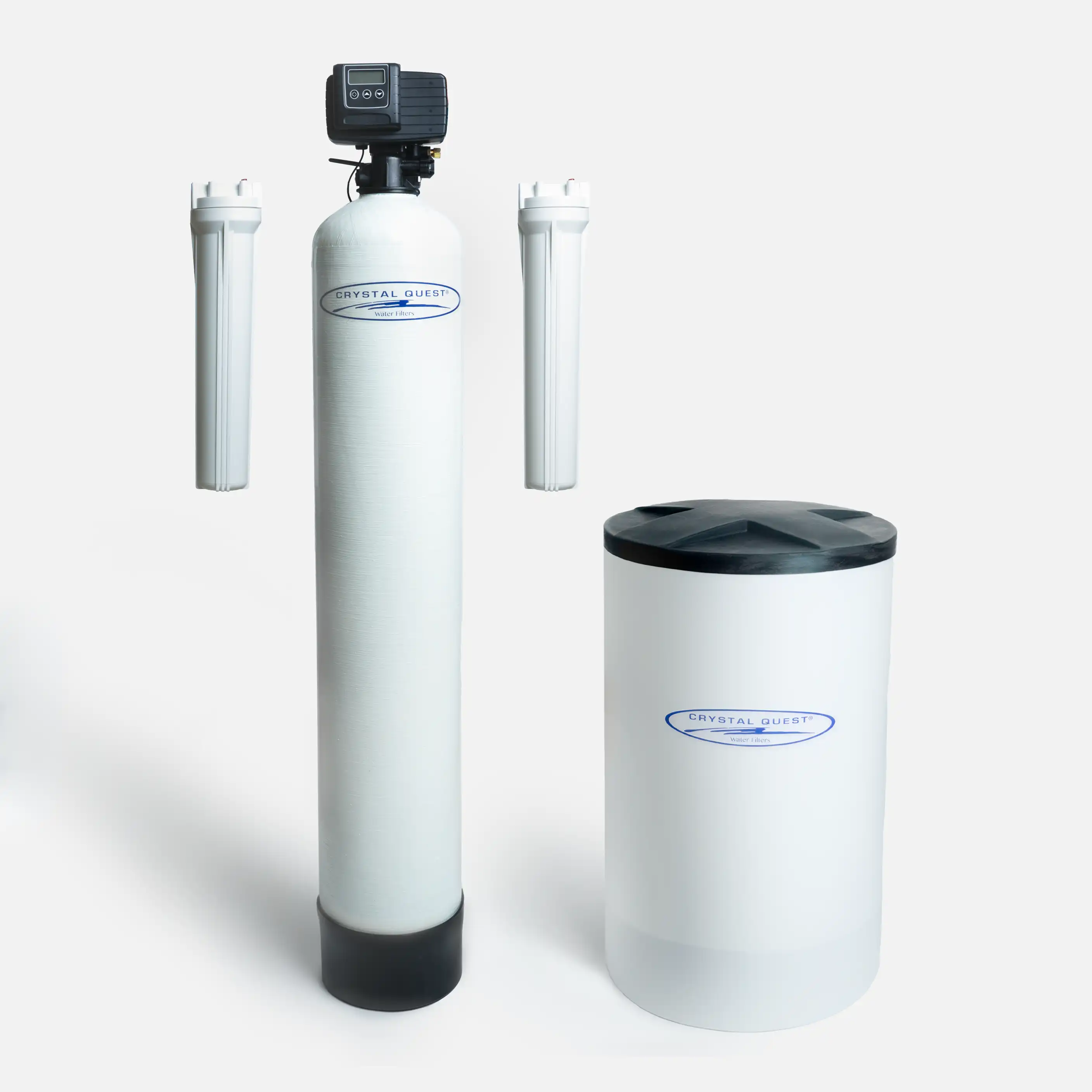

Whole House Water Softener with Pre/Post Filtration
Regular price
$1,531.00
Couldn't load pickup availability
Eliminate Hard Water
In Your Home.
Filtered At The Source
Hard water minerals such as calcium & magnesium are filtered out before they affect your home.
Advanced Pre & Post Filtration
Our calcium carbonated media neutralizes acidic or low phH waters to a neutral corrosive effluent.
Stress Free System
After your water is treated, automatic backwashes are initiated as needed to prevent compaction.
Other benefits:
Protect Appliances
After your water is neutralized, automatic backwashes are initiated as needed to prevent compaction.
Improves Healthy Hair & Skin
After your water is neutralized, automatic backwashes are initiated as needed to prevent compaction.
Improves Healthy Hair & Skin
After your water is neutralized, automatic backwashes are initiated as needed to prevent compaction.
Need Help?
Our water filtration experts are here to help answer any questions you may have, or help you find the perfect solution for your home's specific needs.
Important to Know

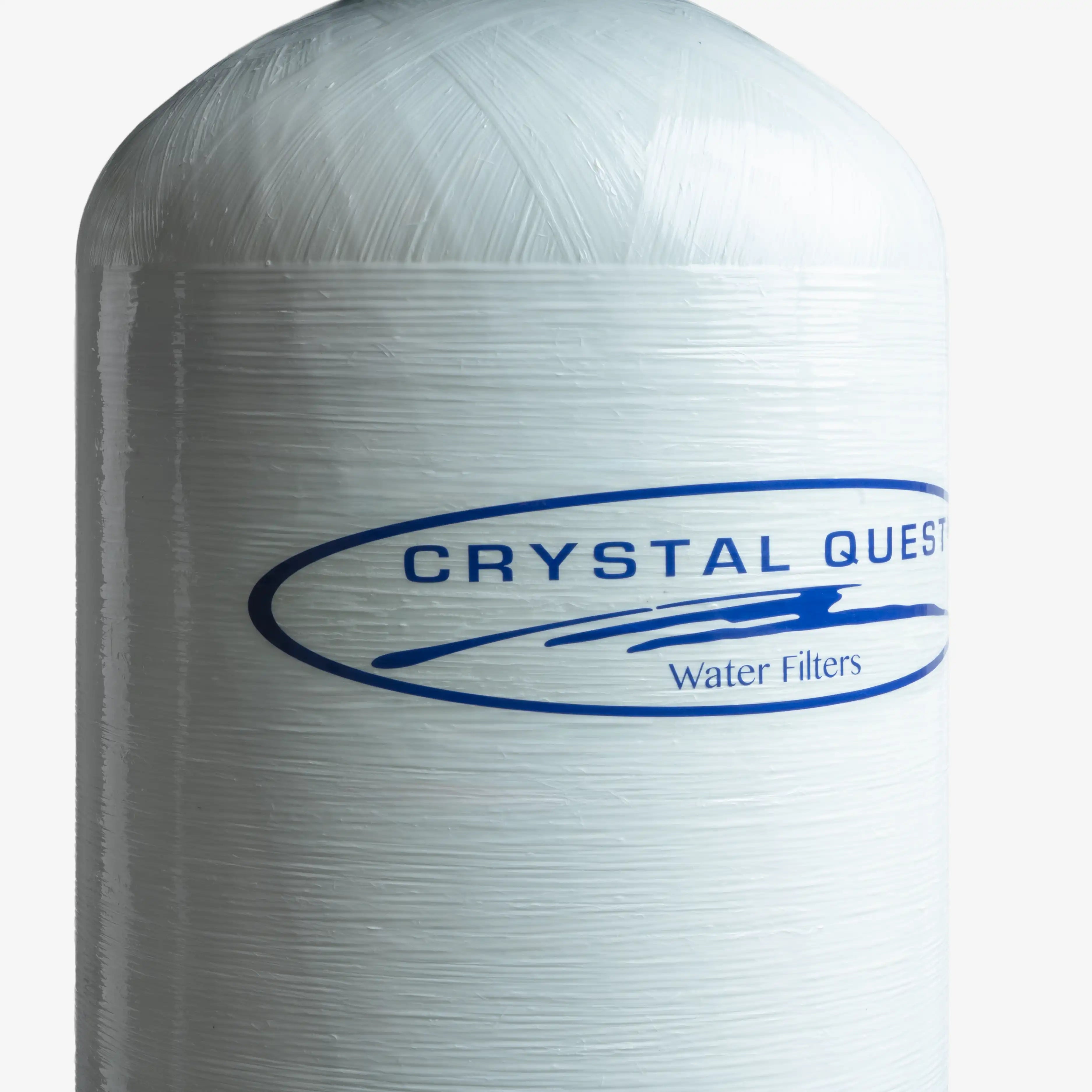

Pinholes or rust may occur on stainless steel tanks in environments with high humidity, when salt is present or if condensation remains on tank without being routinely wiped down. If your system will be exposed to one of these factors or you are unable to perform the needed maintenance, we recommend a fiberglass tank.
System Specifications
| Specification | 1.5 ft³ | 2.0 ft³ |
|---|---|---|
| Service Flow | 9-11 GPM | 10-13 GPM |
| Pipe Size | 1" | 1" |
| Electronic Control Valve | 5600 | 5600 |
| Grain Capacity | 45,000 grains | 60,000 grains |
| PSI Range | 35-60 PSI | 35-60 PSI |
| Media Tank Size | 10" x 54" | 12" x 52" |
| Space Required (media tank only) |
12" x 64" | 14" x 62" |
| Brine Tank Size | 18" x 33" | 18" x 33" |
| Brine Tank Capacity | 130L / 36G | 130L / 36G |
| Space Required (media + brine tank) |
30" x 20" x 64" | 30" x 20" x 62" |
| Quartz | 15 | 20 |
Replacement Media
| Product Name | SKU |
|---|---|
| Eagle Water Softener Resin | CQE-RM-05002 |
Replacement Cartridges
| Product Name | SKU |
|---|---|
| Pleaded Cellulose Sediment Cartridge (2-7/8"x20") | CQE-RC-04015 |
| Carbon Block Filter Cartridge (2-7/8"x20") | CQE-RC-04014 |
Your Visual Guide - What Comes With a Softener?
A quick look at the core components inside a Crystal Quest whole-house water softener and our salt-free anti-scale conditioner, plus what each part does.
Carbon Block Postfilter
Polishes water after softening/conditioning, improving taste and odor for better whole-home water.
Softener Salt-Free Conditioner
0.2 Micron Ultrafiltration
Ultra-fine post-filtration that reduces very small particulates for extra clarity and confidence.
Salt-Free Conditioner

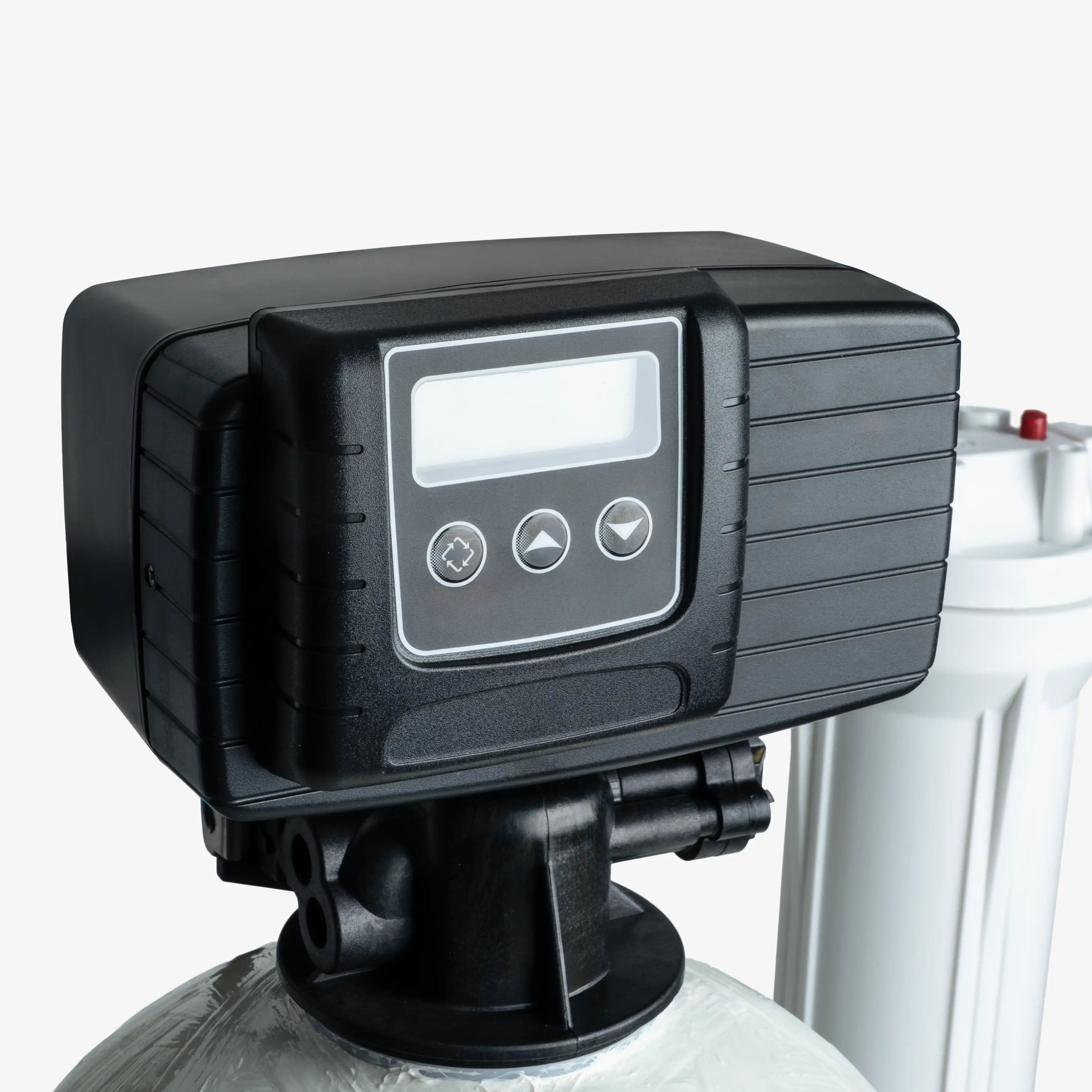

Automatic Control Head (5600)
Base softener includes timed regeneration; upgrade to metered (demand) for efficient, on-demand cycles.
Softener
Included with water softener only.
Standard Brine Tank (≈ 18" × 33")
Holds salt for regeneration and supports consistent softening performance; dimensions may vary slightly.
Softener
Included with water softener only.
Softening Resin Bed (1.5/2.0 cu. ft.)
Removes hardness minerals (calcium & magnesium) to deliver true whole-house water softening.
Softener
Eliminate Hard Water
In Your Home.
Filtered At The Source
Hard water minerals such as calcium & magnesium are filtered out before they affect your home.
Advanced Pre & Post Filtration
Our calcium carbonated media neutralizes acidic or low phH waters to a neutral corrosive effluent.
Stress Free System
After your water is treated, automatic backwashes are initiated as needed to prevent compaction.
Other benefits:
Protect Appliances
After your water is neutralized, automatic backwashes are initiated as needed to prevent compaction.
Improves Healthy Hair & Skin
After your water is neutralized, automatic backwashes are initiated as needed to prevent compaction.
Improves Healthy Hair & Skin
After your water is neutralized, automatic backwashes are initiated as needed to prevent compaction.
Need Help?
Our water filtration experts are here to help answer any questions you may have, or help you find the perfect solution for your home's specific needs.
Important to Know
Pinholes or rust may occur on stainless steel tanks in environments with high humidity, when salt is present or if condensation remains on tank without being routinely wiped down. If your system will be exposed to one of these factors or you are unable to perform the needed maintenance, we recommend a fiberglass tank.
System Specifications
| Specification | 1.5 ft³ | 2.0 ft³ |
|---|---|---|
| Service Flow | 9-11 GPM | 10-13 GPM |
| Pipe Size | 1" | 1" |
| Electronic Control Valve | 5600 | 5600 |
| Grain Capacity | 45,000 grains | 60,000 grains |
| PSI Range | 35-60 PSI | 35-60 PSI |
| Media Tank Size | 10" x 54" | 12" x 52" |
| Space Required (media tank only) |
12" x 64" | 14" x 62" |
| Brine Tank Size | 18" x 33" | 18" x 33" |
| Brine Tank Capacity | 130L / 36G | 130L / 36G |
| Space Required (media + brine tank) |
30" x 20" x 64" | 30" x 20" x 62" |
| Quartz | 15 | 20 |
Replacement Media
| Product Name | SKU |
|---|---|
| Eagle Water Softener Resin | CQE-RM-05002 |
Replacement Cartridges
| Product Name | SKU |
|---|---|
| Pleaded Cellulose Sediment Cartridge (2-7/8"x20") | CQE-RC-04015 |
| Carbon Block Filter Cartridge (2-7/8"x20") | CQE-RC-04014 |
Your Visual Guide - What Comes With a Softener?
A quick look at the core components inside a Crystal Quest whole-house water softener and our salt-free anti-scale conditioner, plus what each part does.
Sediment Prefilter (Cartridge)
Captures sand, rust, and debris before treatment to protect valves, media, and downstream filters.
Softener Salt-Free Conditioner
Carbon Block Postfilter
Polishes water after softening/conditioning, improving taste and odor for better whole-home water.
Softener Salt-Free Conditioner
0.2 Micron Ultrafiltration
Ultra-fine post-filtration that reduces very small particulates for extra clarity and confidence.
Salt-Free Conditioner
Automatic Control Head (5600)
Base softener includes timed regeneration; upgrade to metered (demand) for efficient, on-demand cycles.
Softener
Included with water softener only.
Standard Brine Tank (≈ 18" × 33")
Holds salt for regeneration and supports consistent softening performance; dimensions may vary slightly.
Softener
Included with water softener only.
Softening Resin Bed (1.5/2.0 cu. ft.)
Removes hardness minerals (calcium & magnesium) to deliver true whole-house water softening.
Softener
