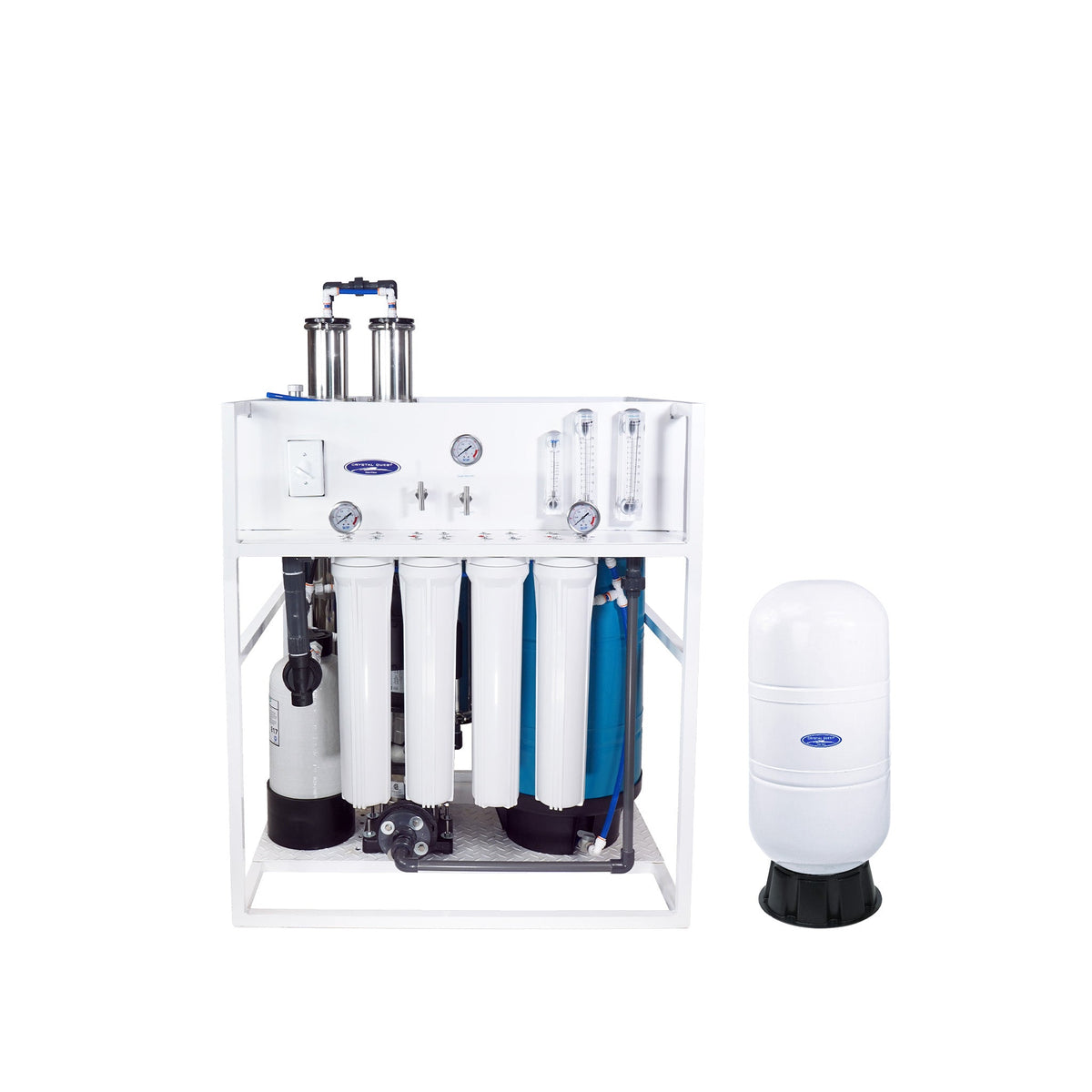

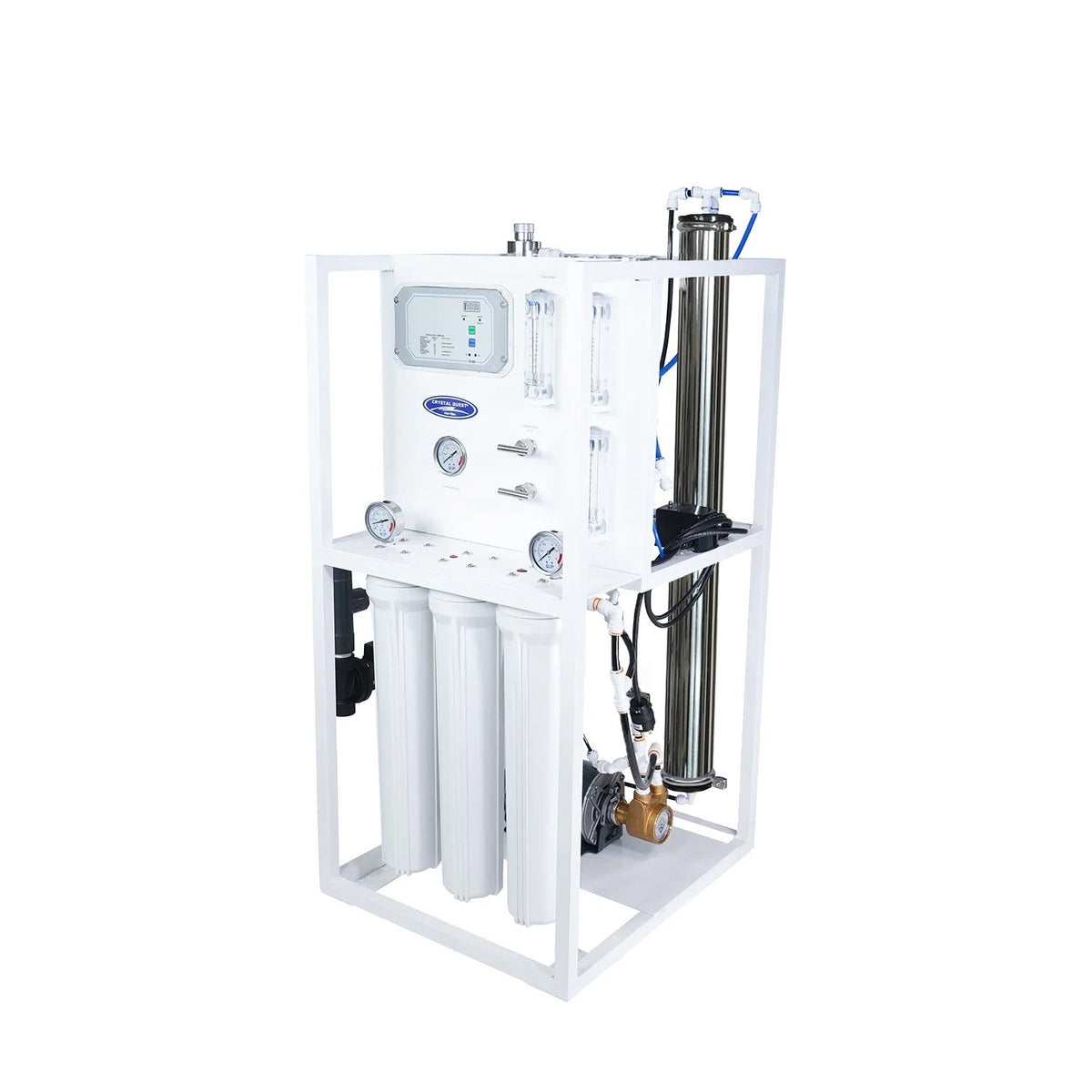

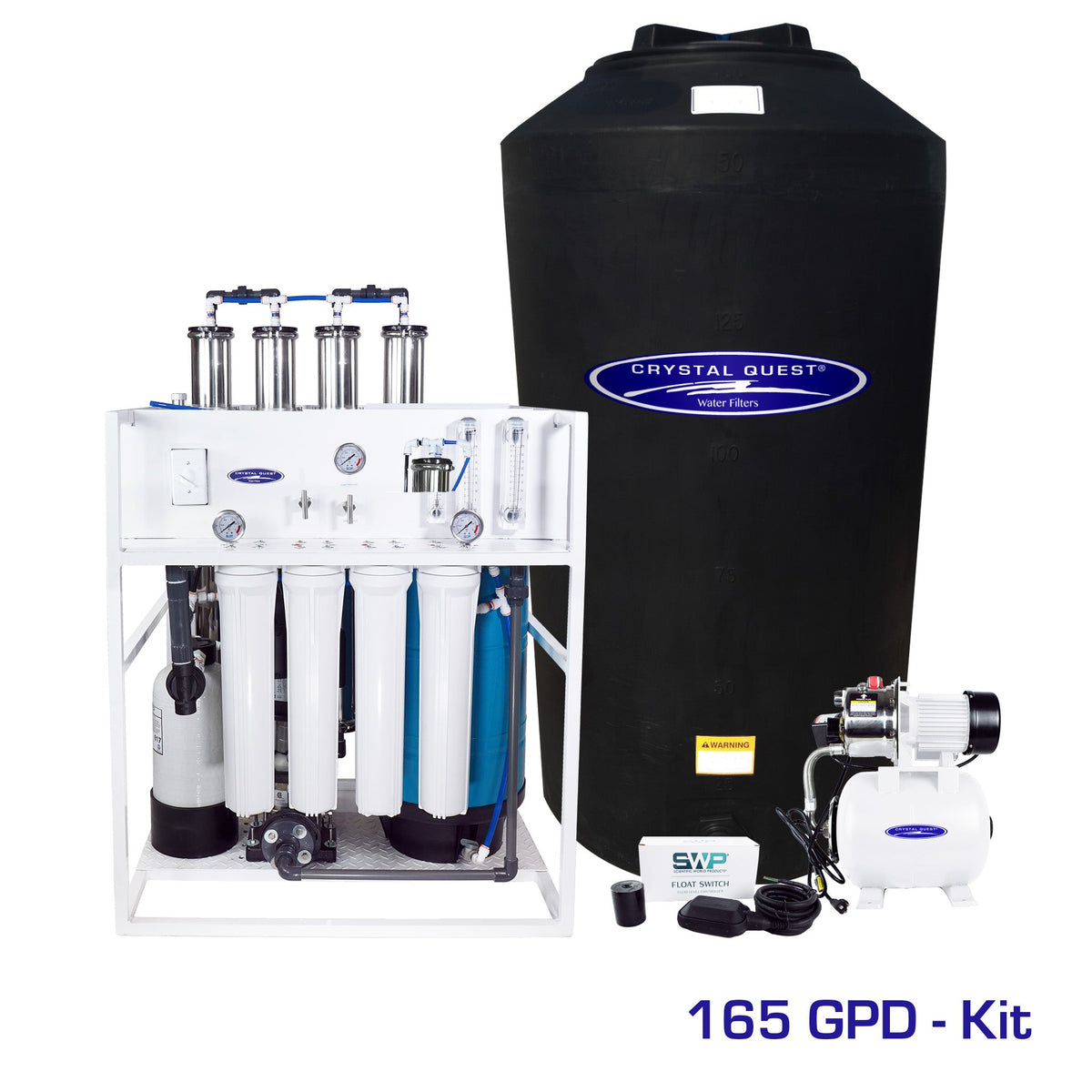

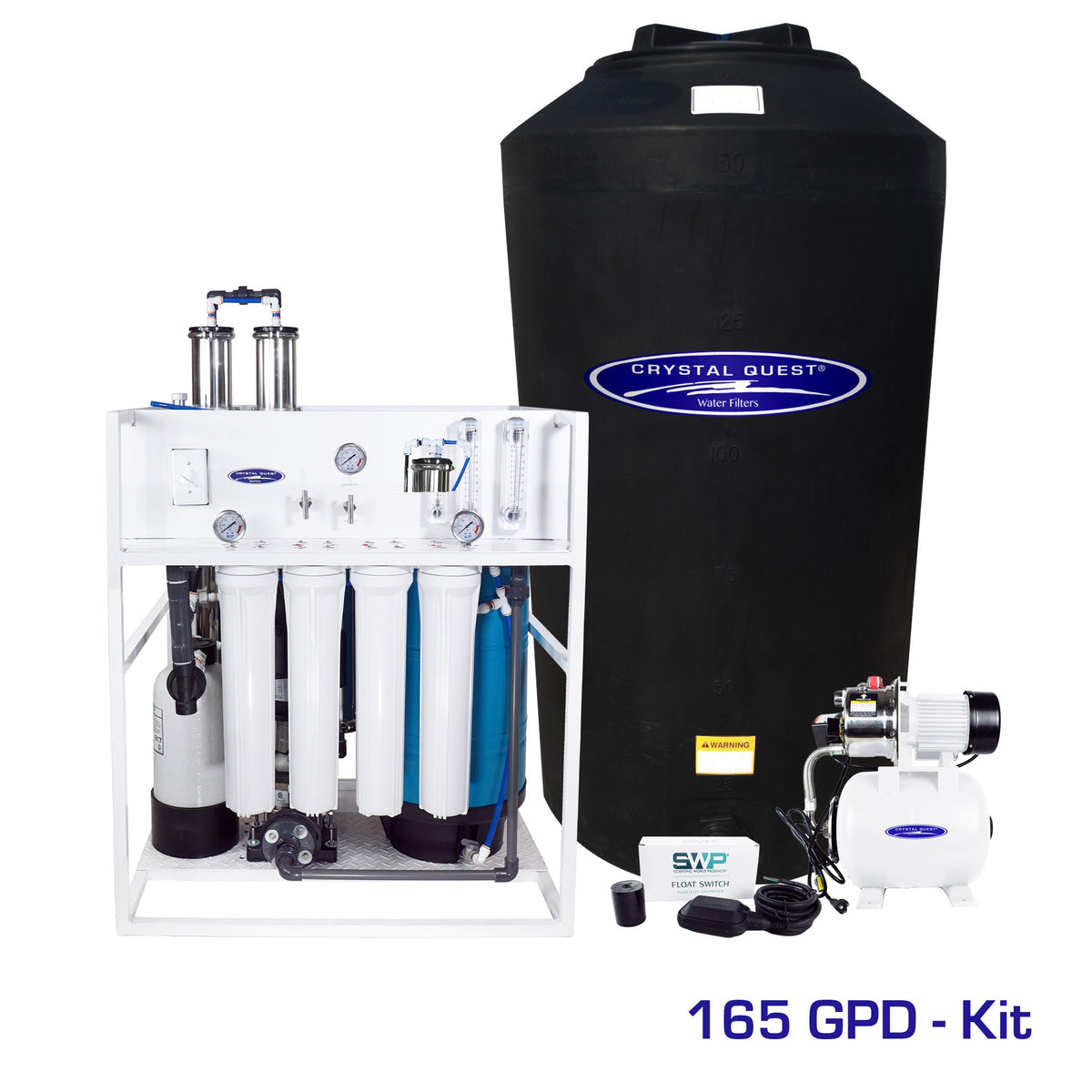

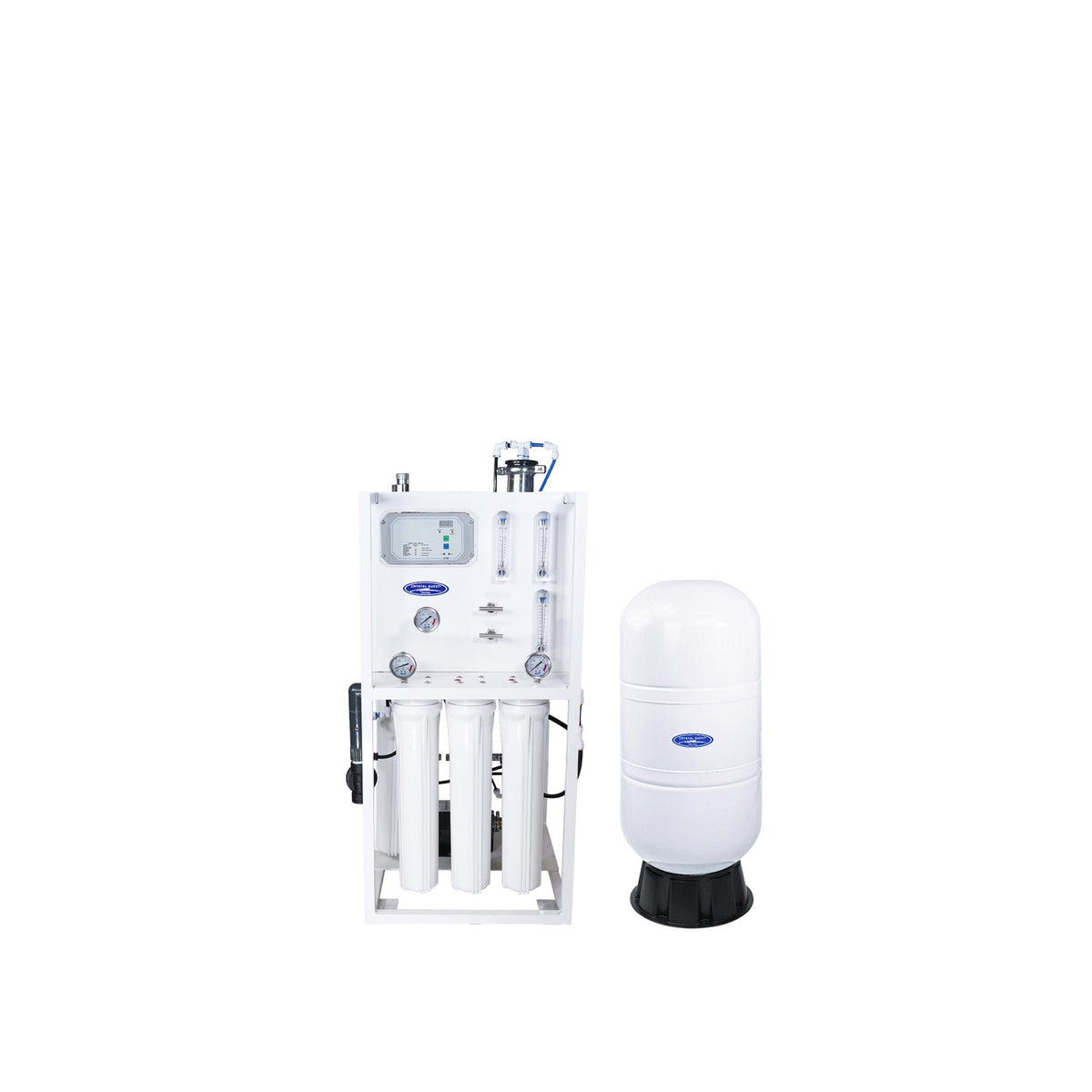

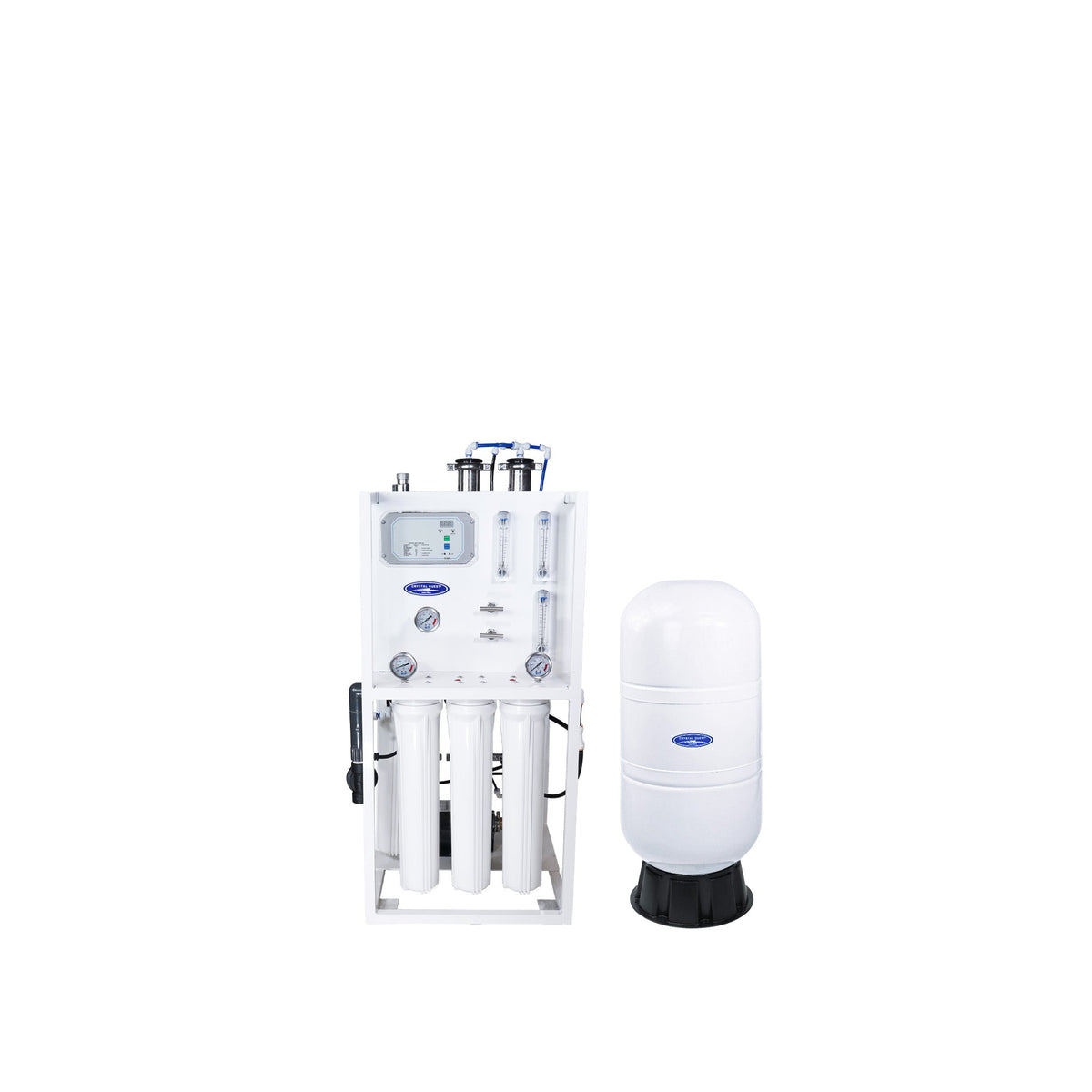

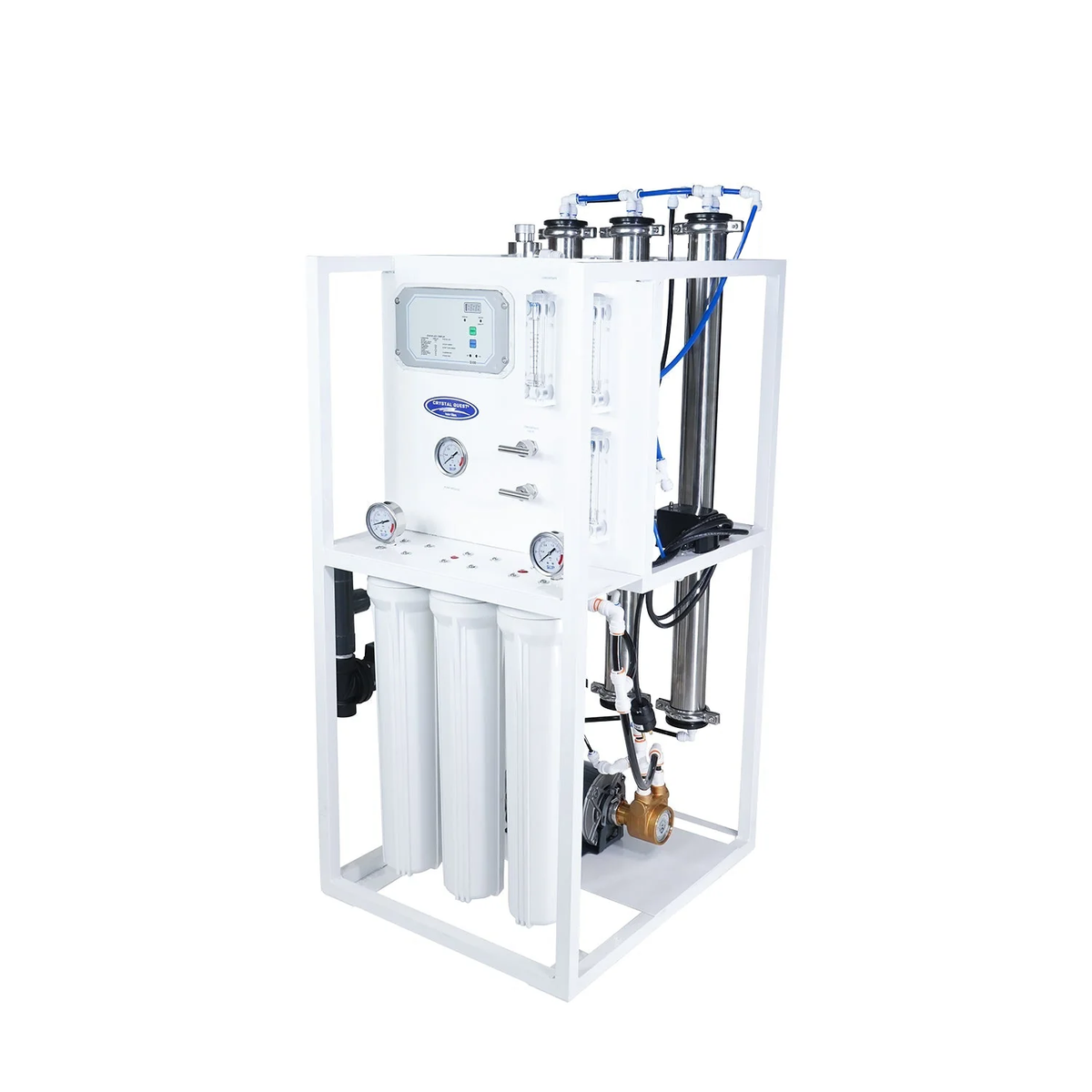

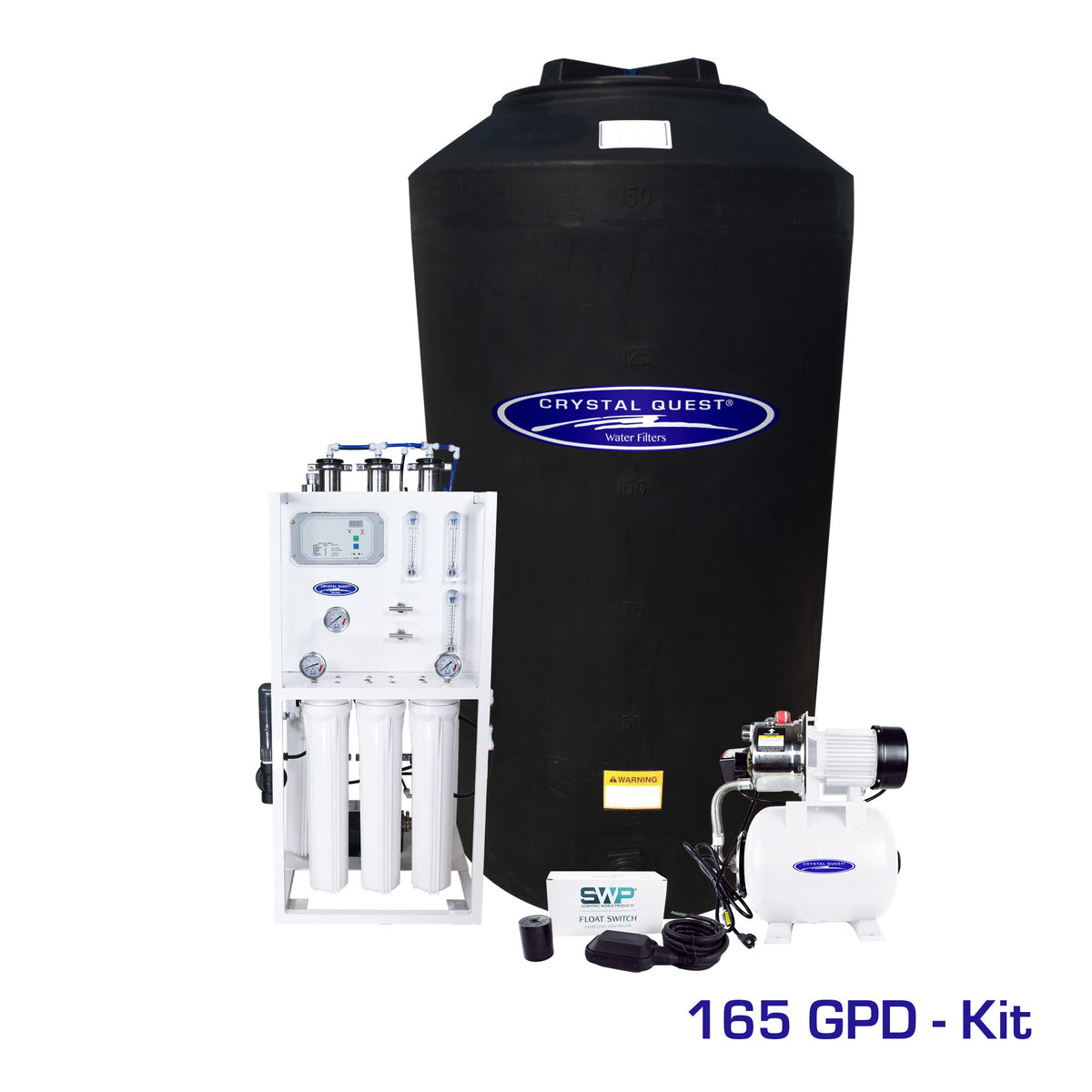

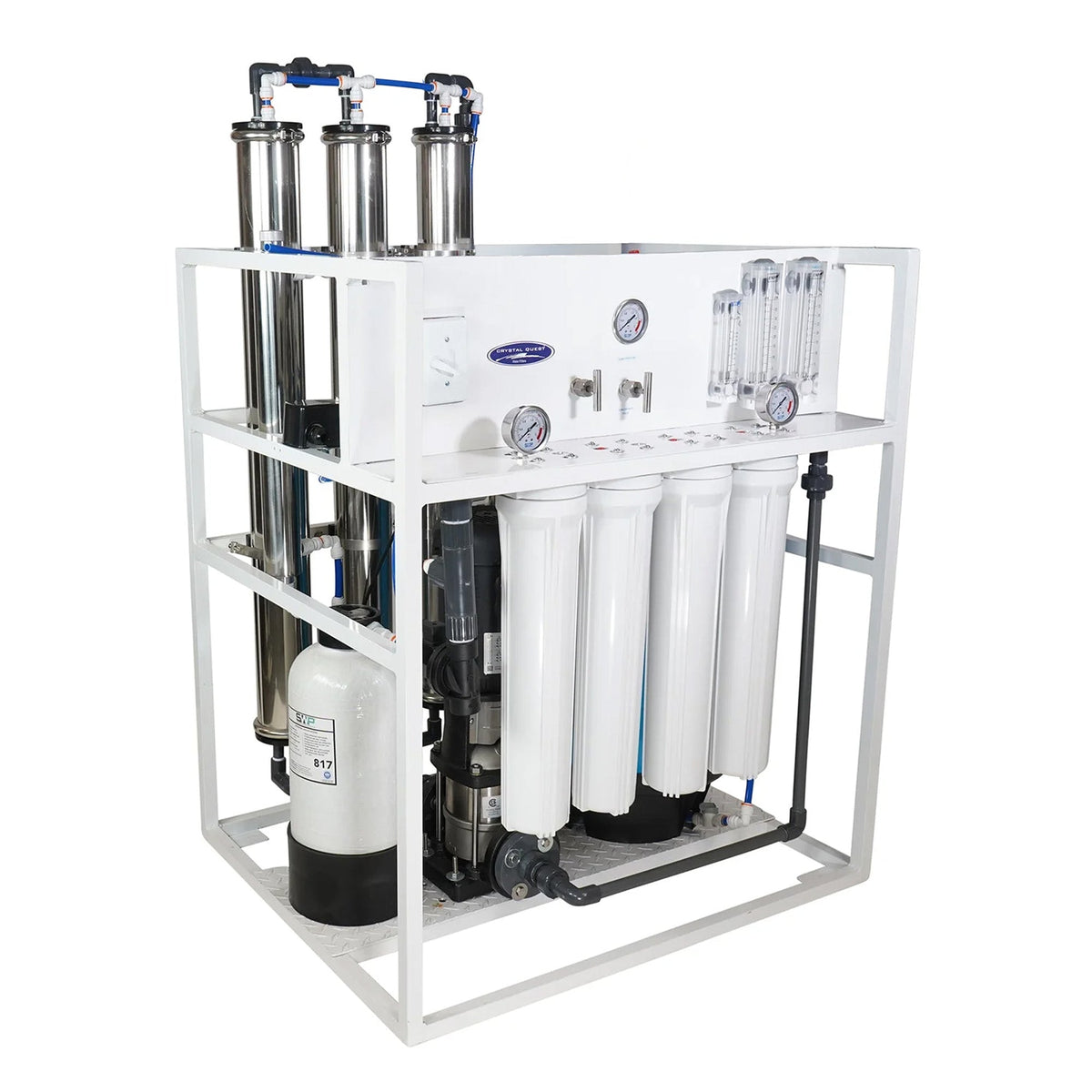

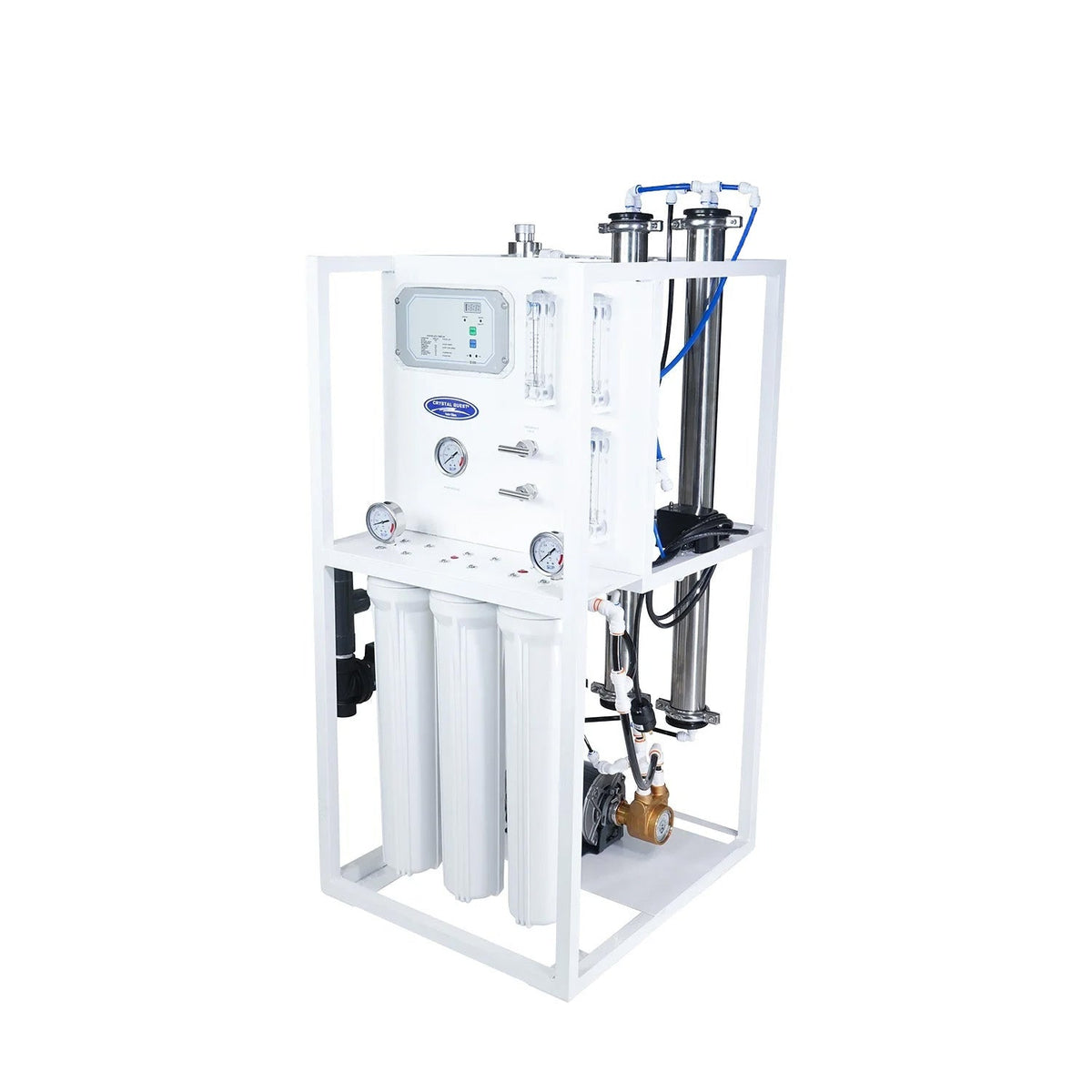

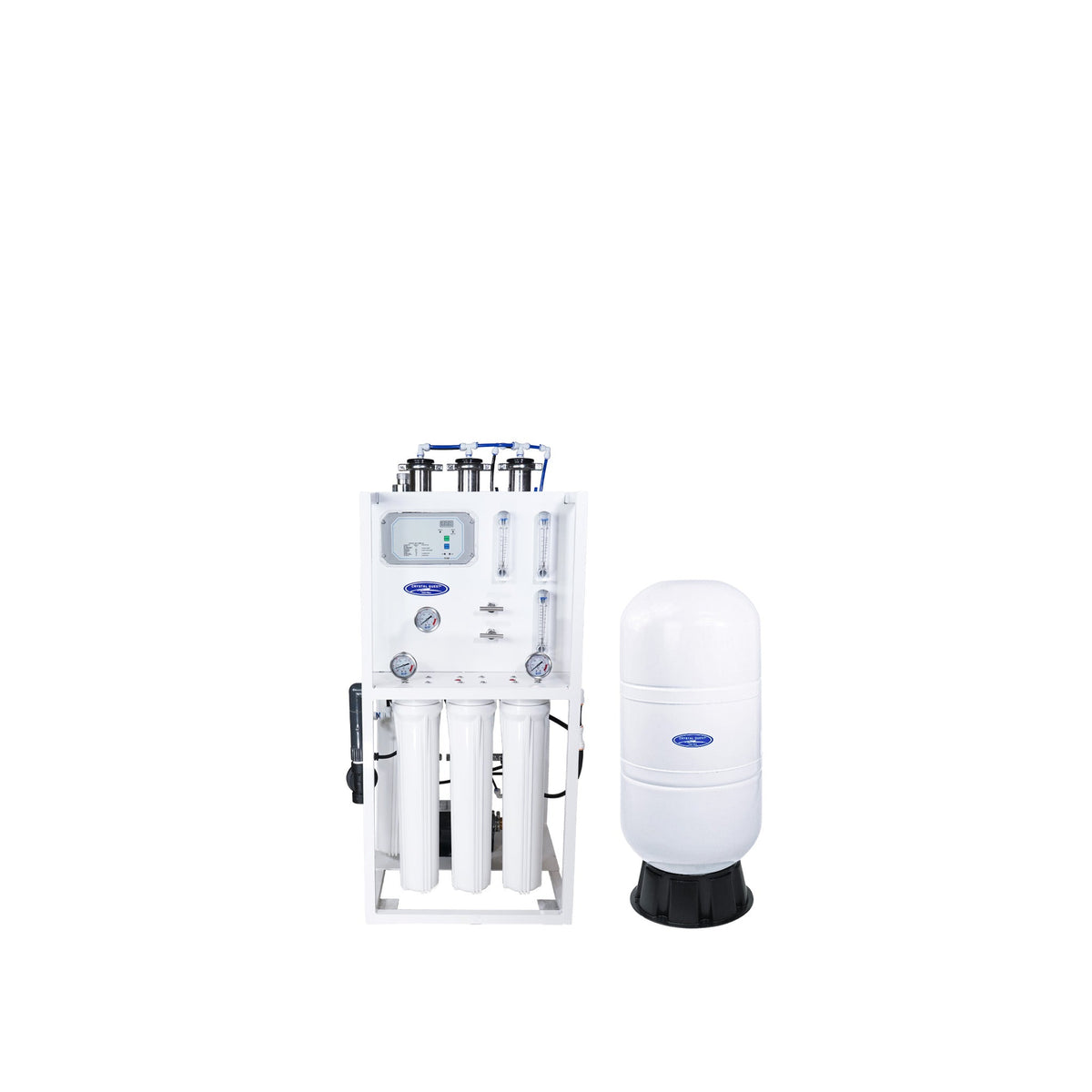

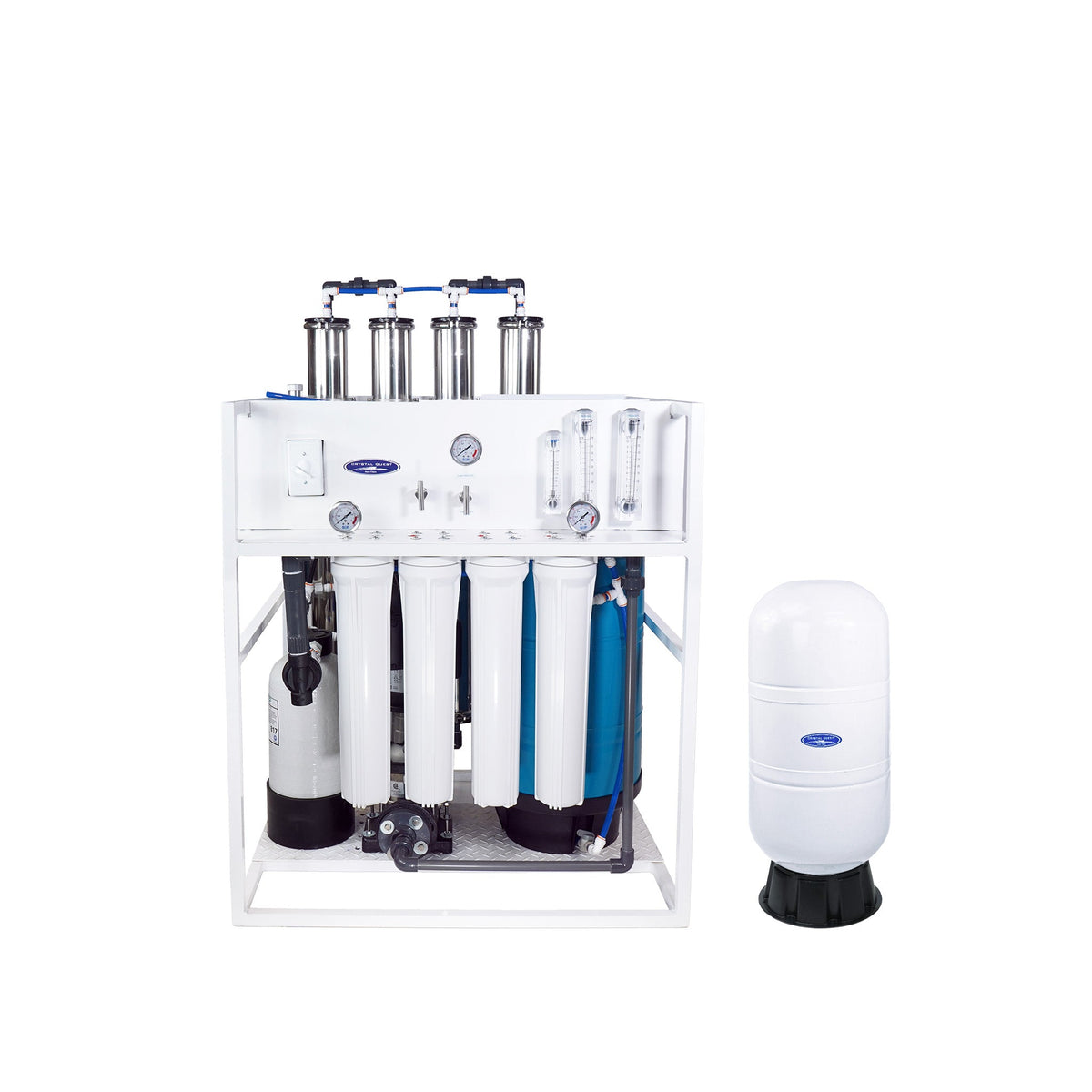

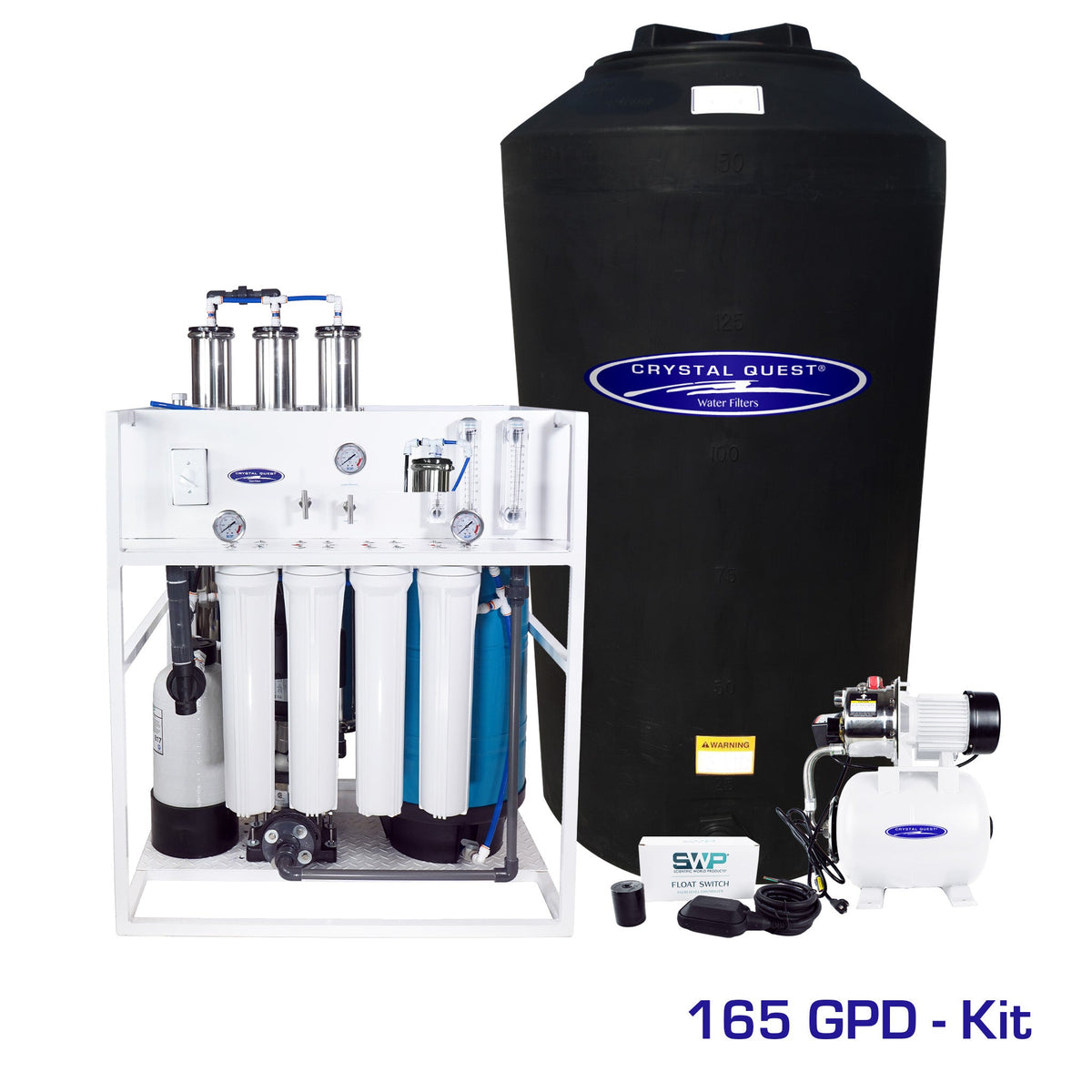

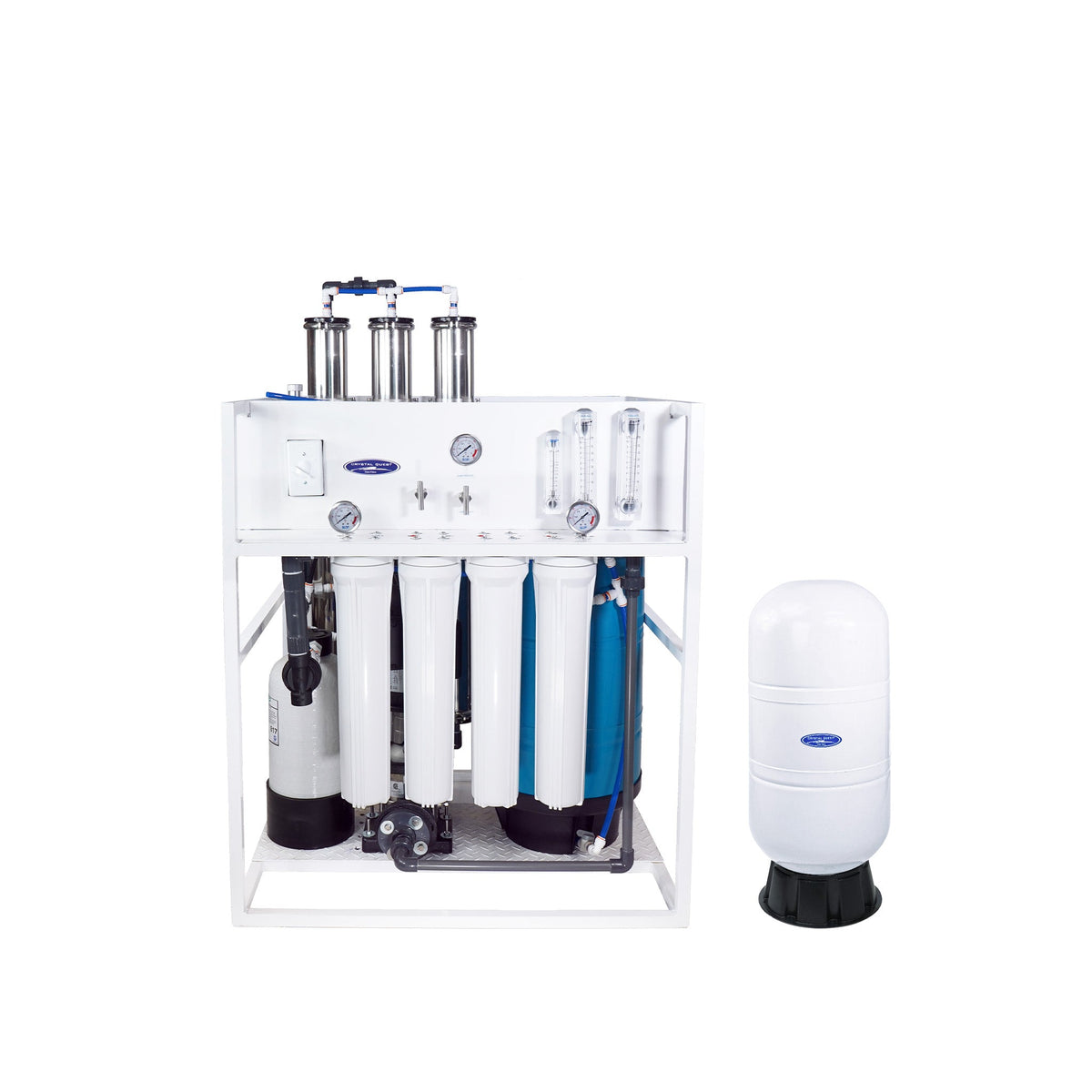

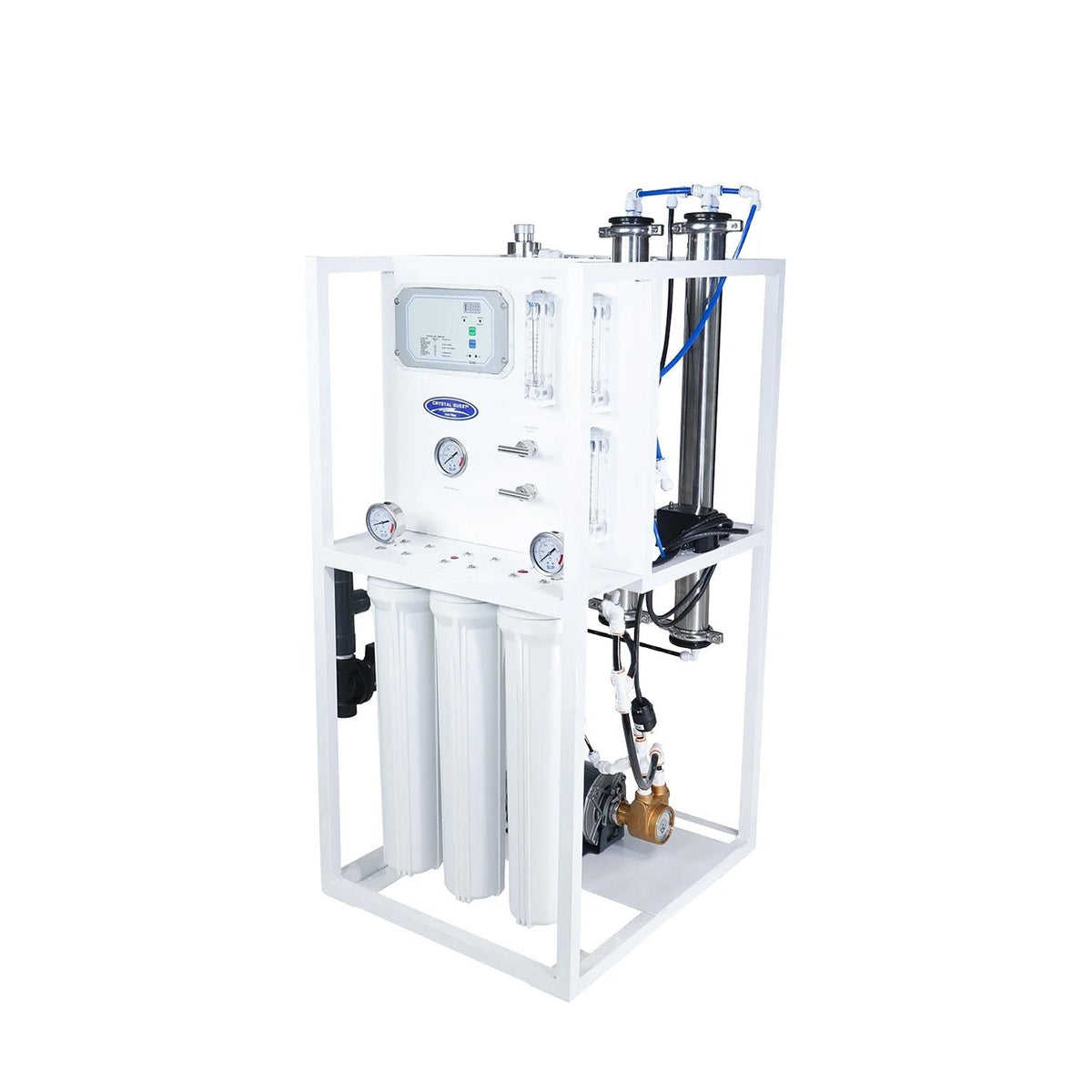

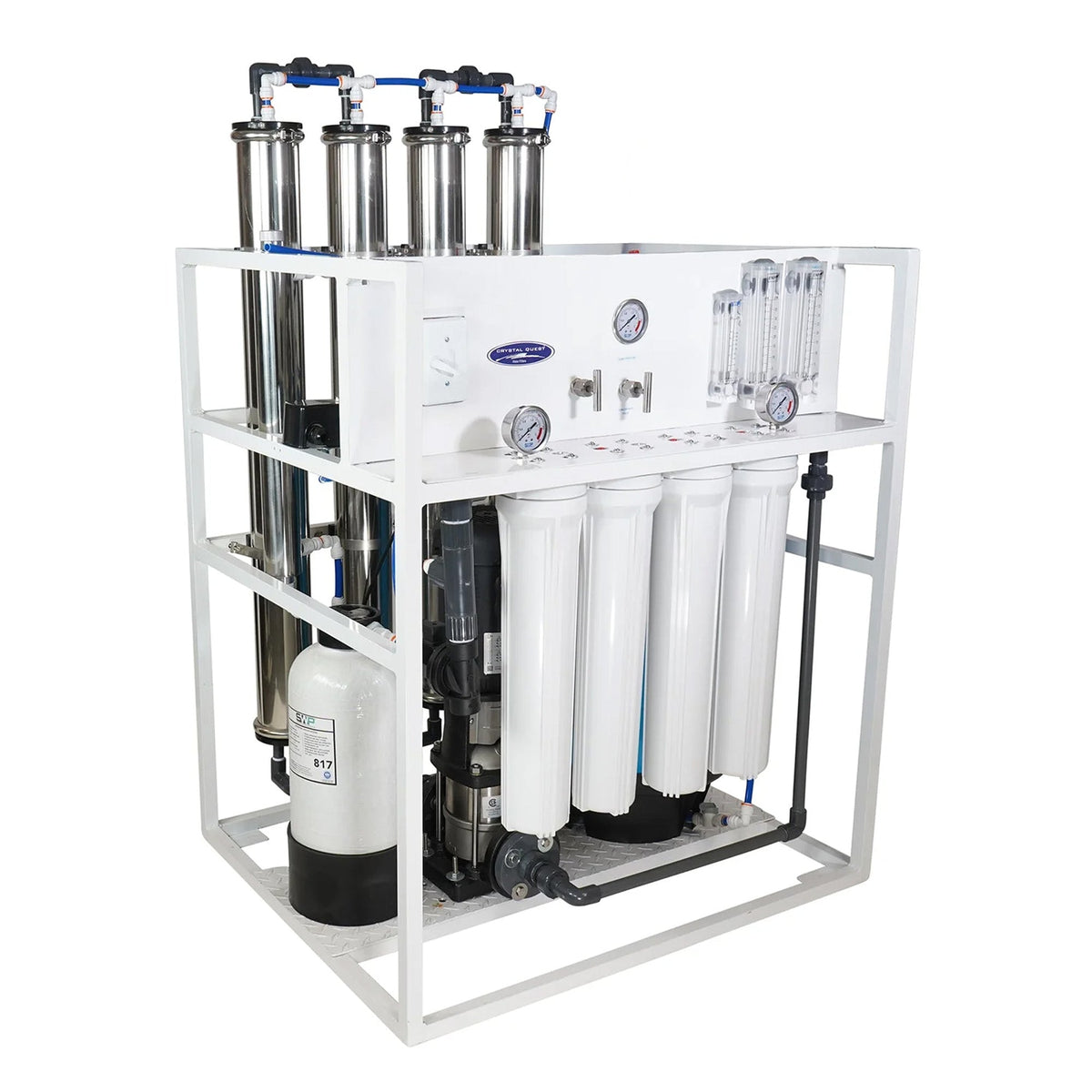

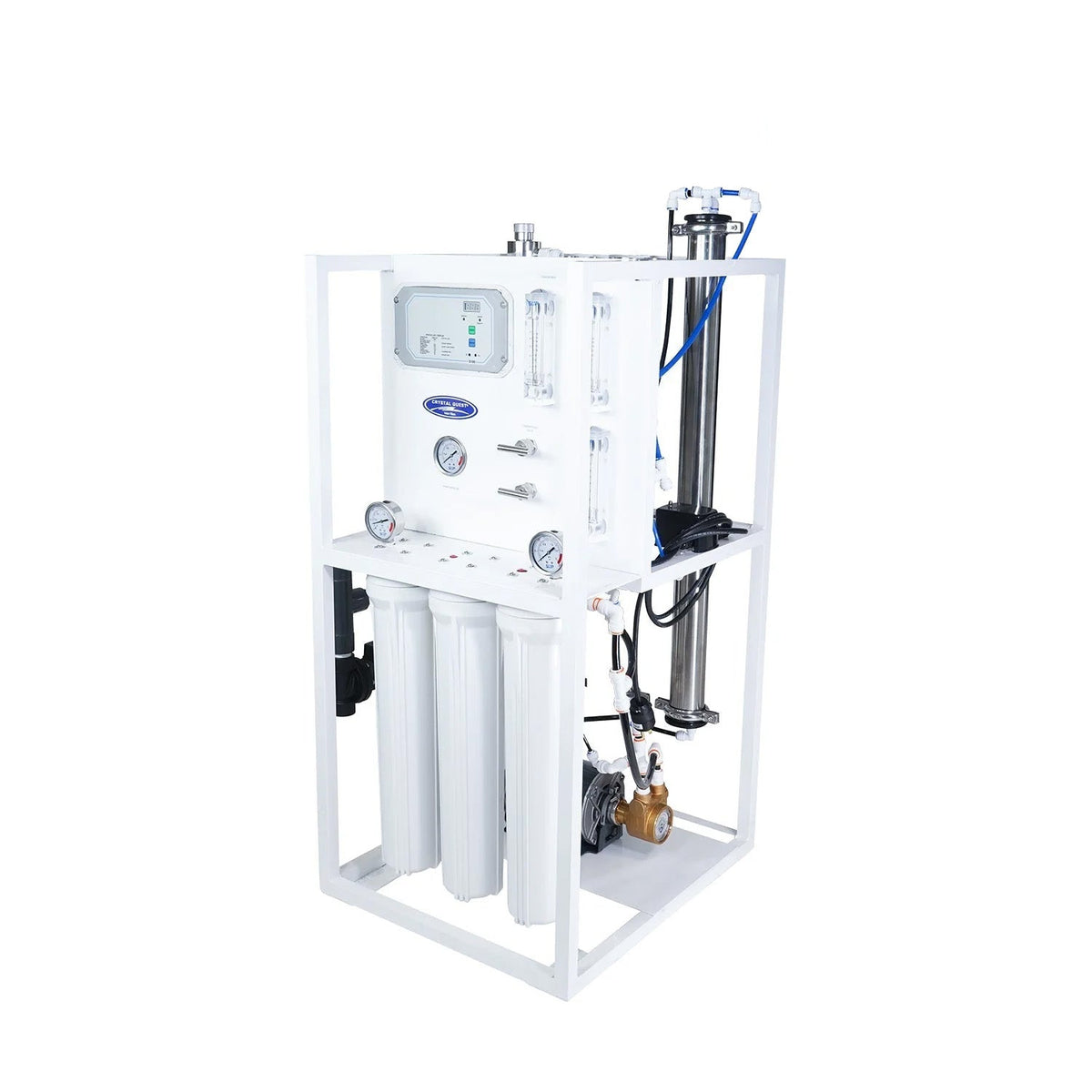

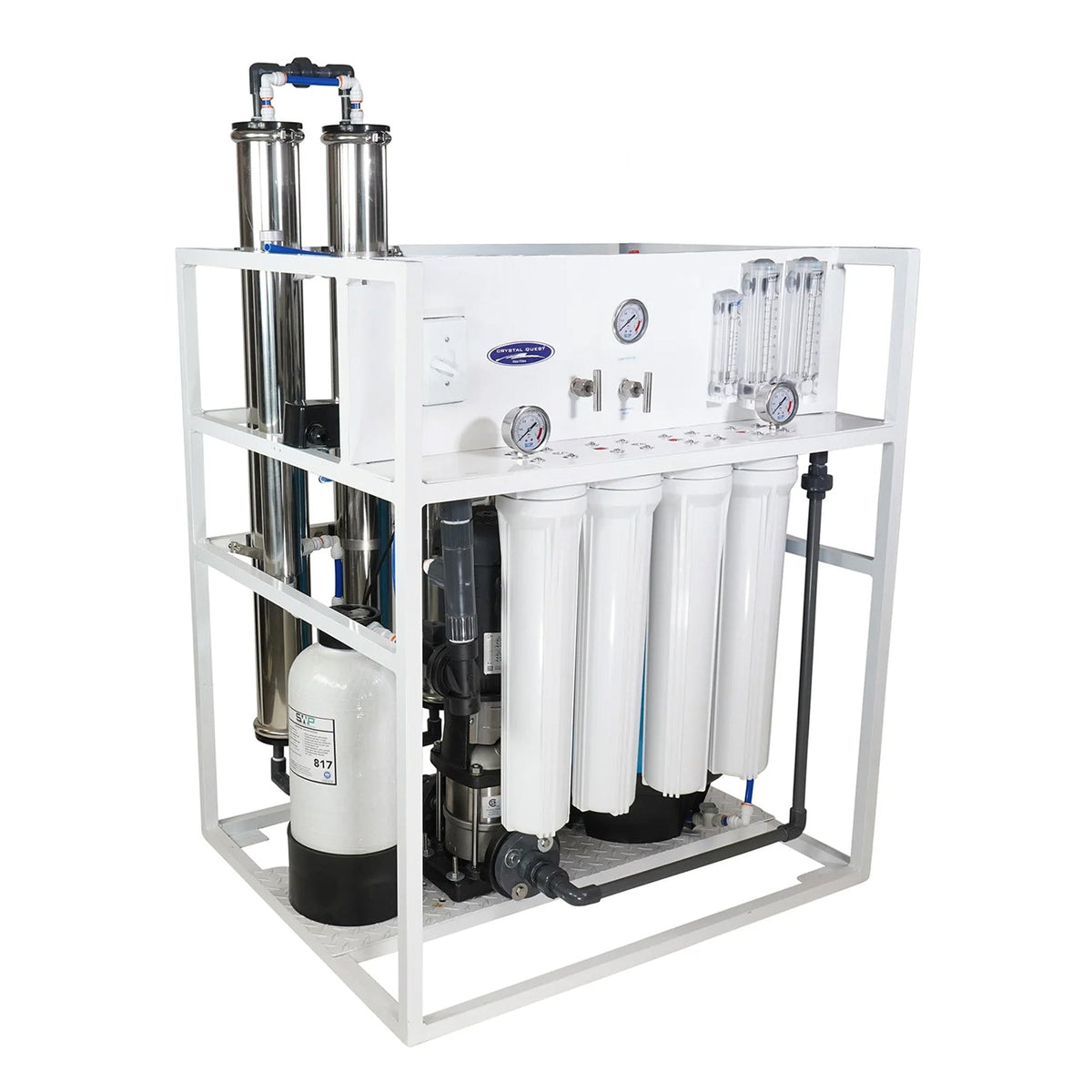

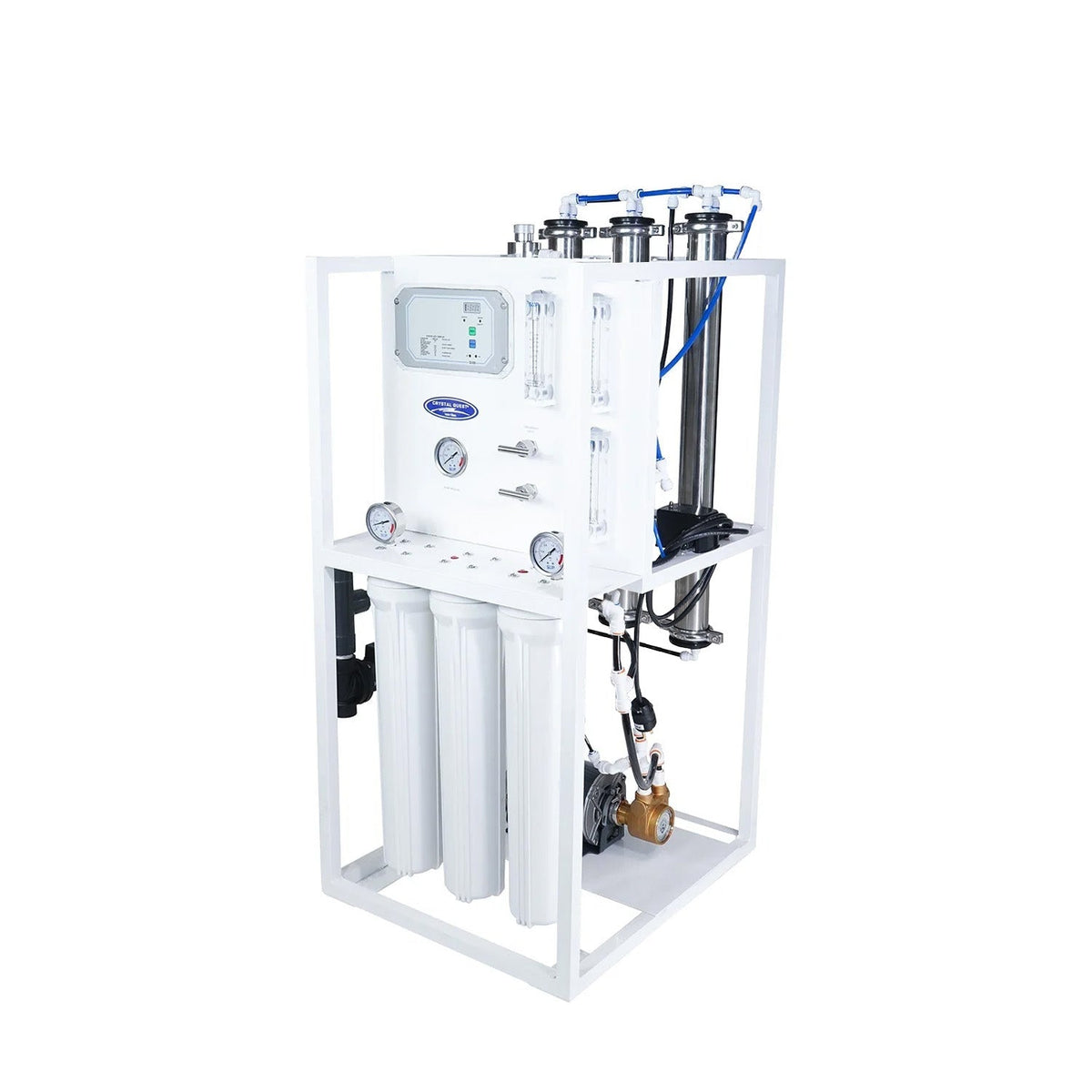

Medical Mid-Flow Reverse Osmosis System (500-7000 GPD)
Couldn't load pickup availability
Standard Features:
- Construction: Aluminum white powder coated, corrosion-resistant, and lightweight
- Stainless steel membrane housing: TFC membrane for maximum rejection of impurity and high flow
- Brass Rotary Vane High-Pressure Pump designed for continuous use and built-in protection for loss of feedwater protection
- High-Efficiency Carbonate Motor
- SWP 316 Stainless steel concentrate valve: to control permeate versus concentrated water
- SWP Flow meter: to display permeate and concentrated water flow
- SWP 0-100 psi Pre-filter pressure gage Indicator to aids on timely cartridges change
- SWP 0-300 psi pump pressure gauge indicator pump pressure gauge reading range from 120 – 200.
- Low-pressure switch: Automatically shut off RO system motor to avoid pump run dry.
- High-Pressure Tank Switch: Automatically turns off the RO system at a predetermined storage tank pressure. No need for expensive “plug/play”.
- 1” Feed solenoid valve. Automatically shuts off the feed water to the system.
- Push/Pull fittings with locking safety clips
Benefits:
- Compact Space Saving
- Components Easily Accessible
- Expandable and Lightweight Design
- Fully Equipped and Customizable
- Pre-plumbed, wired and assembled
- Low Operation Costs
- Low Maintenance Costs
- Easily Maintenance and servicing
- Factory Tested and Preserved
- CE Compliant
- 1-Year Limited Warranty
- Made in the USA
Upgrades:
All systems include a standard with a wide range of features. There are various options and upgrades available to accommodate a diverse range of water treatment applications. Listed below is a selection of the most popular upgrades.
- Stainless-Steel Rotary Vane Pump: Offers a longer lifespan and increase resistance to high TDS feed water and corrosive materials, such as dosing chemical and antiscalants.
- Concentrate recycle valve: Allows for an increase of RO systems efficiency by recycling back wastewater into the feed stream and increasing the system recovery
- SWP Digital Dual TDS Controller: Allow for simultaneous monitoring of both feed TDS and permeate TDS levels, helping to monitor the RO system salt rejection and membrane performance.
- SWP Digital TDS Controller: Allow for monitoring either feed TDS and Permeate TDS levels
- SWP Digital TDS/Conductivity Controller: Allow for the monitoring of the RO permeate water TDS and conductivity levels, useful in evaluating overall system performance IF Computer Controller with feed flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display indicator for increase ease of use.
- S150 Computer Controller with Feed Flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display and alarm function.
- Chemical Pump Outlet: Provide an integrated power source with the RO system for connection of a chemical feed pump.
- Blending Valve: Allows for a mixture of feed water into final RO permeate water to achieve desirable permeate TDS.
- Permeate Sample Port: Allows for evaluation of individual membrane performance in on RO system and aids in system troubleshooting and maintenance.
- 240V 50-60Hz or 110V 50-60Hz: Allow for selecting sufficient voltage and hertz use requirement.
- Single Wood Crate
Gallons Per Day (GPD) @ 77° F
| 500 | 750 | 1000 | 1500 | 1800 | 2500 | 4000 | 5000 | 7000 | |
|---|---|---|---|---|---|---|---|---|---|
| Model | CQE-CO-02024 | CQE-CO-020024 | CQE-CO-02025 | CQE-CO-02026 | CQE-CO-020027 | CQE-CO-02027 | CQE-CO-02028 | CQE-CO-02029 | CQE-CO-02030 |
| Dimensions | 14" x 20" x 27" | 14" x 20" x 27" | 14" x 20" x 27" | 14" x 20" x 46" | 14" x 20" x 46" | 19" x 23" x 46" | 19" x 23" x 46" | 30" x 38" x 47" | 30" x 38" x 47" |
| Weight (lbs) | 140 | 140 | 145 | 160 | 160 | 180 | 235 | 250 | 265 |
| Concentrate Re-Circulate | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Auto Flush | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Membrane Size | 2521 TFC HF1 | 2540 TFC HF1 | 2521 TFC HF1 | 2540 TFC HF1 | 4040 TFC HF1 | 2540 TFC HF1 | 4040 TFC HF1 | 4040 TFC HF1 | 4040 TFC HF1 |
| # of Membranes | 2 | 1 | 3 | 2 | 1 | 3 | 2 | 3 | 4 |
| Motor HP | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | 3/4 | 1.5 | 1.5 | 1.5 |
| Voltage (volts AC) | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 |
| Hertz (cycles) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Feed Connection | 3/4" | 3/4" | 1" | 1" | 1" | 1" | 1" | 1" | 3/4" |
| Product Connection | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 1" | 1" | 1" |
| Waste Connection | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 1" | 1" | 1" |
| Minimum Feed Pressure | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi |
| Minimum NaCl - % Rejection | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% |
| Minimum Feed (GPM) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 4 | 6 | 7 | 10 |
| Maximum Hardness (GPG) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Maximum TDS | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm |
| Operating Pressure | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi |
| Maximum NaCl - % Rejection | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% |
| Maximum Feed (GPM) | 3 | 3 | 3 | 5 | 5 | 10 | 15 | 15 | 15 |
| pH Range | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 |
Dimensions (L x W x H) - Commercial RO’s
| GPD | Dimensions (L x W x H) |
|---|---|
| 200 GPD | 17” x 23” x 35” |
| 300 GPD | 17” x 23” x 35” |
| 500 GPD | 24” x 25” x 55” |
| 750 GPD | 24” x 25” x 55” |
| 1,000 GPD | 24” x 25” x 55” |
| 1,500 GPD | 24” x 25” x 55” |
| 1,800 GPD | 24” x 25” x 55” |
| 2,500 GPD | 24” x 25” x 55” |
| 4,000 GPD | 31” x 38” x 56” |
| 5,000 GPD | 31” x 38” x 56” |
| 7,000 GPD | 31” x 38” x 56” |
| 10,000 GPD | 31” x 58” x 64” |
|
SYSTEM |
CARTRIDGE |
SKU |
|
500 GPD |
4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 9-3/4” SMART Filter Cartridge |
|
|
|
(2) 2.5” x 21” Freshwater Reverse Osmosis Membranes |
|
|
|
|
|
|
750 GPD |
4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 9-3/4” SMART Filter Cartridge |
|
|
|
2.5” x 40” Freshwater Reverse Osmosis Membrane |
|
|
|
|
|
|
1000 GPD |
4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 9-3/4” SMART Filter Cartridge |
|
|
|
(3) 2.5” x 21” Freshwater Reverse Osmosis Membranes |
|
|
|
|
|
|
1500 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 20” SMART Filter Cartridge |
|
|
|
(2) 2.5” x 40” Freshwater Reverse Osmosis Membranes |
|
|
|
|
|
|
1800 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 20” SMART Filter Cartridge |
CQE-RC-04030 |
|
|
4” x 40” Freshwater Reverse Osmosis Membrane |
|
|
|
|
|
|
2500 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 20” SMART Filter Cartridge |
|
|
|
(2) 2.5” x 40” Freshwater Reverse Osmosis Membranes |
|
|
|
|
|
|
4000 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
CQE-RC-04034 |
|
|
4-5/8” x 20” SMART Filter Cartridge |
|
|
|
4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge |
|
|
|
(2) 4” x 40” Freshwater Reverse Osmosis Membranes |
|
|
|
|
|
|
|
|
|
|
5000 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 20” SMART Filter Cartridge |
|
|
|
4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge |
|
|
|
(3) 4” x 40” Freshwater Reverse Osmosis Membrane |
|
|
|
|
|
|
7000 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 20” GAC Filter Cartridge |
|
|
|
4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge |
|
|
|
4-5/8” x 20” SMART Filter Cartridge |
|
|
|
(4) 4” x 40” Freshwater Reverse Osmosis Membrane |
500-2500 GPD Reverse Osmosis Manual
4000-7000 GPD Reverse Osmosis Manual
500 GPD Reverse Osmosis Schematic
1000 GPD Reverse Osmosis Schematic
1500 GPD Reverse Osmosis Schematic
2500 GPD Reverse Osmosis Schematic
4000 GPD Reverse Osmosis Schematic
5000 GPD Reverse Osmosis Schematic
7000 GPD Reverse Osmosis Schematic
